6040z X&Y limit switch (10T85) adapters

# 6040z CNC Limit Switch Adapters (10t85 / KW11-3Z)

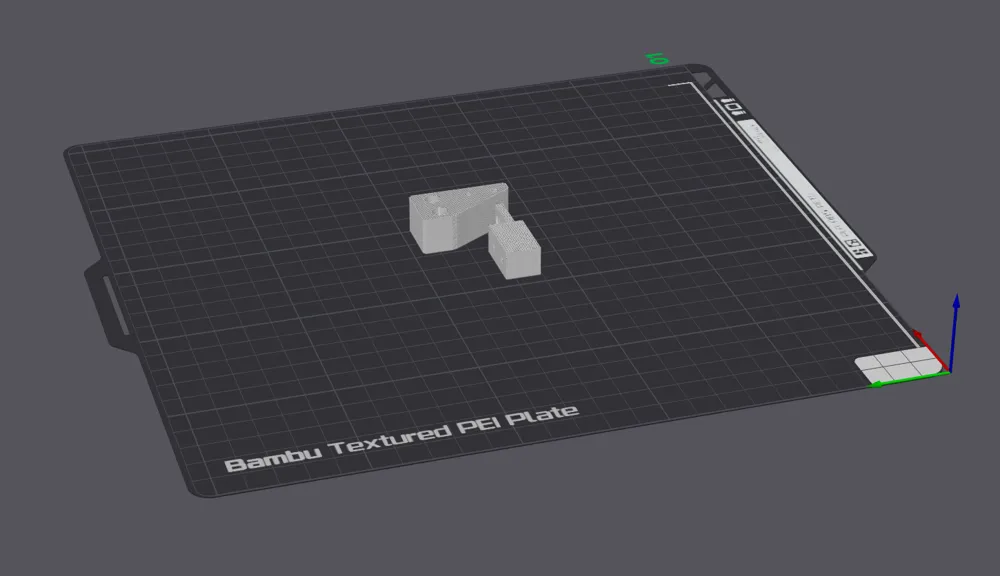

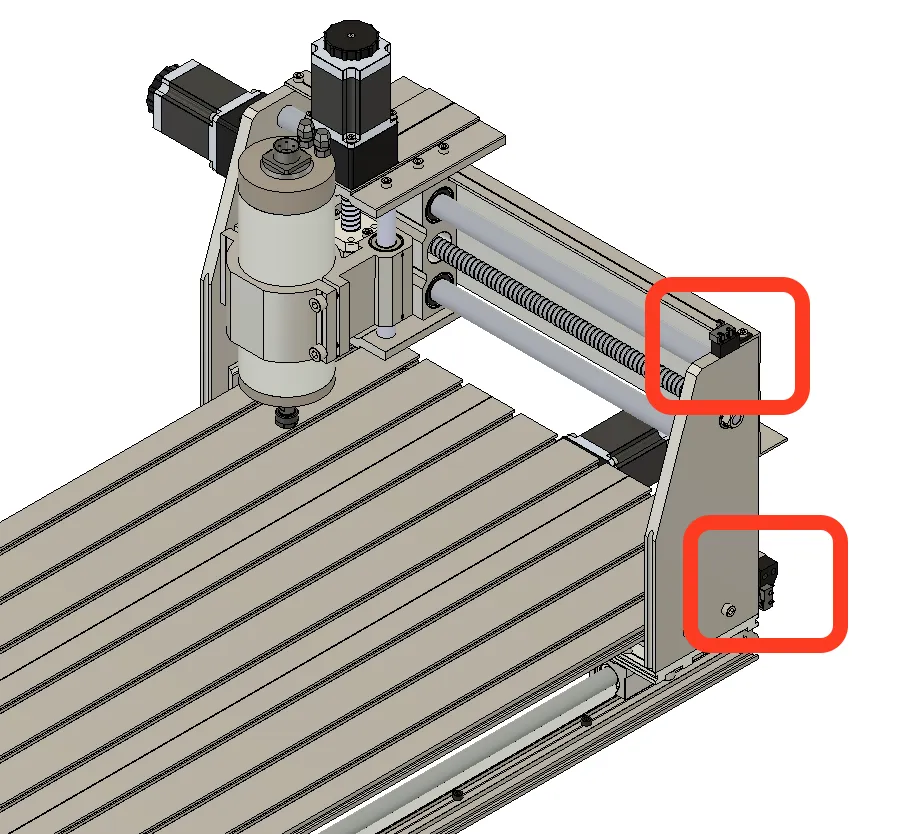

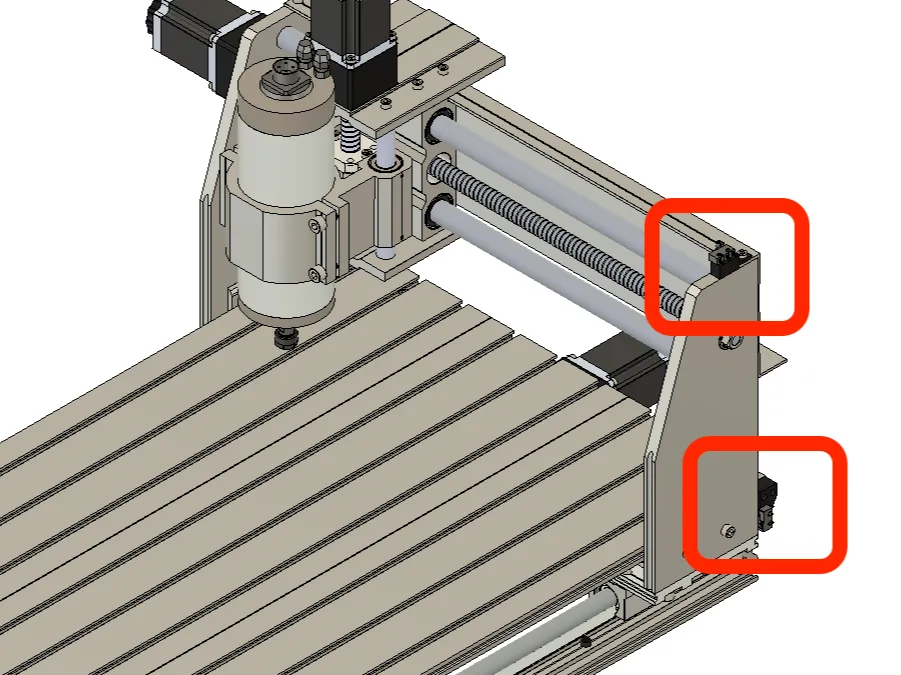

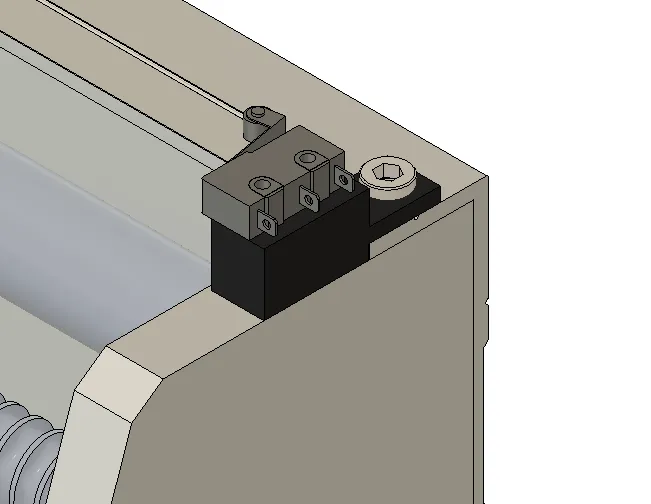

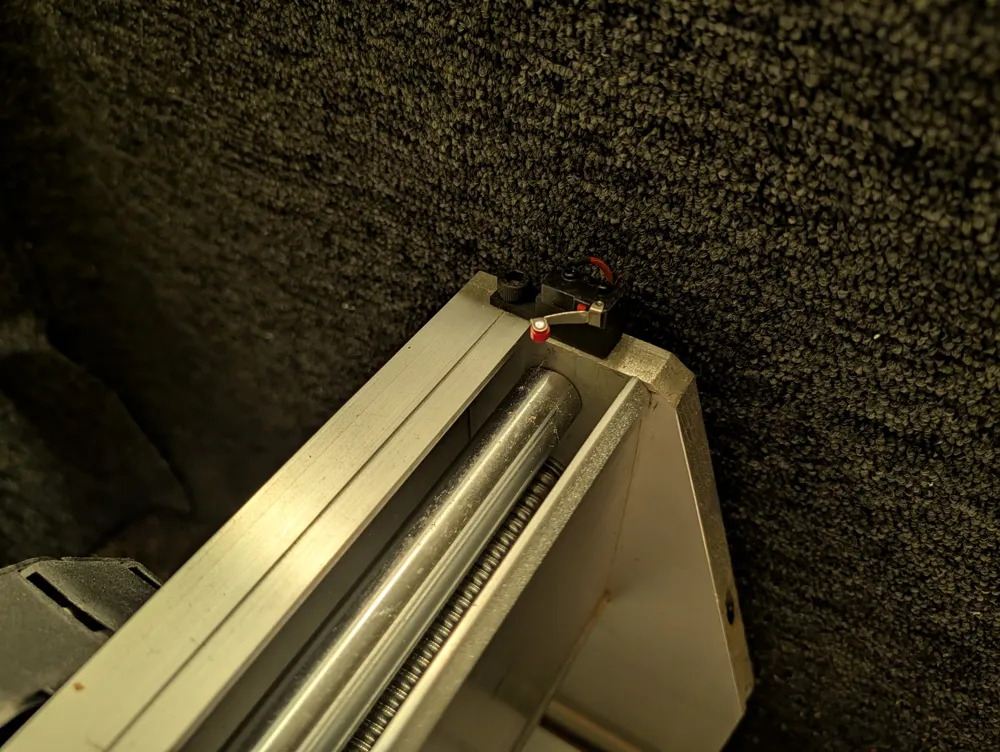

Upgrade your **6040z CNC** with these custom-designed X&Y limit switch mounts. These adapters are designed to fit the common 10t85 (KW11-3Z) style microswitches, providing a reliable homing solution and protecting your machine from over-travel.


This mod is specifically optimized for machines running **Estlcam**, but works with any GRBL or CNC controller.

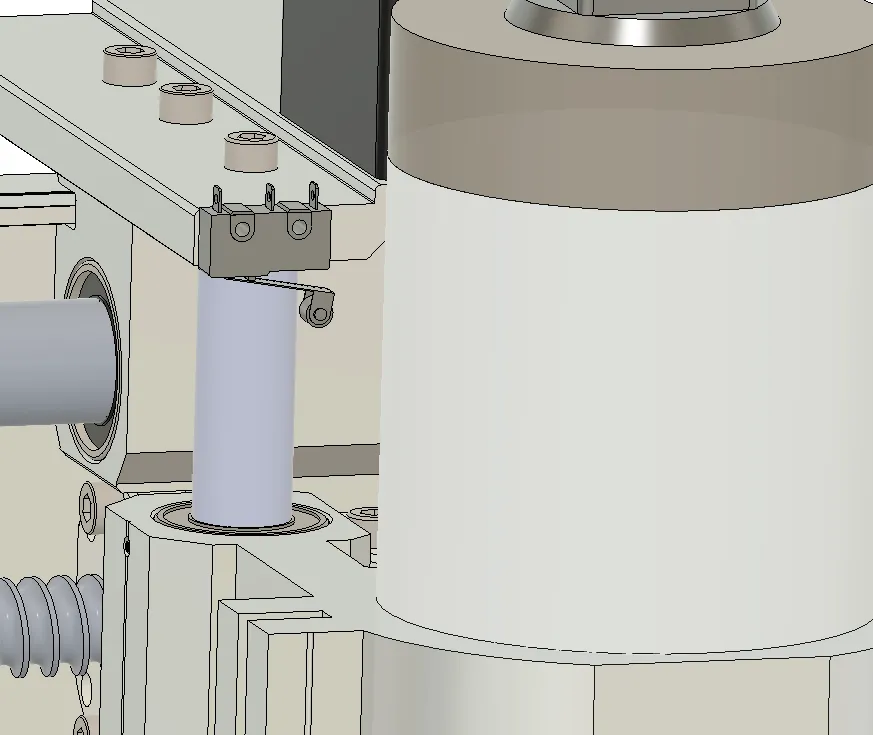

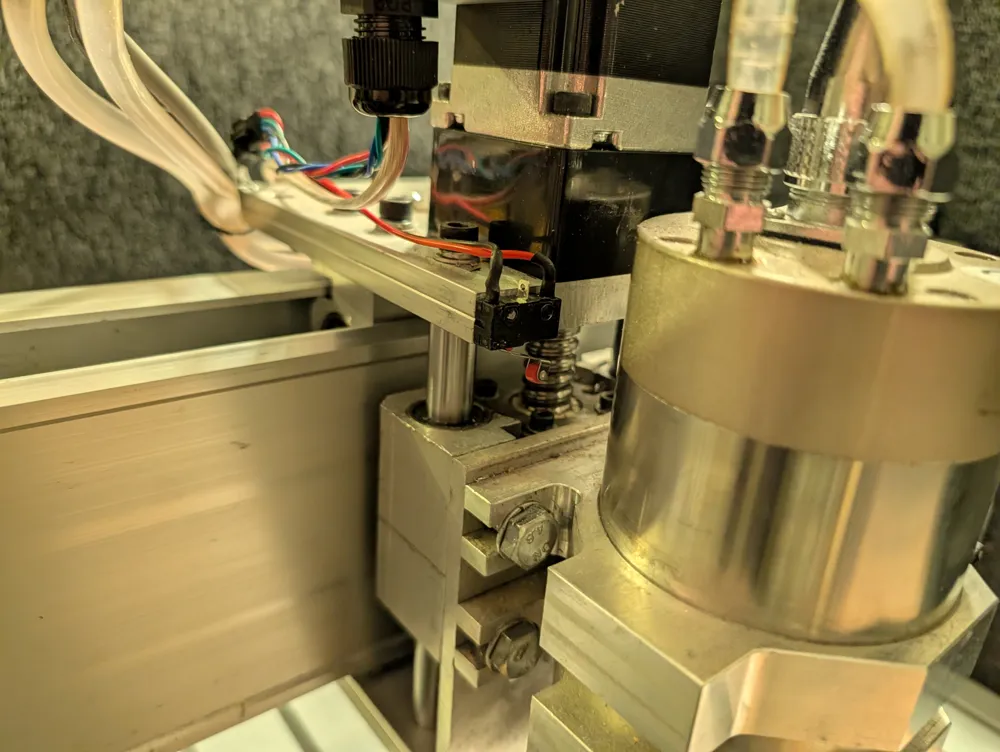

For the Z axis, I simply bored (2mm) two holes in the aluminium part and used the M2.6x12mm screws as shown below:





---

## 🛠️ Required Hardware

To complete this assembly, you will need the following parts. I have included links to verified sources below:

### 1. Limit Switches (10t85 / KW11-3Z / choose with wheel)
* Aliexpress
* Amazon

### 2. AWG22 Shielded Wire
* Aliexpress
* Amazon

### 3. Mounting Screws (M2.6 x 12mm)
* Aliexpress
* Amazon


---

## ⚡ Wiring & Setup (Estlcam)

These mounts were designed with the **Estlcam Klemmenadapter** in mind. But I guess the original 6040z CNC has an input for limit switches too.

### Configuration:

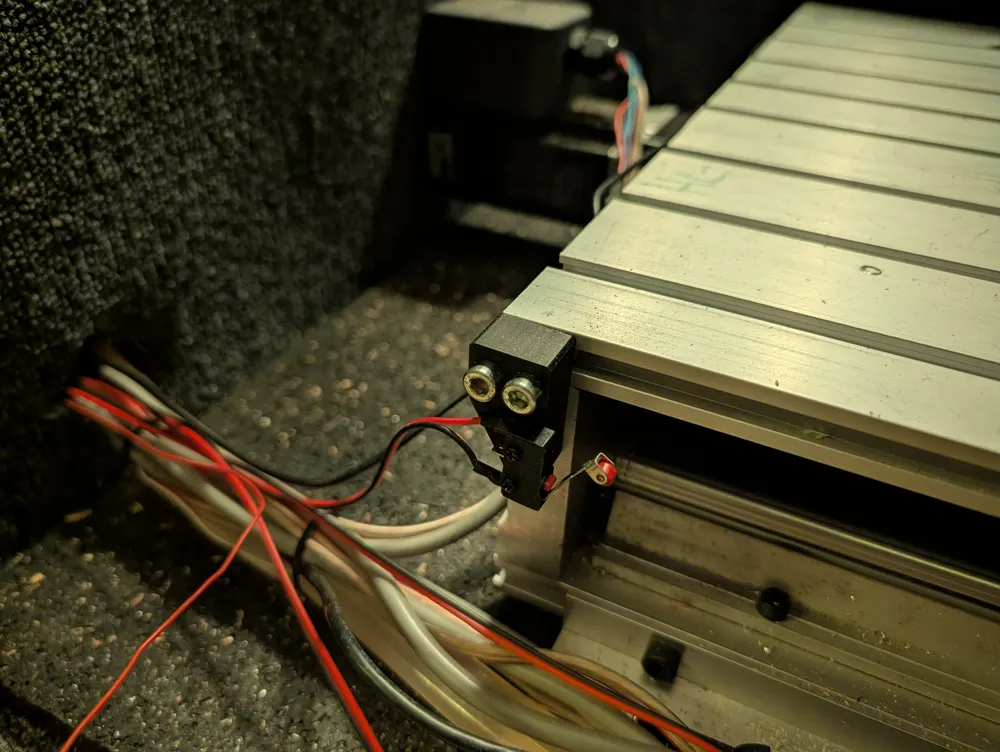

* **Normally Closed (NC):** I used the **two outer pins** of the switch.
* **Safety First:** Wiring as NC is highly recommended. If a wire breaks or a terminal comes loose, the machine will fail-safe and stop immediately.
* **Documentation:** For detailed wiring schematics on the controller side, please refer to the [official Estlcam Klemmenadapter guide](https://www.estlcam.de/Klemmenadapter.php).


---

## 💡 Design Notes
I created these to be as low-profile as possible to avoid losing any precious travel distance on the X, Y, or Z axes. Simply slide them into the T-slots or bolt them to the existing gantry points depending on your specific 6040z revision.

### References:

6040 CAD file https://grabcad.com/library/6040-cnc-1-5kw-2020-model-1
10T85 CAD file https://www.printables.com/model/182698-10t85-lever-switch-_w-roller/files
