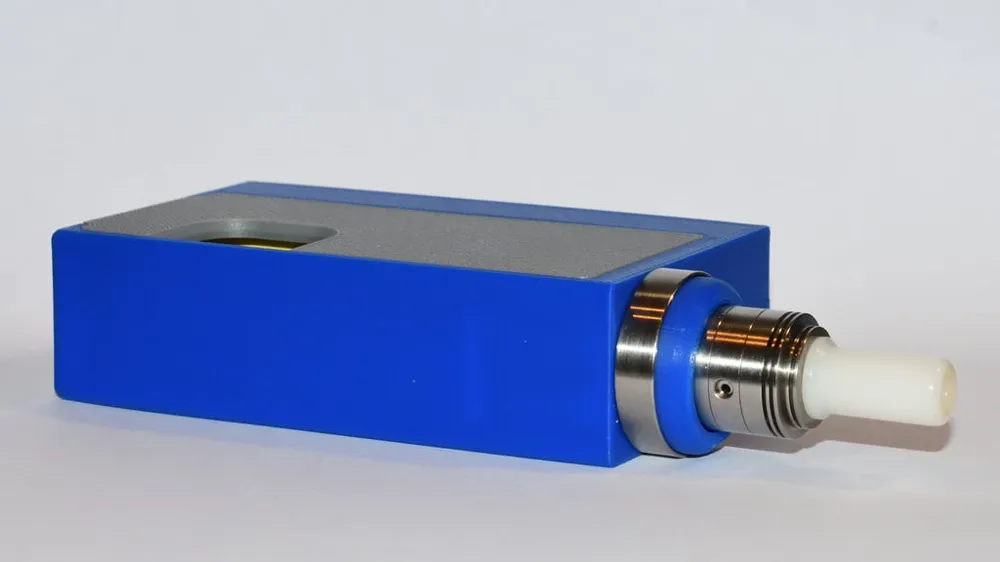

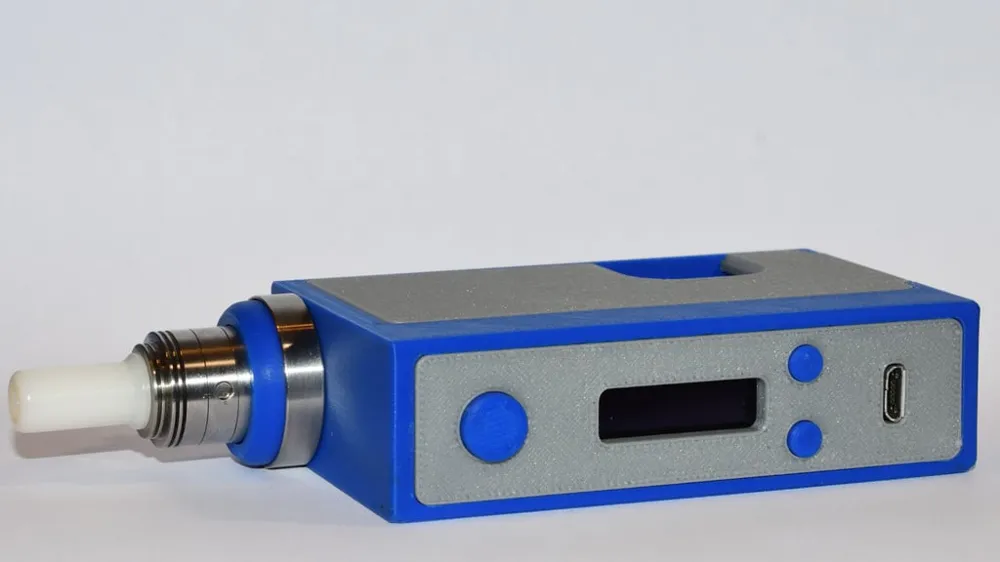

Evol DNA75 Box Mod small edition
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
3
1
0
0
2
0
Released
Description
Summary
Here is a "natural" small evolution of this one: http://www.thingiverse.com/thing:1536390.

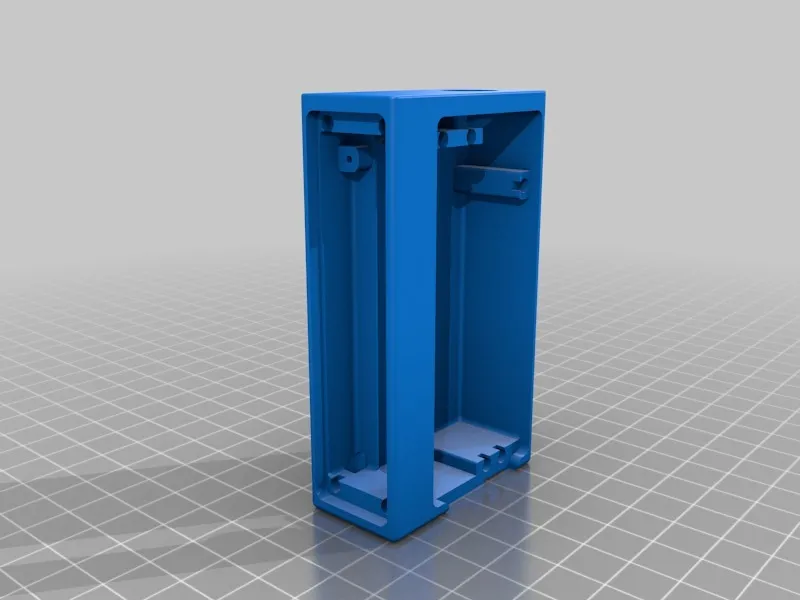

External size are: 50x24x86.

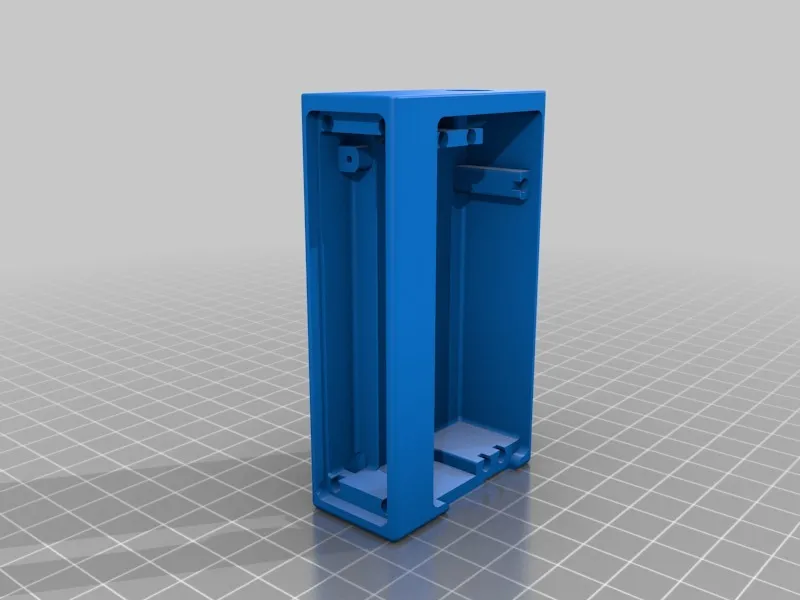

Two version of body: 10 or 12 mm drip cap hole.

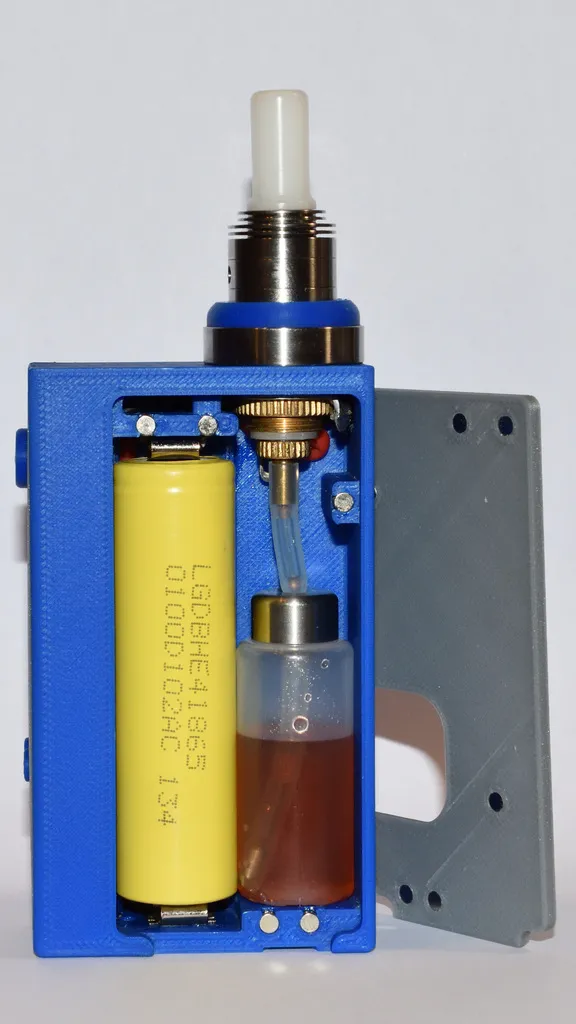

To mount u need:
- 9 magnets 3x2 mm;
- 10 magnets 3x1 mm;
- drip cap (10 or 12 mm hole);
- round bottle (18 mm);
- Evolv DNA75;
- some wire;

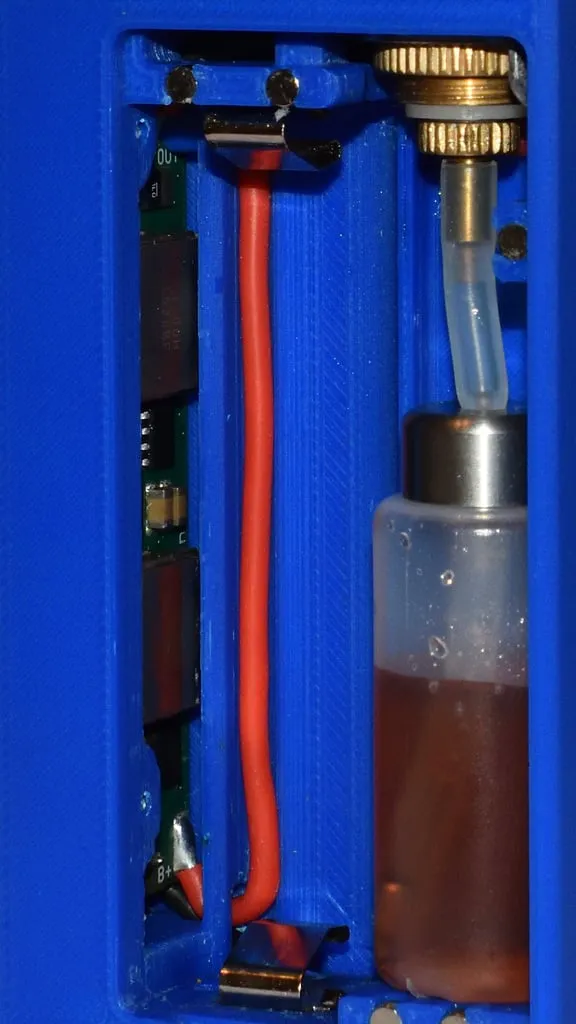

- battery contacts (i use keystone 5209) on Amazon: http://fave.co/2bsgxvX;
- 3x M1.6x5 or M2x5 to fix the dna75.
Good Luck.
Print setting suggested: 0,15 mm.
