Modular Pottery Stamp System | Customizable Plates

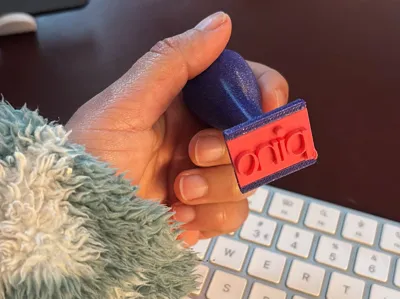

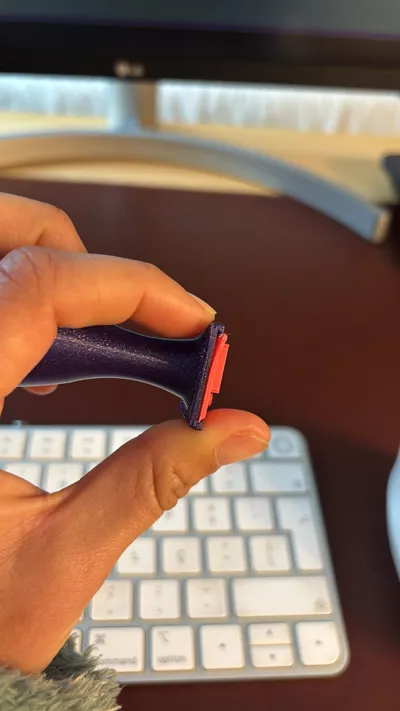

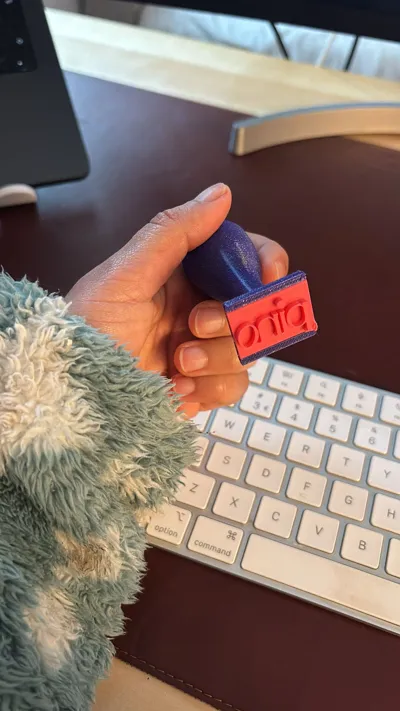

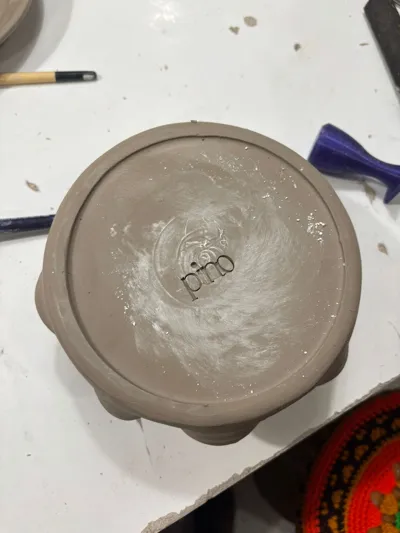

One handle, infinite signatures. This is a modular pottery stamp system designed for ceramicists and potters. Instead of printing a whole new tool for every design, this system features a comfortable, ergonomic handle with a sliding dovetail rail. You can swap out different stamp plates in seconds—perfect if you use different logos, signatures, or dates on your work.

✨ Features:

• Modular Design: The stamp plates slide securely into the handle. Print one handle and as many plates as you need.
• Fully Customizable: The stamp plate is parametric! You can generate plates with your name, studio logo, or "Handmade" text easily.
• Ergonomic Handle: Designed for a comfortable grip to apply even pressure into wet clay.
• Deep Relief: The plates are designed with deep text extrusion to ensure a crisp mark without clogging.

📂 What's Included:

1. The Handle (STL): The main grip. Print this once.
2. The Stamp Plate (OpenSCAD): The customizable part.

⚙️ How to Customize the Stamp: The stamp plate is provided as an OpenSCAD script.

1. Download the .scad file (or use the "Customize" button if available).
2. Open it in OpenSCAD (free software).
3. Change the text_string to your desired text (e.g., "pino", "2024", "Clay").
4. Render (F6) and Export as STL.
5. Note: The plate is designed with a chamfered dovetail to fit the handle perfectly.

🖨️ Printing Tips:

• Orientation: Print the handle standing up (flat base) and the stamp plate flat with the text facing up.
• Infill:
  • Handle: 15-20% Gyroid (for strength while pressing).
  • Stamp Plate: 100% infill is recommended to ensure the text letters don't snap off under pressure.
• Material: PLA is great for standard clay. If you work with firm clay, PETG offers better impact resistance.
