I modeled it and used it in my printed airplane from SOARKRAFT - Roughgen 1200mm MH32 Airfoil - 2 SERVO

Can also be used on other models from different manufacturers.

I didn't want to glue the servo directly with hot melt glue, I like clean technology and the servo fixed in this way in the box can be removed at any time without peeling and cleaning...

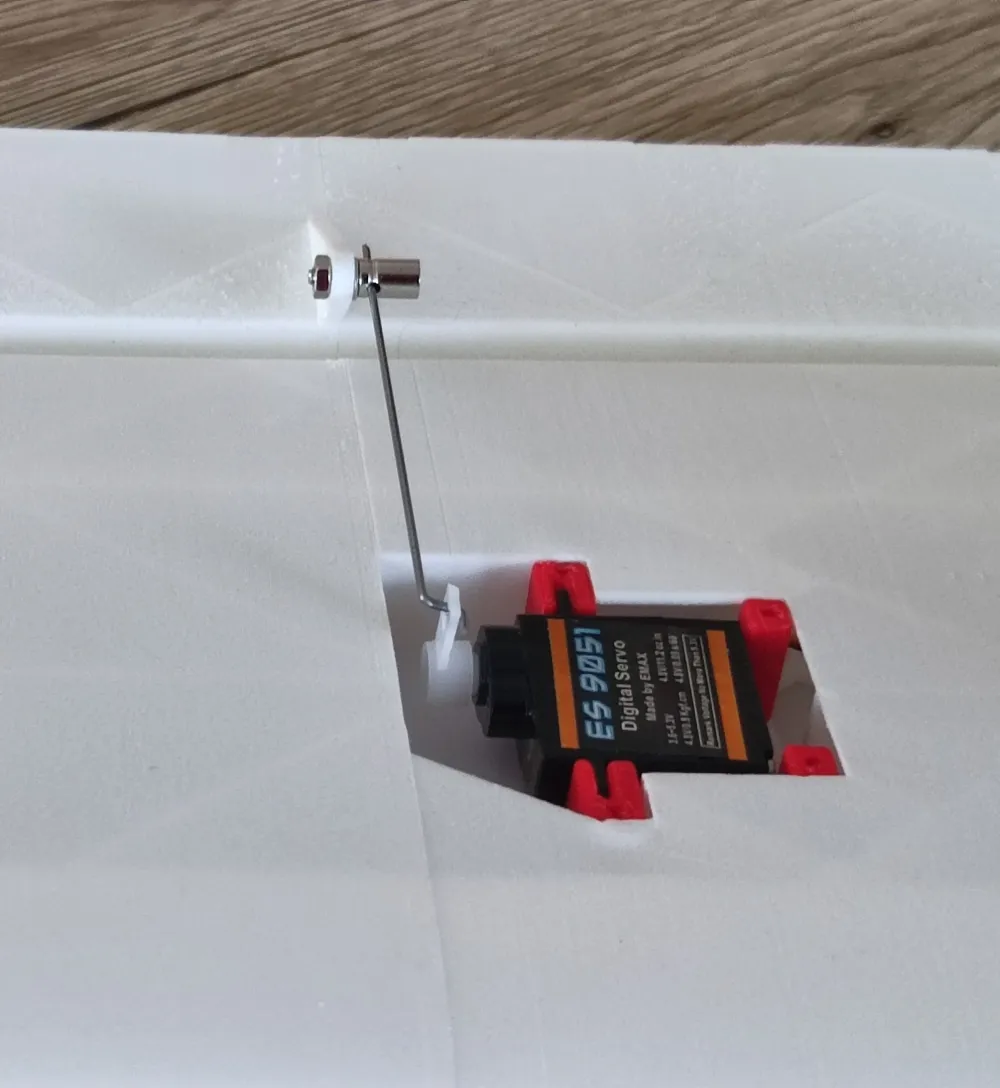

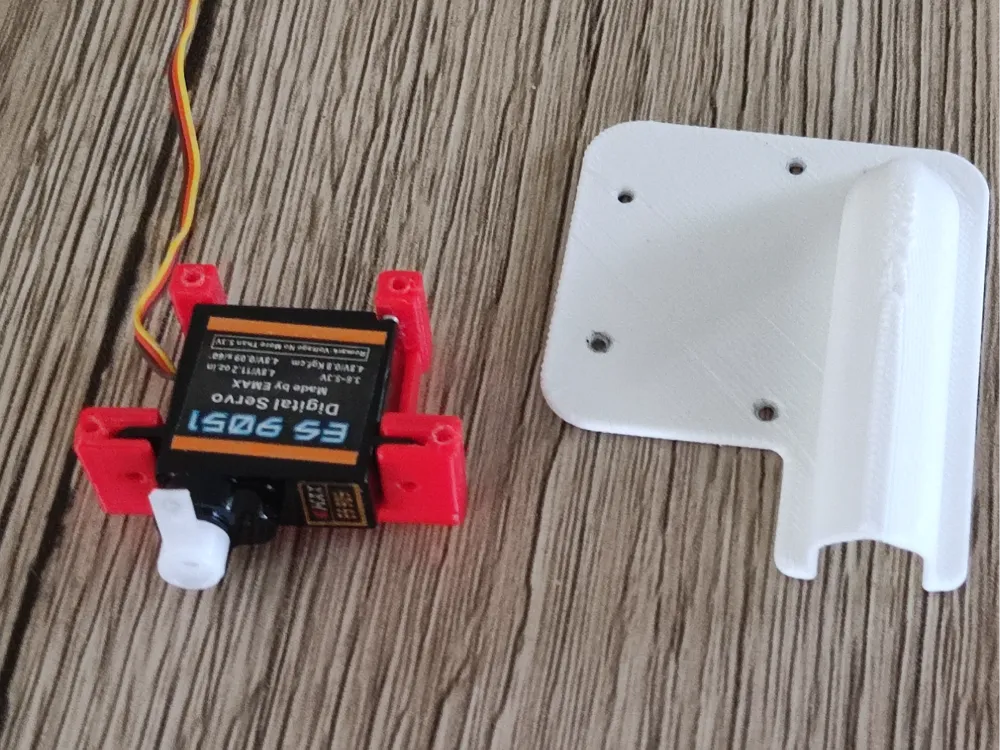

Glue the holder, insert the servo into it, which fits perfectly and securely.

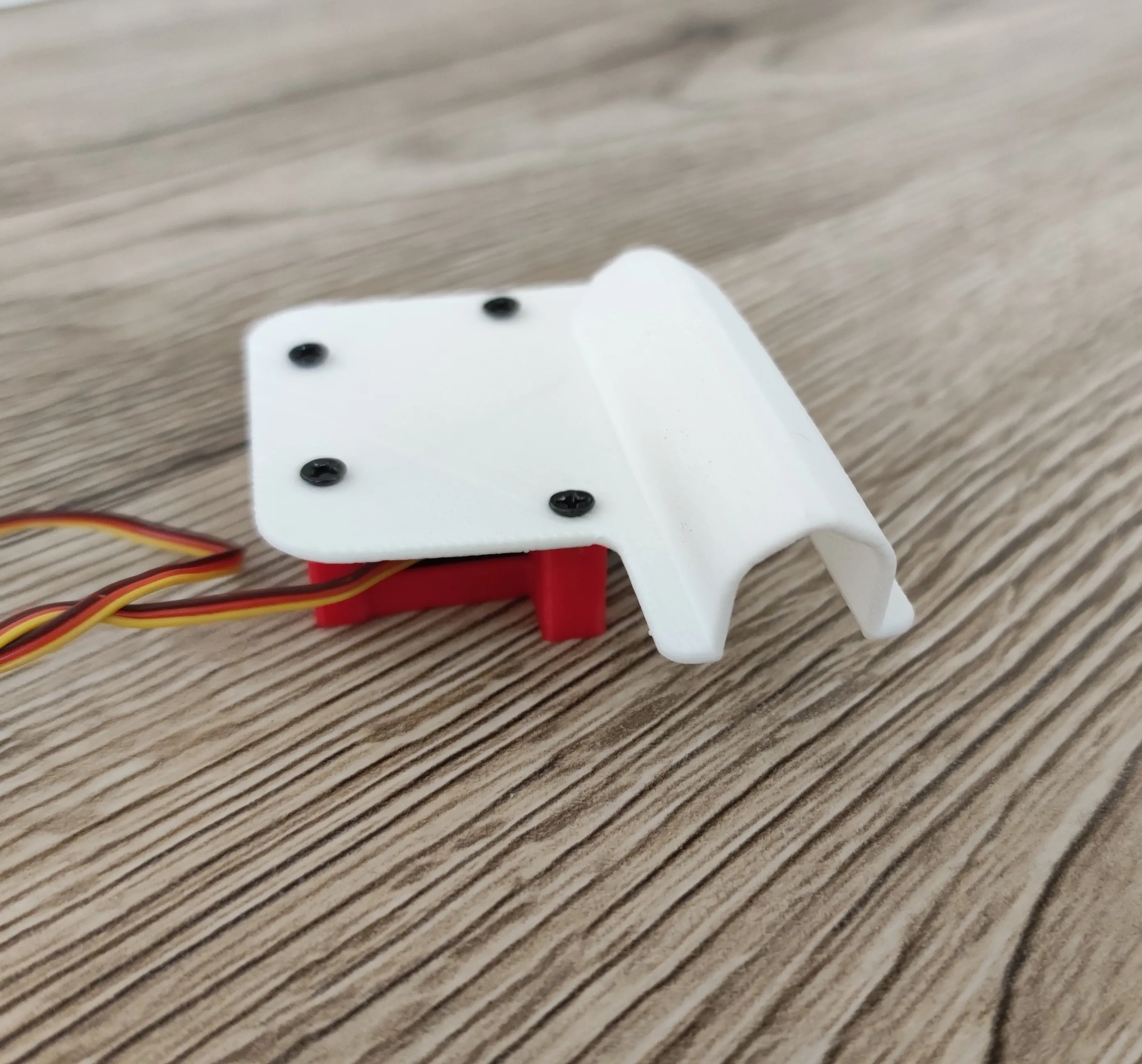

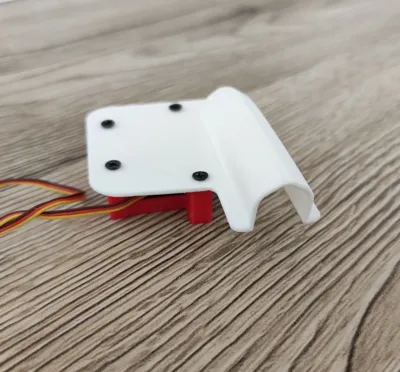

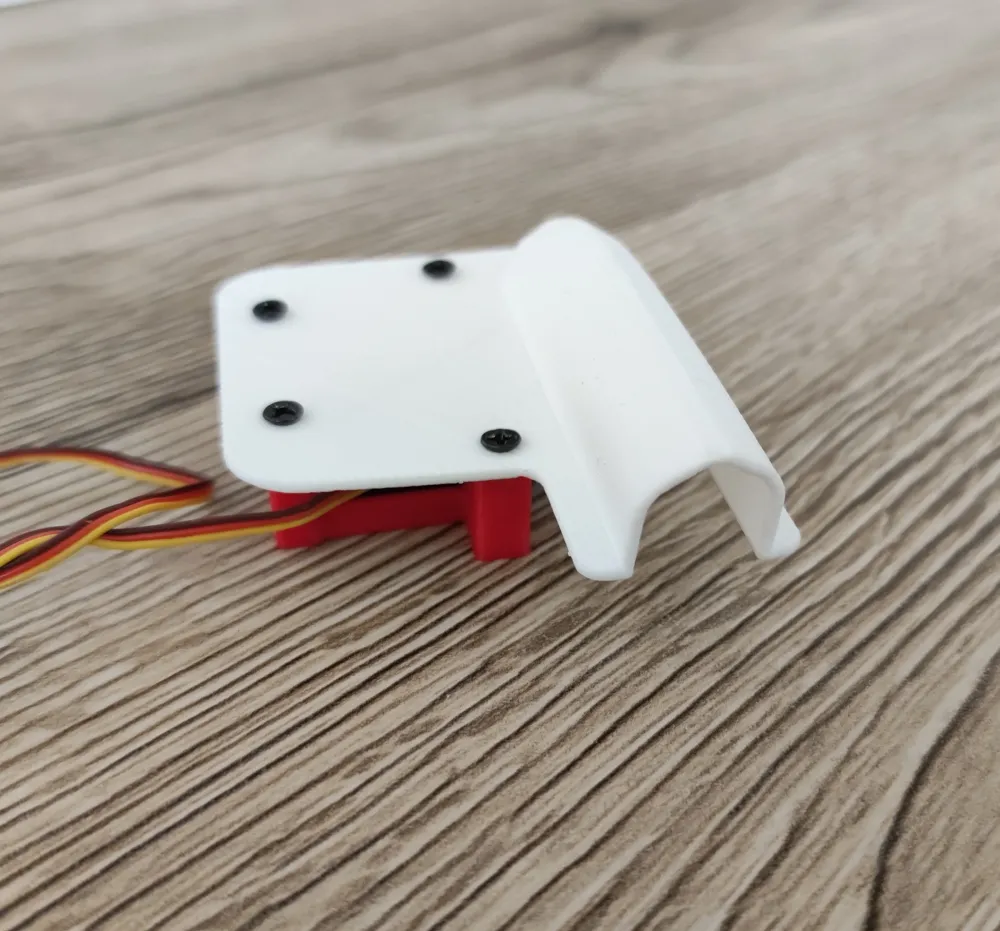

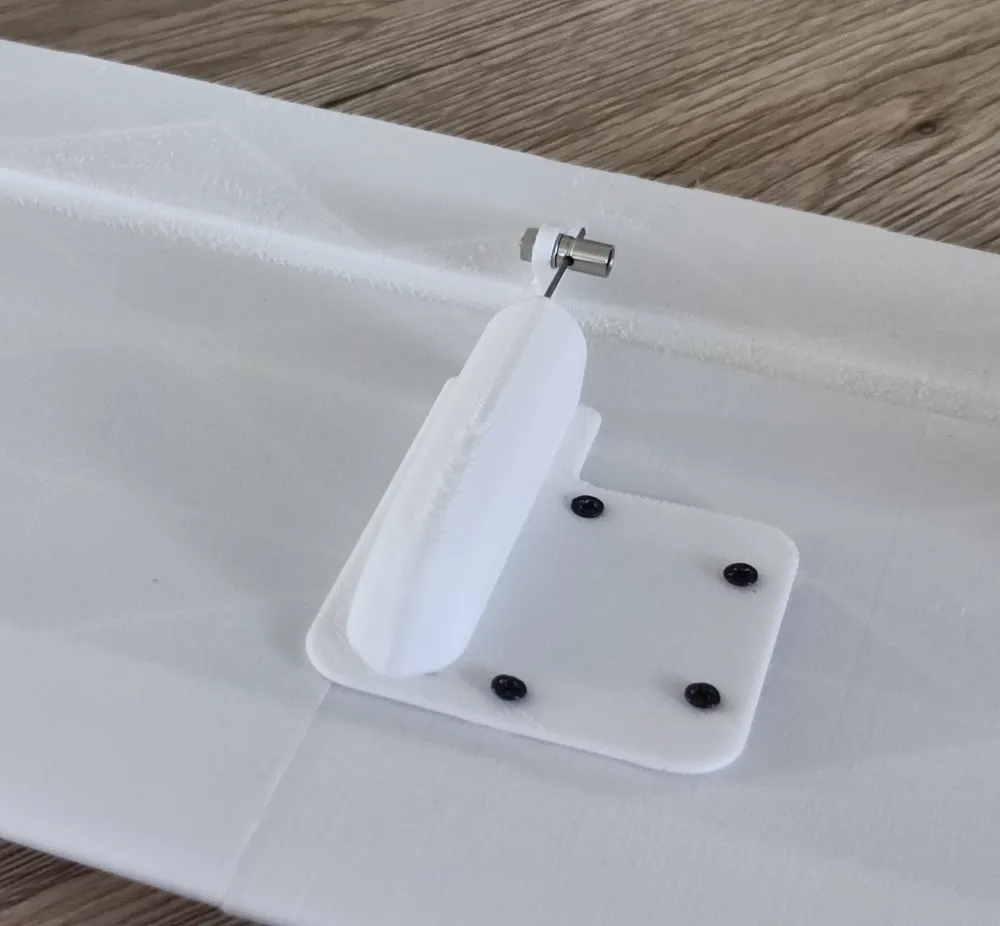

I also didn't want to glue the servo cover directly to the wing, as in the manufacturer's instructions, so I modeled the servo cover, which I screw to the servo holder with small screws (M2).
It's clean and simple.

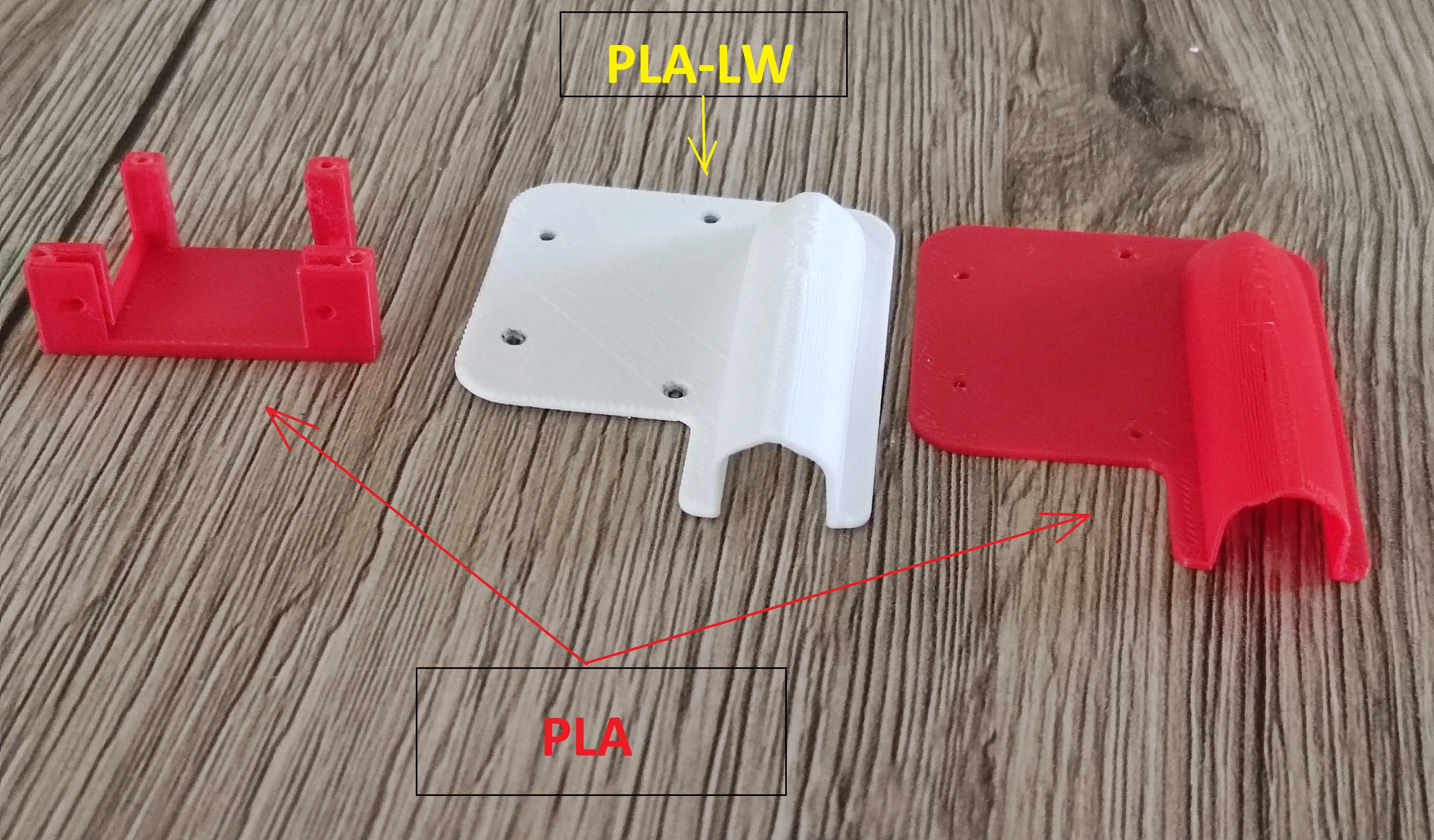

Print the servo holder from PLA and you can also print the servo cover from PLA or PLA-LW. The printing files are adjusted according to the material you will print with.

Let it serve!

3D printing settings

Material: PLA
Layer height: 0.2 mm
3 perimeter
15% infill
no support
