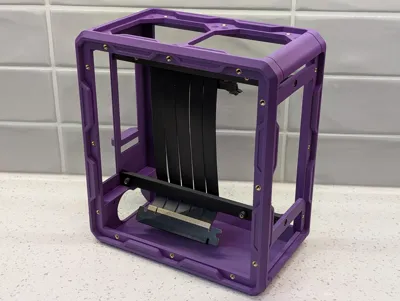

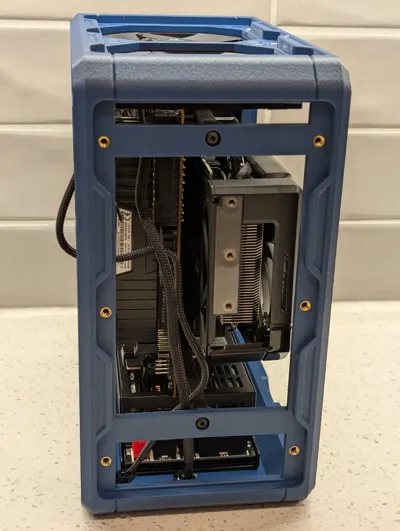

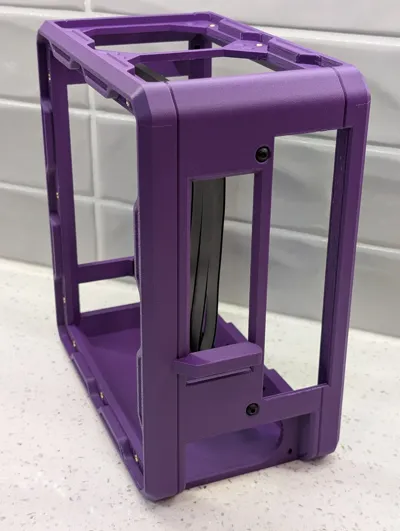

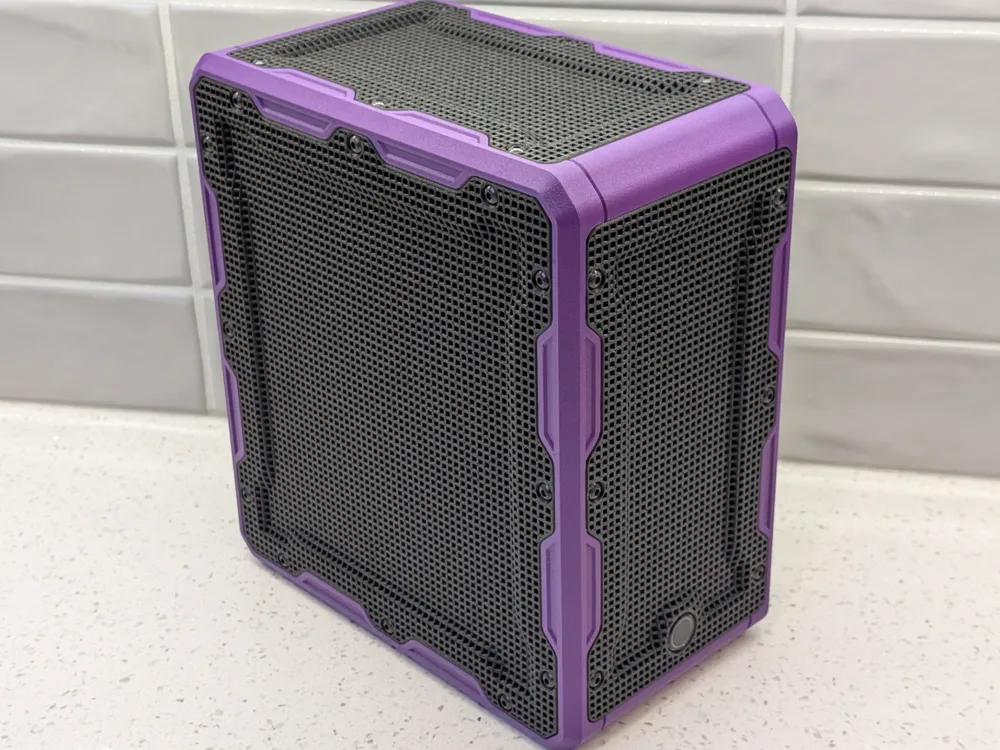

7L ITX CASE
- 250mm (H) x 130mm (W) x 235mm (L)

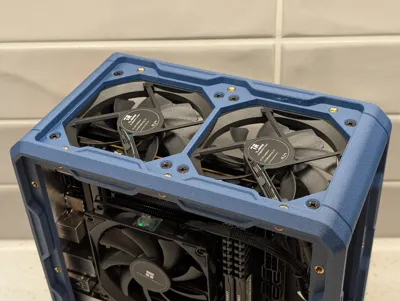

- Fits two slim 92mm top fans for awesome thermals
- fits a flex psu
- Made for a 20cm double reverse PCIe riser

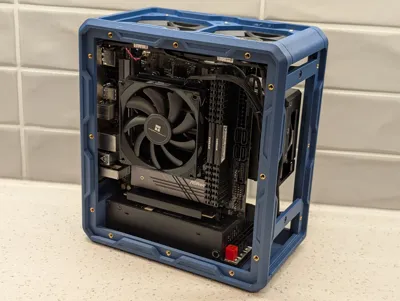

- Itx motherboard with 39mm max cooler height

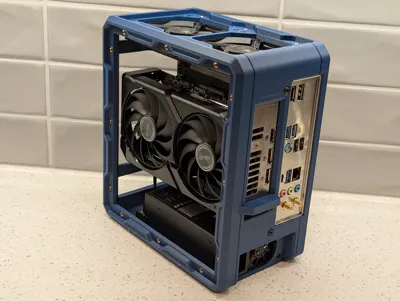

- 2.5 slot gpu with max length of 204mm
- Integrated slots for cable management ties

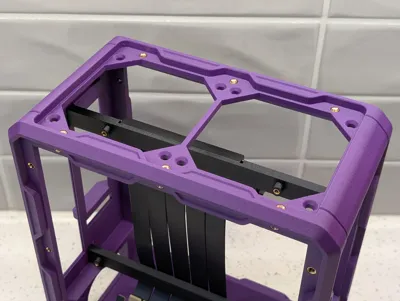

- removable itx support bars to fit components with ease

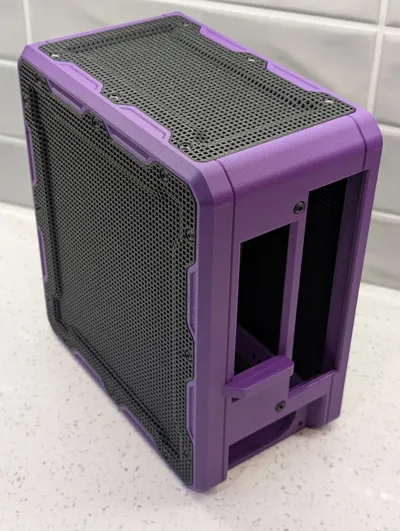

I print these in PETG-CF frames with ABS-GF grills.
Parts list:
- M4x8mm button head screws (for fastening grill panels)
- M4x6mm button head screws (for mounting itx support bars to case)
- M3x5mm button head screws (for fastening Motherboard, PCIe riser and GPU tabs
- M4x4x6mm heat set inserts (threaded inserts for grills)
- M3x4.5x5mm heat set inserts (threaded inserts for motherboard, PCIe holes, GPU tab holes)
- 16mm momentary led switch in black
- 20cm double reverse PCIe riser
- Dupont 2.54mm 1P(x2) 2P(x1)pins (switch connections to motherboard power switch input)
