Description

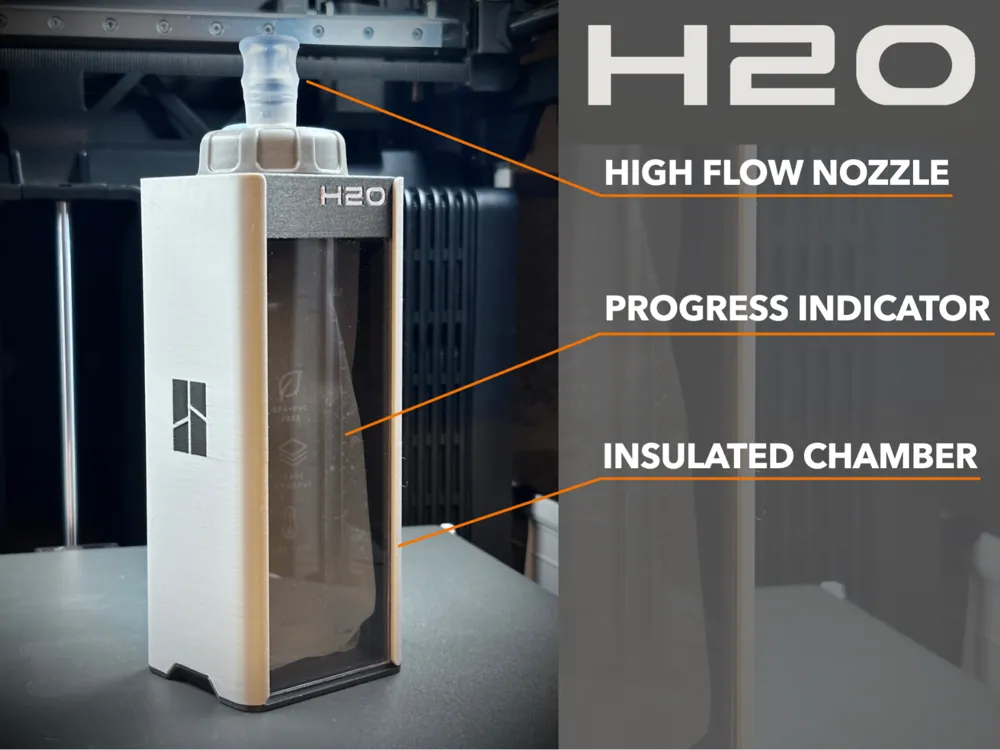

Meet H2O, a fully functional water bottle inspired by the iconic Bambu Lab design, built around the official Bambu Lab Water Bladder. Same ecosystem. Same vibes. Different kind of throughput.
Boost Me (for free)
If you enjoy my designs, please consider leaving a Boost as a thank you. Each one is greatly appreciated! Cheers!
- Bambu Lab H2–inspired design – instantly recognizable to fellow makers
- Uses the Bambu Lab water bladder – clean and leak-resistant
- Desk-friendly form factor – fits right next to your printer
- Conversation starter – “Is that a tiny printer?” → “No, it’s my hydration system.”
Maker Notes
This model is designed for easy printing and assembly. The bladder slides in and stays secured with pieces of filament and the cap.
Print Notes
- Two profiles included for dual color or single color printing (lettering and logo recessed).
- The sides are attached together with modeled-in bridges to keep them secure during printing. Cut and trim these bridges prior to assembly.
- The glass can be made by cutting 2mm acrylic or polycarbonate sheet to size of 54x140mm or by printing the included “Glass” profile with translucent filament. This works best printing via Bambu Studio and selecting the “GlassLike” PETG filament preset from project presets. The main changes are flow ratio 1.0 (tune to minimize gaps), increased heat to 265'C and turning off cooling.
Material Notes

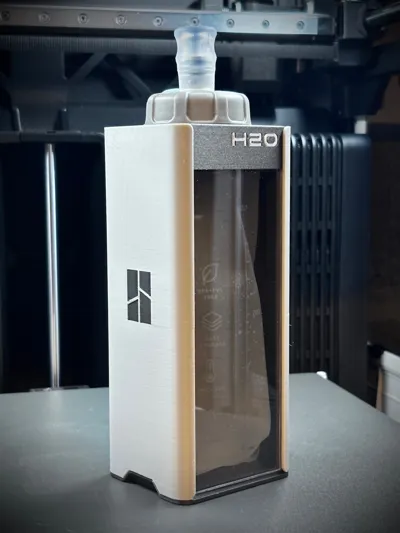

The bottle in photos is printed with:
Body and Top: PETG-CF Titan Gray & PETG Gray letters
Sides: PLA Tough+ & PLA Matte Charcoal logos

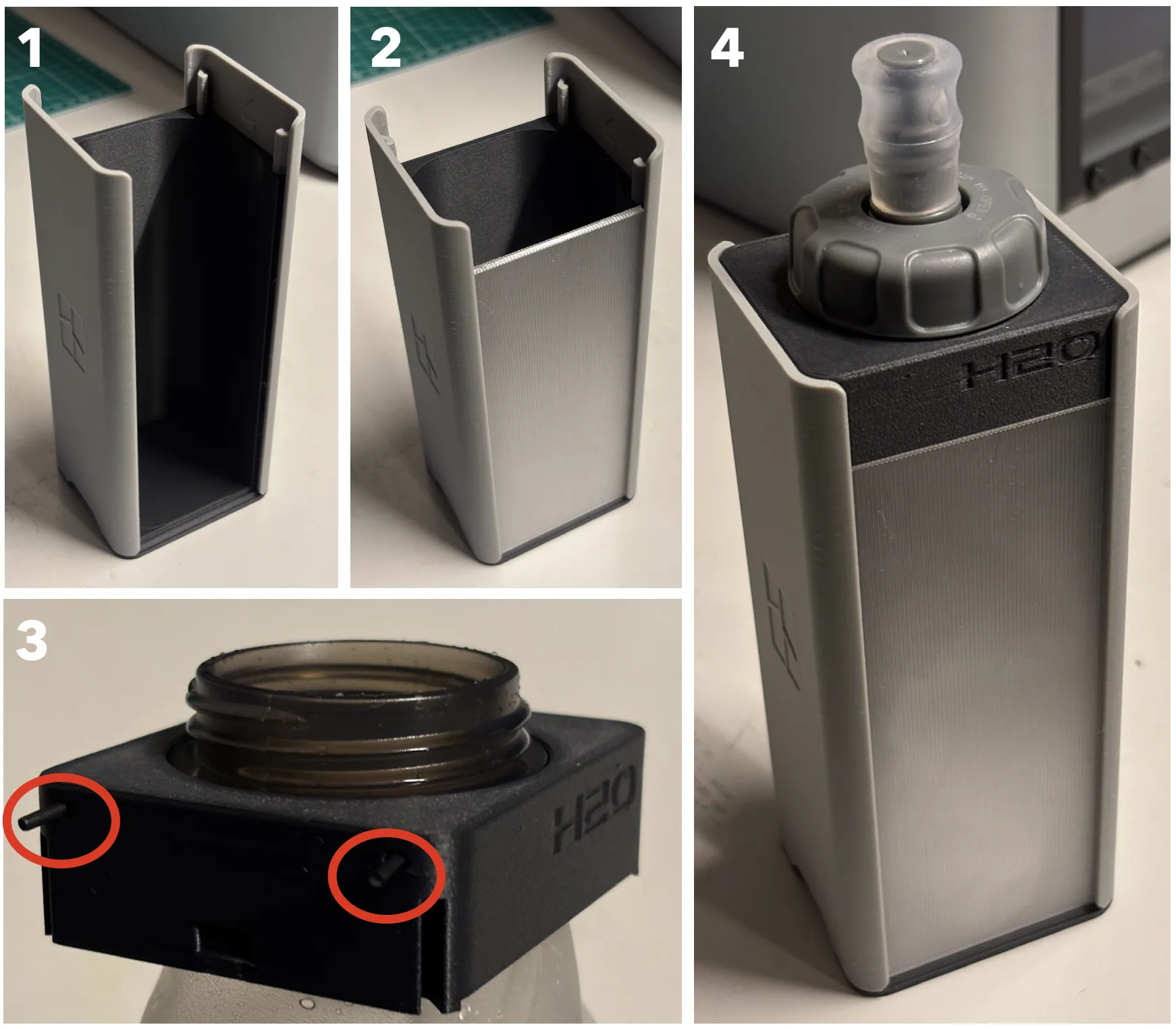

Assembly
- Slide the sides on the body.
- Slide the window in place (smooth side outwards)
- Insert the water bladder on the top and lock in place with pieces of filament.
- Snap the top in place and screw on the cap.
Disclaimer
This will not increase print quality, reduce stringing, or fix wet filament.
It will remind you to drink water while your printer does all the hard work.
Happy printing — and stay hydrated. 💦
