PLA cooler, wheels, latches, and handle

Designer

1.5 h

2 plates

4.9(24)

TPU wheels and latches, PLA handle and cooler

Designer

1.6 h

3 plates

5.0(4)

Open in Bambu Studio

Boost

418

1099

502

341

Released

Bill of Materials

List other parts

0.9 - 1 mm wire x 1: 25mm x2 for hinges, and 12mm x2 for latches

Description

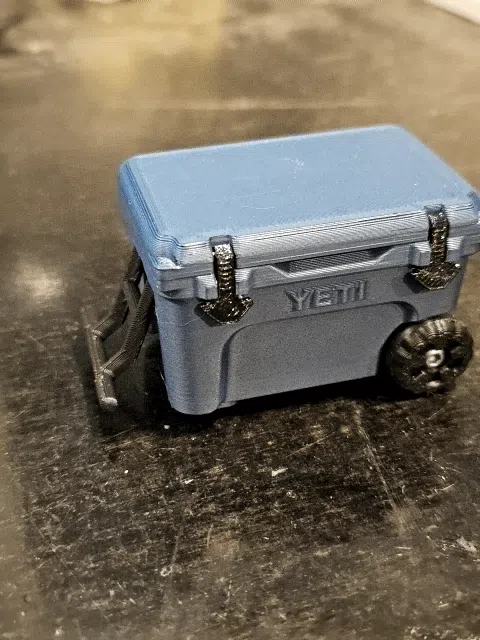

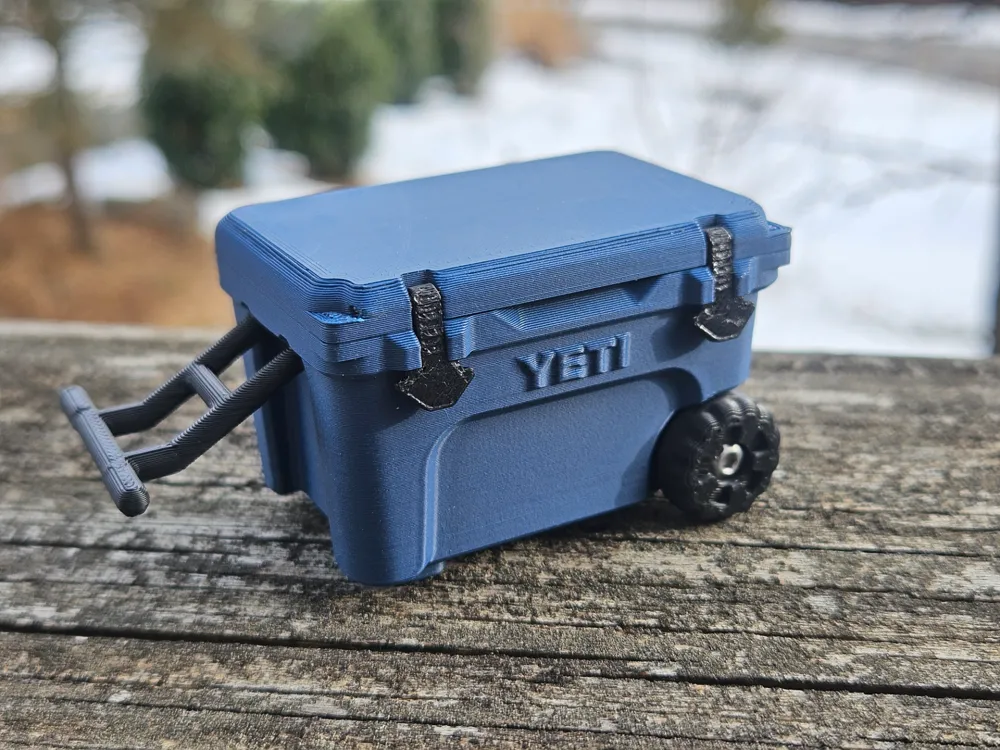

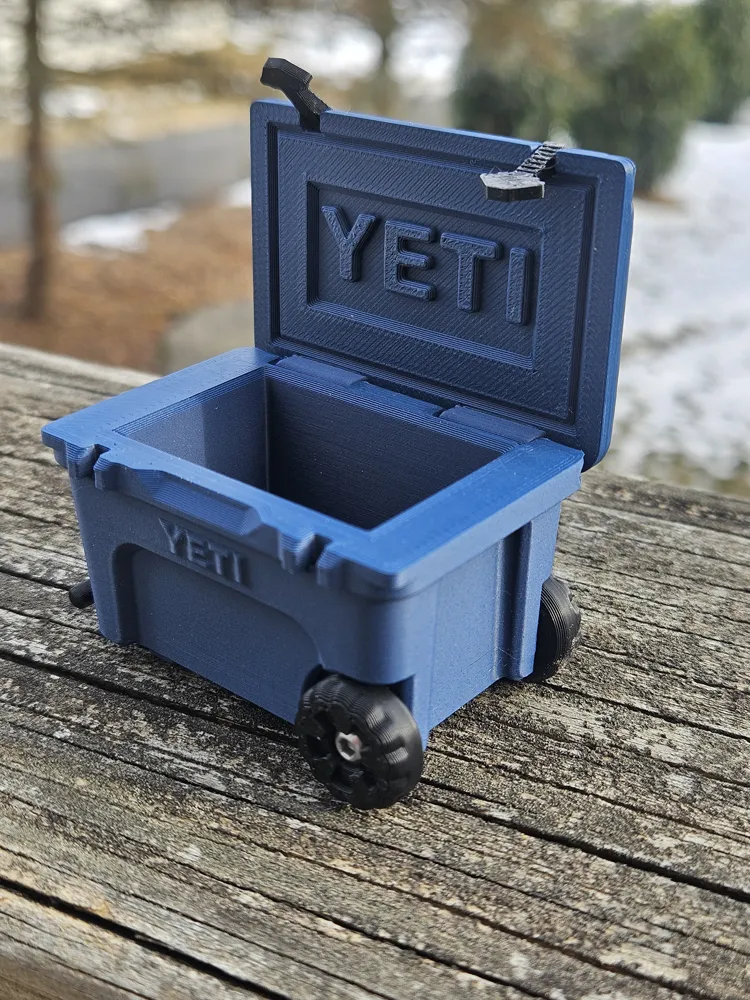

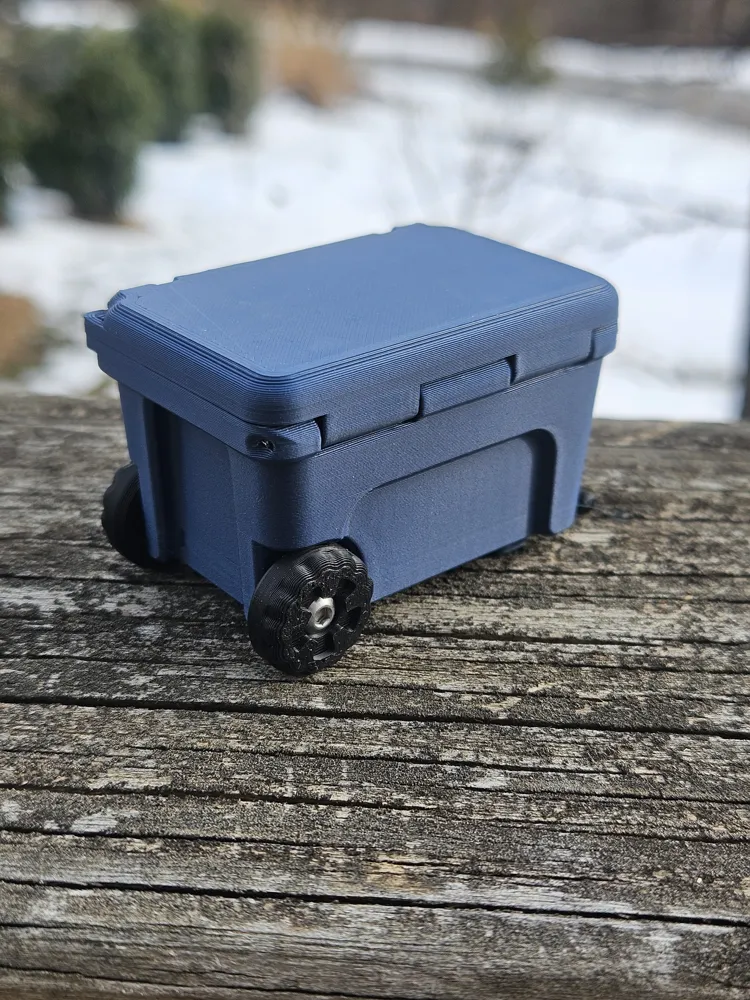

This is a wheeled version of my mini Yeti cooler.

Print the cooler and handle in PLA or PETG, if you want you can print the wheels and latches in TPU or PLA/PETG, but I recommend TPU as its more realistic.

Assembly:

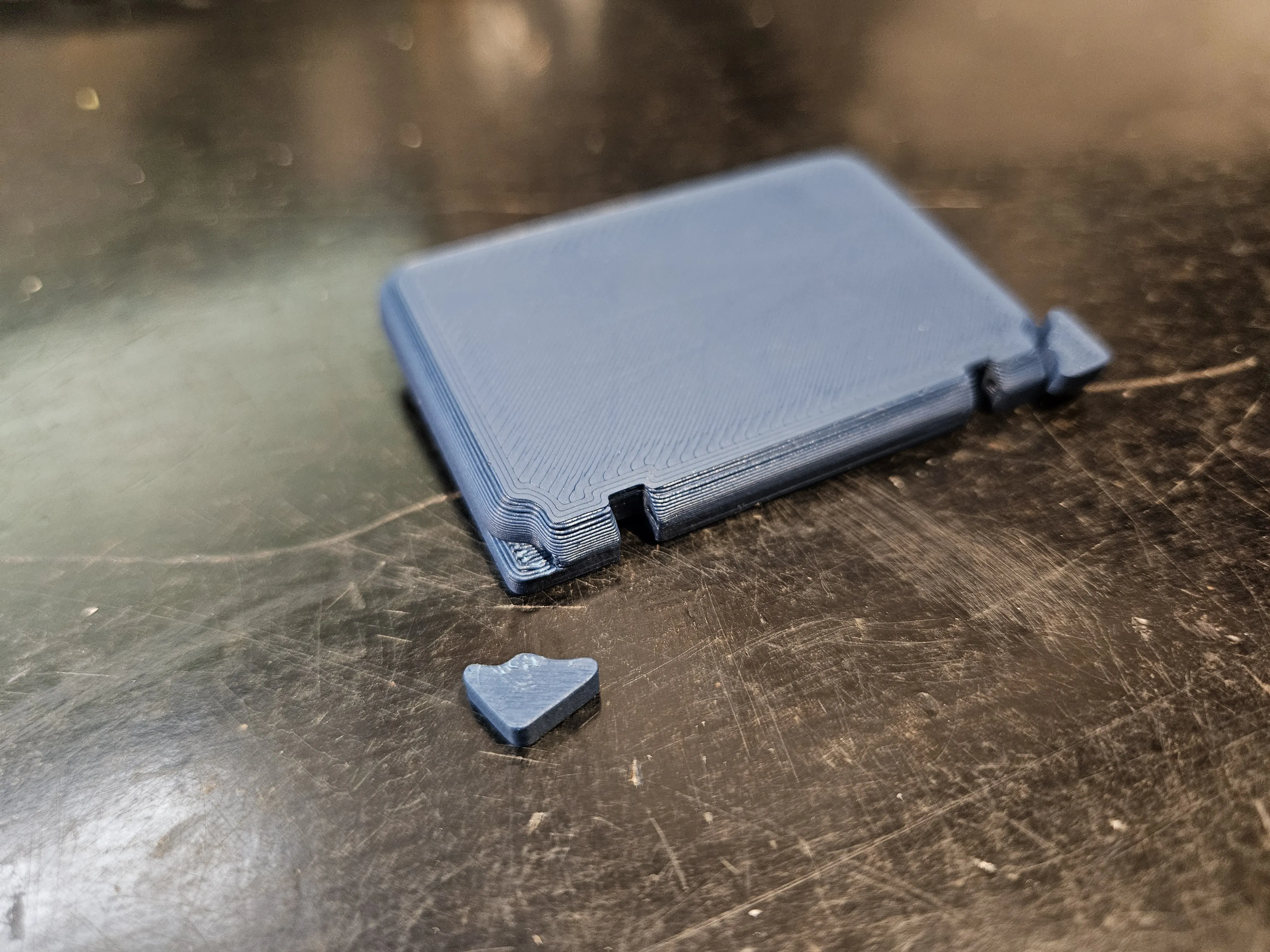

**Remove the custom supports from the lid.**

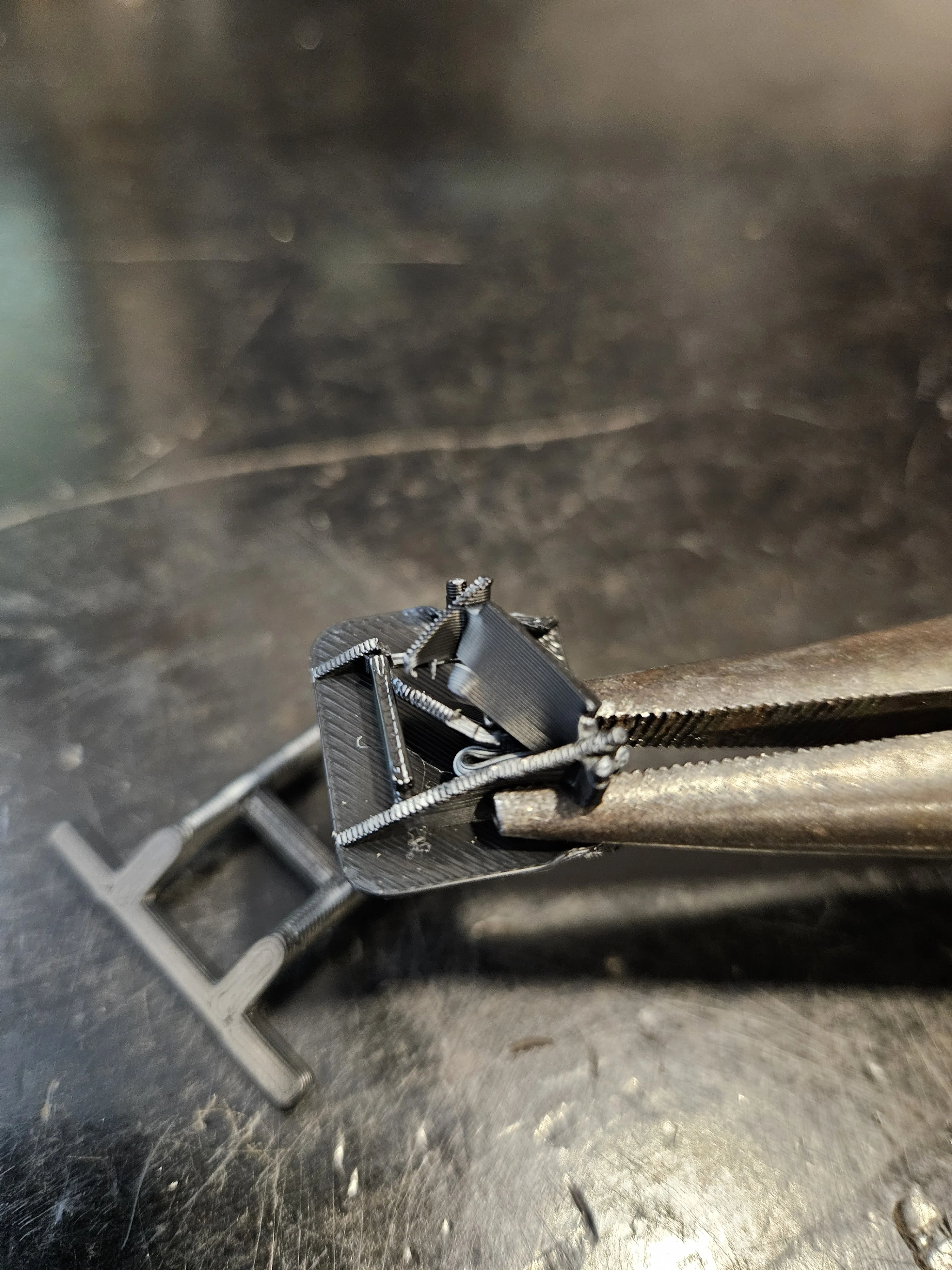

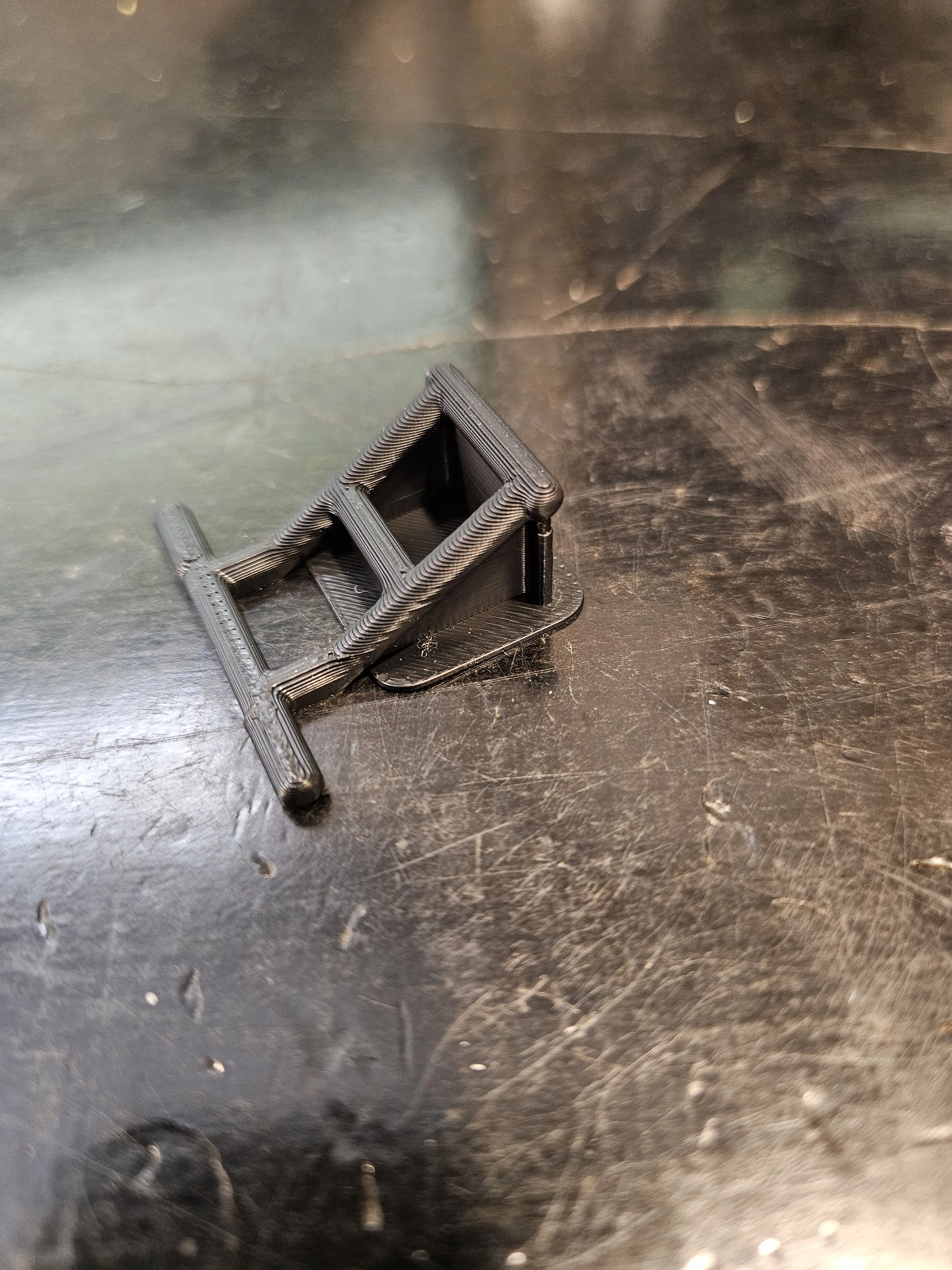

**Using your hands or plyers, remove the supports from the handle. (Be careful not to bend and break the handle)**

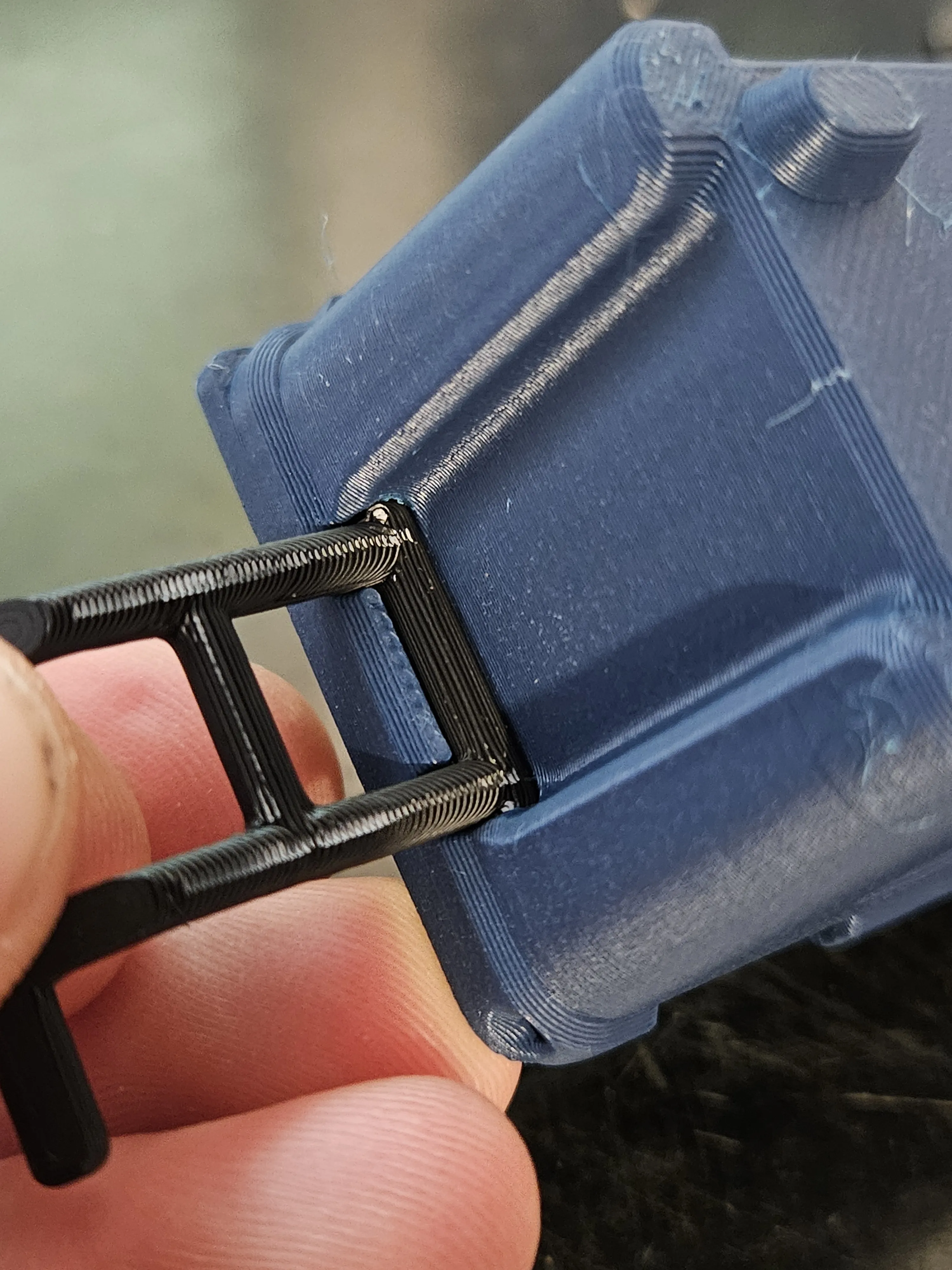

**Then take the handle and clip it into place on the cooler body. (Make sure the bent part is facing up)**

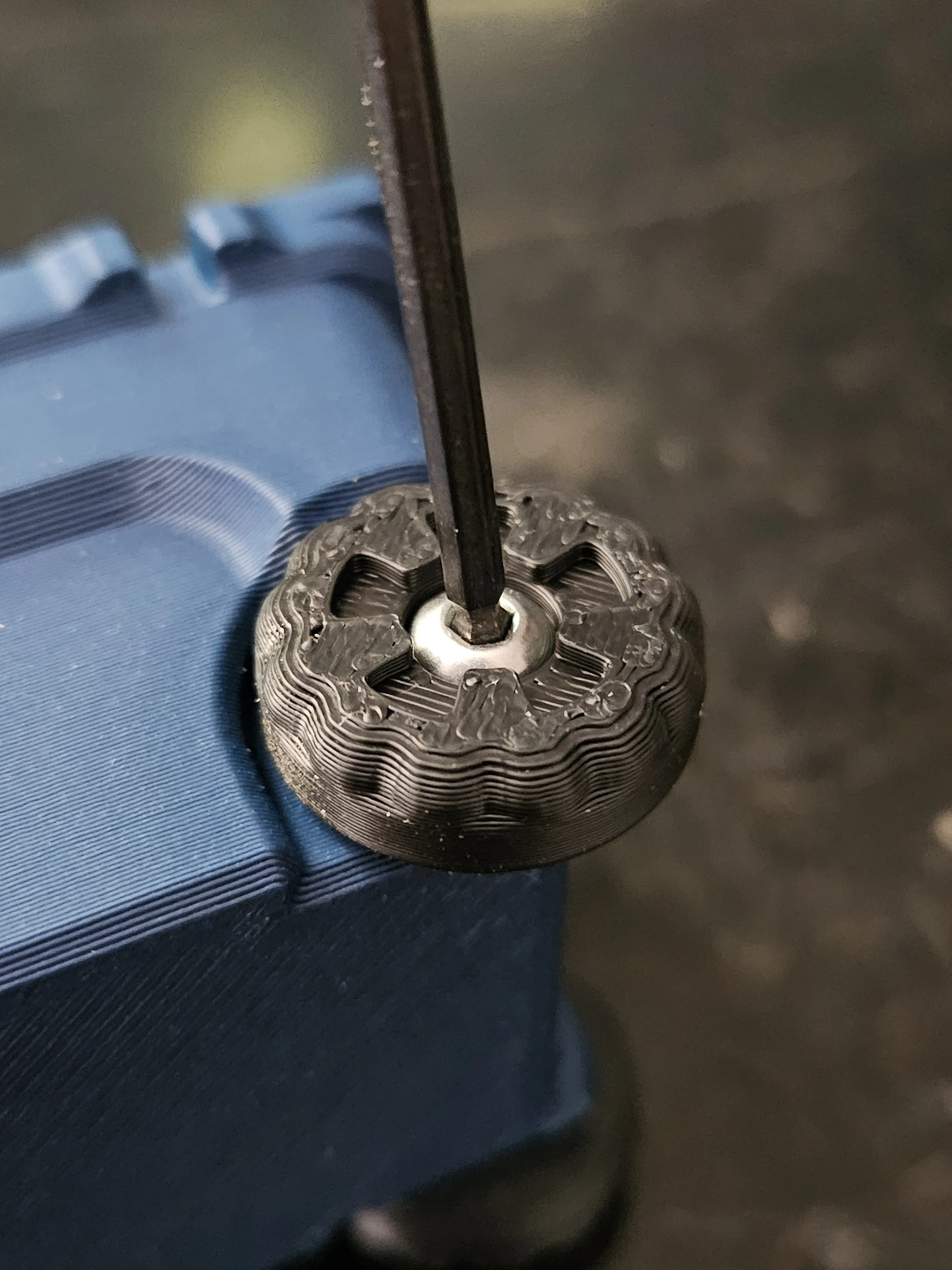

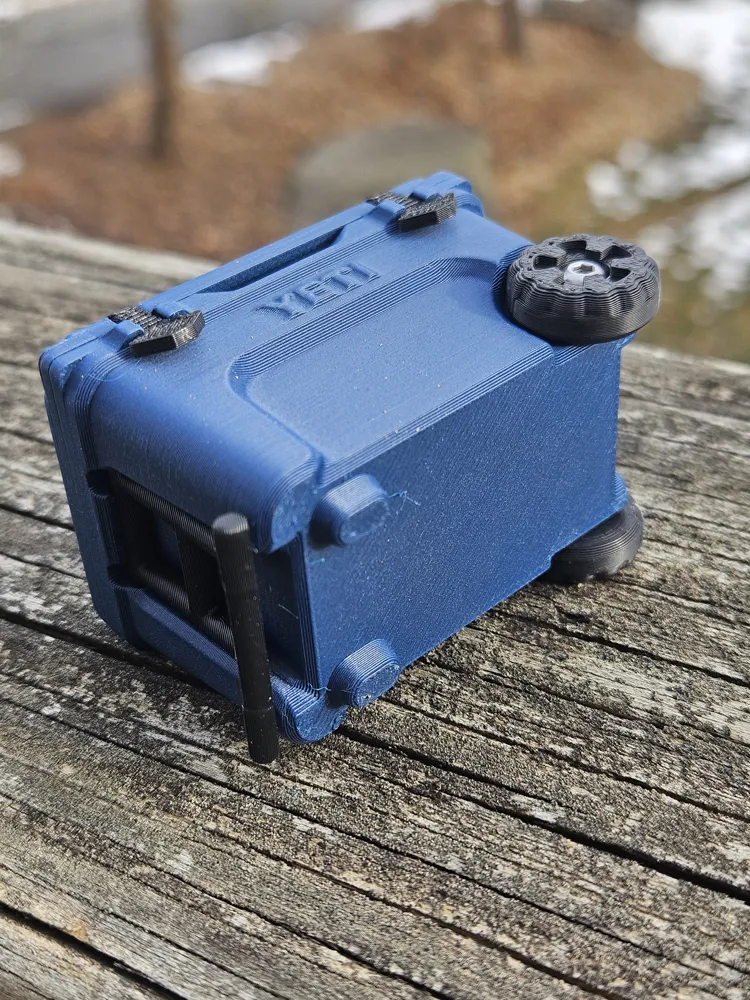

**Take the wheels and screw them on, use an M3 x 8 - 15mm long (Make sure there not too tight so they spin)**

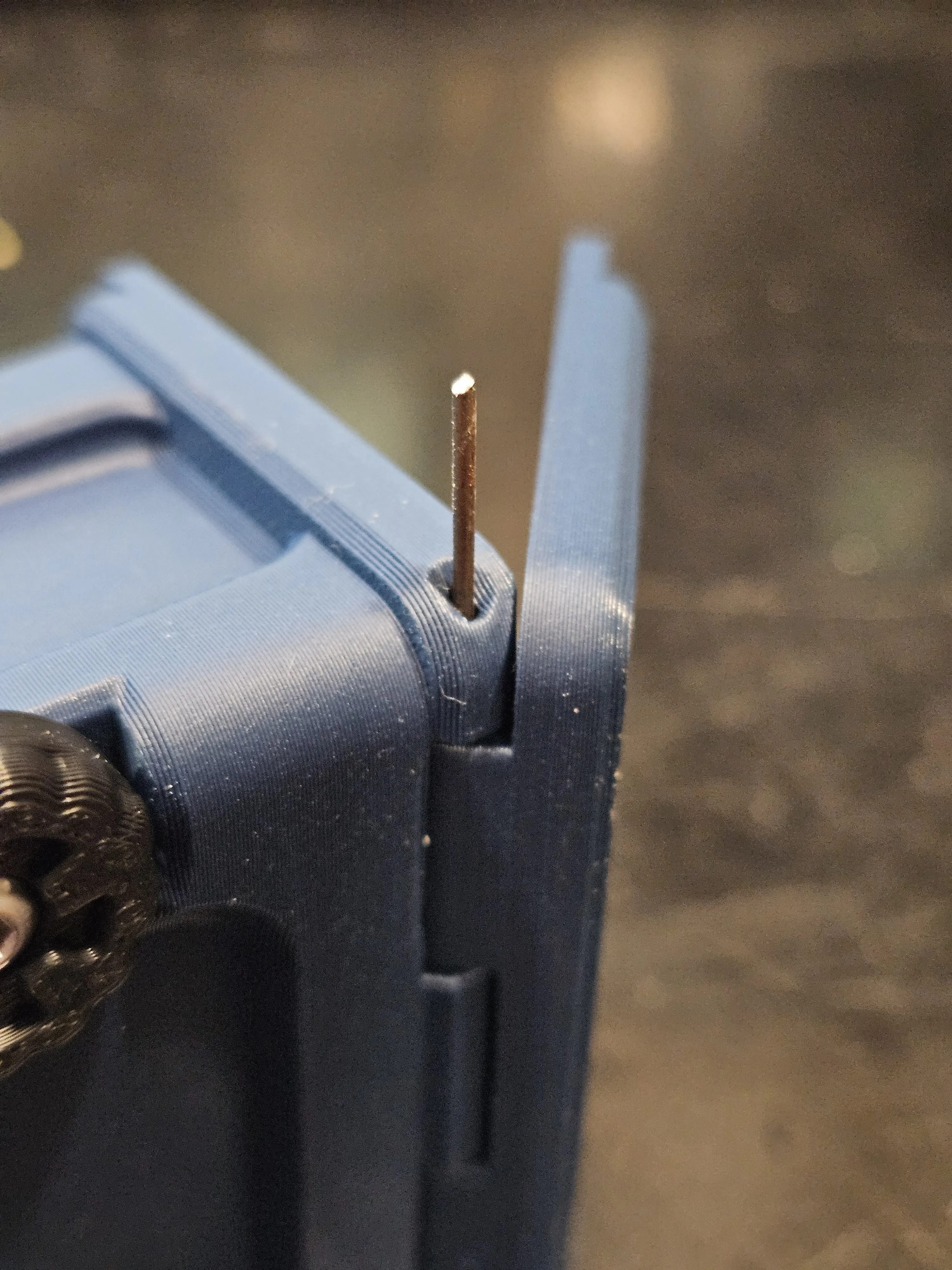

**Then take the lid and some 1mm wire, 25mm long, and insert it into the hinge hole. Repeat for the other side.**

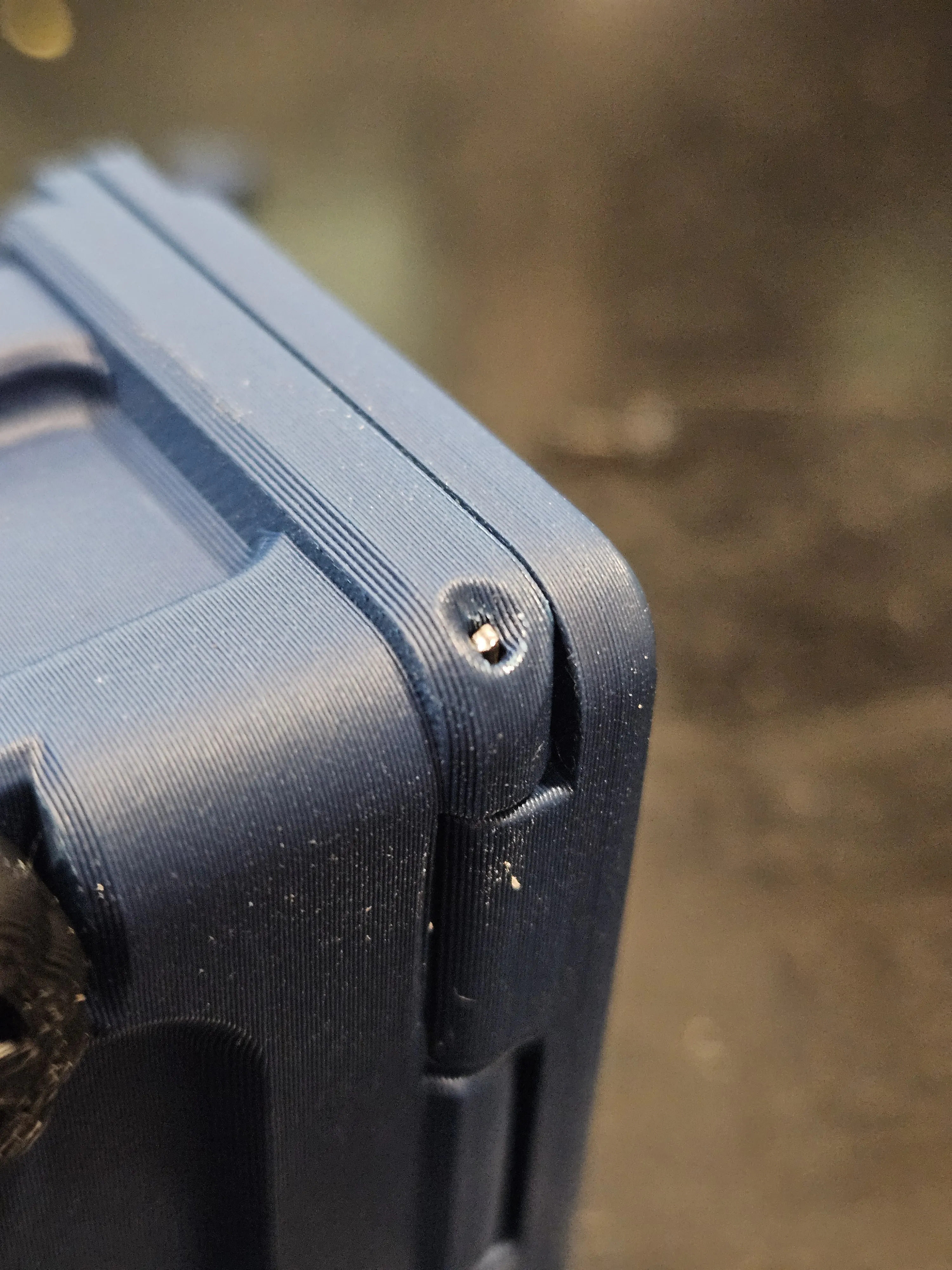

**Use a metal object to fully seat the wire in.**

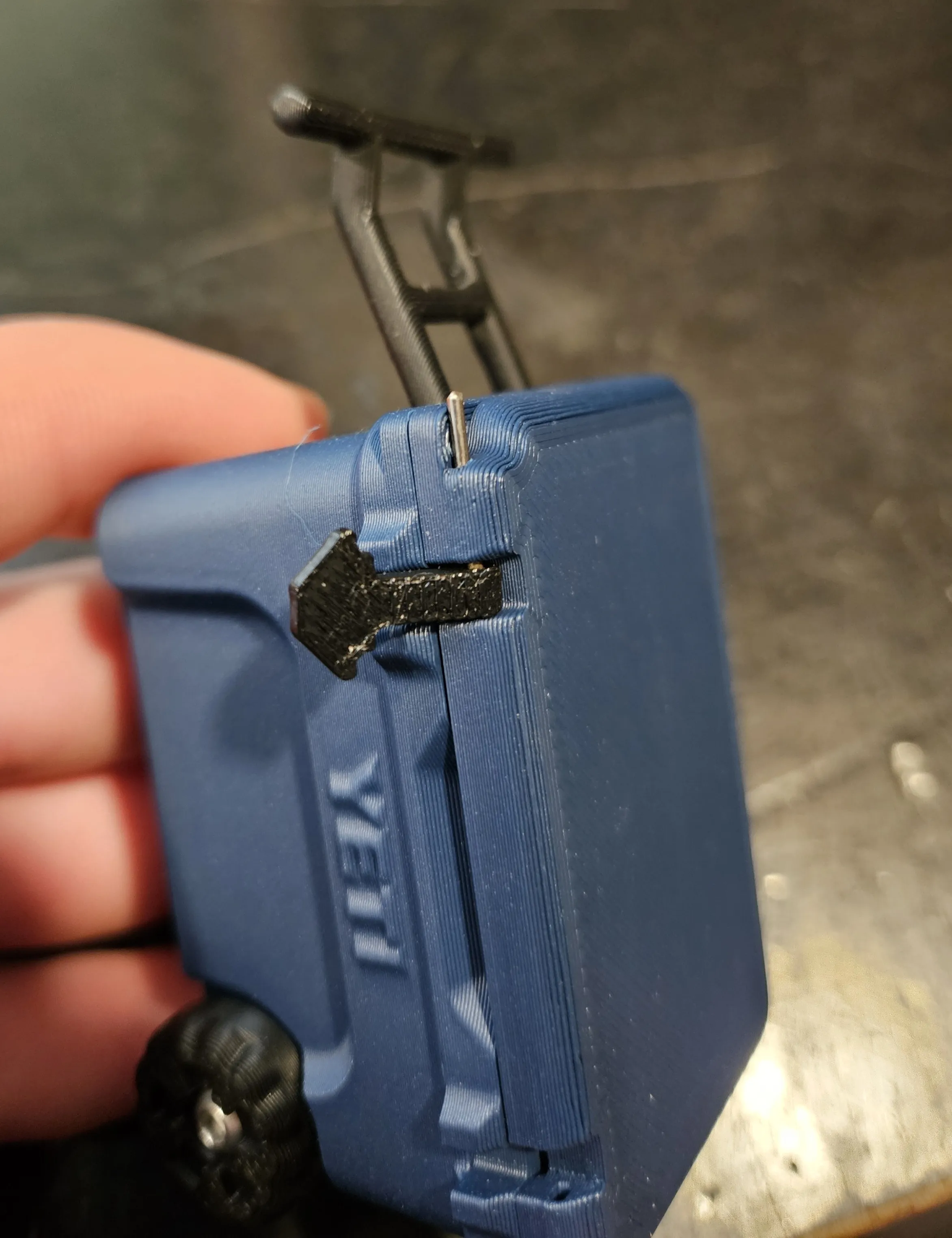

**Take a latch, and some 1mm x 10mm long wire and slide it into the hole. Repeat for the other side. (Use a knife blade or something to fully seat it into the hole)**

BEFORE YOU LATCH THE LID !!! be carful when you latch them, if you print the latches in PLA / PETG they may break when you latch them, so shaving a little material off the underside is recommended.

(if you print the latches in TPU don't worry about this step)

**Now you should have a “Wheely” cool Yeti, enjoy (:**

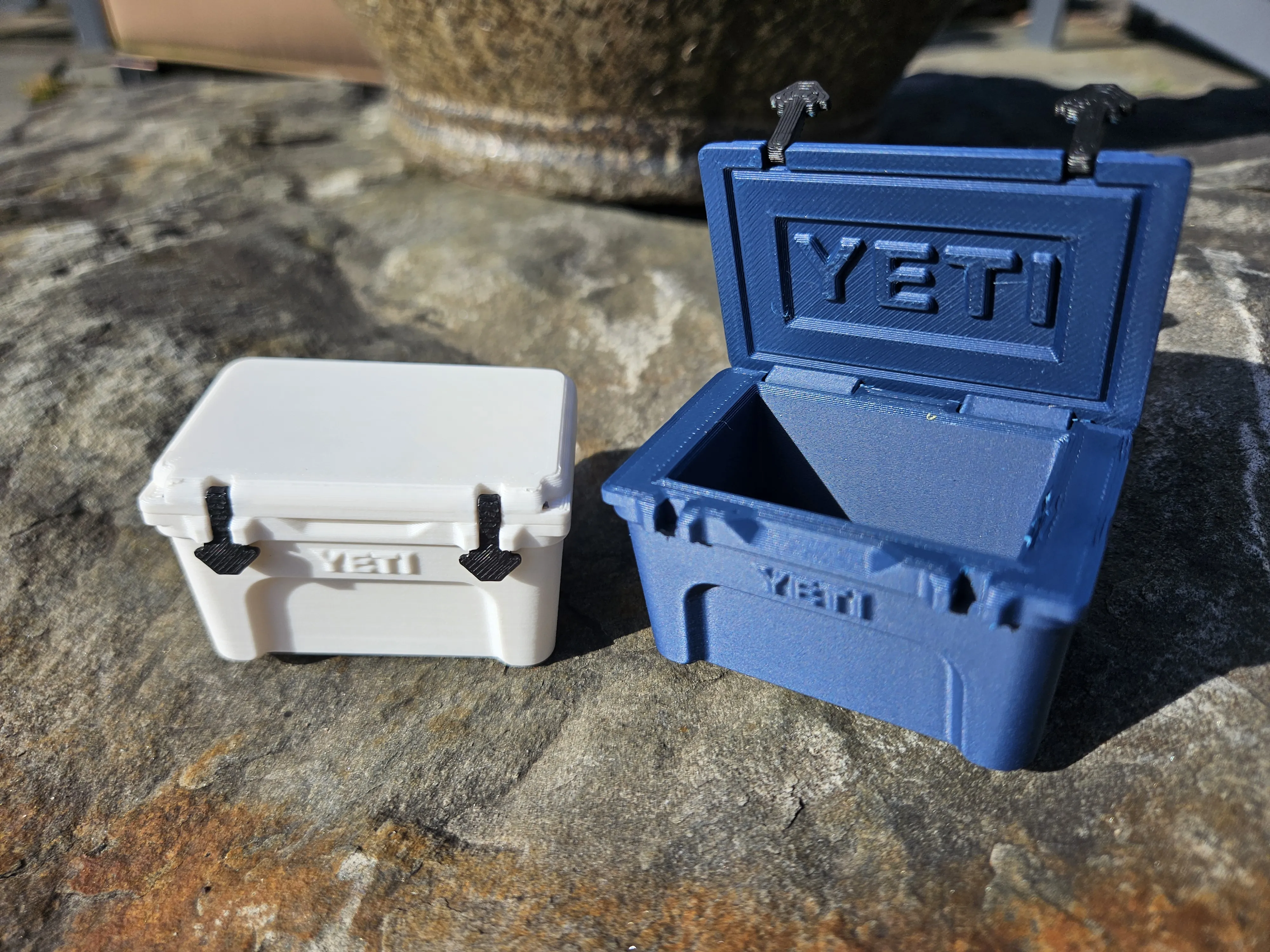

Check out the normal cooler for more Yeti miniatures!
