Modular Shaft Mount System – Flashforge A5M Pro
Print Profile(2)
Description

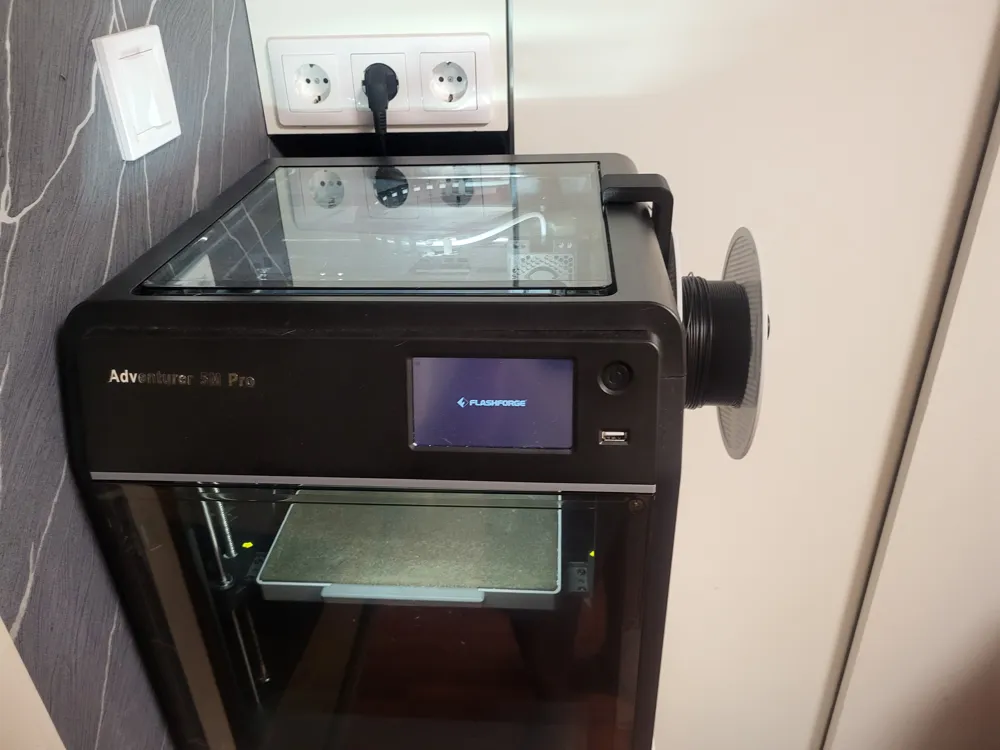

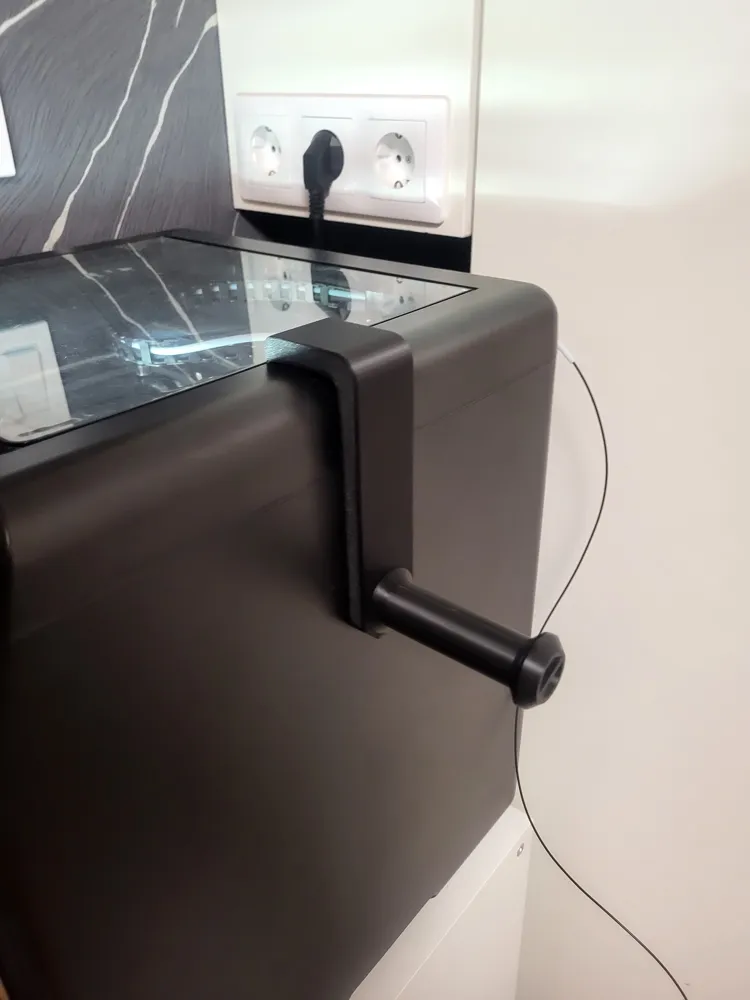

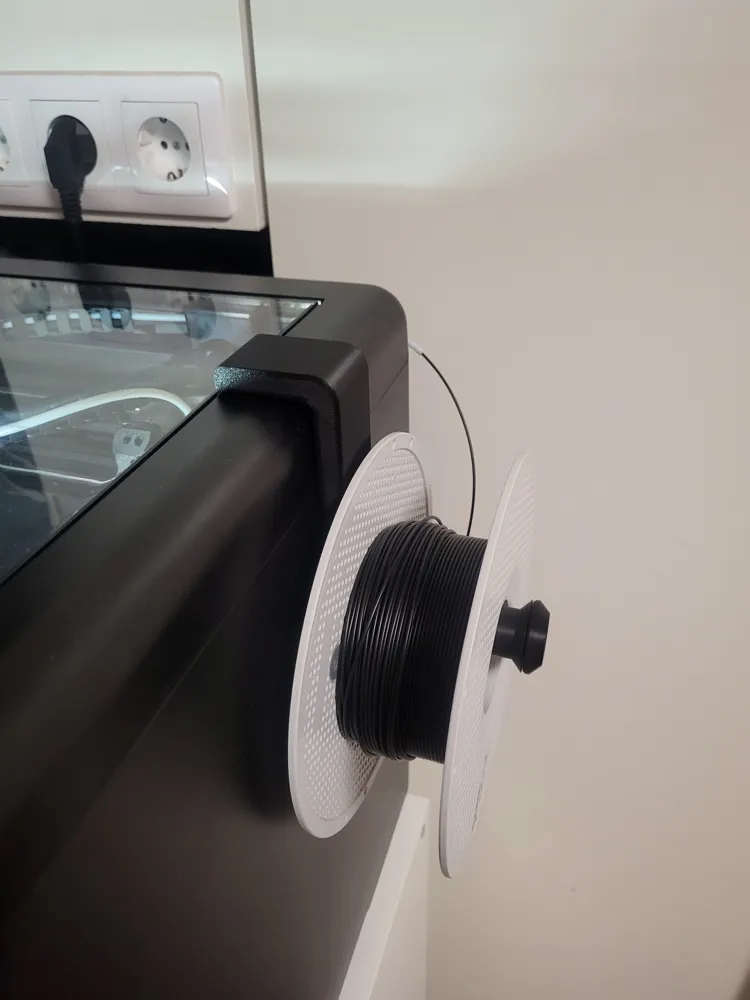

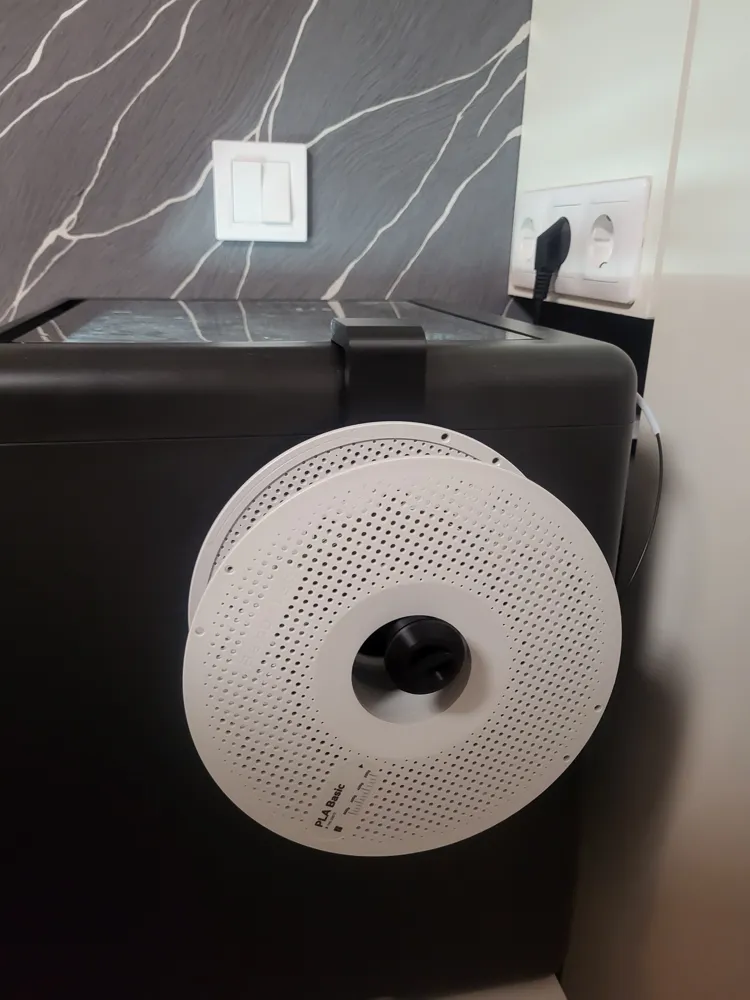

The Modular Shaft Mount System is a precision‑designed mechanical assembly consisting of five functional components: a bracket, shaft, bushing, bushing screw, and a bracket shaft‑mount screw. Each part is optimized for 3D printing with clean geometry, tight tolerances, and a support‑free design.
This system provides a stable and reliable connection between the shaft, bushing, and bracket, making it suitable for various mechanical setups or custom mounting solutions. The exploded render clearly illustrates the assembly order and part relationships.
The model has been tested on the Flashforge A5M Pro using PLA at 0.2 mm layer height, ensuring excellent printability and consiste
🛠 Print Settings
• Material: PLA
• Layer Height: 0.2 mm
• Supports: Not required
• Infill: 20–40% (depending on load)
• Walls: 3–4
• Cooling: Enabled
:P Features
• Support‑free mechanical design
• Modular five‑part assembly
• Precision tolerances for smooth fit
• Clean, functional geometry
• Optimized for Flashforge A5M Pro
• Easy to print and assemble
