Description

After all of the interest in my previous monitor mount for the sticky notes and pen and the ask for many other options, I decided to make a modular system to fit everyone's needs. With this system you will need a Base, two screws, and any of the combination of baskets that fit your needs.

If you would like to make your own baskets or additions, please feel free to use the geometry in my models to get the right dimensions to make your own!

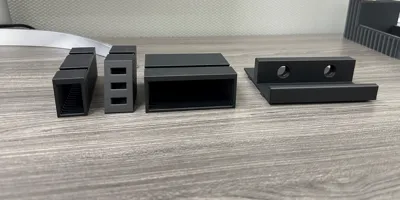

Currently included:

Pen holder (Short and Long)
Sticky Note Basket
3x5 Notecard Basket
USB holder
Mini SD Holder
Micro SD Holder
SD Holder

Soon to be included:

Tall Basket

If your monitor is under 40mm in width, please use the standard mount, if it is between 40mm and 50mm, please use the mount for large monitors!

Comment & Rating (67)

@TheissPa

The slots are too small for standard SD cards

The designer has replied

Show original

@Somusgrove

I’m sorry, I did not have any sd cards to test so I used dimensions offline, I will correct them asap!

@TheissPa

Replying to @Somusgrove :

thank you

@Kreativling

Replying to @Somusgrove :

It works for me as well – at least when I use the correct SD card (perhaps it's already been corrected?) – however, initially I accidentally printed the mini-SD card, as I selected it from the overall file. Naturally, that didn't fit. Thank you very much for your effort! A beautiful modular system, although I did need to use a bit of adhesive tape for the attachment, as the monitor is strongly rounded at the back

Show original

@Chris00001

Boosted

Genius!

@JJ_world

Print Profile

0.2mm layer, 2 walls, 15% infill

It's incredibly convenient for my workflow, allowing me to quickly locate what I need

Show original

@cevada

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

I made a larger version of the basket, my opening has 140mm and now it can accommodate my pocket notebook

@user_3053069873

Boosted

I modified the base plate as I needed 65mm A fantastic system, I would happily see it expanded

Show original

@alake527

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

Prints very nicely and fits together tight.

@przemoGie

Print Profile

0.2mm layer, 2 walls, 15% infill

The idea is great and the mount is ok. The not card basket is a little bit too small for normal size cards. I just cannot think about how it possibly print well 0 degree overhangs in any of the baskets. I just ended up with strands of filament hanging off the inner upper basket part. Was this a desired behaviour? I doubt it actually.

@user_532966419

Boosted

Good evening. First of all, congratulations on the wonderful project. How can I avoid this defect? It appears on all the suspended "little sticks". Thank you

Show original

@efko

Would it be possible to create a base with a longer back wall? (Where the screw holes are) I have four monitors, and all of them are curved at the bottom, so the screws don’t hold properly, and it tends to tip over. If the back wall were twice as high and the screw holes positioned higher, that would be perfect!

(Edited)

@Birdy785

Print Profile

0.2mm layer, 2 walls, 15% infill

works perfect, going to print more
