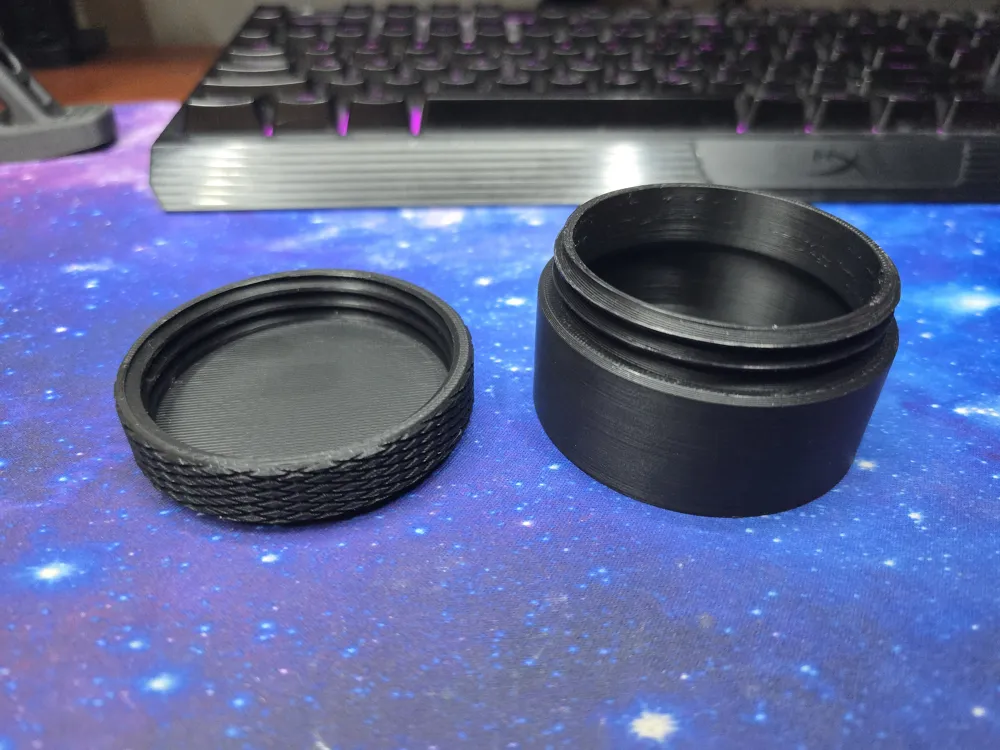

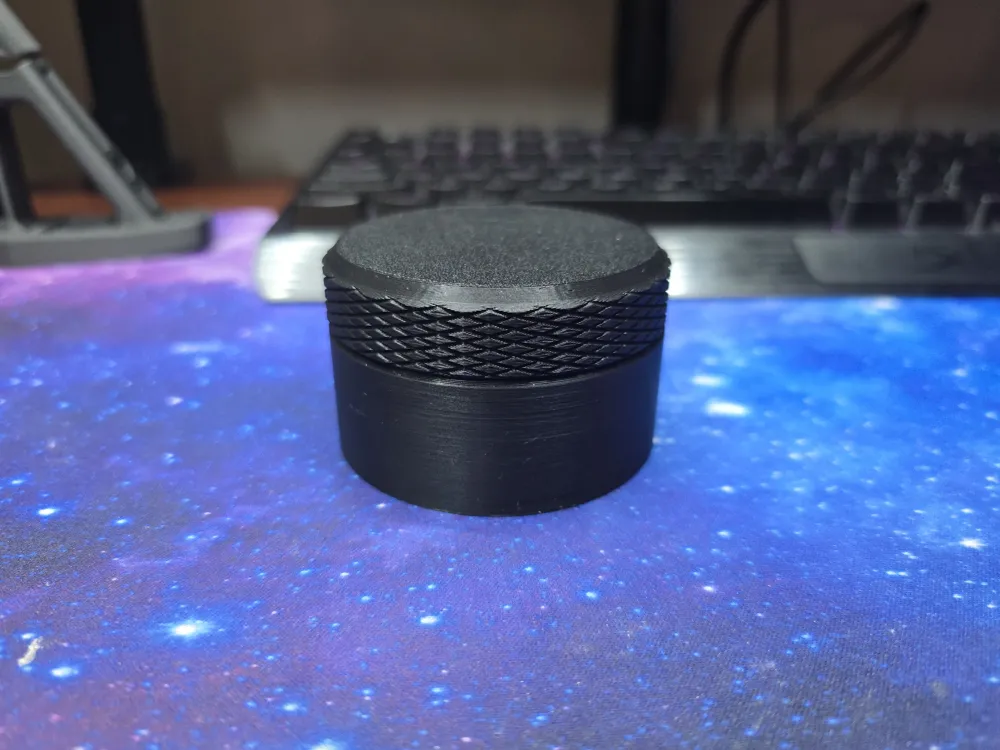

Threaded Knurled Jar – Support-Free Print Design

This is a compact threaded jar with a matching knurled lid, designed from the ground up to print 100% support-free while still delivering smooth threads and a satisfying twist.

Both the jar and lid use carefully tuned chamfers and angled geometry to eliminate the need for supports, even on the internal threads. The result is a clean print that assembles easily and spins smoothly.

Because the jar body and lid benefit from different print settings, they are intended to be printed on separate plates.

Key Features

• 🧵 Threaded lid & jar with smooth engagement
• ✋ Knurled lid texture for easy grip
• 🛠 Designed to print support-free (no supports needed anywhere)
• 📐 Chamfers and angles optimized for FDM printing
• 🖨 Jar and lid should be printed on separate plates for best results
• 🔄 Threads may feel slightly tight at first—spin the lid on and off a few times to fully smooth the action

Printing Notes

• Print jar and lid separately with custom settings for each
• A few test spins will naturally break in the threads
• Works well with PLA, PETG, or similar materials

This design is ideal for small parts storage, desk organization, hobby use, or just as a satisfying mechanical print that shows off clean geometry and thoughtful print engineering. 67mm outer diameter with 3mm thick walls for about 60mm internal diameter.
