H1+ Heltec V4 with GPS, colorful edition

Directly remixed off of https://www.printables.com/model/1326866-h1-enhanced-h1-case-for-heltec-v3heltec-v4-by-muzi

which is a remix of the origional H1+ case by Muzi.works: https://www.printables.com/model/741974-h1-case-for-heltec-v3-running-meshtastic

Both credited creators put a lot of effort into their designs and you should check them out.

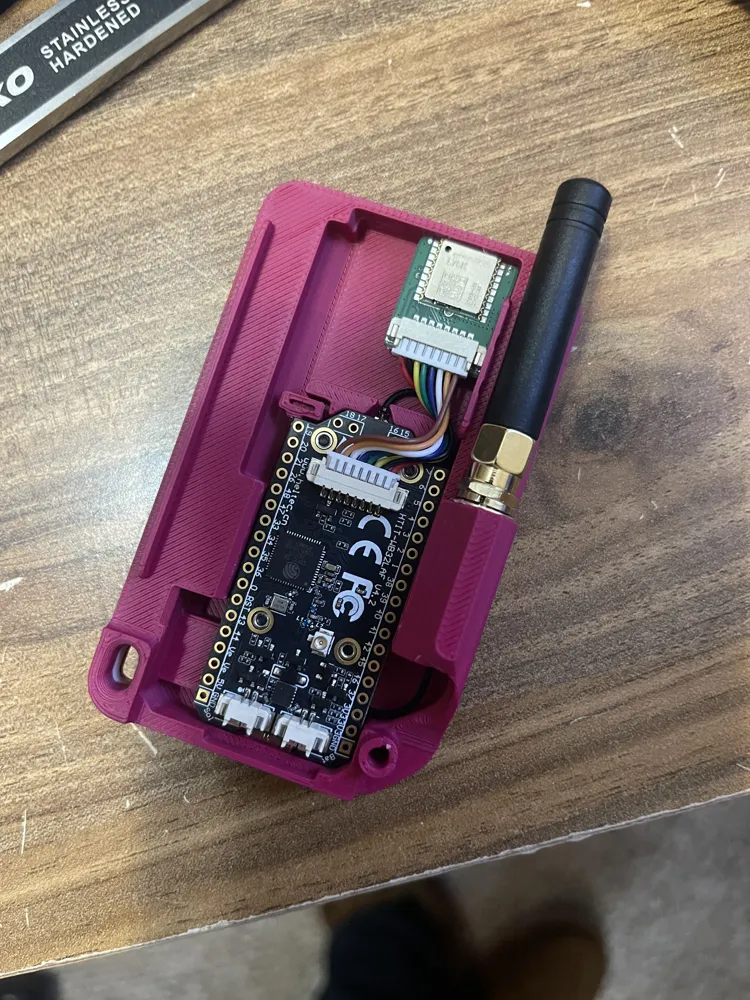

This version is remixed off of Vascosim's “standard case” that includes a 3000mAh battery and GPS module.

The kit I used: https://www.amazon.com/dp/B0FRS36YQK?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

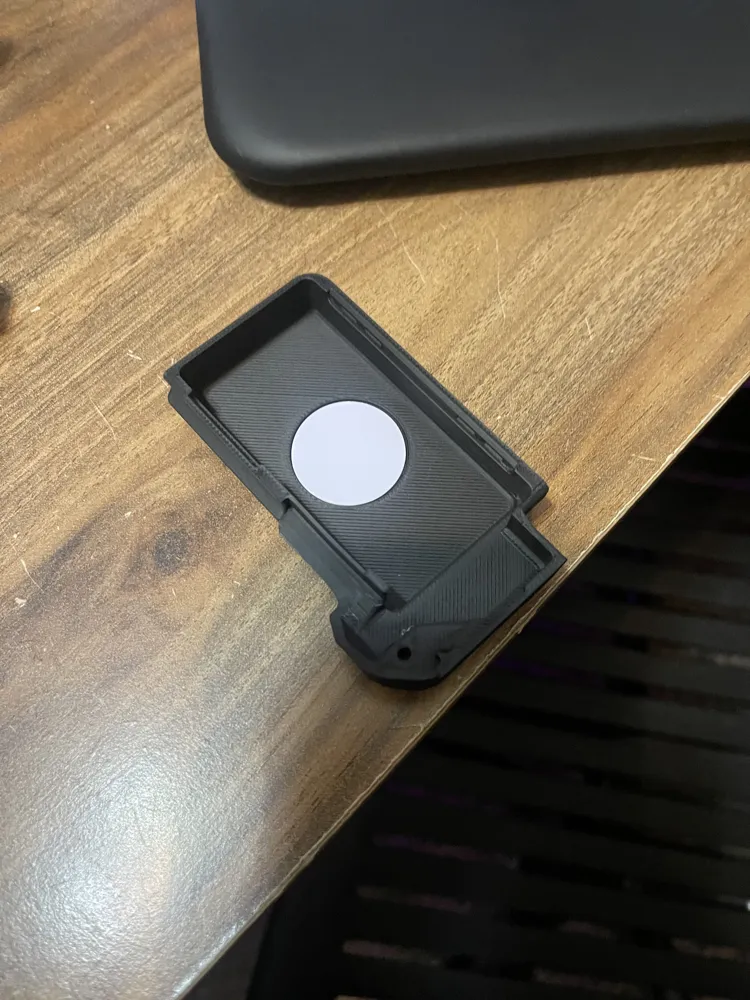

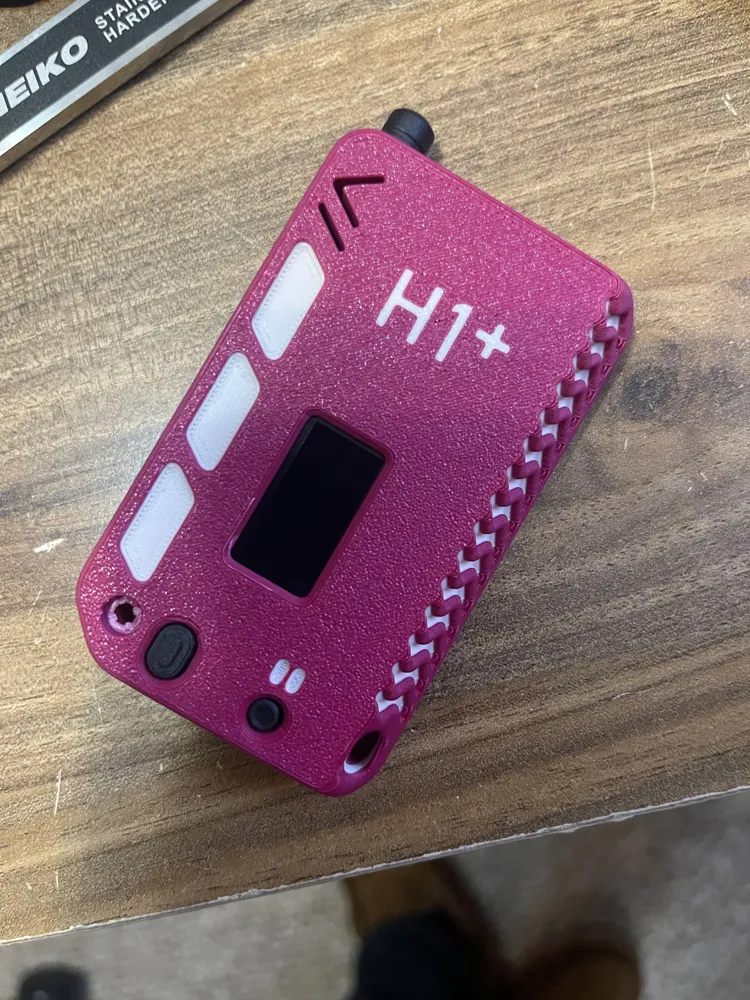

My only critique to the origional designs was the inabilility to add colors to the finished case so I have created a version which allows you to do just that, there are 5 color regions inside of the front of the case that can be customized and they will be listed below. I have also added a cutout in the back of the case where the battery goes to add your own NFC tag which can be “written” with your phone to share links with anyone who taps their phone to the back of your case (fits most 25mm sticker-backed slim NFC tags)

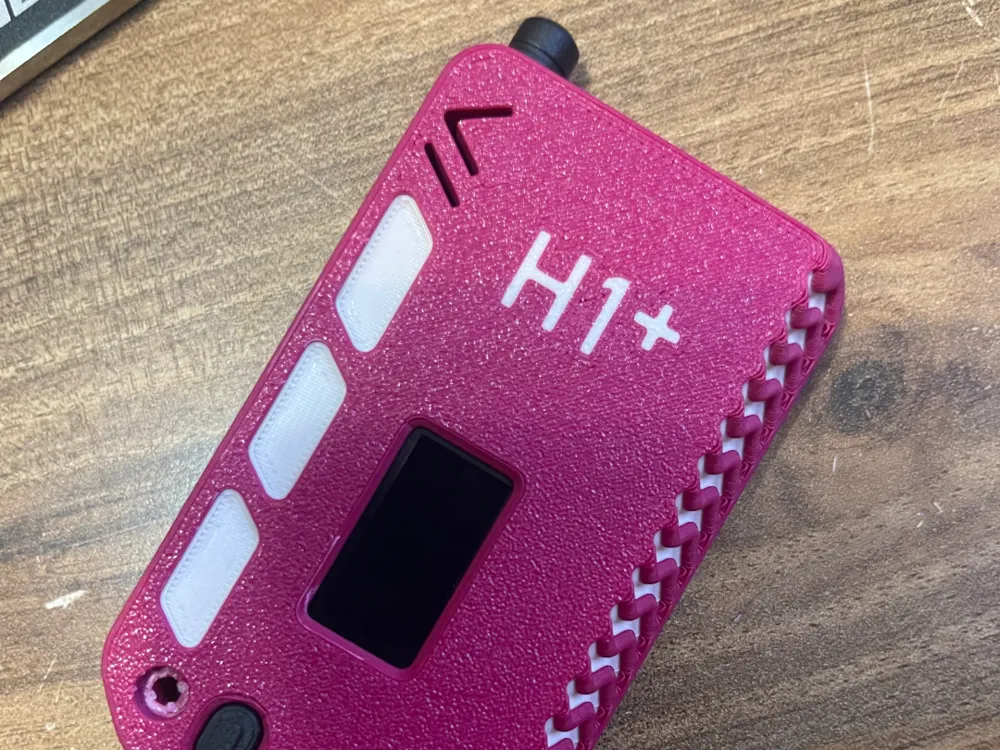

Object_1: Squiggle grip texture

Object_2: Recessed detail holes

Object_3: Lanyard stripe

Object_4: LED windows*

Object_5 (multiple): each letter of the “H1+” logo is customizable

Object_6: Front case

*If you wish to have a dark colored faceplate but still want the internal LED lights to shine through, you can set this to a lighter color filament

Muzi Works has a great assembly document in their website for putting this thing together, the PDF attached is directly from them and it is an excellent writeup.
