Qidi plus4 lifter 40mm
Print Profile(0)
Description

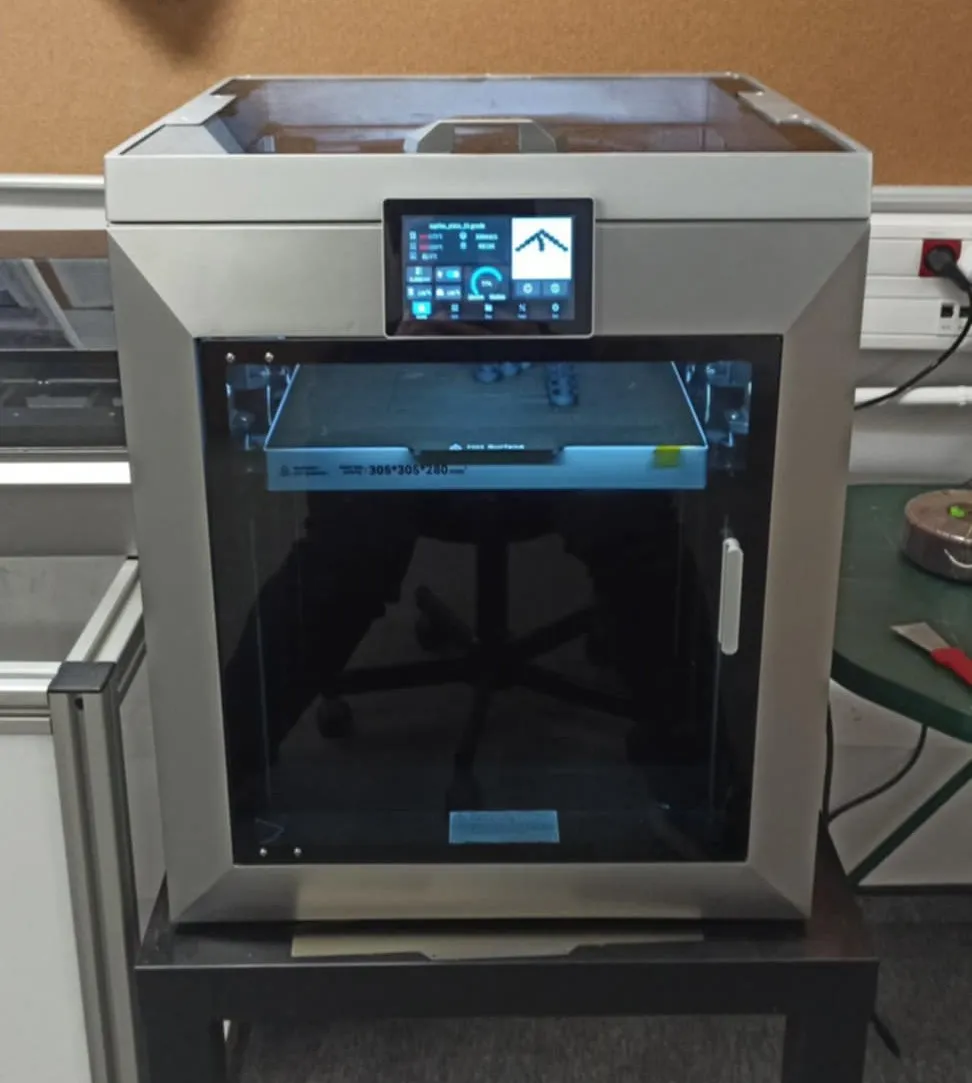

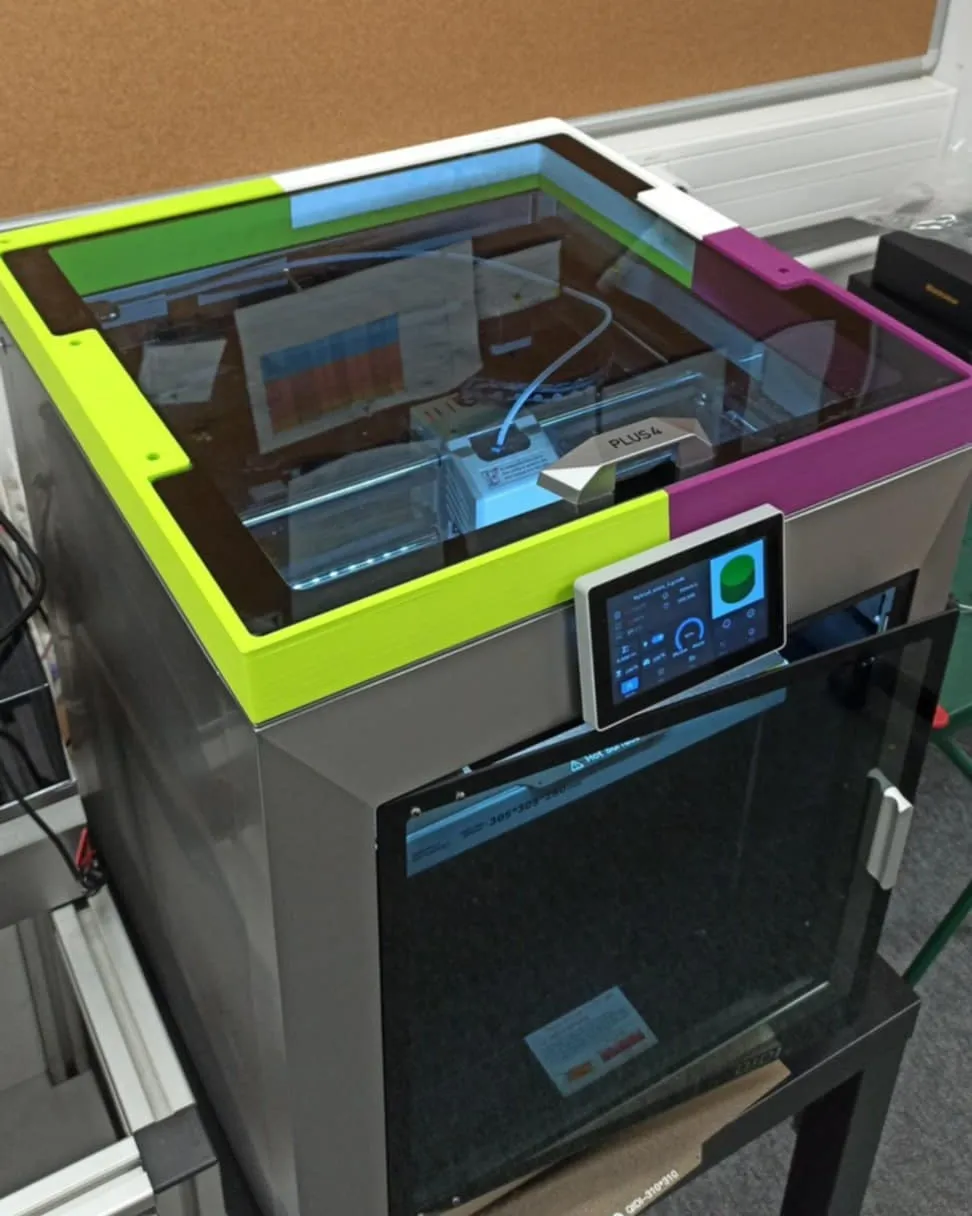

This is my own lifter design for the Qidi Plus4. It raises the glass by 40 mm. The front edge is flush with the printer, preserving its overall shape.
The top features 8 mm holes for mounting a shelf for the Qidi Box.

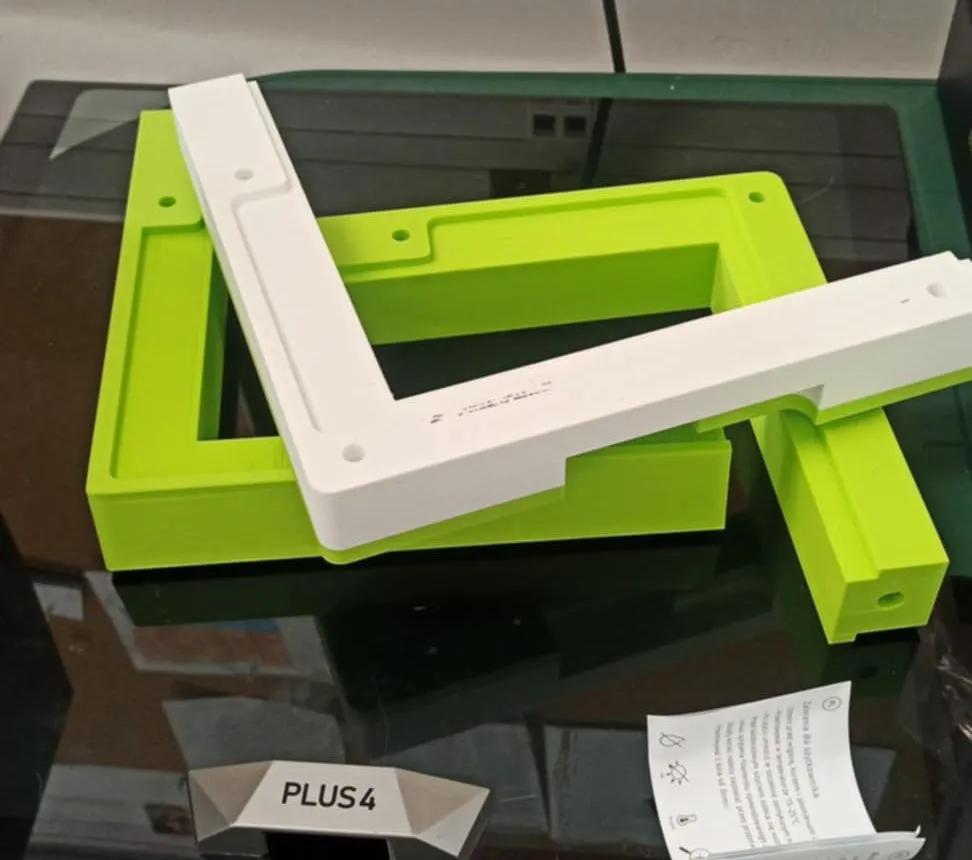

The model includes 10 mm diameter holes for joining the parts. The connecting pins should have a 9 mm diameter (I recommend printing them and bonding them with two-component adhesive).
After assembly and filling, the model was painted with silver lacquer. PETG is the recommended material. PLA is not suitable if the chamber is heavily heated, as it shrinks at the joints.
