DeLonghi Eletta Anti-Mold Filter

We had problems with coffee grounds molding in the container of our coffee machine. There are other sieves out there, but they are all too loose or/and the grid is too wide, allowing coffee to fall through and also mold. If you're facing the same issue, here is the solution.

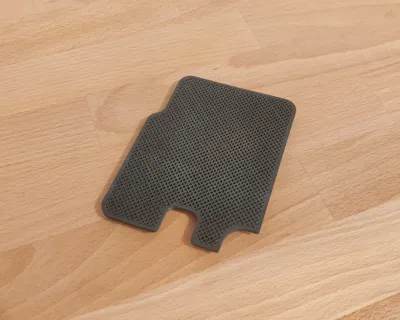

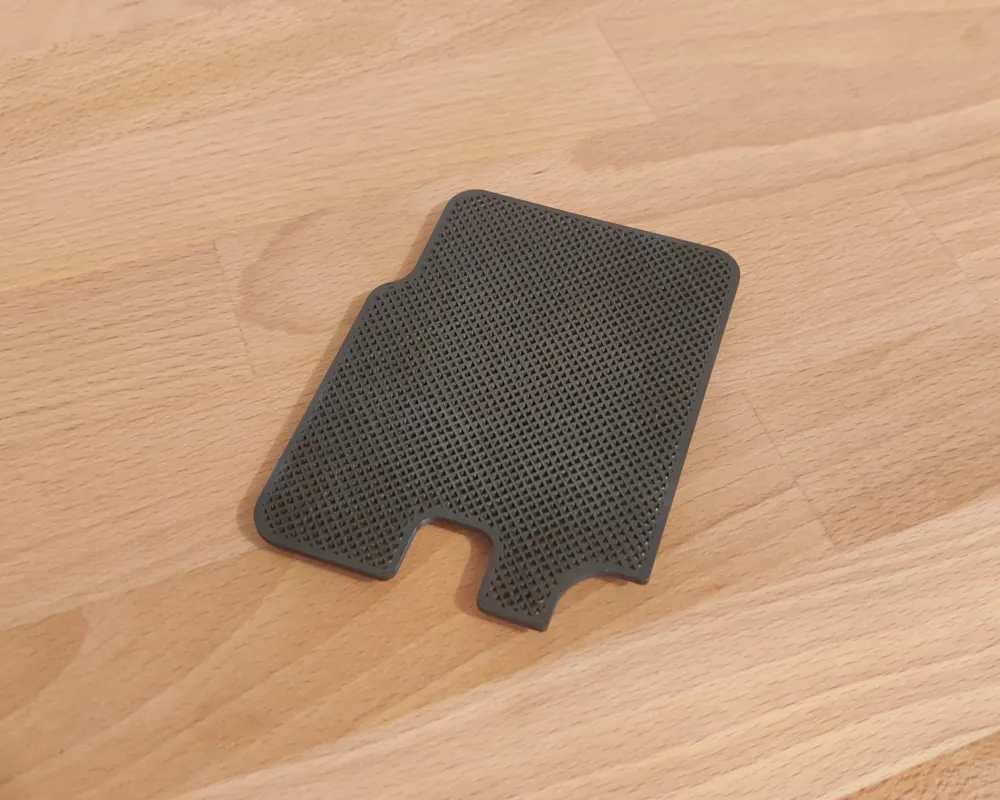

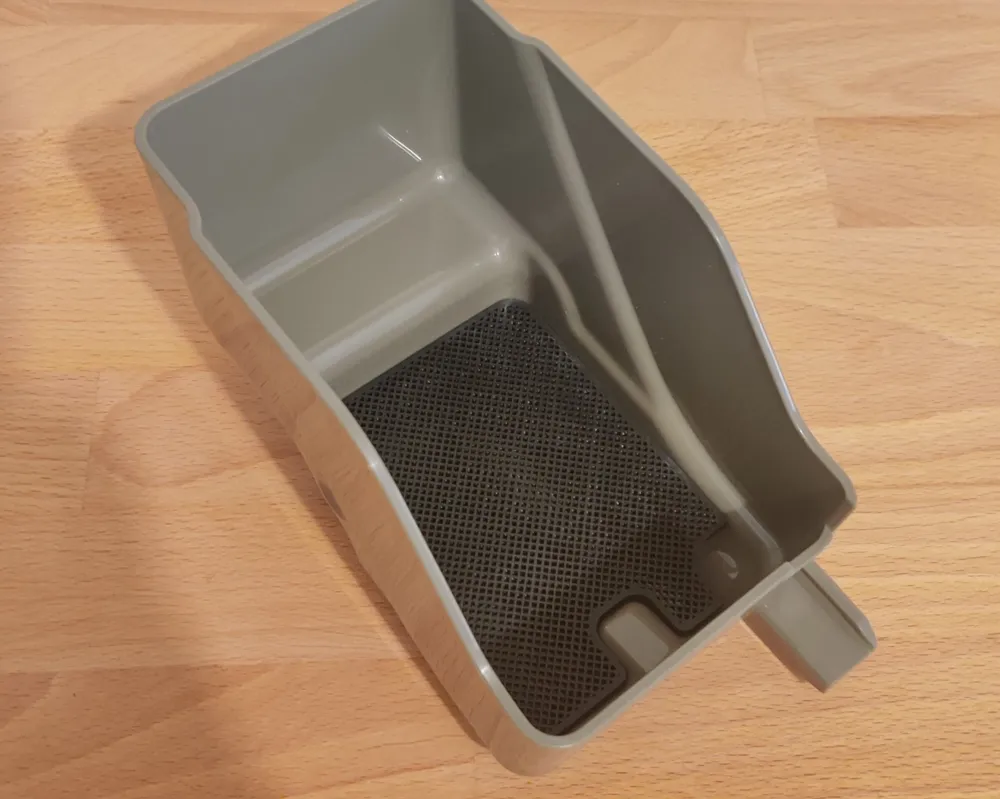

The sieve sits slightly above the bottom of the coffee grounds container, allowing water to rinse down from the coffee grounds and evaporate. There's a cutout on one corner to lift out the sieve or pour out the remaining water when emptying the container. It should fit quite snugly, so it doesn't fall out while emptying. If yours is too tight or too loose, adjust the scale settings until it fits perfectly for you.

I recommend printing it in ABS or, at the least, in PETG. When printed in ABS, it's usually safe to put it in the dishwasher. With PETG, I recommend handwashing, which is typically sufficient. Putting PETG in the dishwasher may cause some deformations. Avoid using PLA, as it is guaranteed to deform.

Slicer Settings

These are the settings I used in OrcaSlicer. BambuStudio should have the same names for the settings. Other slicers might have different names for the settings.

Quality:

• Layer heigt: 0.2 mm (recomended)
• Only one wall on top surface: OFF
• Only one wall on first layer: OFF

Strength:

• Wall loops: 3
• Top shell layers: 0
• Bottom shell layers: 0
• Sparse infill density: 45% (for a 0.4 mm nozzle, with 0.6 mm maybe a bit lower)
• Sparse infill pattern: Grid

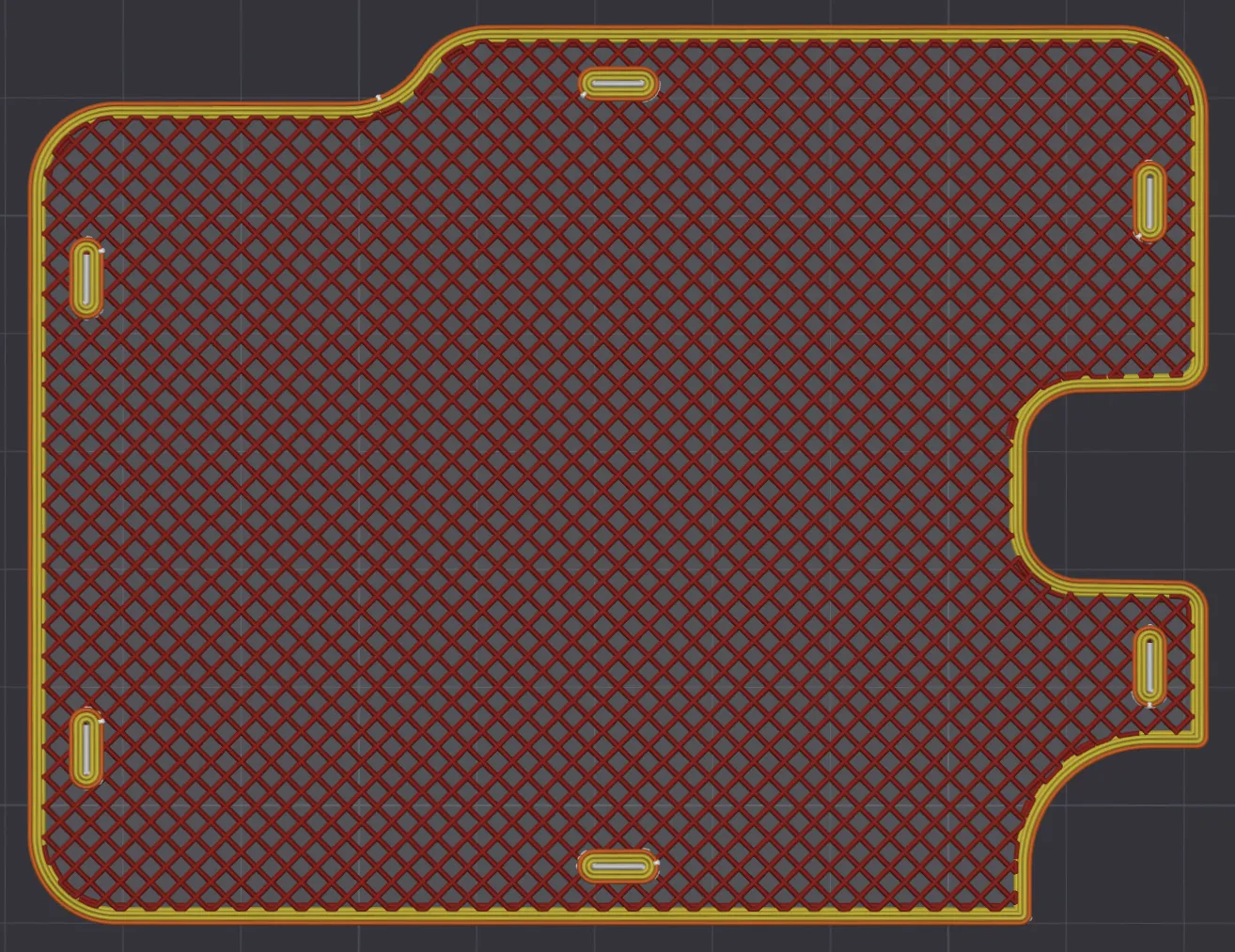

This should lead to a print like this:

Happy printing :)
