<ul><li>0.20mm layer, high strength</li></ul>

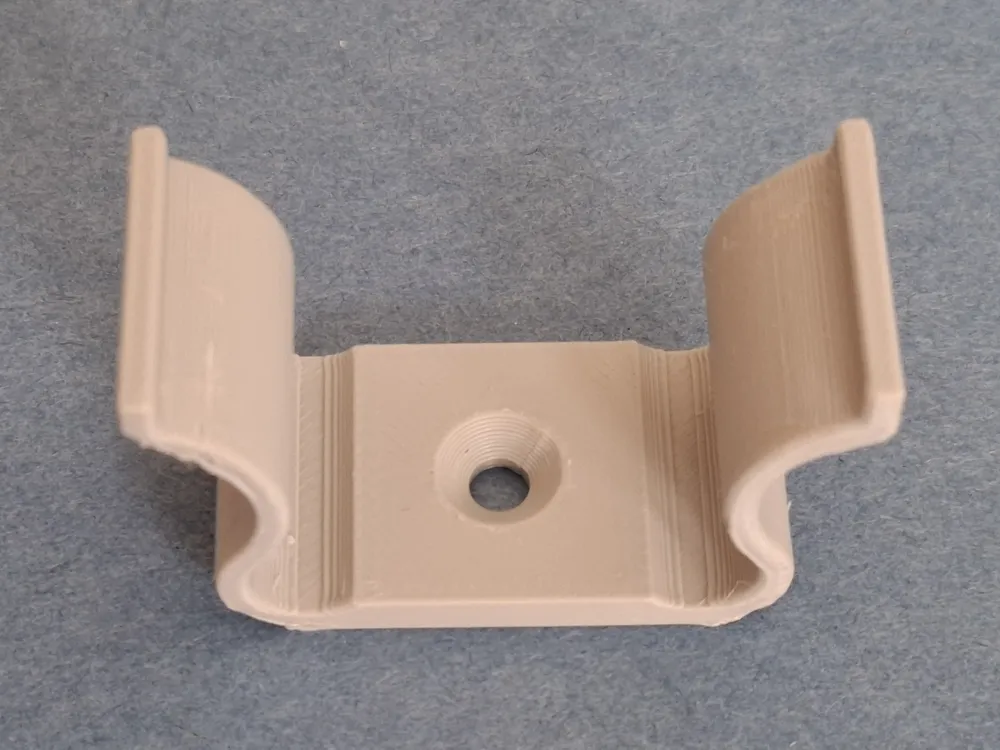

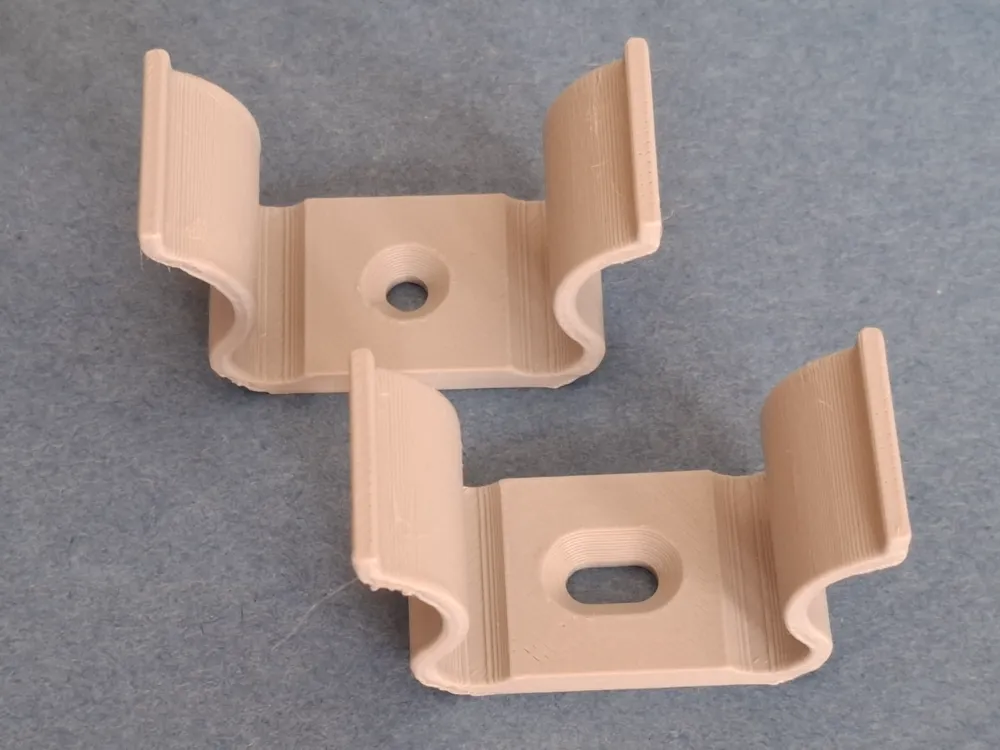

For mounting with "normal" hole (2x)

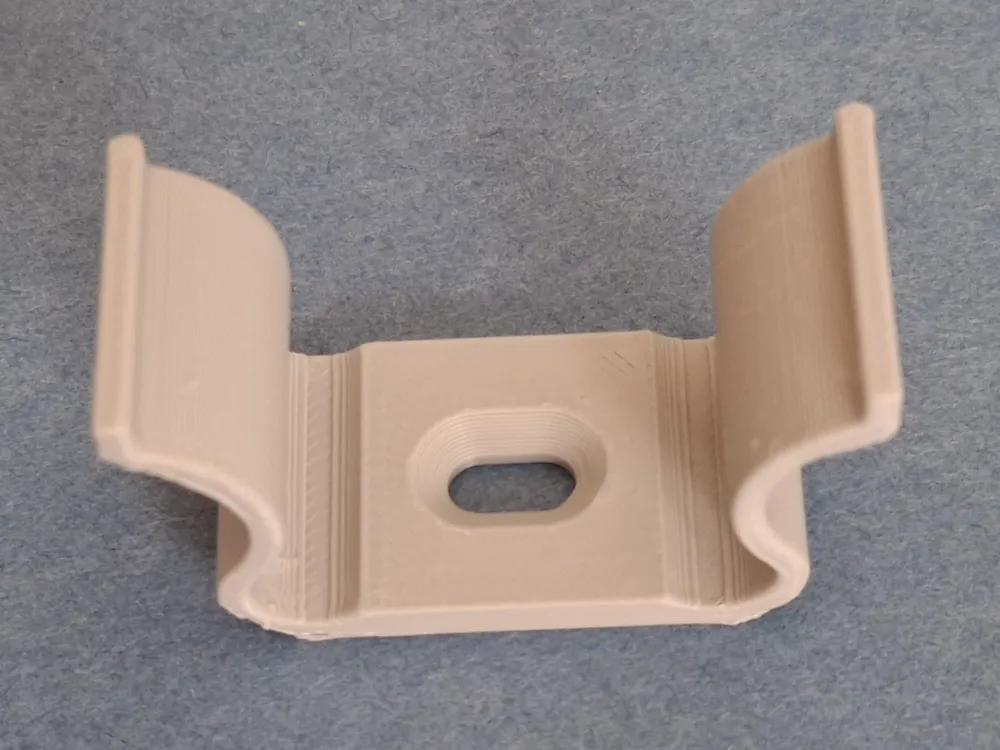

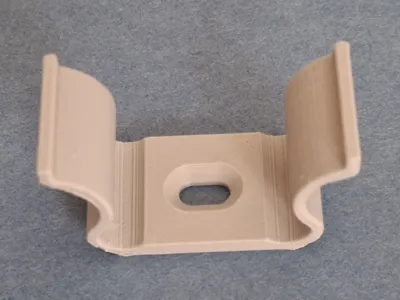

Long hole for mounting (2x)

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<figure class="table"><table class="ck-table-resized"><colgroup><col style="width: 50%"><col style="width: 50%"></colgroup><tbody><tr><td style="padding: 0cm">Deutsch</td><td style="padding: 0cm">English</td></tr><tr><td style="padding: 0cm"><ul><li>Für Lichtleiste (Deckenbefestigung) (früher Leuchtstofflampe)</li><li>Für Sockelbreite 31mm</li></ul></td><td style="padding: 0cm"><ul><li>For light strip (ceiling mounting) (formerly fluorescent lamp)</li><li>For base width 31 mm</li></ul></td></tr></tbody></table></figure>Deutsch<ul><li>Bei der Befestigung neu gekaufter Deckenlampen fielen die kleinen dünnen Metallclips negativ auf, da sie sich schon beim Anschauen verbogen.</li><li>Und da niemand Lust hatte, bei einer kleinen Berührung in einem Regen von Deckenlampen zu stehen, wurde einfach ein neuer Clip designed.</li><li>Der Clip sollte stabil und haltbar sein und auch einen späteren Abbau der Lampe einfach ermöglichen.</li><li>Und da das Bohren in Beton oder anderen harten Materialien nicht immer punktgenau erfolgt gibt es den Clip für die Montage mit einer “normalen” Bohrung und eine Version mit Langloch.</li><li>Die hier verwendete Lampe “LEDISONS Linear Pro 120cm” zeigte die Aufschrift “&#39;LDT50-A12040-PRO, 220-240V - 50/60Hz - T8 18W 4000K 27/23”. In den Bildern findet ihr eine Maßzeichnung des digitalen Zwillings, mit dem ich üblicherweise solch eine Konstruktion beginne.&nbsp;</li><li>Material<ul><li>Da der Clip stabil und flexibel sein soll, habe ich mich für PETG entschieden.</li></ul></li></ul>English<ul><li>When installing newly purchased ceiling lights, the small, thin metal clips stood out negatively because they bent just by looking at them.</li><li>And since no one wanted to stand under a shower of ceiling lights at the slightest touch, a new clip was simply designed.</li><li>The clip had to be stable and durable, and also allow for easy removal of the lamp at a later date.</li><li>And since drilling into concrete or other hard materials is not always precise, the clip is available for installation with a “normal” hole and a version with a slotted hole.</li><li>The lamp used here, “LEDISONS Linear Pro 120cm,” was labeled “LDT50-A12040-PRO, 220-240V - 50/60Hz - T8 18W 4000K 27/23.” In the images, you&#39;ll find a dimensional drawing of the digital twin, which is how I usually start a project like this.&nbsp;</li><li>Material<ul><li>Since the clip needs to be stable and flexible, I decided to use PETG.</li></ul></li></ul>

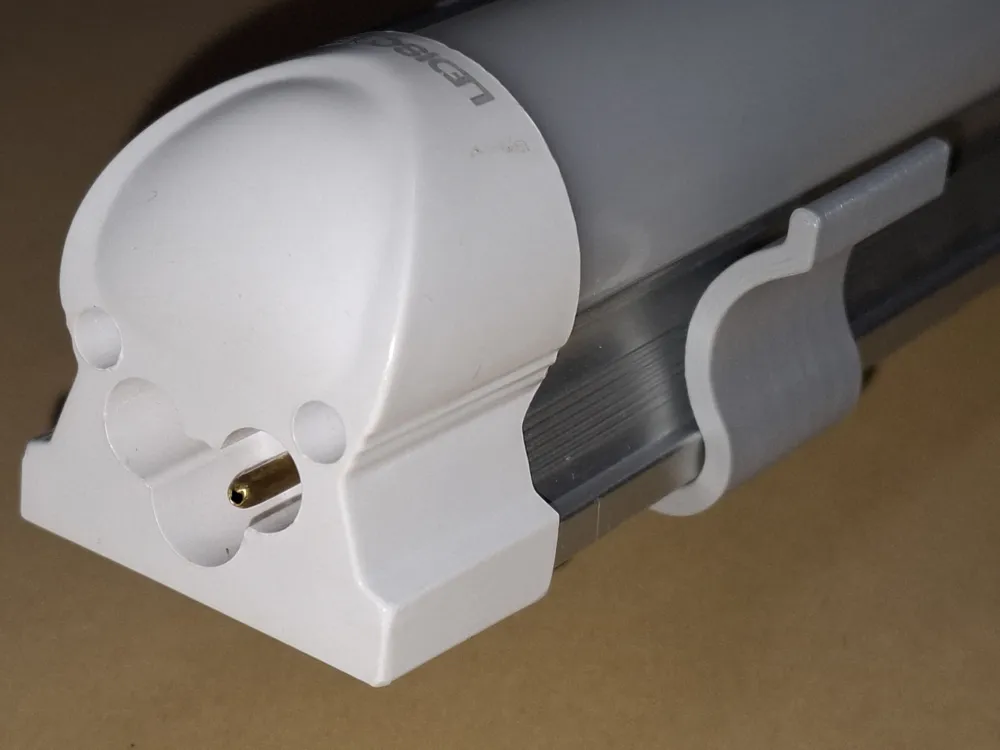

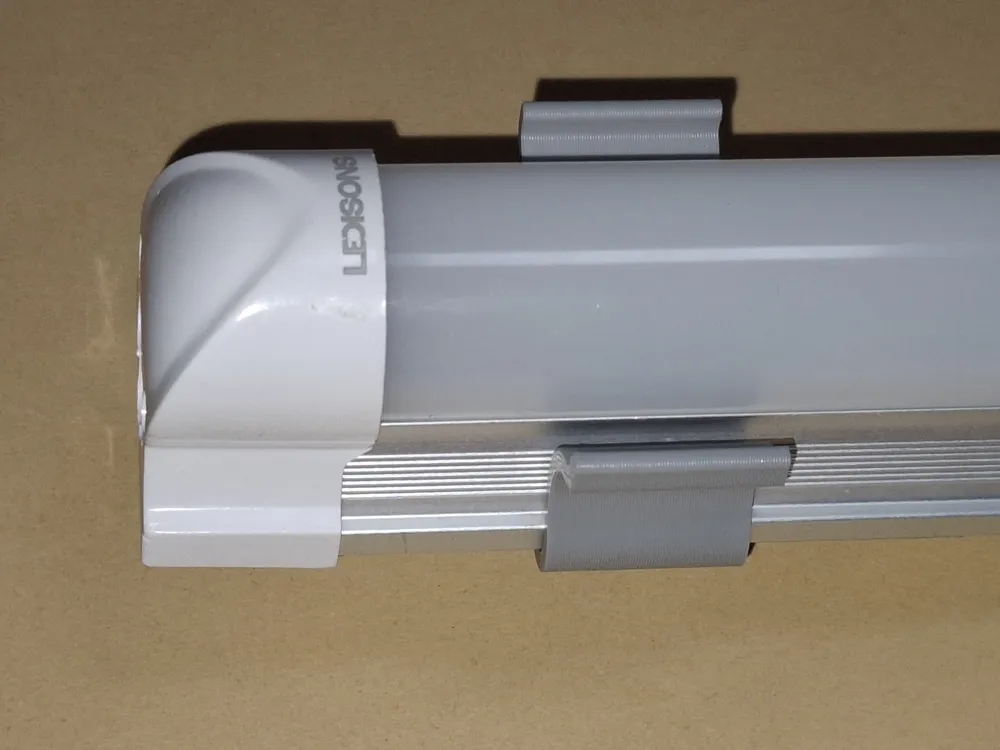

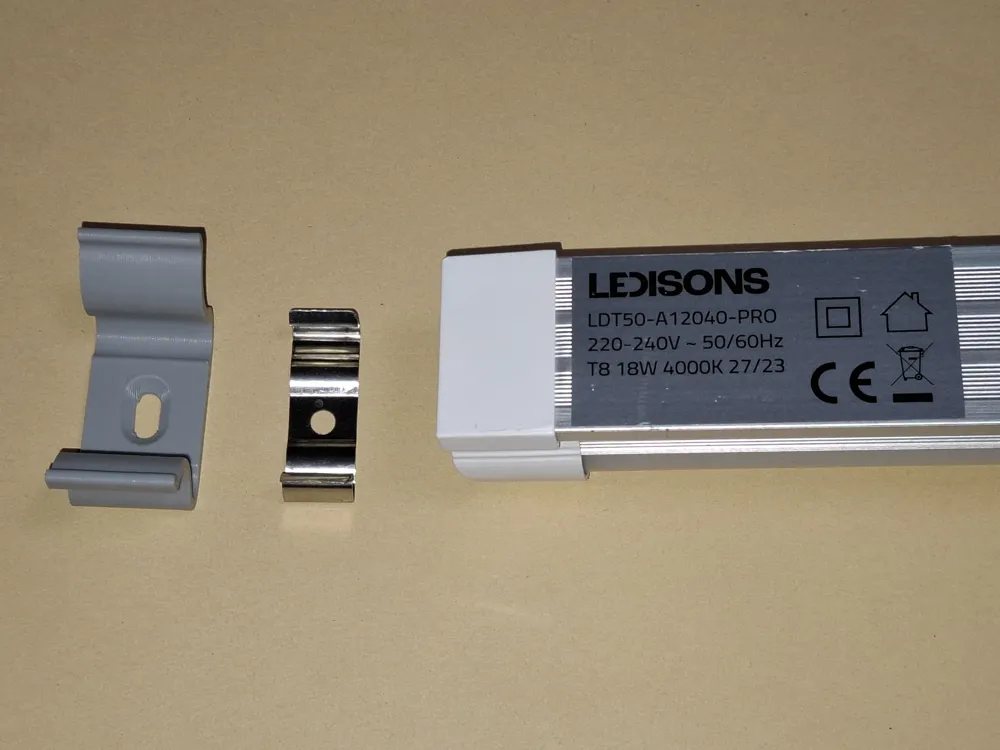

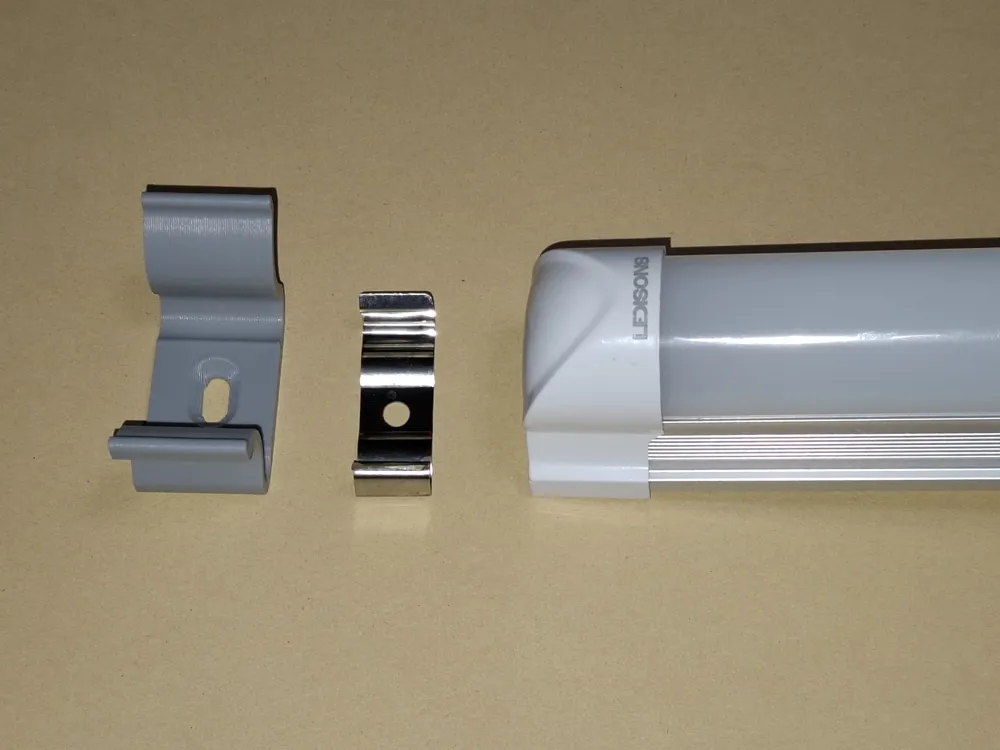

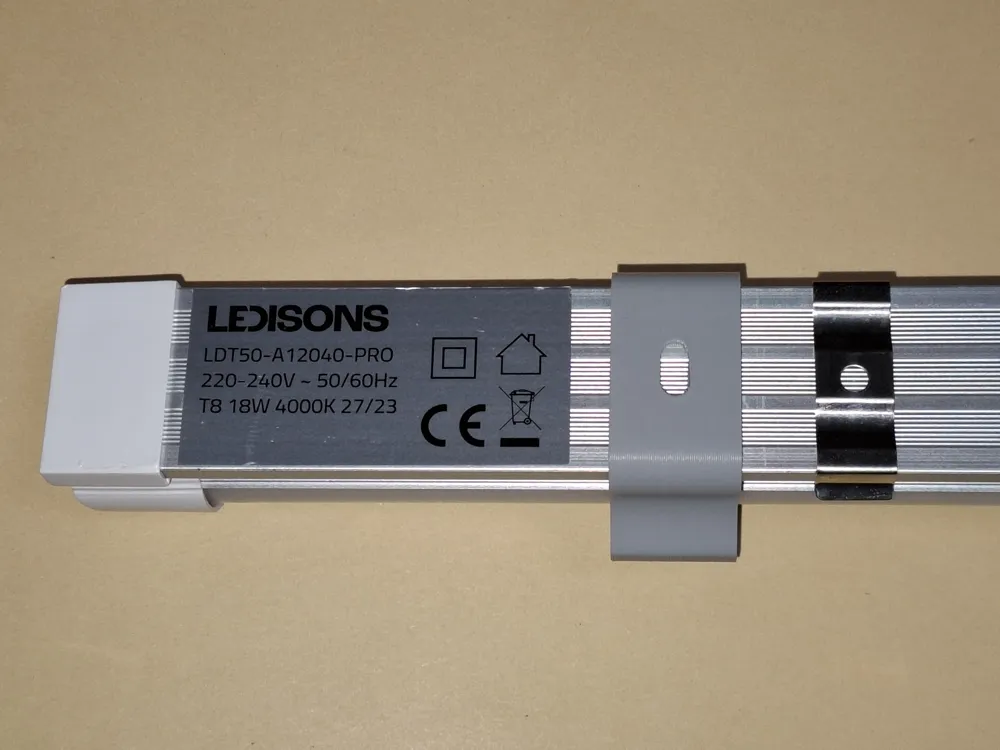

<figure class="table"><table class="ck-table-resized"><colgroup><col style="width: 50%"><col style="width: 50%"></colgroup><tbody><tr><td style="padding: 0cm">English</td><td style="padding: 0cm">English</td></tr><tr><td style="padding: 0cm"><ul><li>For light strip (ceiling mounting) (formerly fluorescent lamp)</li><li>For base width 31 mm</li></ul></td><td style="padding: 0cm"><ul><li>For light strip (ceiling mounting) (formerly fluorescent lamp)</li><li>For base width 31 mm</li></ul></td></tr></tbody></table></figure>English<ul><li>When installing newly purchased ceiling lights, the small, thin metal clips stood out negatively because they bent just by looking at them.</li><li>And since no one wanted to stand under a shower of ceiling lights at the slightest touch, a new clip was simply designed.</li><li>The clip had to be stable and durable, and also allow for easy removal of the lamp at a later date.</li><li>And since drilling into concrete or other hard materials is not always precise, the clip is available for installation with a “normal” hole and a version with a slotted hole.</li><li>The lamp used here, “LEDISONS Linear Pro 120cm,” was labeled “LDT50-A12040-PRO, 220-240V - 50/60Hz - T8 18W 4000K 27/23.” In the images, you&#39;ll find a dimensional drawing of the digital twin, which is how I usually start a project like this.&nbsp;</li><li>Material<ul><li>Since the clip needs to be stable and flexible, I decided to use PETG.</li></ul></li></ul>English<ul><li>When installing newly purchased ceiling lights, the small, thin metal clips stood out negatively because they bent just by looking at them.</li><li>And since no one wanted to stand under a shower of ceiling lights at the slightest touch, a new clip was simply designed.</li><li>The clip had to be stable and durable, and also allow for easy removal of the lamp at a later date.</li><li>And since drilling into concrete or other hard materials is not always precise, the clip is available for installation with a “normal” hole and a version with a slotted hole.</li><li>The lamp used here, “LEDISONS Linear Pro 120cm,” was labeled “LDT50-A12040-PRO, 220-240V - 50/60Hz - T8 18W 4000K 27/23.” In the images, you&#39;ll find a dimensional drawing of the digital twin, which is how I usually start a project like this.&nbsp;</li><li>Material<ul><li>Since the clip needs to be stable and flexible, I decided to use PETG.</li></ul></li></ul>

Lamp clip / Clip for ceiling lamp

ASIA

English	English

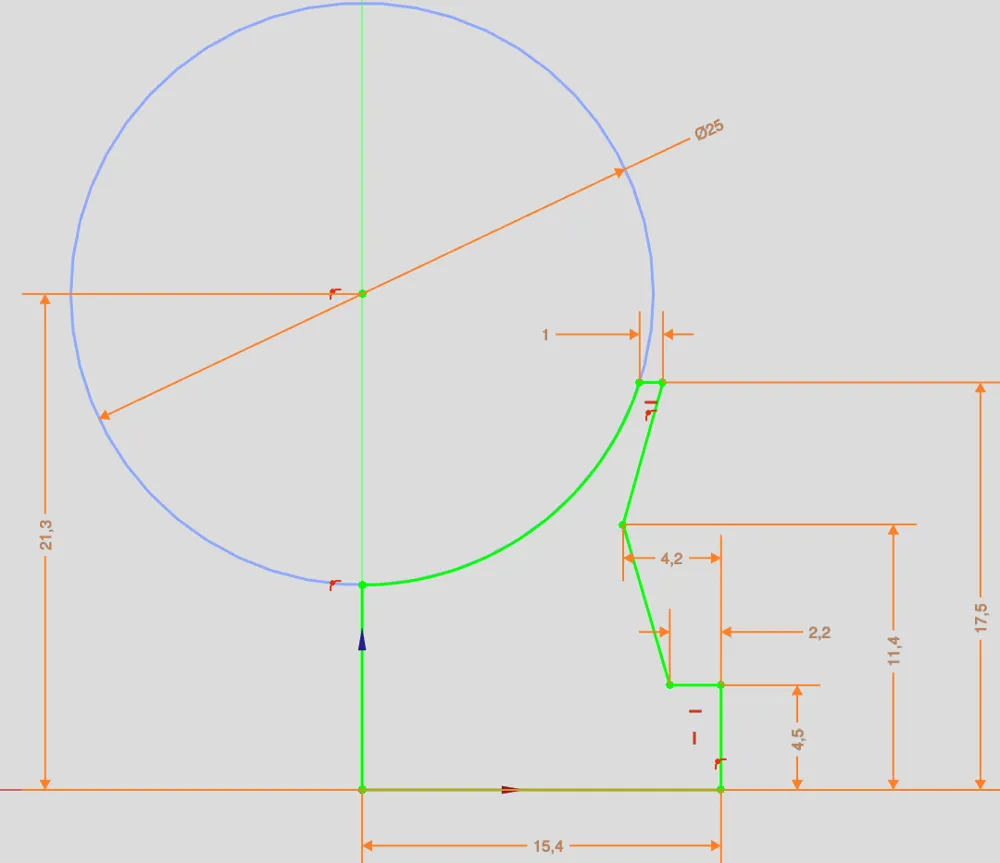

For light strip (ceiling mounting) (formerly fluorescent lamp) For base width 31 mm	For light strip (ceiling mounting) (formerly fluorescent lamp) For base width 31 mm
