Update 08.02.2026
- Since some users have reported that the double-sided adhesive tape does not hold well, I have added an additional attachment from the back. The frame must be reprinted, and the “Bridge” part must also be printed. The bridge is screwed into the frame from the inside with 2 M3x20 or x25 screws.
- I have added a print file for Snapmaker Orca to the downloads.
- Tip: When disassembling, gently warm the screen with a hairdryer. This softens the adhesive, and the screen detaches more easily.
Update 23.01.2026
Alternative purchase options for cables and adapters. I have not found any other combo offers.
Flat cable 32pin 0.5mm pitch:
https://www.ebay.de/itm/272400241796
Adapter 32pin 0.5mm pitch:
https://www.ebay.de/itm/155781660294?chn=ps&_ul=DE&var=456170634777&google_free_listing_action=view_item (be sure to select 32 here)
https://www.ebay.com/itm/395924896610 (select 0.5 pitch - 32P here)
https://www.amazon.de/Nicht-Verl%C3%A4ngerung-Anschluss-Adapter-Extender/dp/B0848MRB6K
Swivel Display Mount for Snapmaker U1

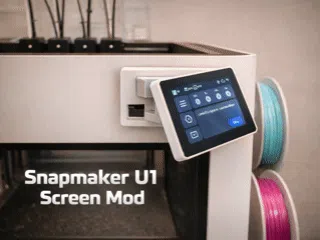

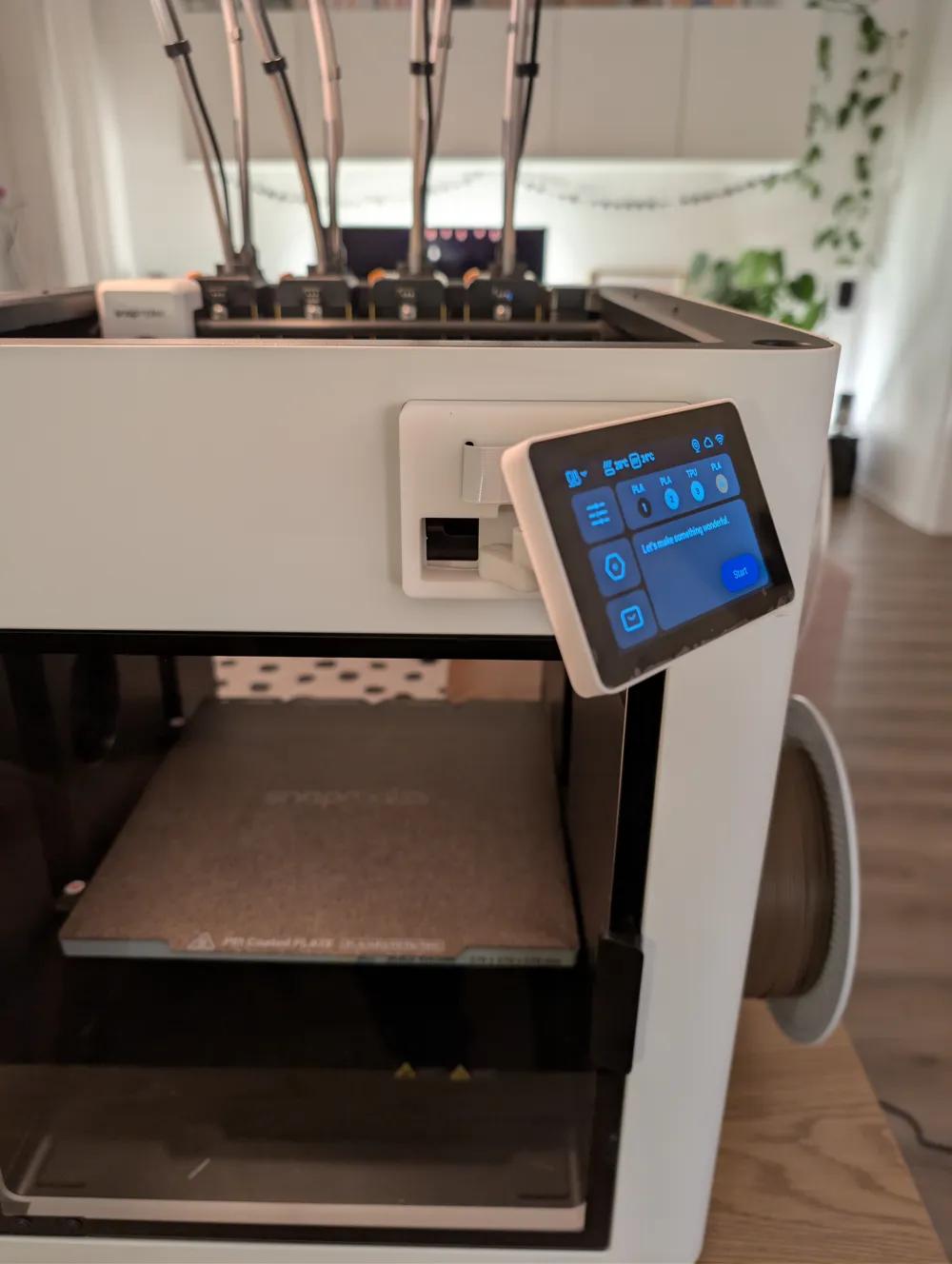

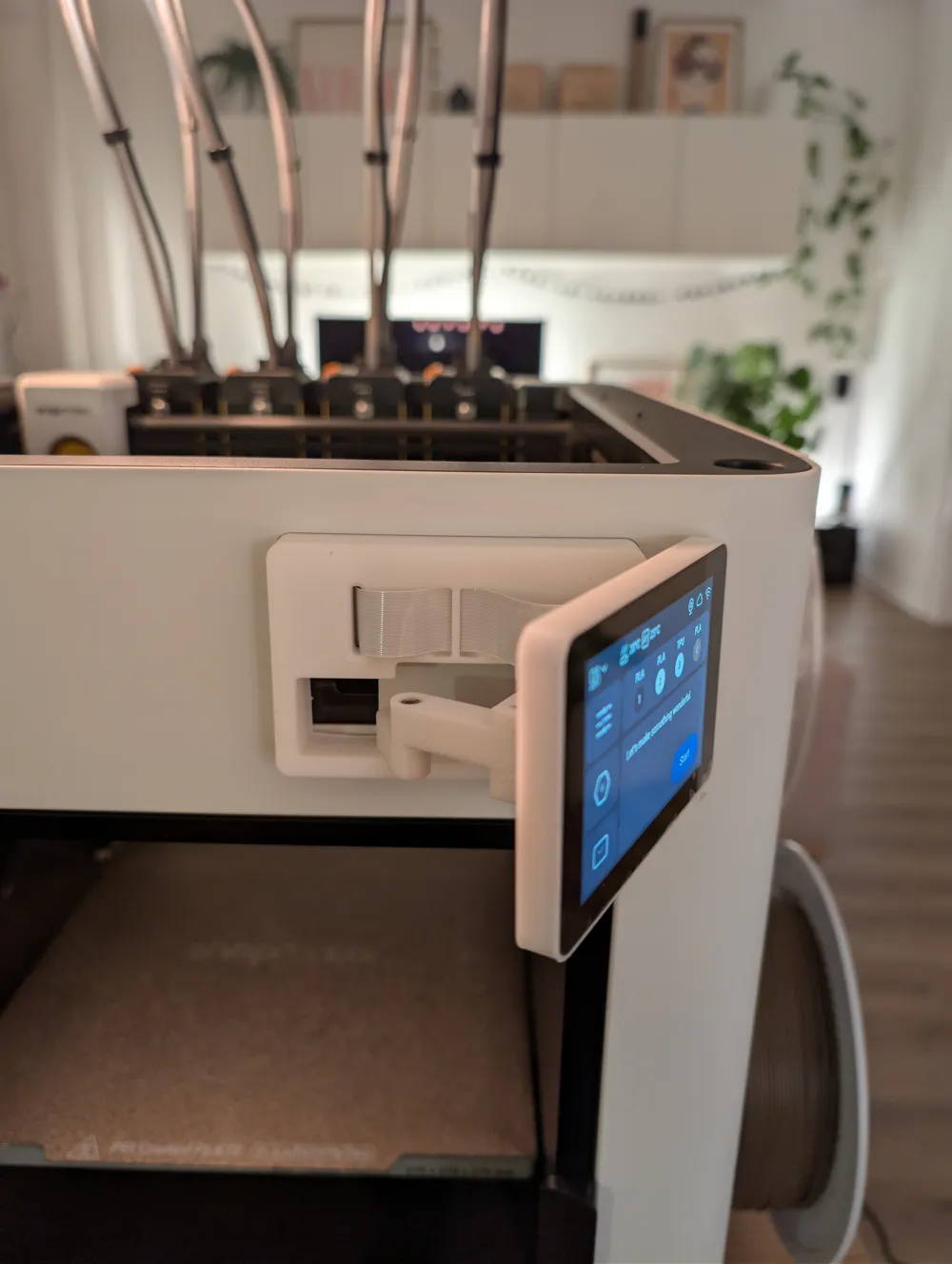

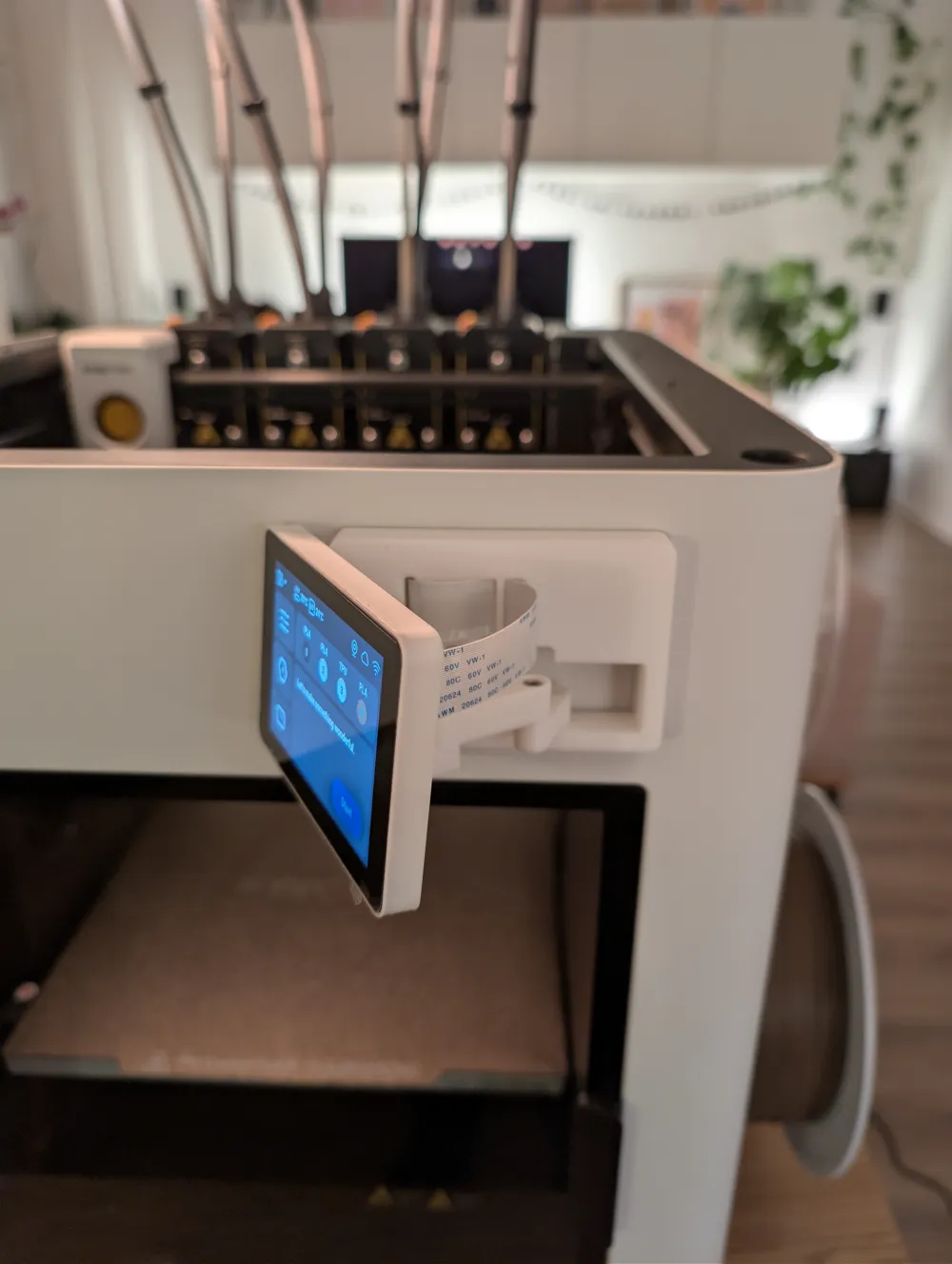

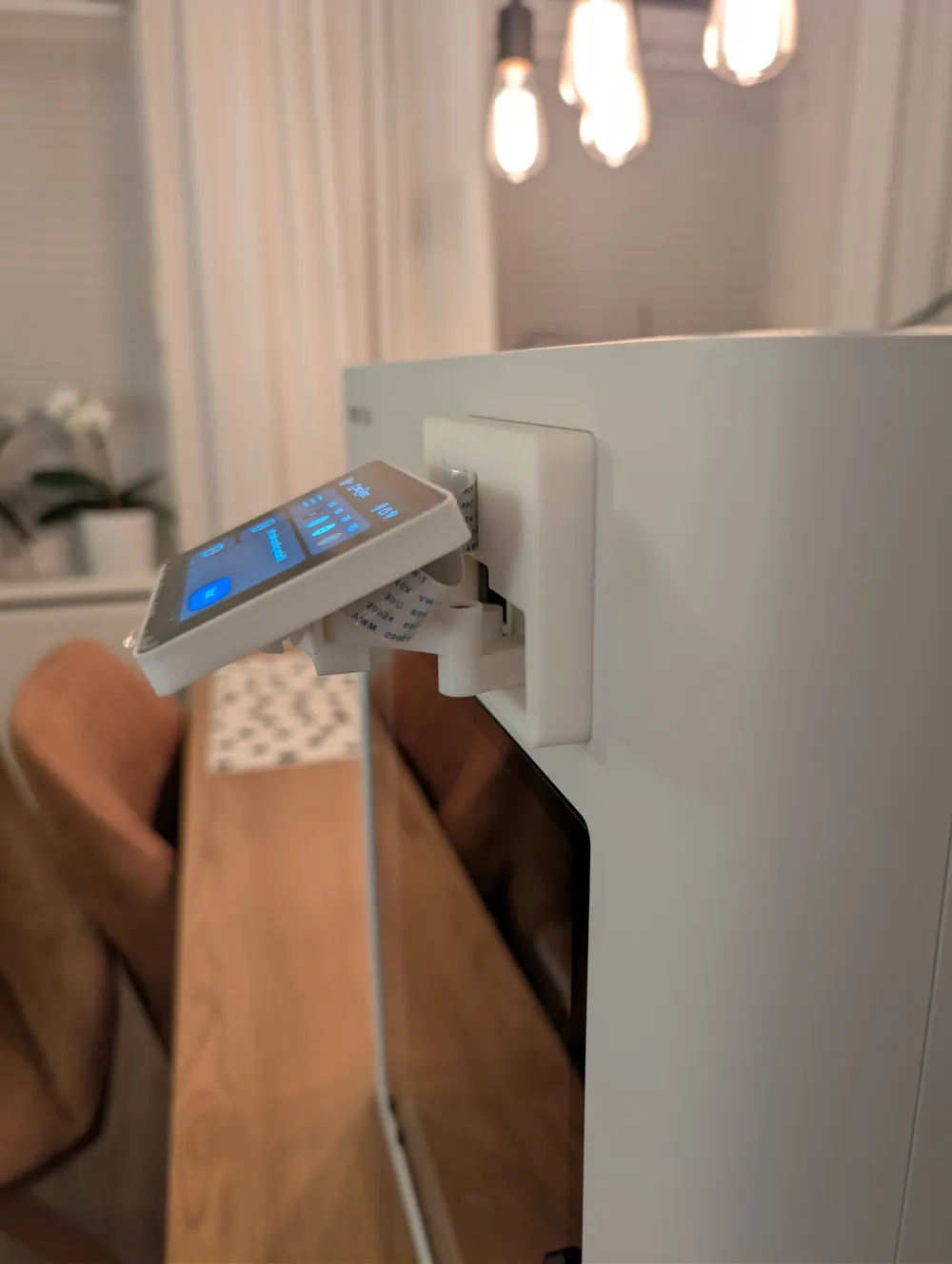

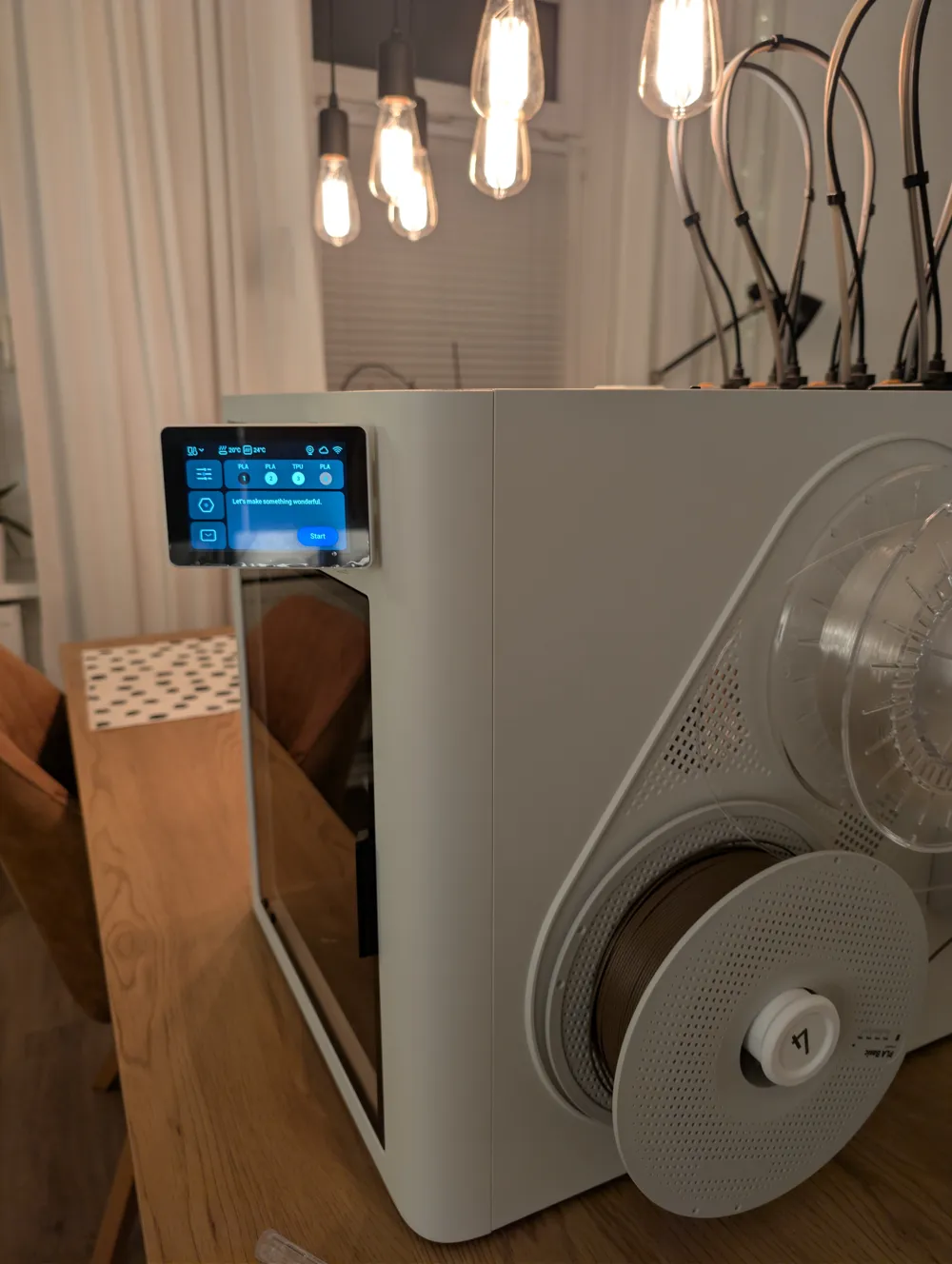

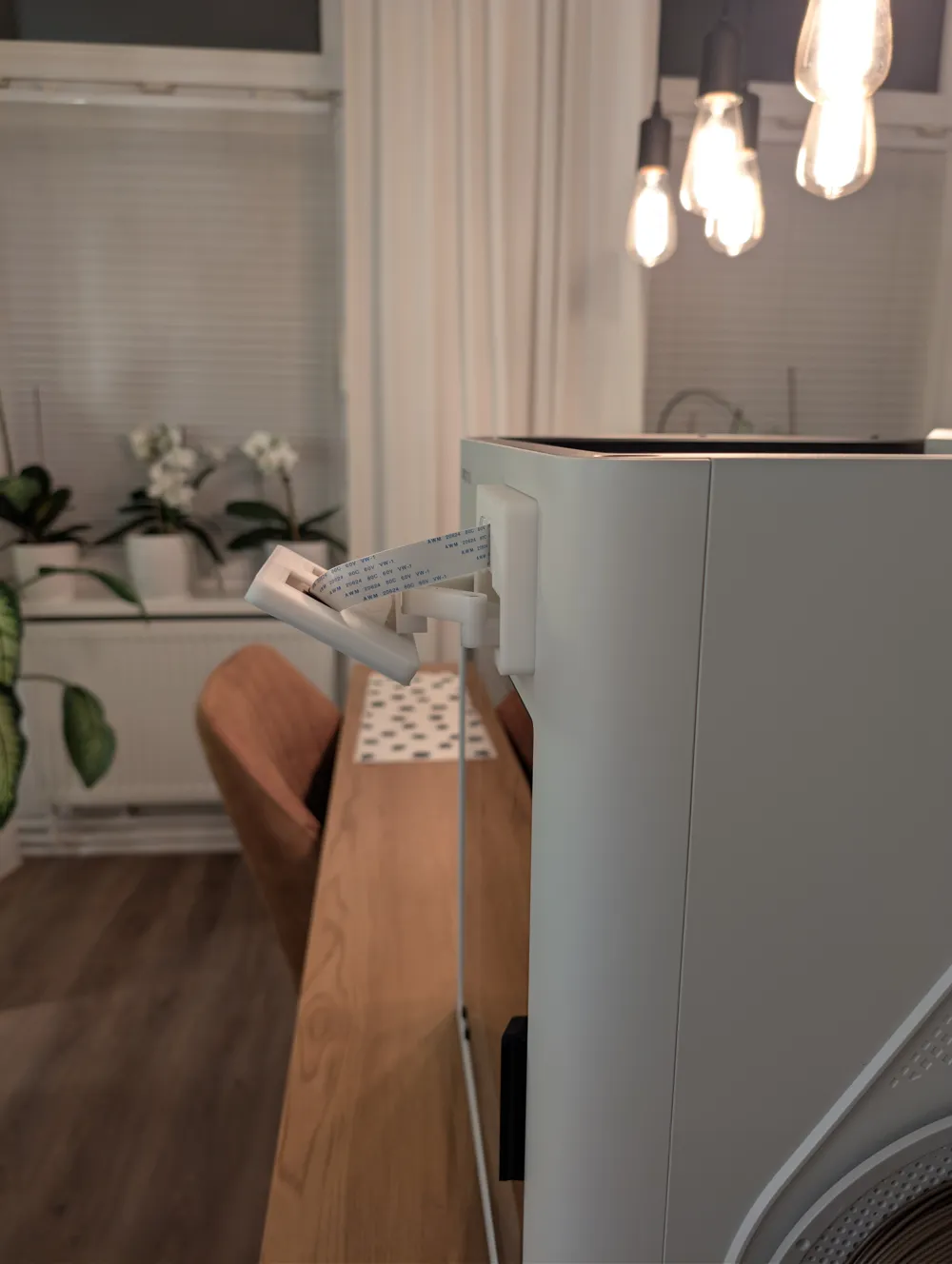

This project offers a swivel and tilt display mount for the Snapmaker U1 as a replacement for the original, fixed display position.
Many Snapmaker U1 owners place their 3D Printer in corners, on shelves, or at different heights. In such situations, the original flat-mounted display is often difficult to read or uncomfortable to operate.
This mount solves the problem with a freely adjustable orientation of the touchscreen.
Required Additional Parts
- 6× M3 screws (M3×10, M3×14, M3×18)
- High-quality double-sided adhesive tape

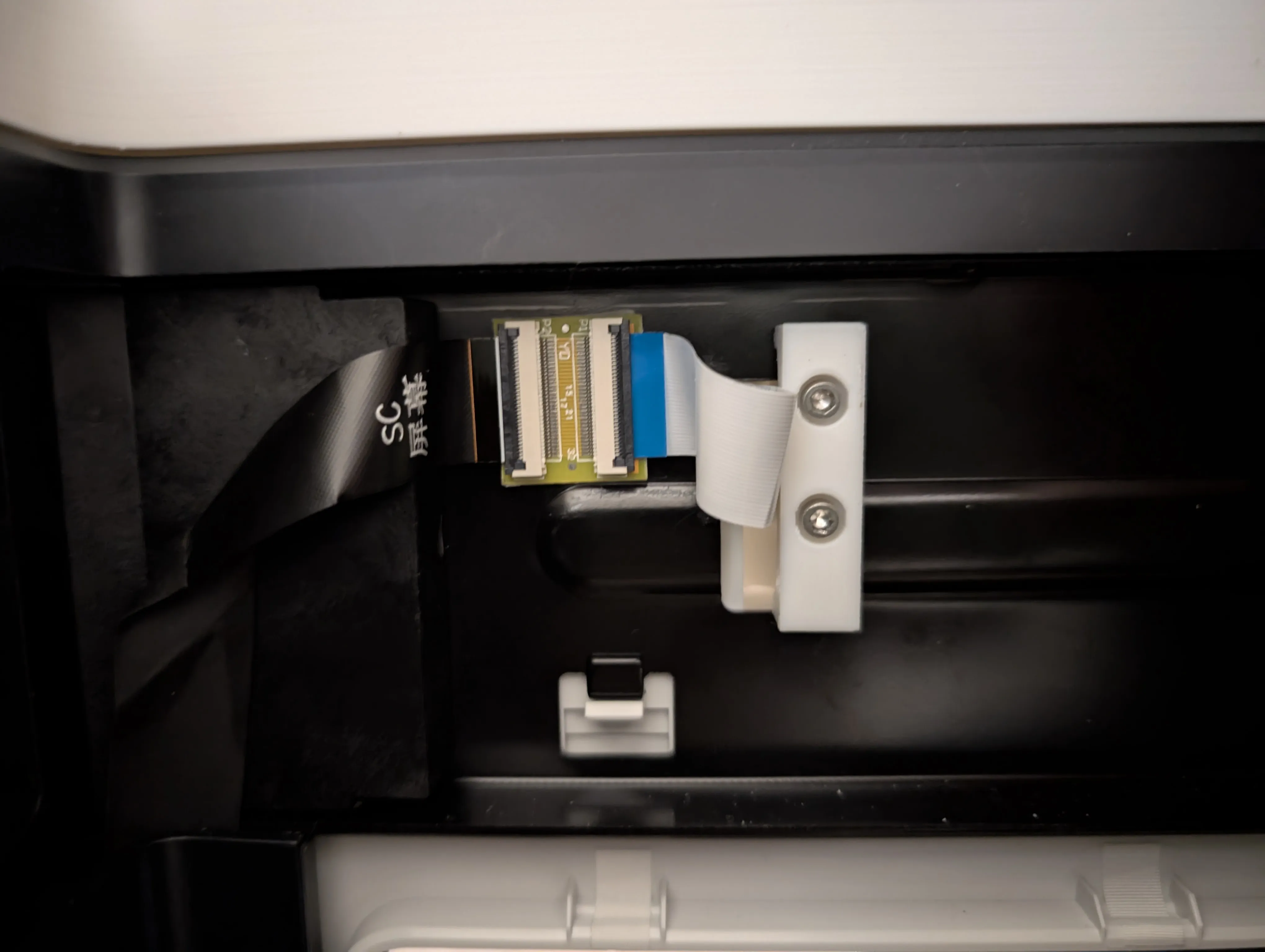

- Extension cable for touchscreen (FFC/FPC, 32-pin, 0.5 mm pitch)
- Like this one https://www.amazon.de/dp/B093T9FRH7?ref=ppx_yo2ov_dt_b_fed_asin_title
- ZIF extension adapter
I have provided detailed instructions ;)
Disclaimer
The replication and assembly of this display mount are done at your own risk.
I assume no liability for damages to the device, the display, or other components resulting from the replication, assembly, or use of this mount.
