Description

Copertura stampante 3D Snapmaker U1.

Modello perfettamente dimensionato. Stampato in PLA+ HS.

Prevede un plexiglass con spessore di 2,5 mm. Dimensioni delle pareti in plexiglass in file *.stl allegati.

Il file Piolo e Guarnizioni sono in Sunlu TPU 95A . Le guarnizioni vanno incollate nel solco, appositamente creato, sottostante la base della copertura.

Nel progetto ho previsto per alcuni piatti un Raft = 3 ed ho usato filamento di supporto PLA per una miglior post-lavorazione.

L'incollaggio delle pareti in plexiglass nei vari componenti permettono il fissaggio dell'insieme.

Ho utilizzato la colla Saratoga Modellismo

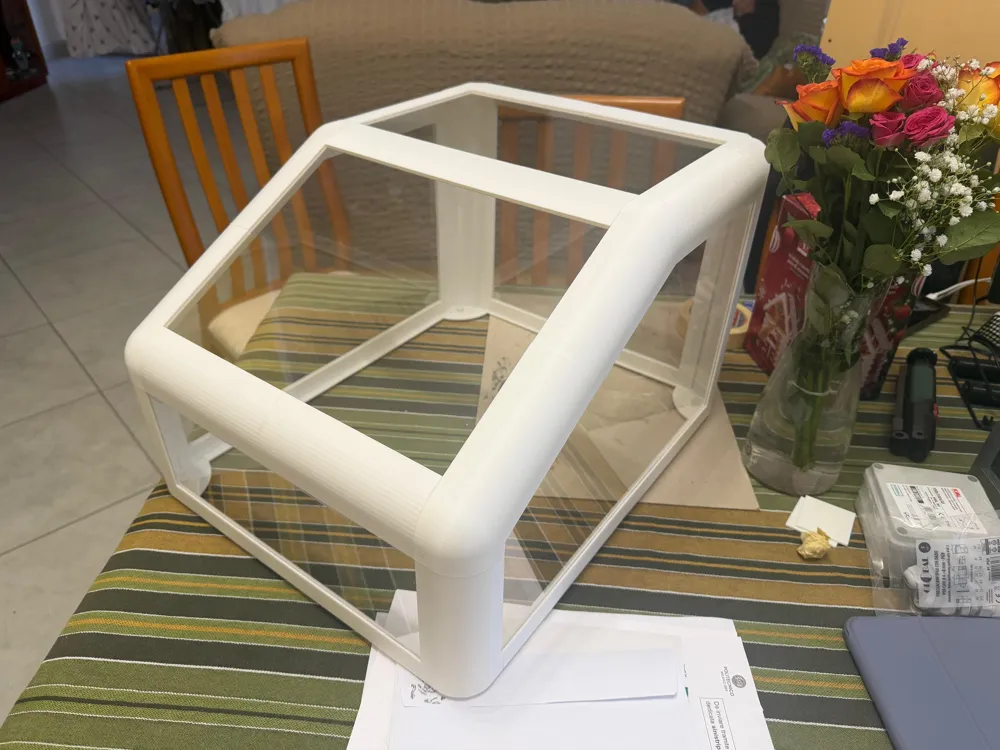

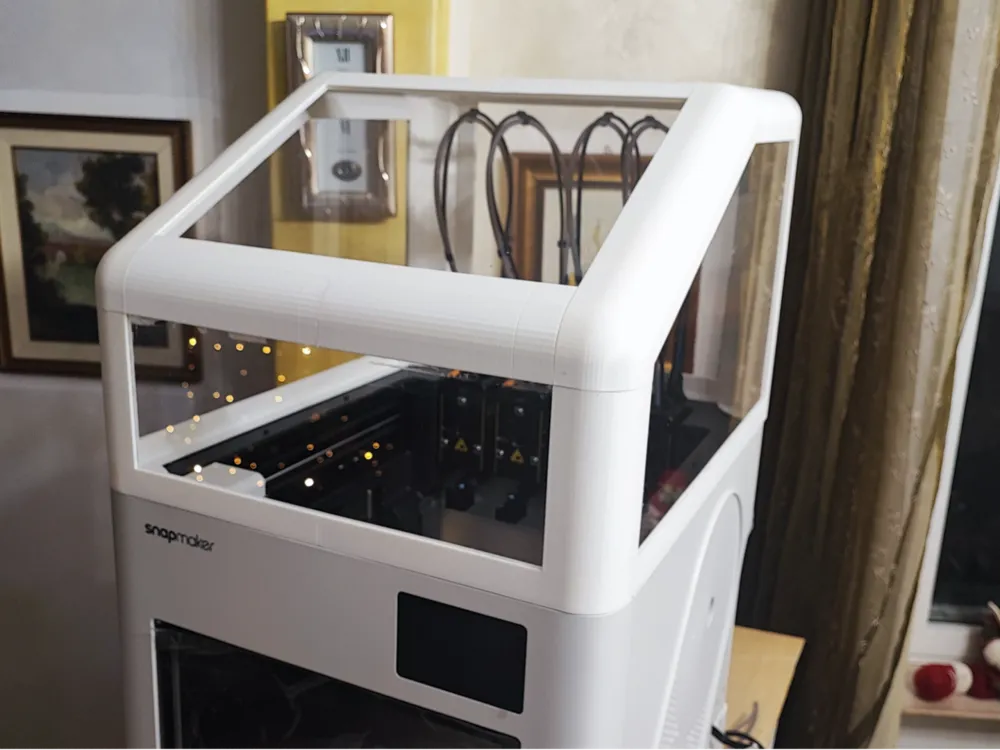

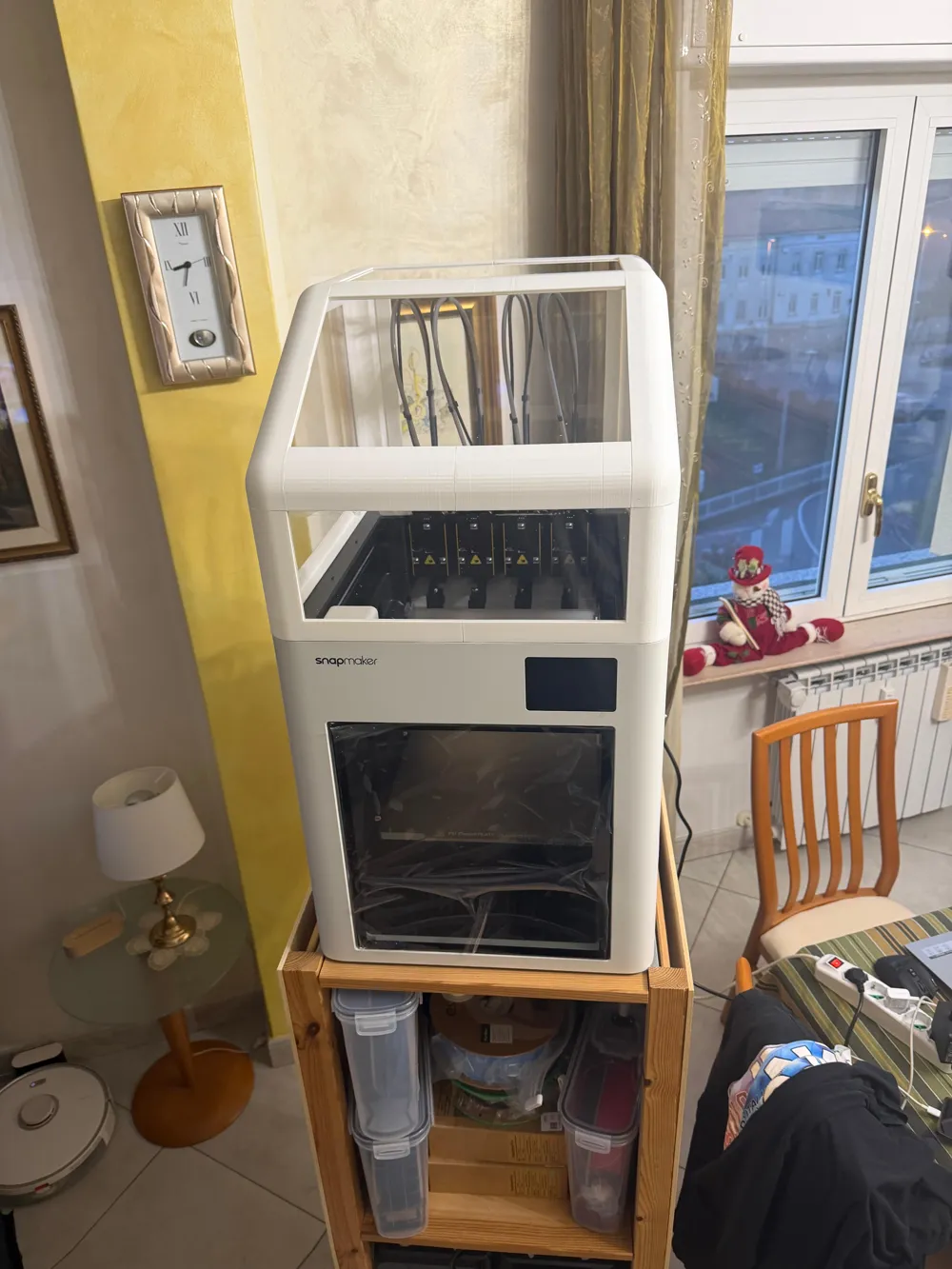

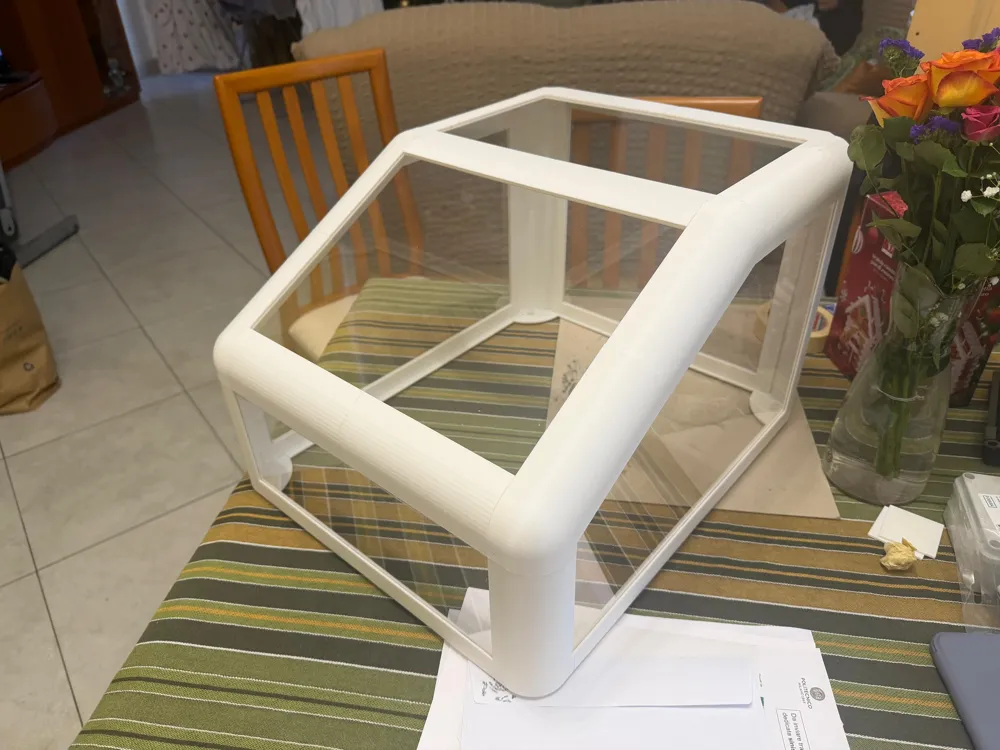

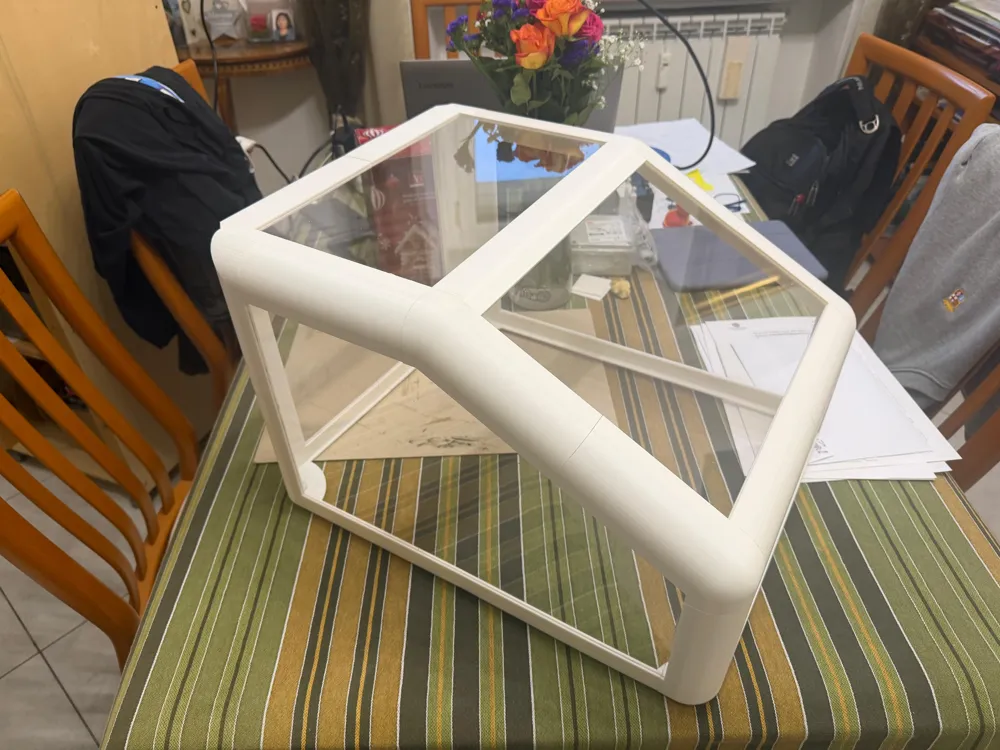

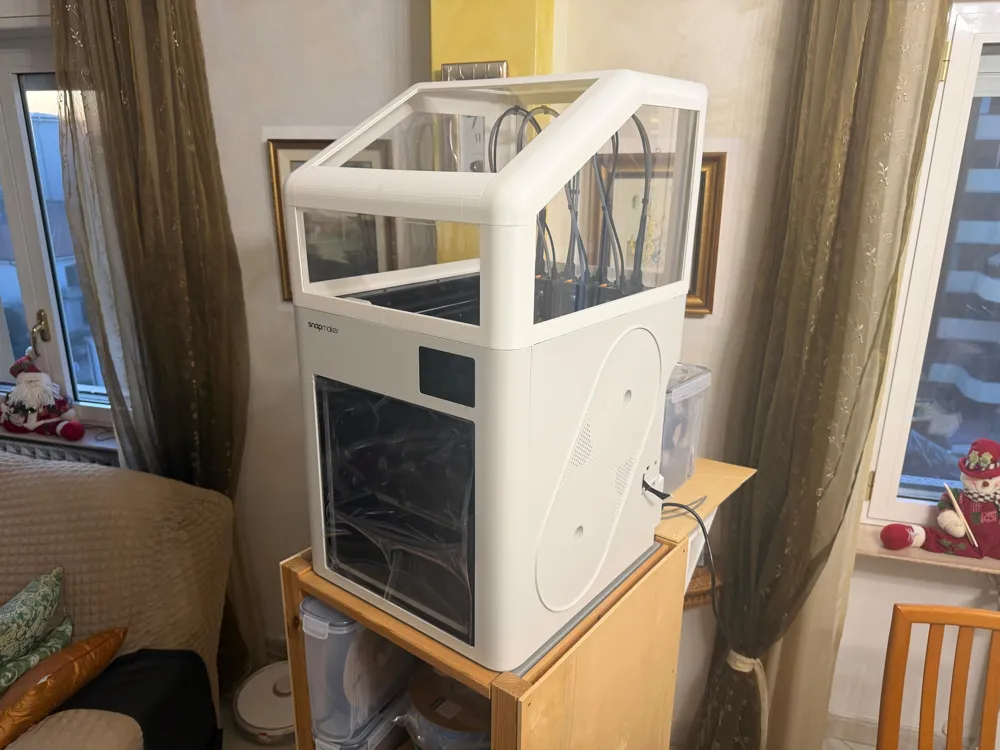

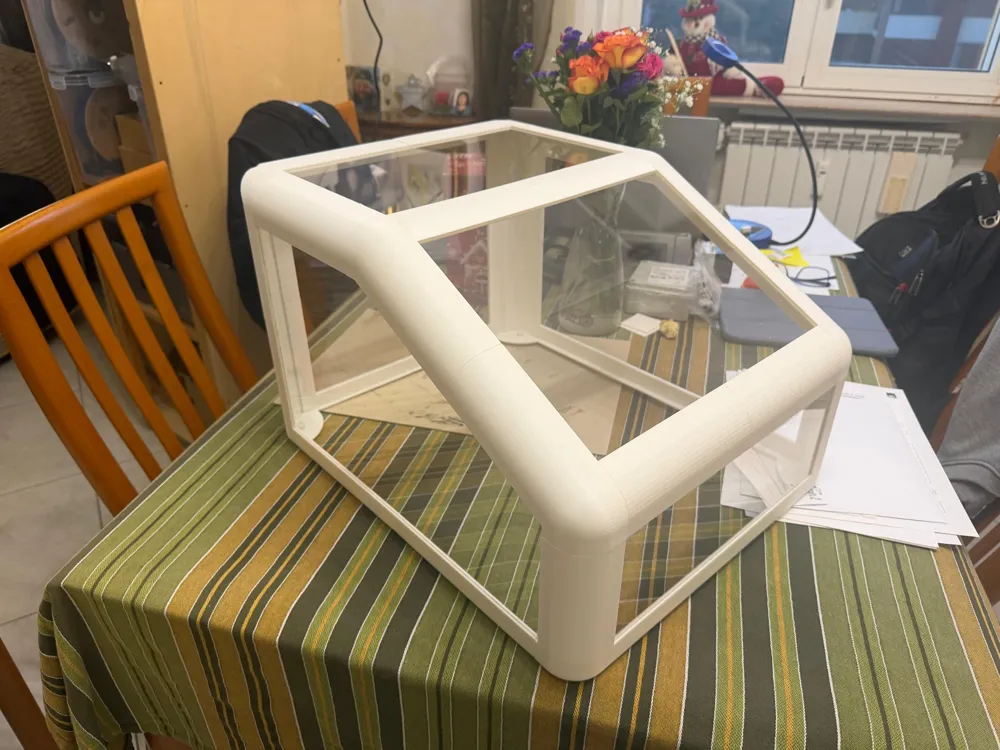

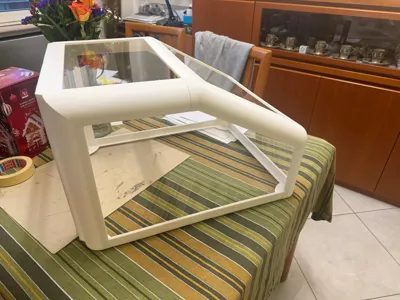

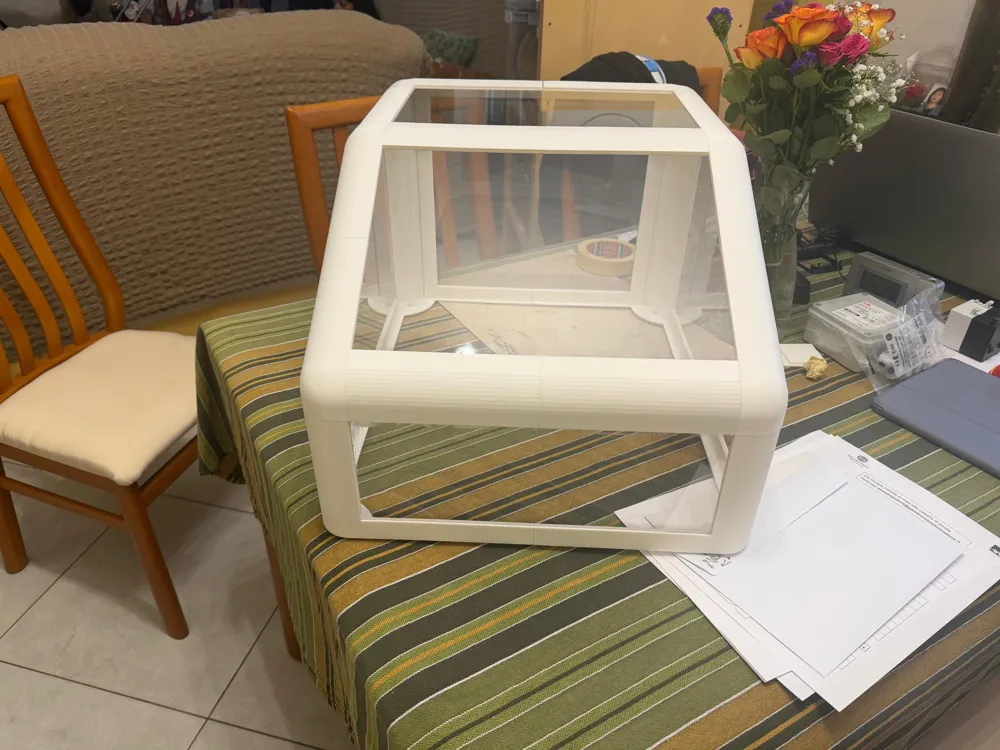

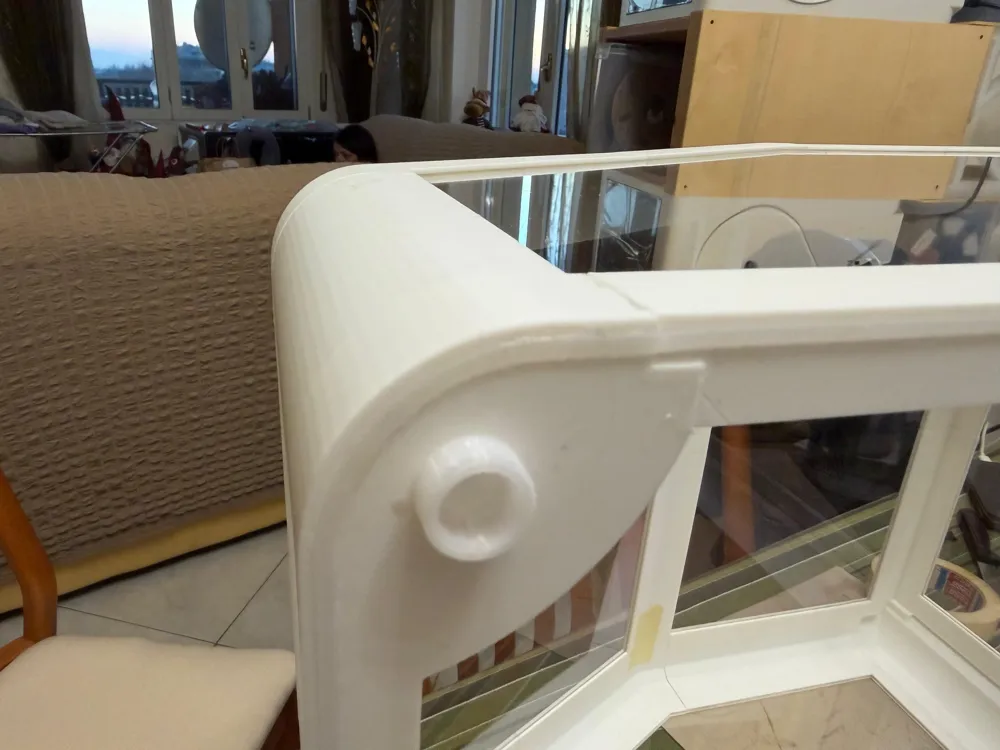

Snapmaker U1 3D printer cover.

Perfectly sized model. Printed in PLA+ HS.

Requires 2.5 mm thick plexiglass. Dimensions of the plexiglass walls are in the attached *.stl files.

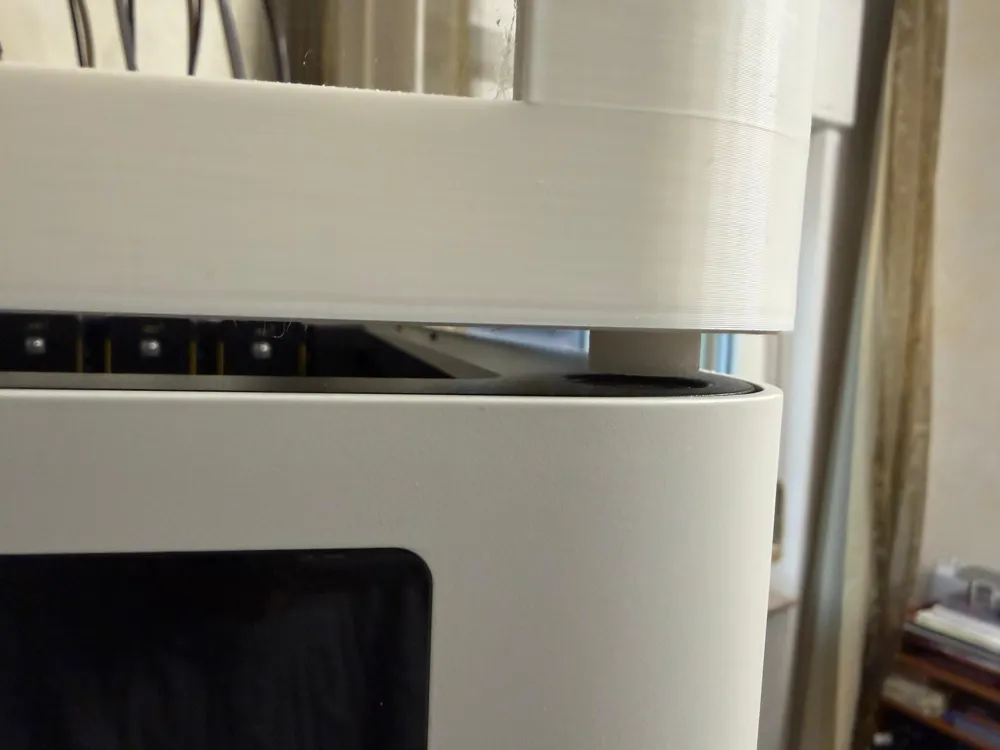

The “Piolo e Guarnizioni” files are made of Sunlu TPU 95A. The gaskets are glued into the specially created groove under the cover base.

In this project, I specified a Raft = 3 for some plates and used PLA support filament for easier post-processing.

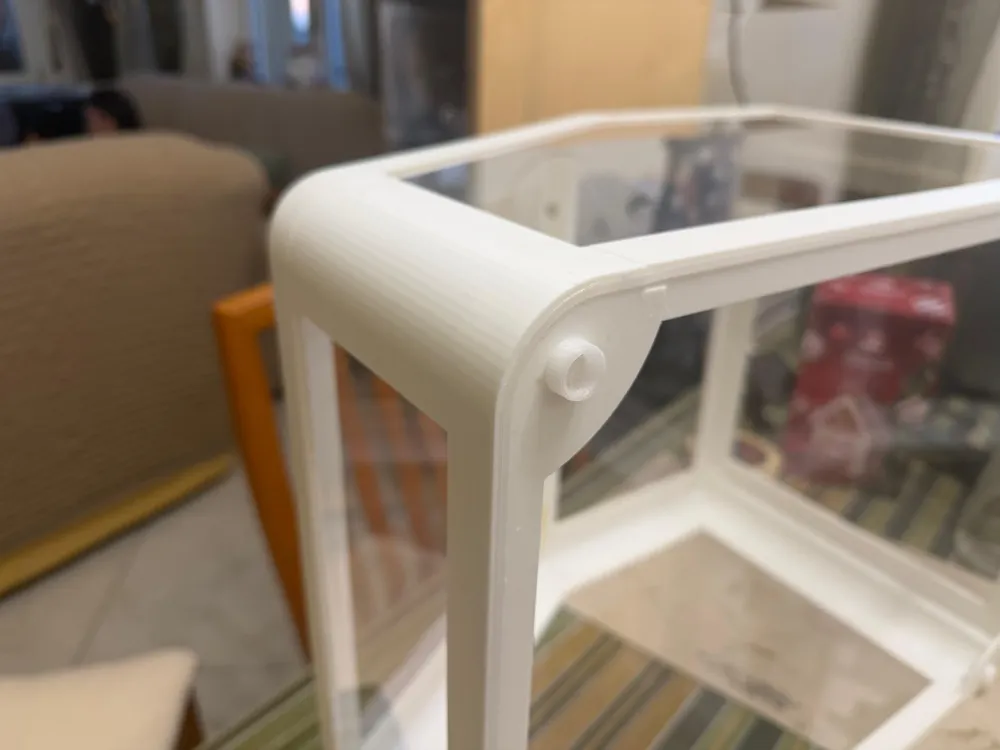

Gluing the plexiglass walls to the various components allows the assembly to be held together.

I used Saratoga Modellismo glue.

Comment & Rating (65)

@user_4256541577

Here is a .JPG with the measurements for the plexiglass/acrylic pieces. The thickness of all pieces is 2.8mm or .11in. My diagram is crude and not to scale, but it should still be useful.

@thomas.weissman

Vielen Dank.

@user_2941837039

I think the front panel has a typo. Should be 5.1" not 6.1"

@sangtran061

Why does the description require the acrylic pieces to be 2.5mm thick, but you said they are 2.8mm? Why is there a 0.3mm difference compared to the author’s description?

@CrazyPrint

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

came out great. thanks!

@CrazyPrint

Boosted

It was lonely LOL

(Edited)

@BullZeyeRy

hey do you happen to have the acrylic dimensions?

(Edited)

@user_2941837039

Would it be possible to have a version for 1/8" (~3.175mm) plexiglass panels? 2.5mm is very uncommon in the US. Thank you!

The designer has replied

@Falugafa3D

Hello Thank you for the suggestion Give me a few days and I will attach it as a new profile

Show original

@numeric.works

Replying to @Falugafa3D :

can you please also do it for 4mm sheets? or provide step files or similar?

@user_2941837039

Replying to @Falugafa3D :

Grazie! Thanks man. I ended up finding a 2.5mm sheet, still other users will benefit from it

@djferre_garage

Boosted

I gave my boost, having a bit of manual skill I managed to make the 3 mm plexiglass I had salvaged for free fit. thank you

Show original

@mi.krebs

@Falugafa3D It would be extremely helpful if the plexiglass sheets were available for download not only as STL files but also as SVG files to be able to cut them yourself Could you add it Thank you very much

Show original

@user_1024002950

Print Profile

0.2mm layer, 2 walls, 15% infill

Poor and very difficult assembly, the parts are unclear, parts that are so similar need to be marked, no explanatory drawing, I threw away a large amount of PLA,Missing window dimensions, do not recommend even though it looks nice.

(Edited)

@user_169135333

It takes 10 minutes to organize the parts!

@BullZeyeRy

agree

@SimonW1

please include the dimensions for the plexiglass sheets needed

@mi.krebs

You can find them if you download everything as STL

Show original

@Jlpenalver

Replying to @mi.krebs :

and how do I download in stl? it only downloads 3mf to open in Bambu Studio. I don't see another option

Show original

@trohn_javolta

Hello, any way to get the step files to properly modify this? Looks like a great cover but I think the connectors should be separate prints. The parts should have holes to put connectors/dovels in to join them. This would 1. make the cover sturdier and 2. make printing the parts easier as one wouldn't need supports.

@FawkesYT

can I have your snap maker U1 please

The designer has replied

@Falugafa3D

In what sense

Show original

@FawkesYT

@Falugafa3D want you’re printer.

(Edited)

@BullZeyeRy

ok I finally have the dam thing together haha anyone got any tips on the best order to glue this thing together in

@BullZeyeRy

3hrs in trying to get this thing together it’s like spinning plates … with no connectors between the parts it’s a struggle
