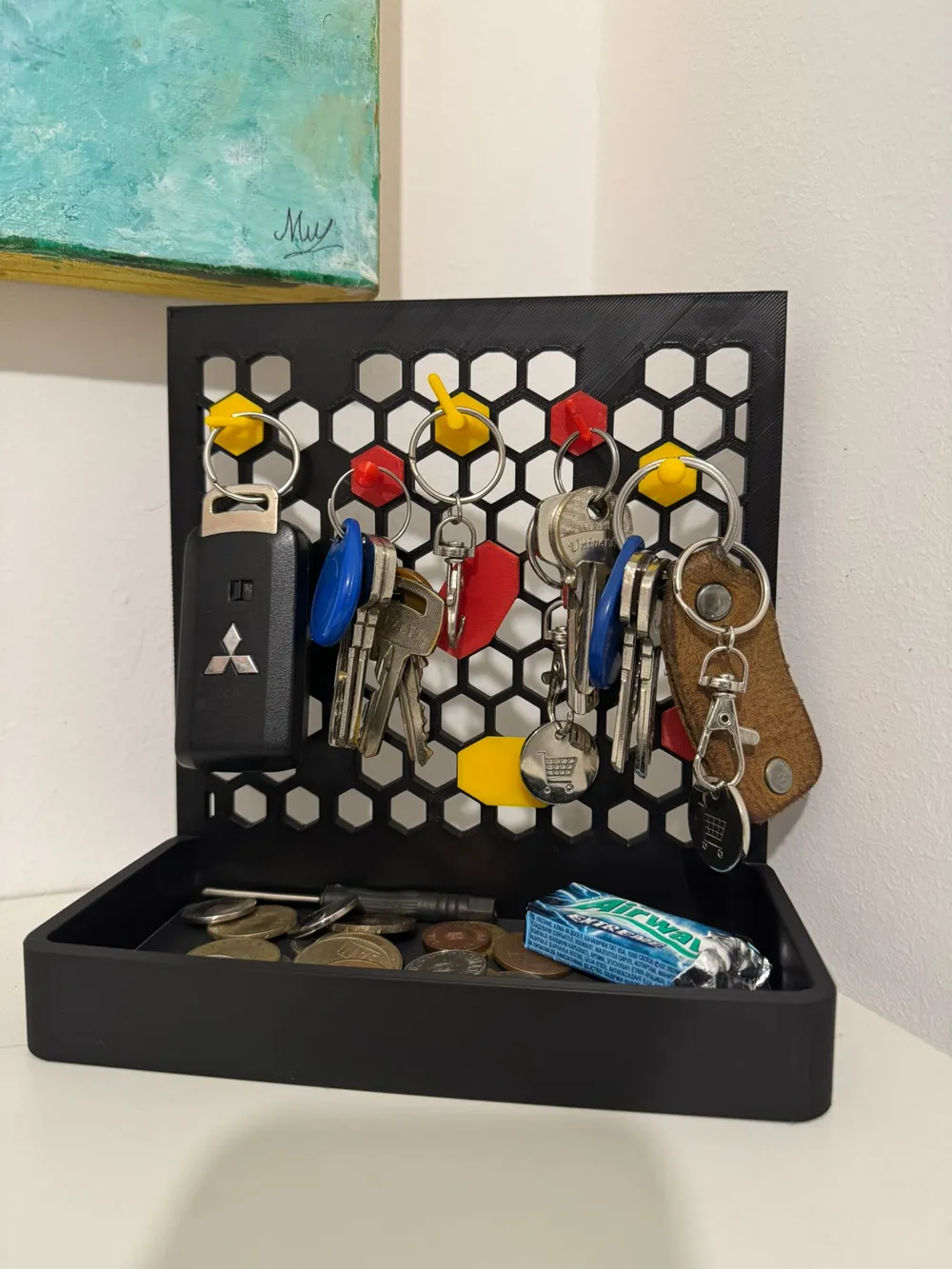

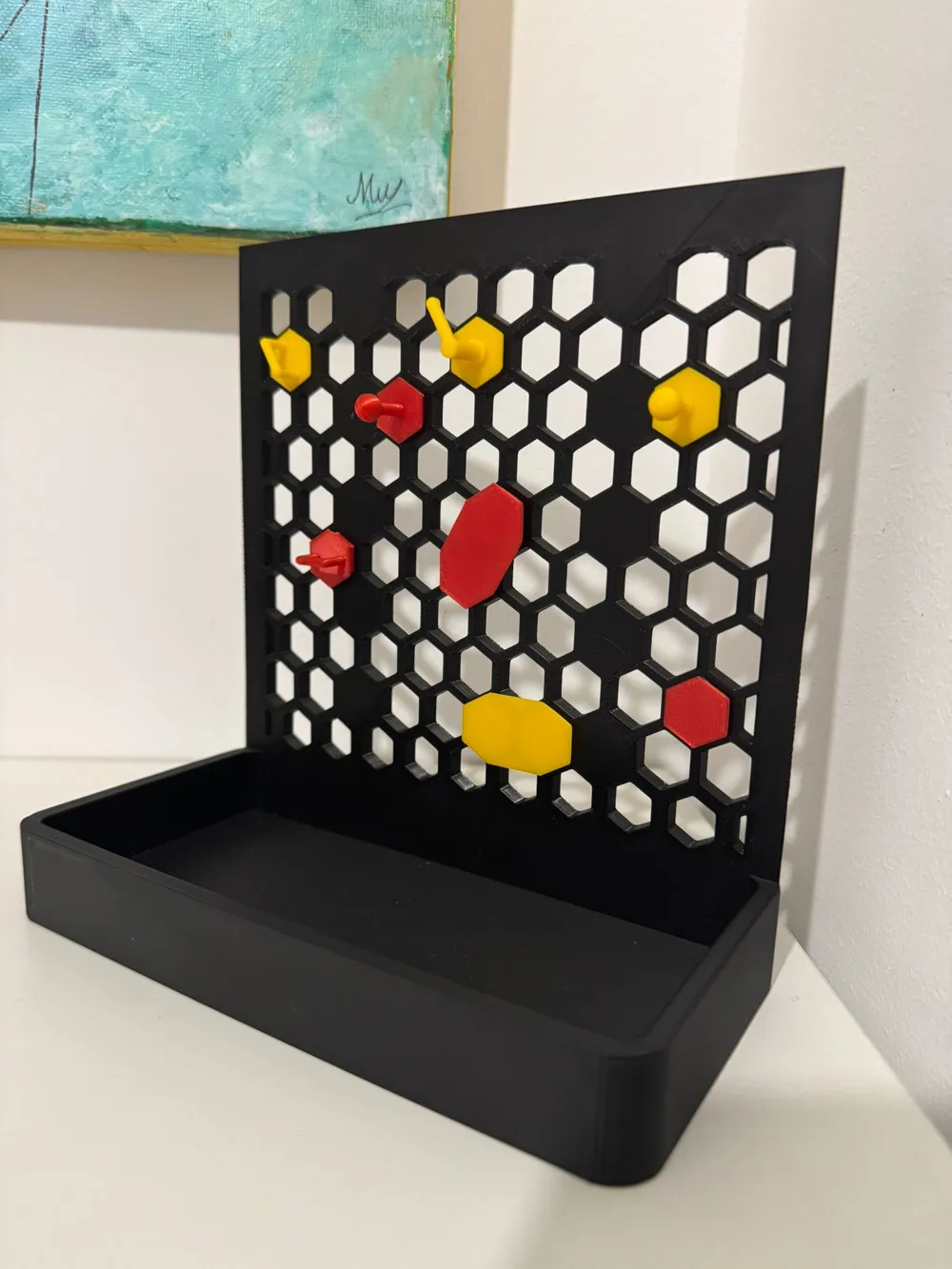

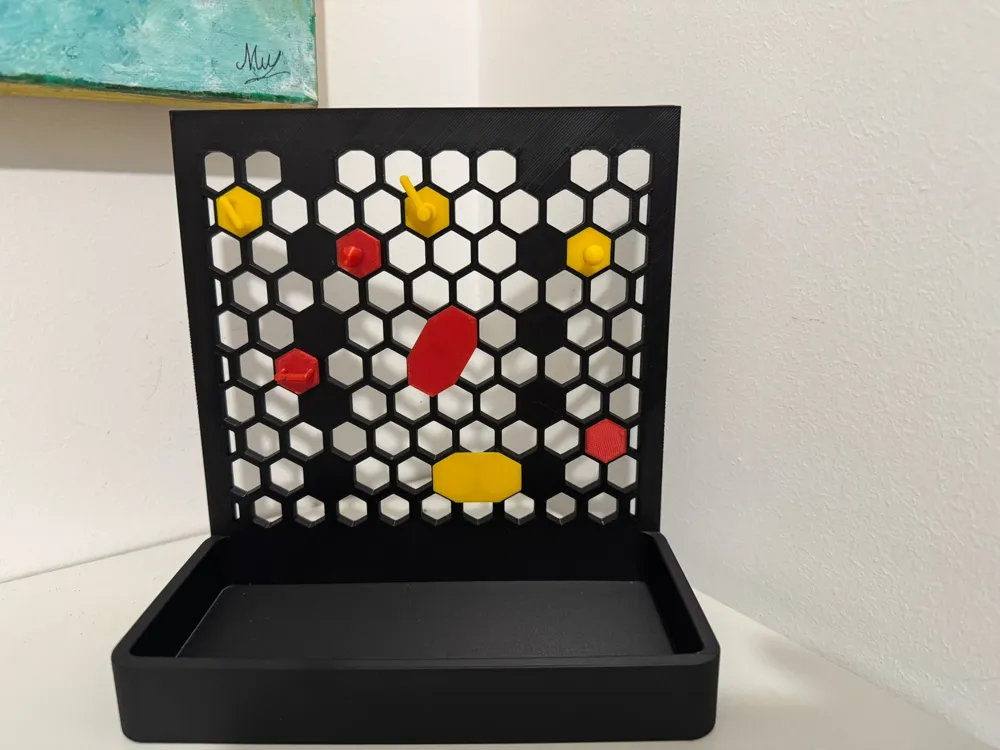

Honeycomb Modular Key Organizer with Tray

A modular, honeycomb-based key organizer designed for clean organization, easy access, and strong structural performance.
The system uses a hex-grid panel with interchangeable snap-in modules, allowing you to customize your setup for keys, accessories, or small everyday items.

Perfect for entryways, desks, or workshops. Can print in any color combination.

✨ Features

• Modular hex-grid system
• Interchangeable snap-in modules (plugs & hooks)
• Strong friction-fit design
• Integrated bottom tray for coins & small items
• Compact footprint, high storage density
• Designed for FDM 3D printing

📐 Technical Details

• Material: PLA (PETG also works well)
• Nozzle: 0.4 mm
• Layer Height: 0.24 mm
• Wall Loops: 4
• Top/Bottom Layers: 5
• Infill: 20–25%
• Cooling: 100%
• Supports: Only touching build plate (for hooks if needed)
• Print Orientation: Honeycomb face on build plate

📏 Dimensions

• Panel + Tray (assembled):
  (fill exact mm if you want, optional)
• Weight (complete set): ~180 g PLA

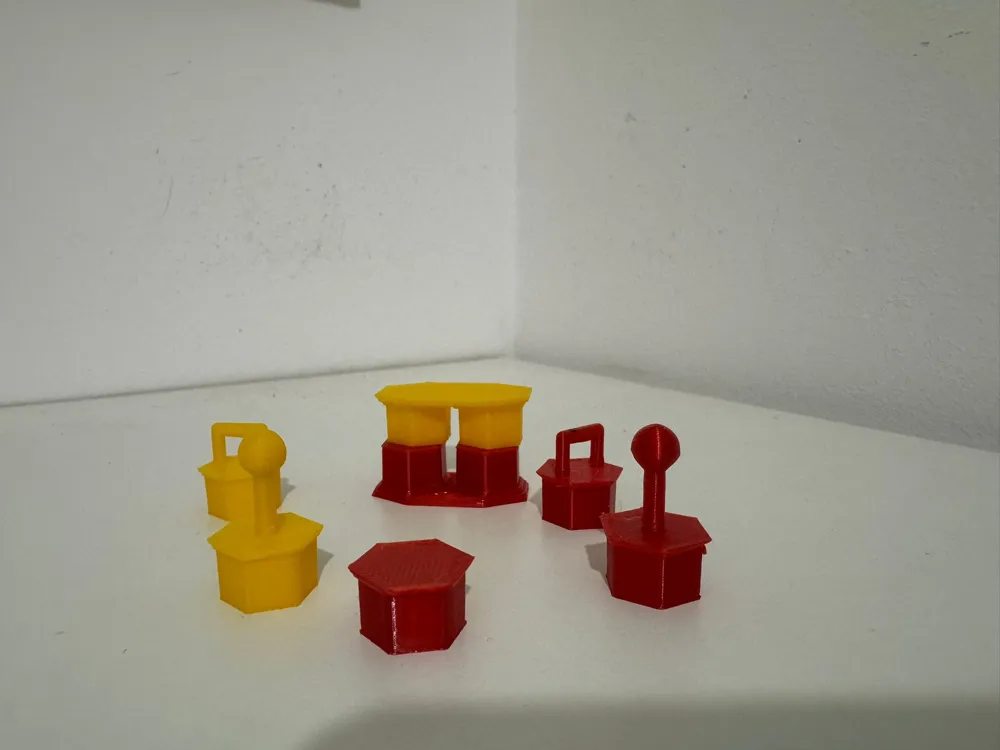

🧩 Included Parts

• Honeycomb Panel with Tray
• Single Hex Plug
• Double Hex Plug
• Straight Peg (ball-end)
• U-Hook keychain

🛠 Assembly Notes

• All modules are press-fit into the honeycomb grid.
• For higher retention (e.g. heavy key sets), a small drop of super glue can be used on the back of the module. I use superglue for all the parts which ar set to stay in the honeycomb and leave unly the U-hook keychain not glued

🖨 Printing Tips

• Print modules flat on the bed for best surface quality.
• For stronger hooks, increase wall count or infill if using PETG.

📦 Use Cases

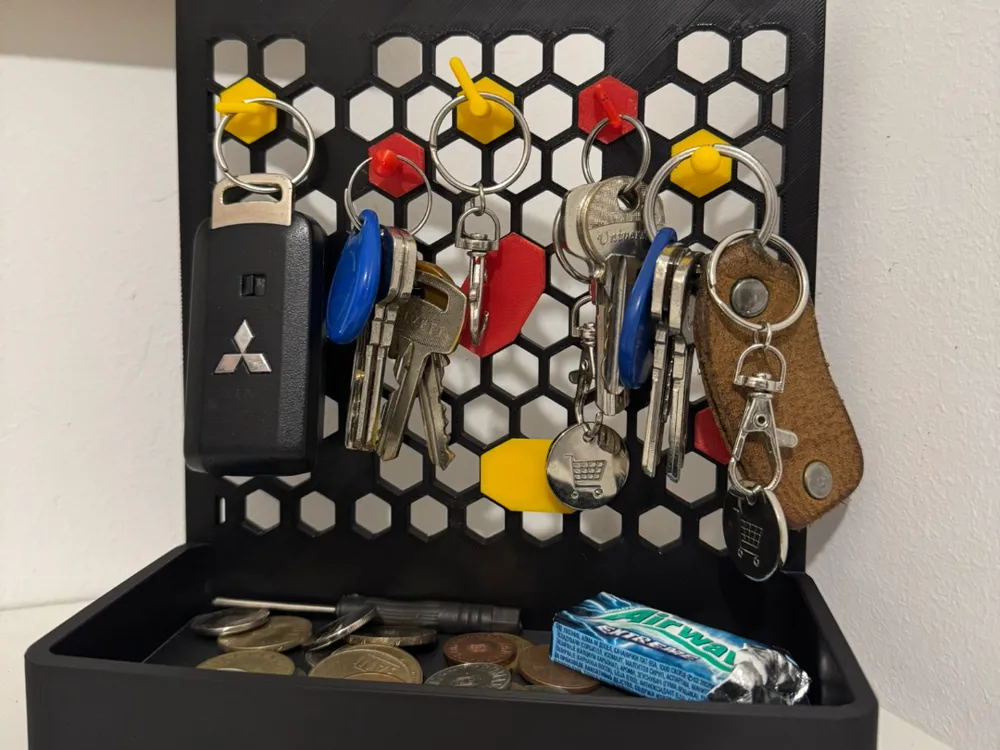

• Key holder
• EDC organizer
• Workshop wall system
• Modular storage for small items
