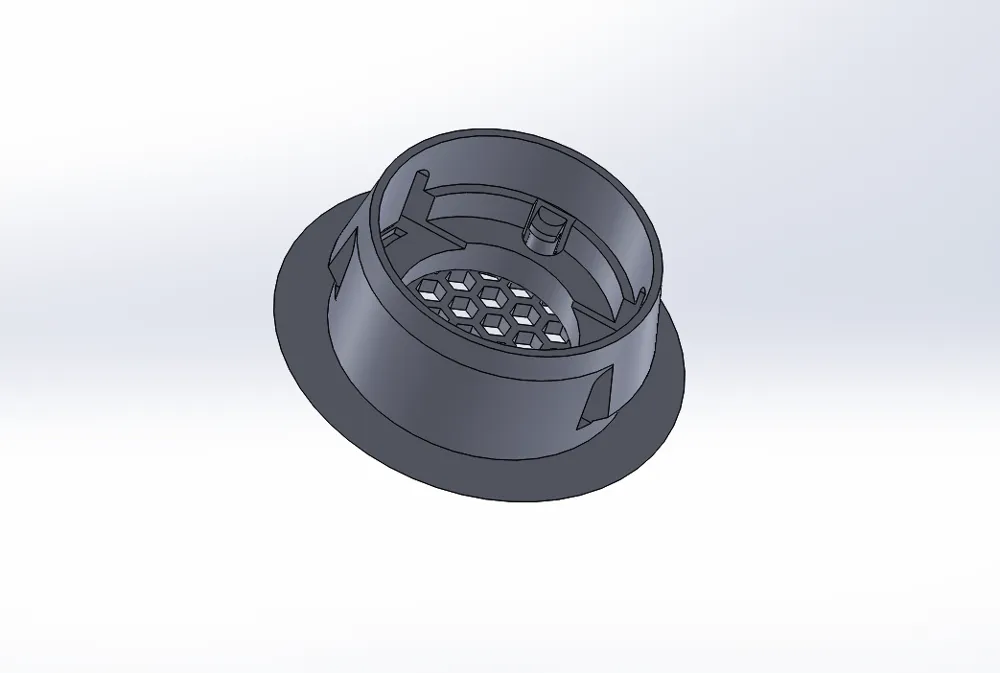

A compact panel-mount holder designed for the INMP441 I2S microphone module.

This mount allows the INMP441 microphone to be securely installed in a panel using a simple circular cutout. The microphone clicks into place from the rear and is held securely by integrated tabs, eliminating the need for screws, glue, or additional hardware.

The design is optimized for clean installation, minimal material usage, and reliable retention, making it ideal for electronics enclosures, sensor panels, and DIY projects.

✦ Features

• Designed specifically for the INMP441 microphone module
• Panel-mount design with a clean, professional appearance
• Requires a Ø17 mm panel hole
• Integrated snap-fit tabs hold the microphone securely in place
• No screws, glue, or additional hardware required
• Low material usage – only a few grams of filament
• Compact and robust construction

✦ Panel Compatibility

• Recommended panel thickness: ~1.5 mm
• Thicker panels can be easily adjusted by lightly trimming the rear edge
  (for example with a hobby knife)

✦ Assembly

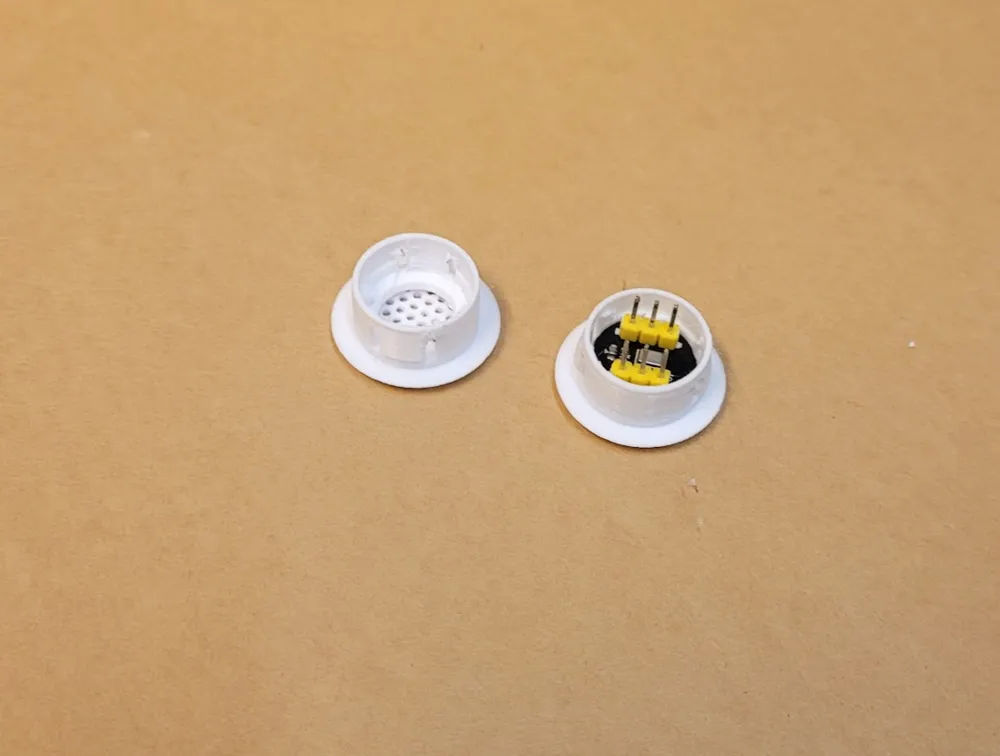

1. Insert the INMP441 microphone from the rear side of the mount
2. Press until the module clicks into place
3. The built-in tabs lock the microphone securely and prevent it from falling out

The microphone can be removed if needed by gently releasing the tabs.

✦ Print Information

• Model size: approx. 23 × 23 × 10.2 mm
• Filament usage: ~1.4 g
• Estimated print time: ~30 minutes
• Supports: Not required

✦ Recommended Print Settings

• Layer height: 0.08 mm (recommended due to small size and fine details)
• Nozzle: 0.4 mm
• Filament: PETG (PLA also works depending on environment)
• Infill: 15–25 %
• Orientation: Print as provided in the STL file

✦ Notes

• Designed for INMP441 modules only
• Minor dimensional variations between microphone modules may exist
• If you have ideas for improvements or alternative versions, feel free to leave feedback

Happy printing 🎧🖨️
