Speaker Stand (15°) - two part - press fit

What it is

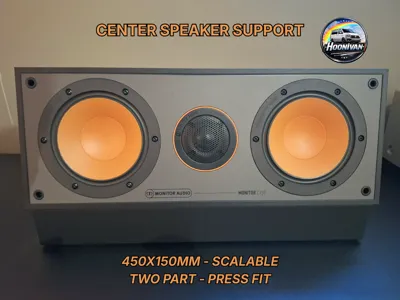

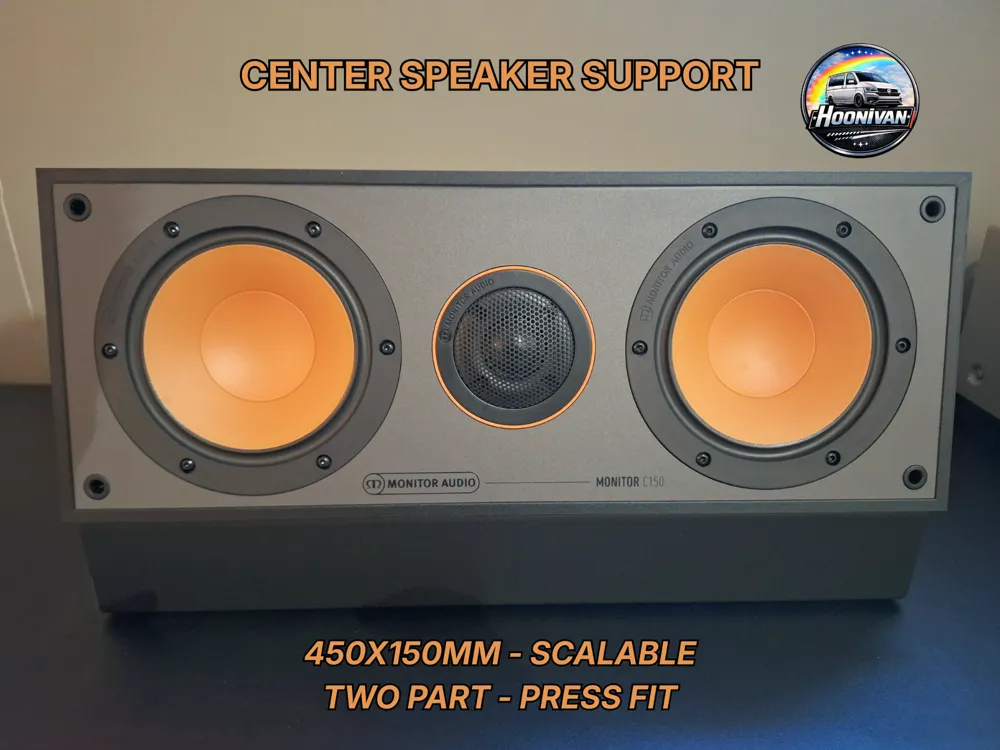

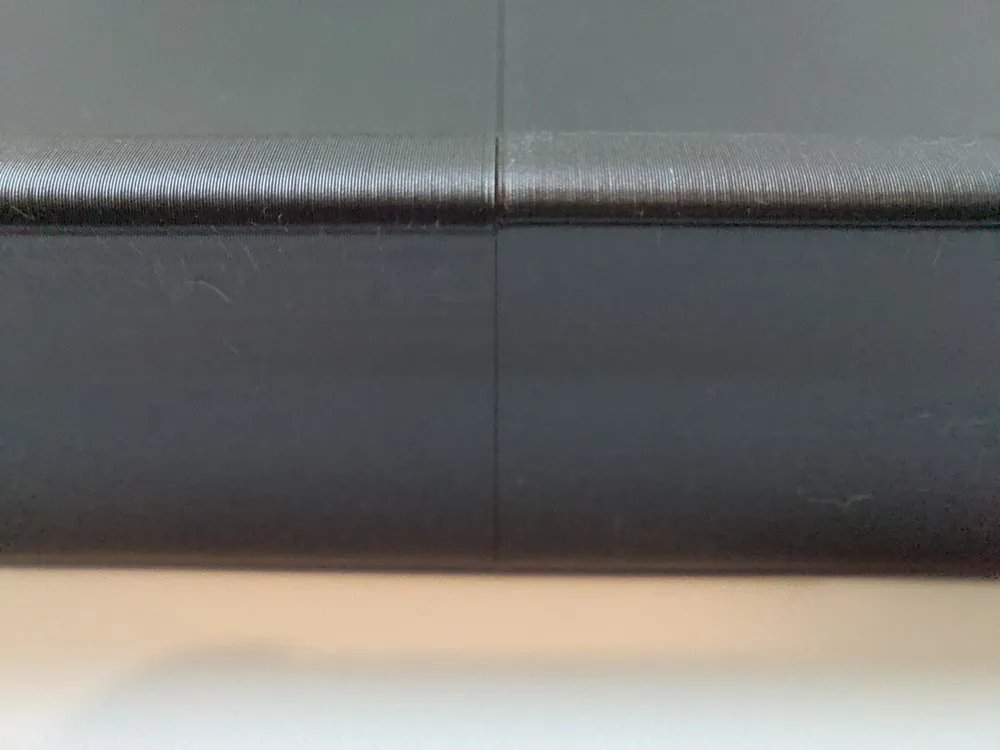

A two-part center speaker support that tilts your speaker by 15° toward the listening position. Designed as a clean, sturdy base with an almost invisible seam thanks to integrated press-fit alignment pins.

Dimensions (mm)

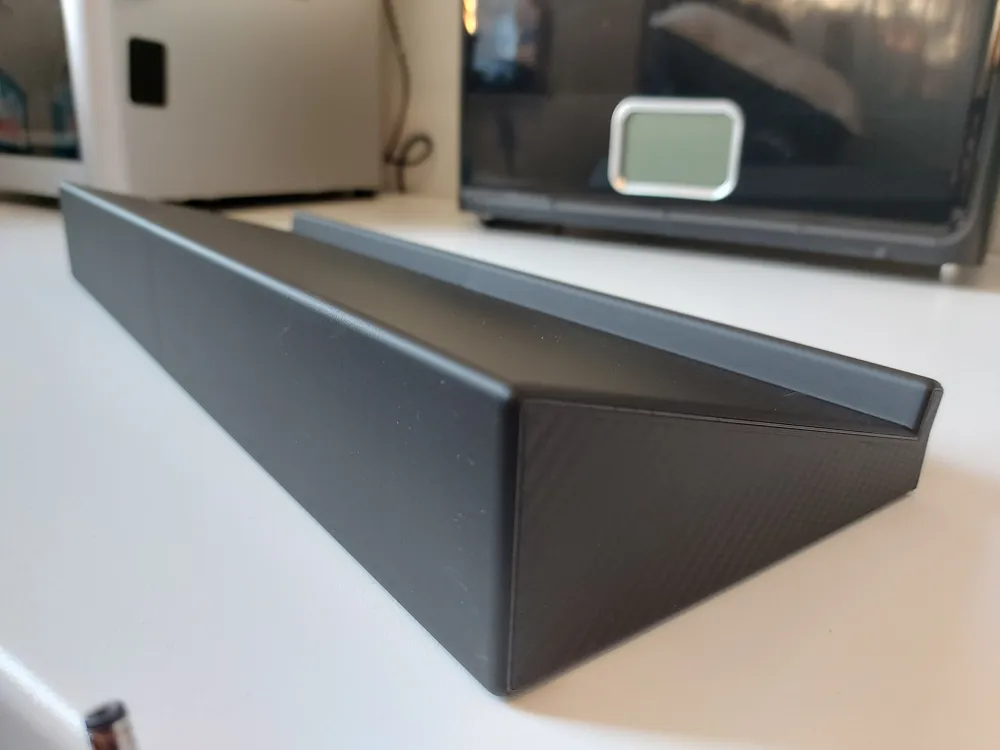

Assembled overall size (approx.):
Length: ~450 (split into two halves of ~225 each for easy printing)
Depth: ~158
Height: ~60

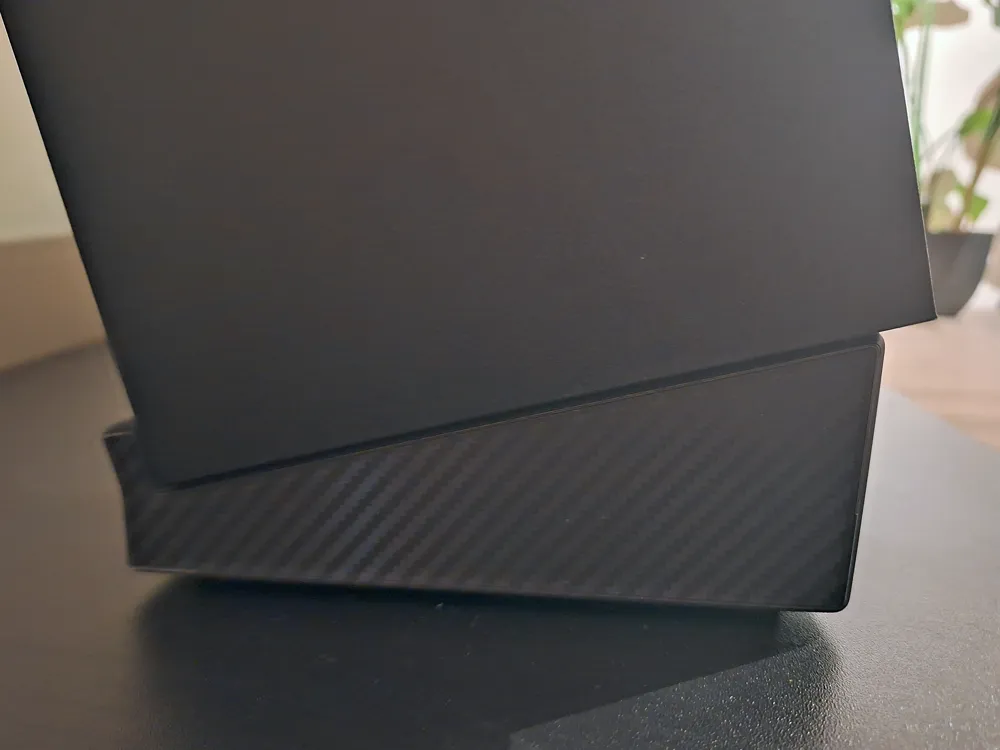

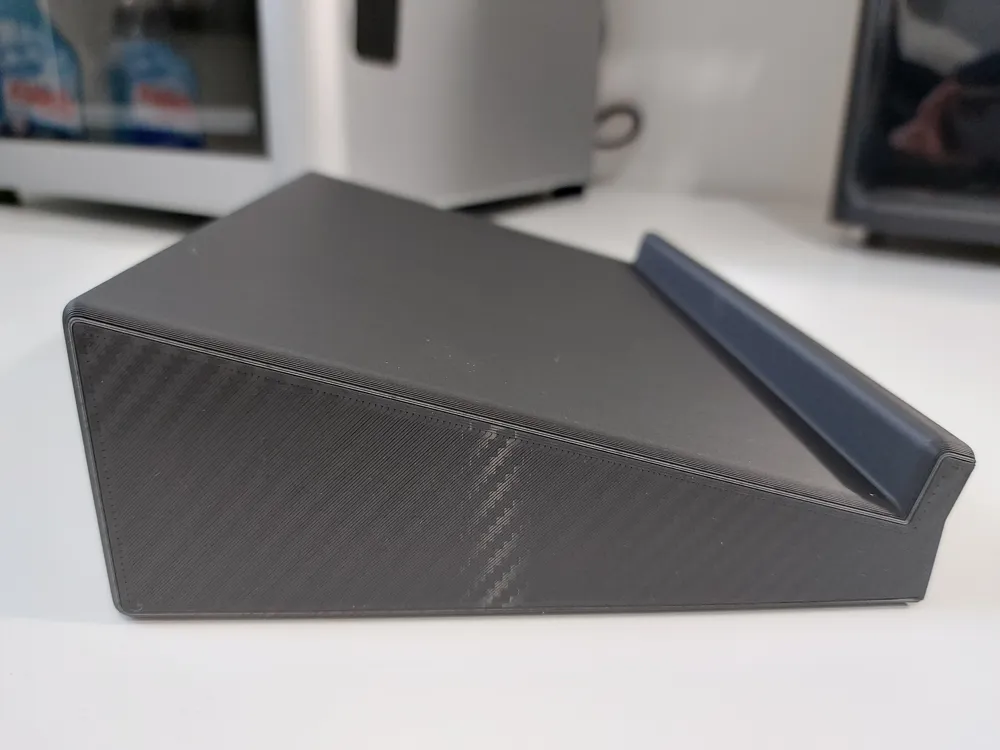

Angle: 15° tilt

Weight: 511 gram

Tip: scaling is no problem. If you want to keep the exact tilt geometry consistent, scale uniformly.

Compatibility
Fits under most center speakers that have enough flat footprint contact area.
Tip: add thin felt / rubber pads to improve grip and protect your furniture.

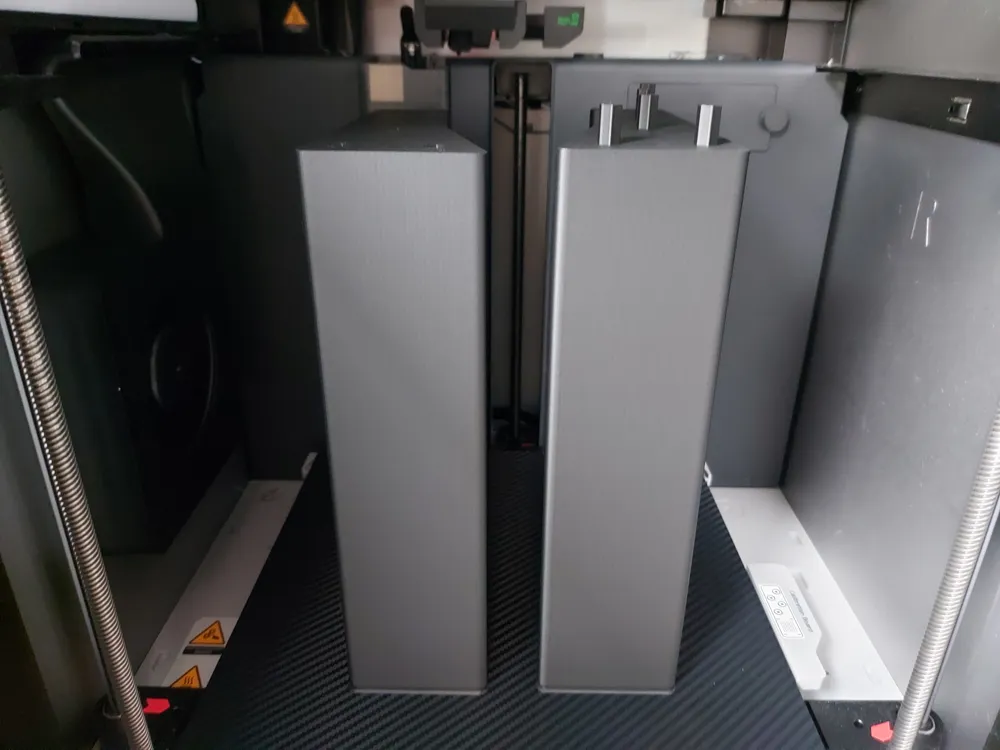

Print settings (profile included)
General
Nozzle: 0.4 mm
Layer height: 0.20 mm
Walls: 3
Top layers: 3
Bottom layers: 3
Infill: 5% (3D honeycomb)

Speed: optimised and tested for best quality
Supports: optional (use Bambu support filament of PETG when printing PLA - see profile)
Brim: optional (enabled as a safe default)
AMS: advised, but not needed

Assembly (two-part press-fit)

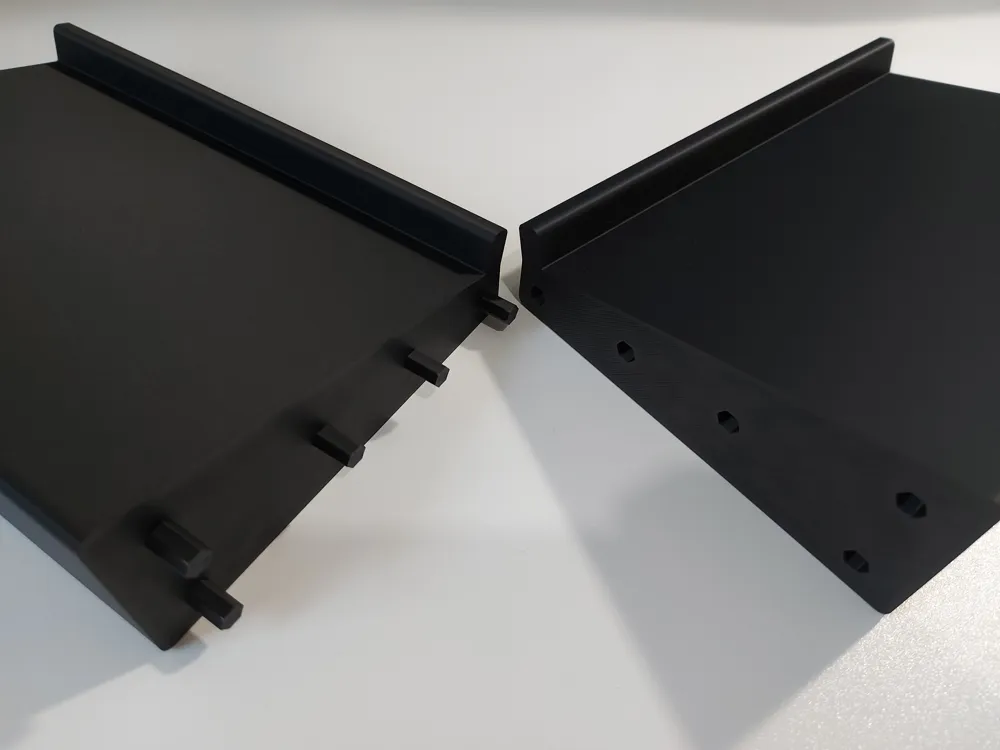

Dry-fit first: slide the halves together using the integrated alignment pins.
Advised: add a small amount of glue on the mating seam (less is more), press together, and weigh down while curing.

Notes / safety
This part supports real weight: test fit and stability gradually before placing your speaker permanently.
Do not block speaker ports/vents.

Design tested IRL and printed with a X1C. 🛠️
