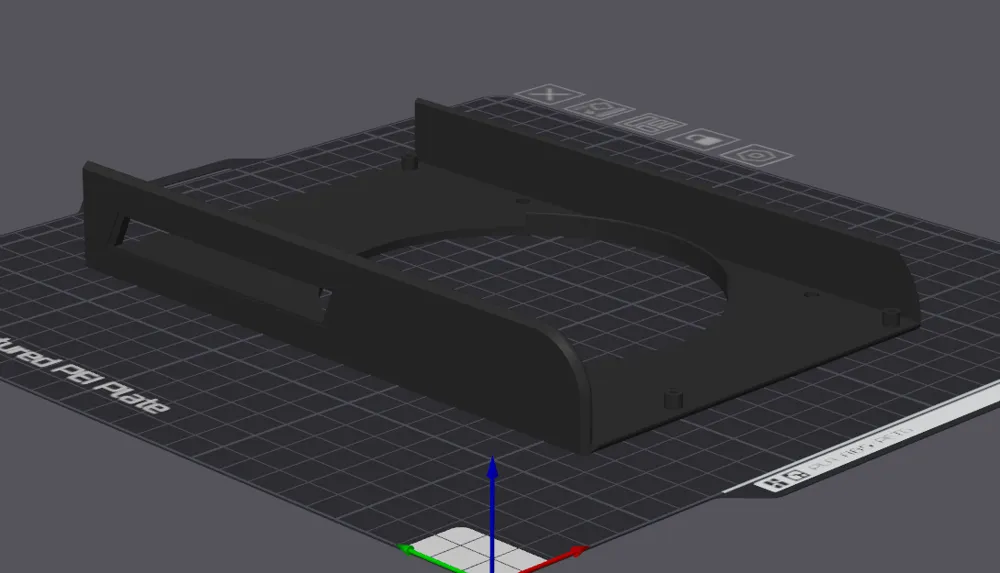

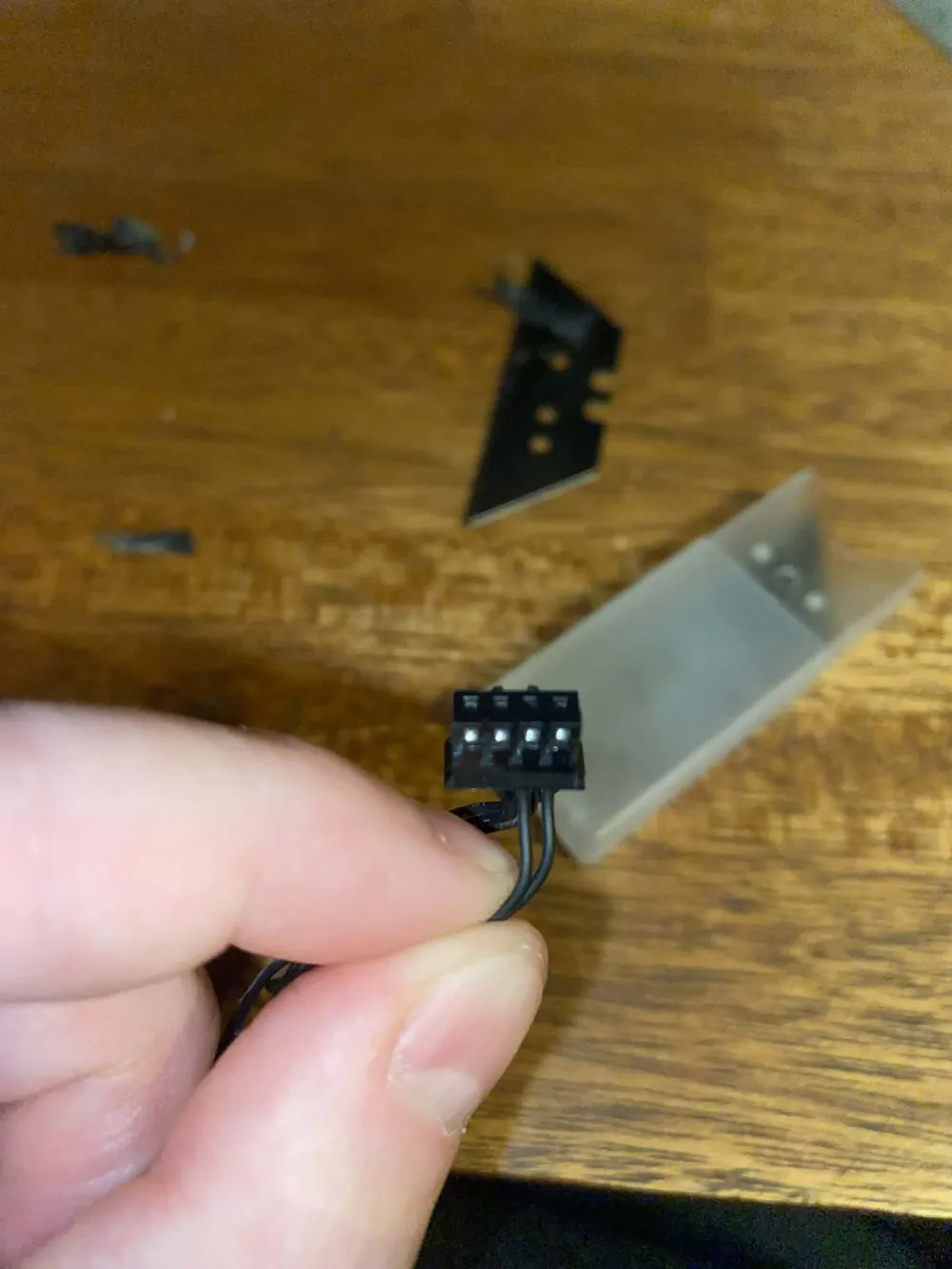

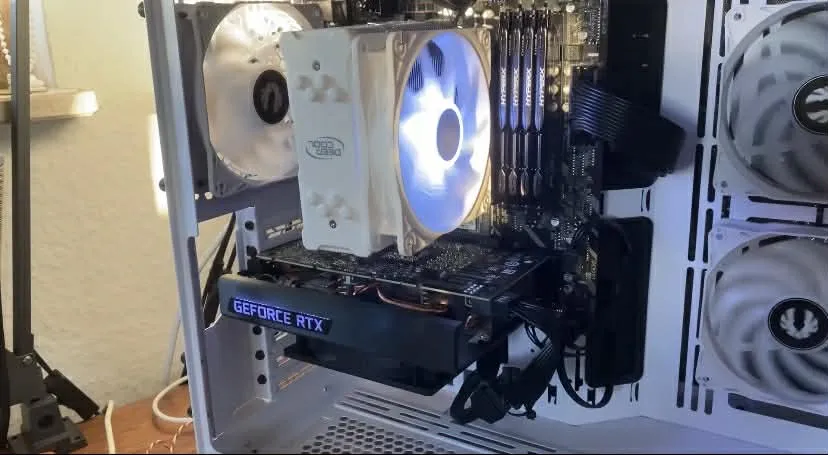

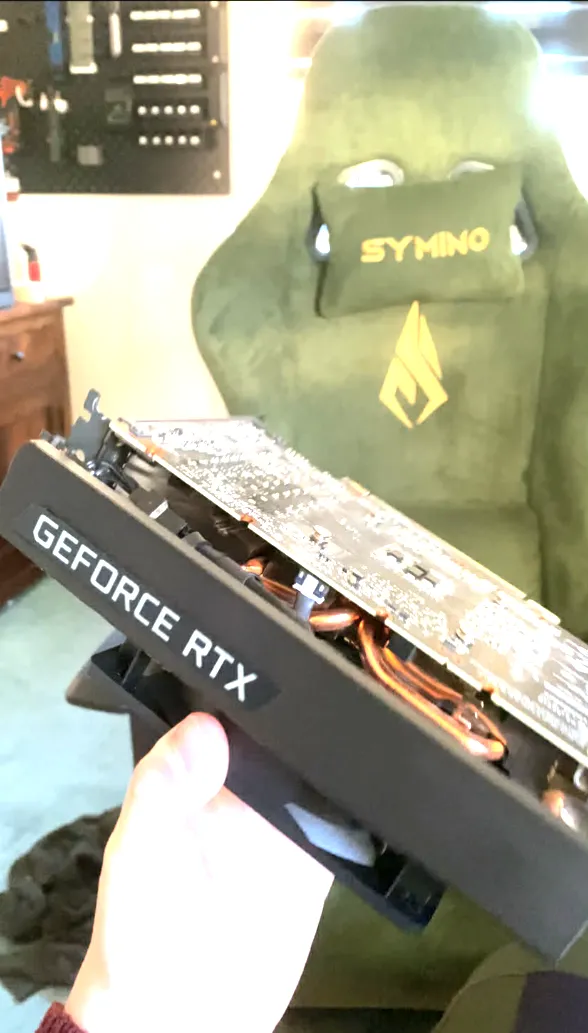

So I was in need of a GPU upgrade (Yes it is a 3060 12gig) and my friend had one, but the fan was busted. I had a VGA fan to case fan adapter and a case fan, so I decided to make a shroud which could be attatched to the 3060 while also accompanying a 120mm case fan.

BOM:

Original screws that came with the GPU
Case fan (120 mm)
Case fan screws x4
Glue (I'd recommend T-800 https://amzn.eu/d/7Q7y8gS as it is pretty easy to remove again, should you need to)

I printed the shroud in ASA because I had some, but I bet PETG would do fine as well.
