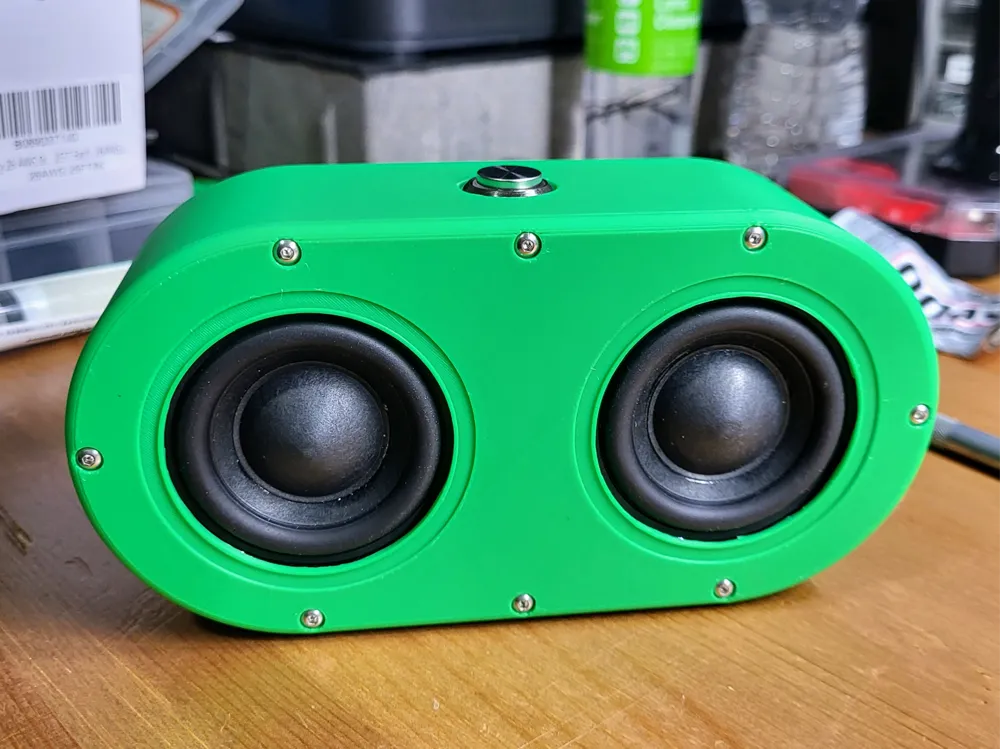

This is an updated and refined version of my simple 2″ Bluetooth stereo speaker, redesigned with a focus on cleaner fit, better alignment, and more reliable assembly. The original version was built when my focus was simply getting prints to succeed — this update reflects a year of experience and significantly improved print quality.

The enclosure is designed for standard, readily available components, making substitutions across brands easy. Improvements include tighter tolerances, proper countersunk fasteners, improved hardware alignment, reduced filament usage, and the addition of a ON/OFF push button LED switch.

Look here for cut files of the front and back plate. https://makerworld.com/en/models/3016524-2-bluetooth-stereo-speaker-front-and-back-plate

This project is intended for makers with basic soldering skills and is ideal as a compact desktop or workshop speaker. All parts print cleanly with minimal supports and assemble with heat-set inserts for durability.

Key Features

• 2″ stereo Bluetooth speaker design
• Optimized for 3D printing with minimal filament use
• Heat-set insert mounting for assembly and disassembly
• Countersunk hardware for a clean finish
• Standard speaker and amplifier components
• LED illuminated ON/OFF push button
• Compact and functional enclosure design

Requirements & Notes

• Basic soldering and wiring required
• Heat source recommended for installing inserts
• Designed around common 2″ 4-ohm speakers
• 12V DC power input

Printing Tips

• Print at 0.2 mm layer height or finer
• PLA or PETG recommended
• Minimal  supports required
• Use a soldering iron or heat insert tool for threaded inserts

The links below are affiliate links. Using them helps support my work at no extra cost to you and allows me to keep creating fun and practical projects like this one.

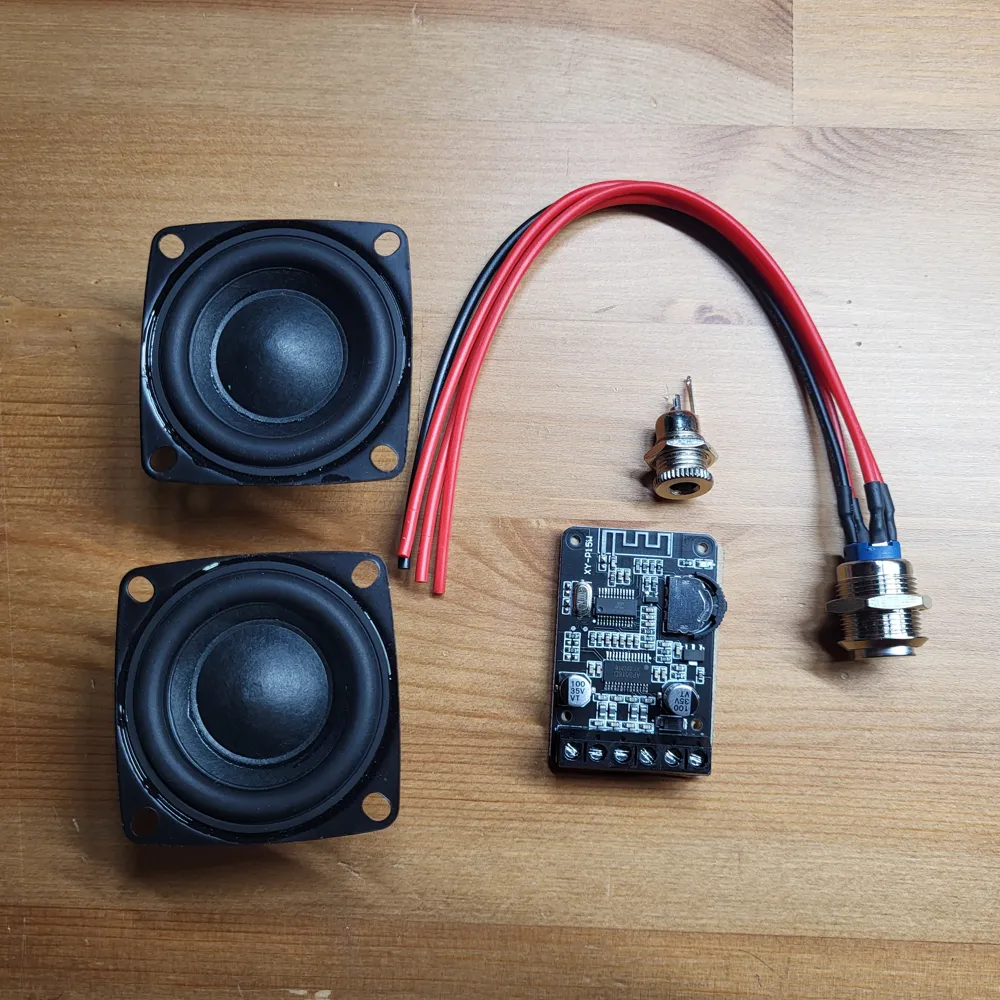

Parts I used:

https://amzn.to/49BmWyv           M2.5 x 4mm 100 Pcs Button Head Socket Cap Screws

https://amzn.to/3LHfA4t               M2.5 x 4 x 3.5mm Heat Set Inserts Kit

https://amzn.to/4jzU6mJ               Dual Channel Stereo Bluetooth Mini Amp Module

https://amzn.to/4qGDMmm         2inch 4Ohm 10W Full Range Audio Speakers

https://amzn.to/4qF5uQy             16mm 12V Blue LED Push Button ON - OFF Switch

https://amzn.to/3NDdovj              5.5mm x 2.5mm DC Power Jack Socket

https://amzn.to/4qPLWsJ              12V 2A Power Supply

My Favorite Tools:

https://amzn.to/3K2hWdq             Mini Electric Screwdriver Set

https://amzn.to/3XhFGxn               T12 style Soldering Station

https://amzn.to/4i7eyuy                 Deburring Tool

https://amzn.to/49mZI0E               Butane Torch

https://amzn.to/4paJTyu                Crimping Tool for Insulated Electrical Wire Connectors-AWG 22-10

https://amzn.to/47Z13rU               Pin Crimping Tool Kit, Dupont Connector kit

Bench Stock:

https://amzn.to/3LFocbN               26 Gauge Silicone Stranded Wire 6 Colors x 25ft

https://amzn.to/3Zci9yt                  20 Gauge Silicone Stranded Wire 6 Colors x 25ft

https://amzn.to/49Kr7ct                 Soldering Flux

https://amzn.to/3NaFlux                Lead Free Solder Wire

https://amzn.to/49gURhp              Stainless steel metric button head hardware kit

https://amzn.to/49PX57C               Knurled thread insert nut kit

https://amzn.to/49dFvK8                Small Magnets, 4 sizes, 400pcs

https://amzn.to/3LzqtFk                 Keychain Making Kit

https://amzn.to/45HgfcP                Insta-cure gap filling 2oz Bob Smith Ind.

https://amzn.to/3NCxBBs              E6000 Plus Multi-purpose Clear Glue

https://amzn.to/3YuPJQd               Clear Self Adhesive Bumpers Pads

If you build or modify this project, feel free to share your make — I’m always interested in seeing variations and improvements.
