Main Panel:<ul><li>PETG-CF</li><li>0.24mm layer height</li><li>0.6 Nozzle</li><li>No ironing</li><li>3 Wall Loops</li><li>1.6 Top shell thickness</li><li>Slow speed <ul><li>0.1 Smooth coefficient</li><li>90 outer wall</li><li>90 inner wall</li><li>90 sparse infill</li><li>90 internal solid infill</li><li>30 top surface</li><li>Overhang speed: 0,30,15,10,10</li><li>90 Support</li><li>400 Travel</li></ul></li><li>Support<ul><li>Normal Snug</li></ul></li></ul>Labels:<ul><li>PETG</li><li>0.2 Nozzle</li><li>0.10mm layer height</li></ul>

0.6mm nozzle, 0.24mm layer, 3 walls, 15% infill

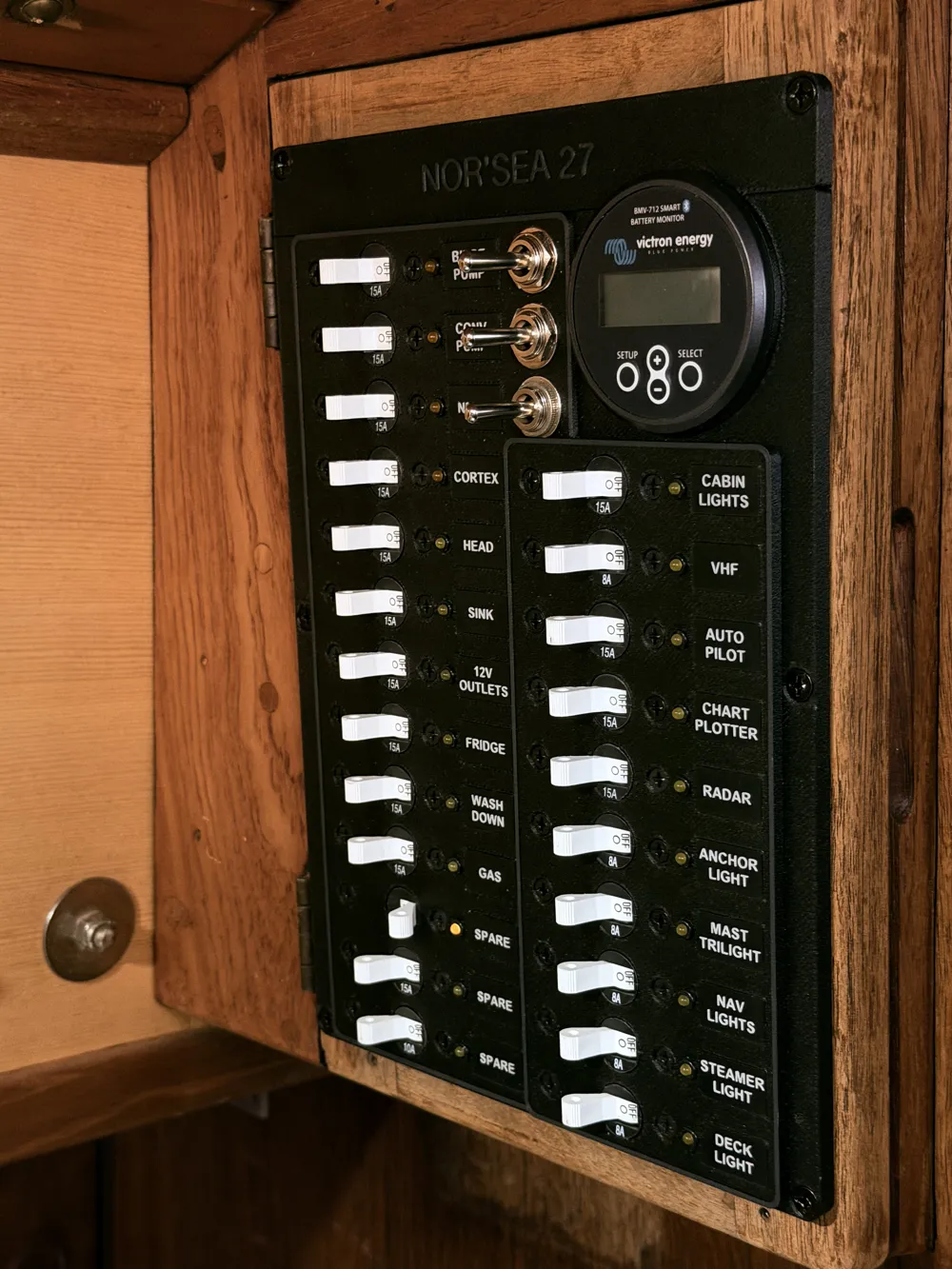

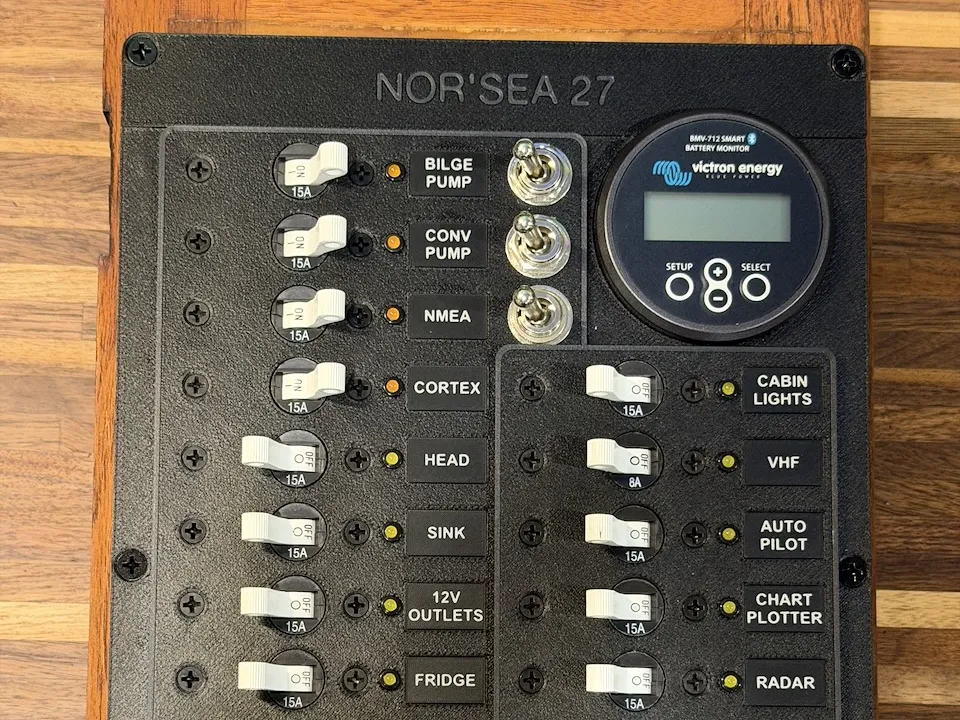

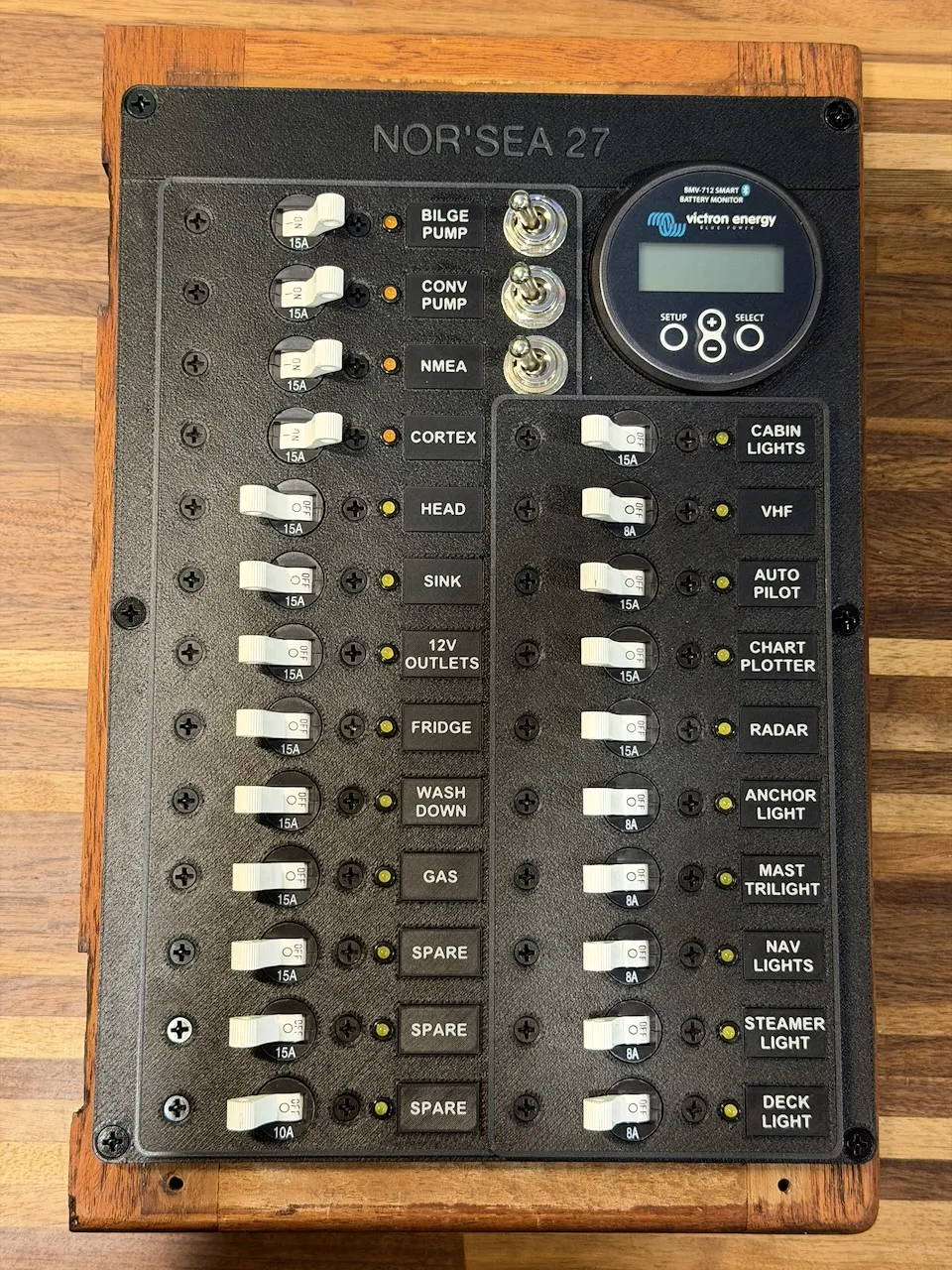

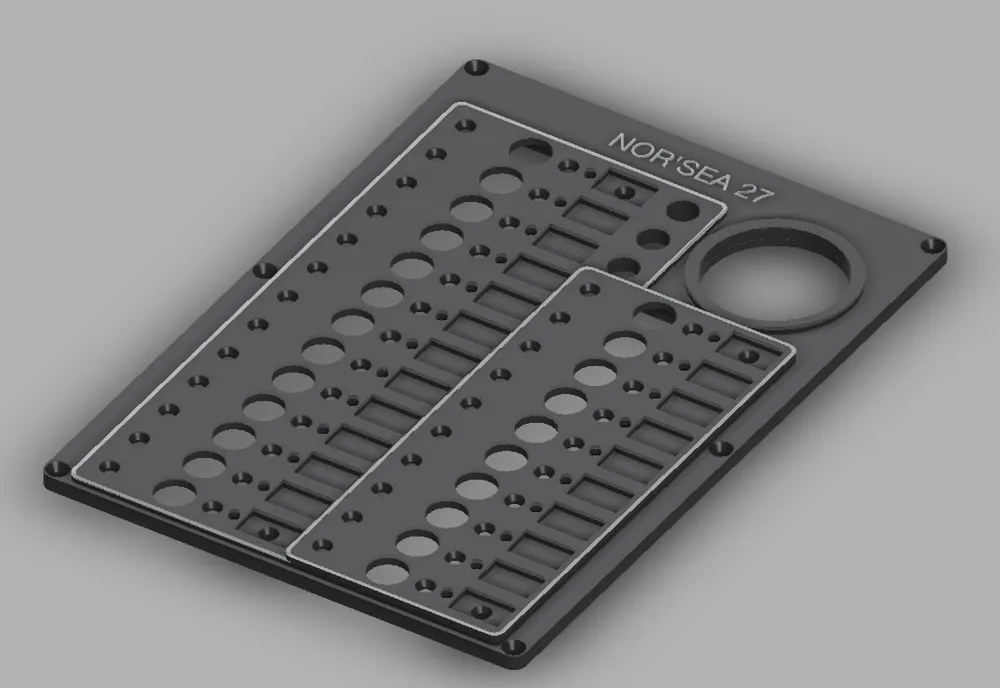

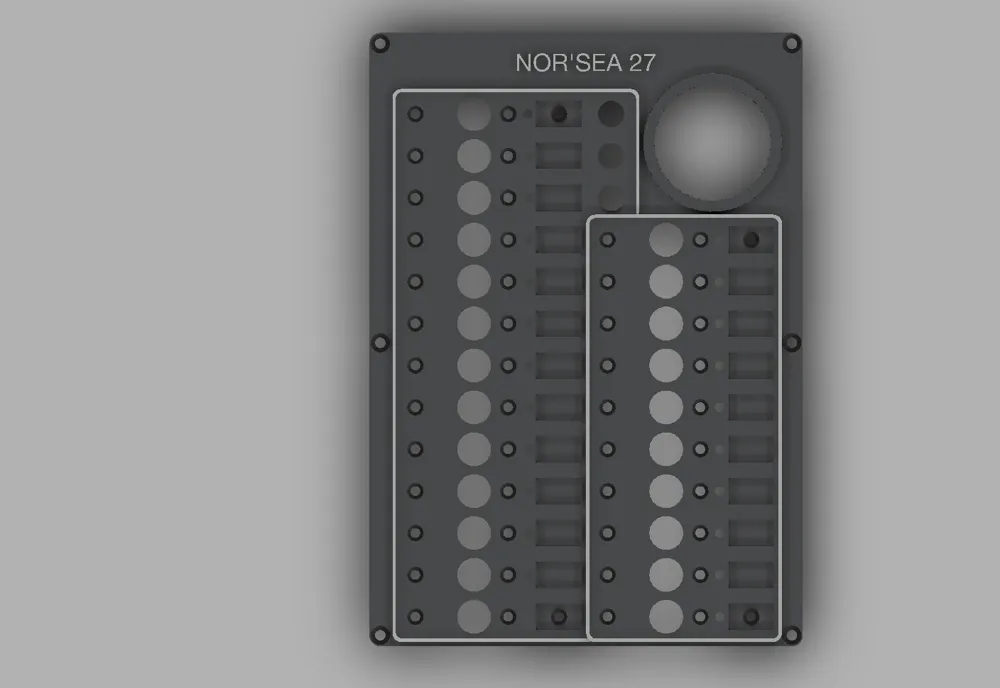

This is an electrical panel that holds 23 Blue Sea Systems A Series Circuit Breakers, three standard 12mm toggles, and a Victron Energy Smart Battery Monitor BMV-712. Main Panel is printed in two pieces to fit on a P2S bed with .6 nozzle PETG-CF in hopes it will withstand marine / some UV exposure. Snap in labels printed with .2 nozzle PETG for fine print lettering.

Nor'Sea 27 Electrical Panel
