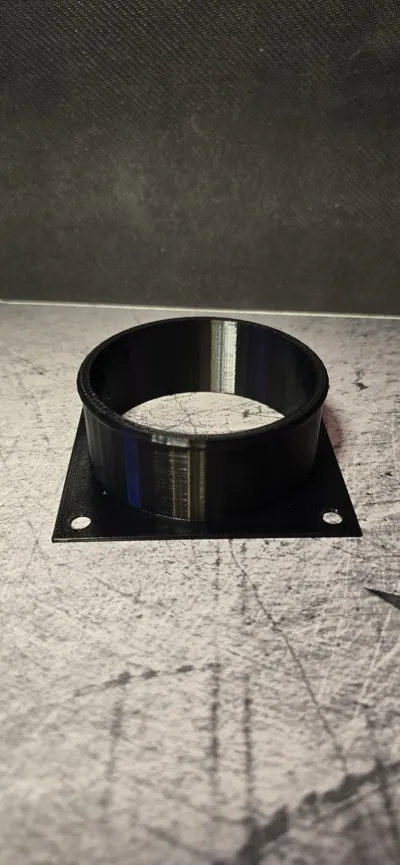

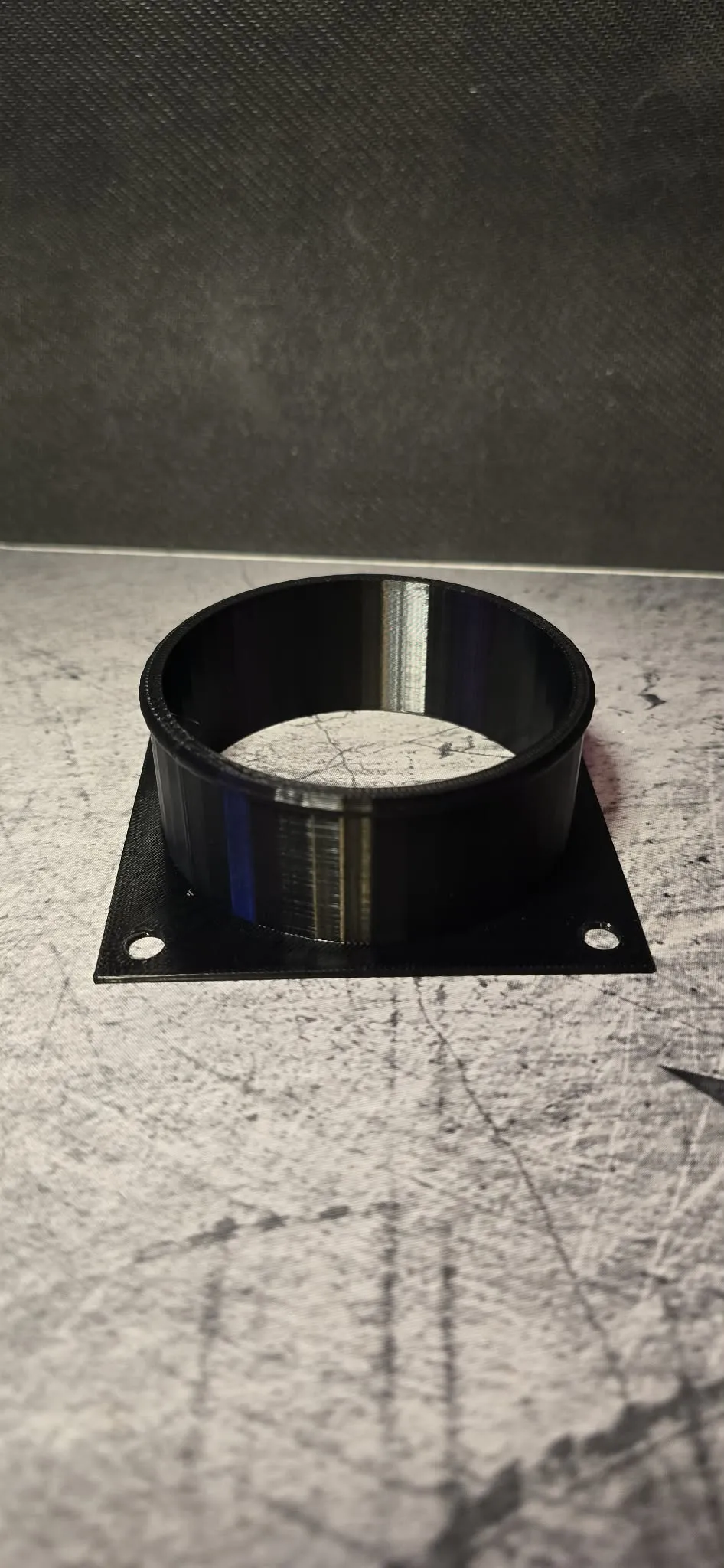

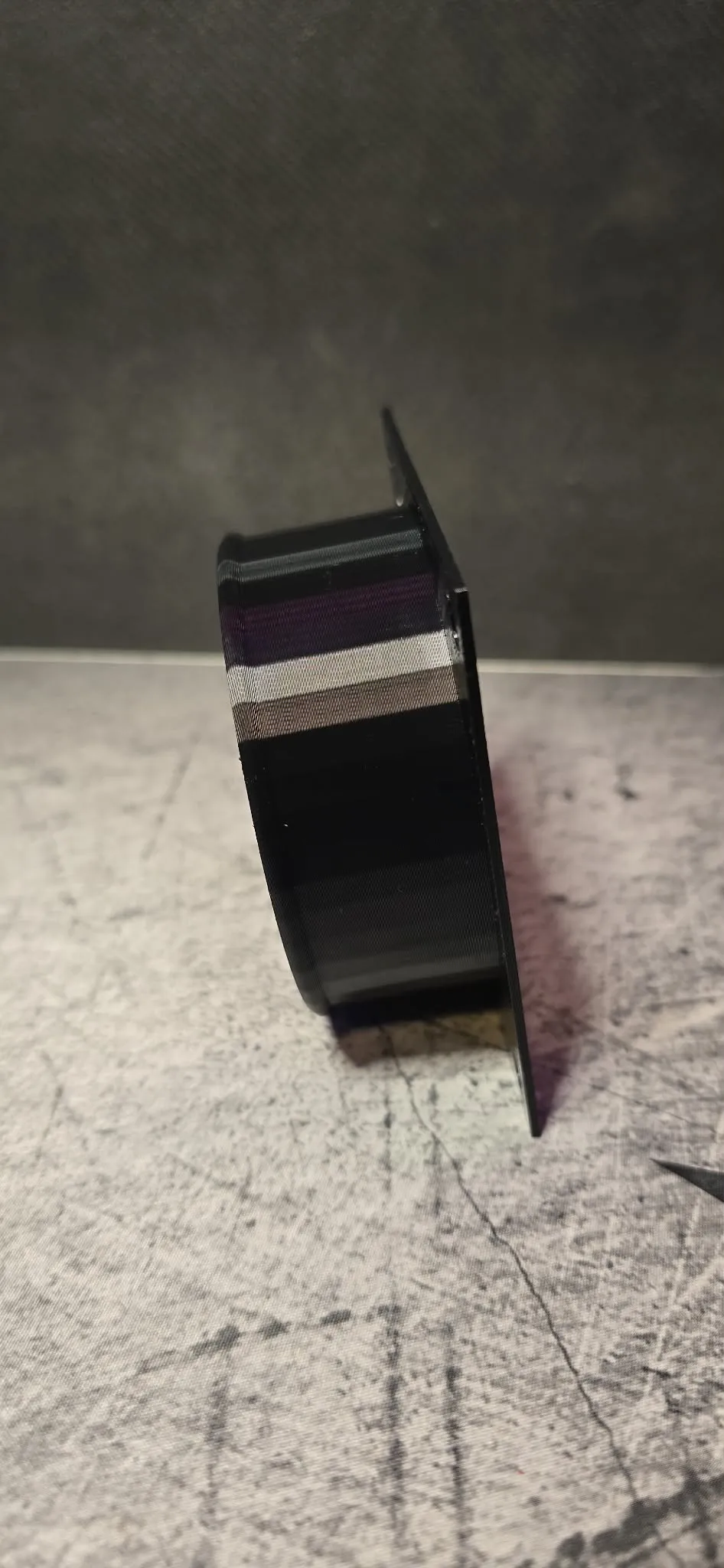

80mm Fan to 3 Inch Duct Flange Adapter
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
58 min
1 plate
Open in Bambu Studio
Boost
9
51
7
0
70
42
Released
Description
Was searching around for some way to add an inline 5v 80mm fan into 3 inch ducting that I have laying around for a P1S Exhaust. Most of the files are 4 inch ducts that I have seen. You could also seal this with dual sided tape, some foam, or make a TPU seal (I might end up adding that to this once I start printing TPU).
Printed with ELEGOO PETG Rapid in Black.

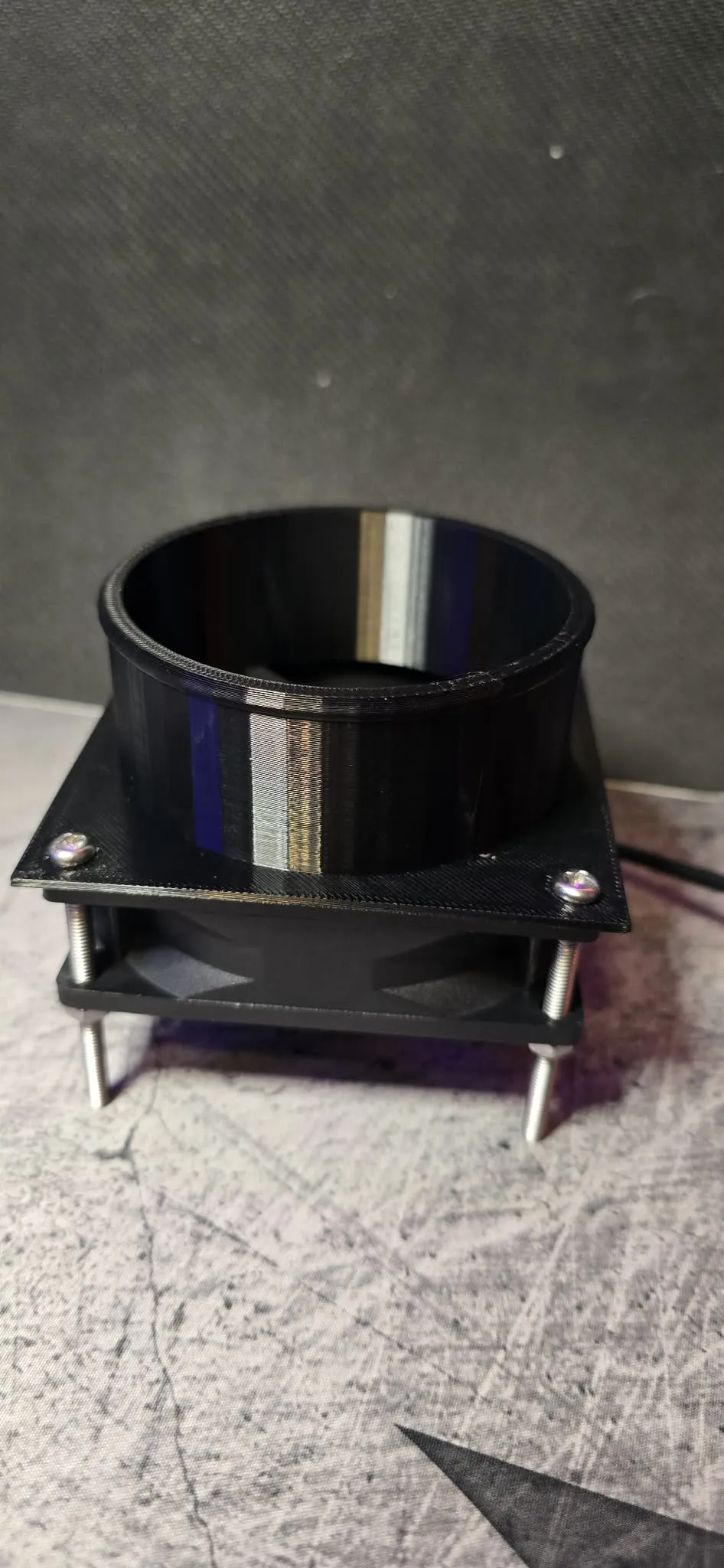

I used M3x50 bolts and M3 nuts to secure two of them together in the ducting. You can get away with using M3x40 bolts and M3 nuts. M4 might fit as well.

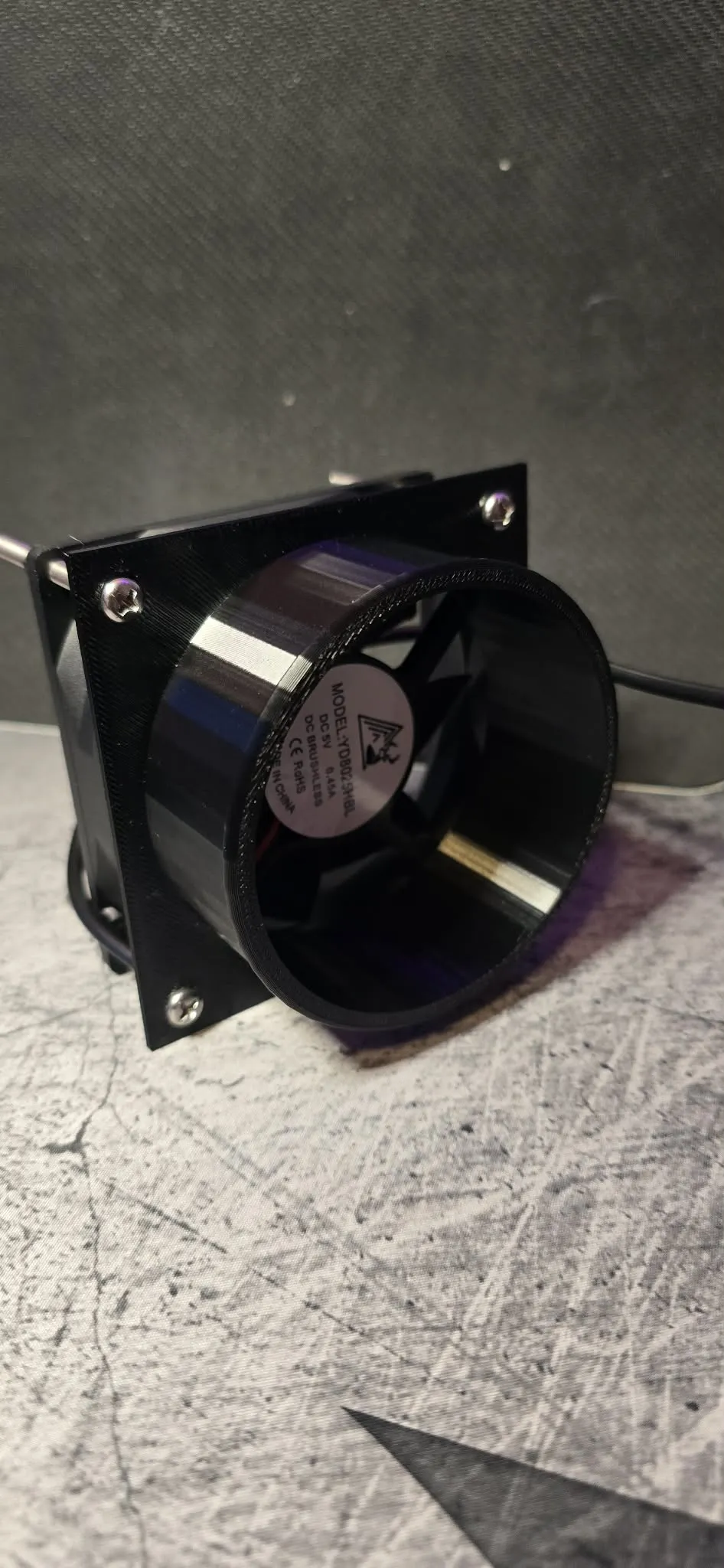

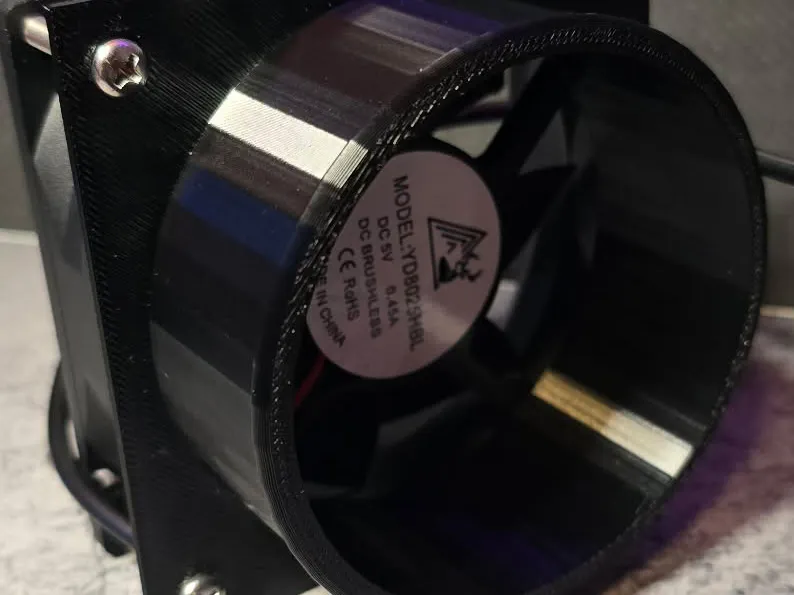

Fan I had laying around is a 8025 80mm 5v powered fan. You can pick these up for extremely cheap.
