Sink Drain Stopper Linkage Connector (PLA)

This model is a recreated mechanical connector for a sink drain stopper linkage, based on the original factory part.
It was modeled using the original component as a reference, with small functional improvements such as thicker walls for increased strength and durability.

The part connects the vertical drain rod with the horizontal control rod and restores proper operation of the sink pop-up mechanism when the original connector is broken or missing.

Features:

• replacement connector for sink drain / pop-up stopper mechanisms
• based on original geometry with reinforced wall thickness
• single screw clamp design
• compact and functional design
• easy to print on FDM printers

Notes:

• This is not an OEM part, but a functional replacement
• Minor dimensional differences may occur depending on sink hardware
• Intended for typical household sink use

Printing:

• Material: PLA
• Layer height: 0.2 mm
• Infill: 100%
• Supports: not required
• Orientation: print flat on the largest surface

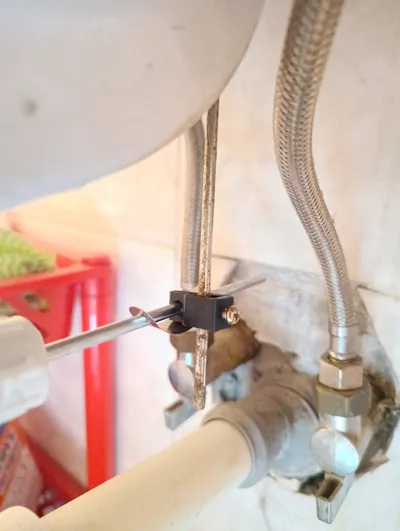

Printed and tested in a real sink installation using PLA with 100% infill.
