Bi-Fold Door Bottom Pivot Housing
IP Report
Print Profile(1)
PETG - 0.2mm layer, 2 walls, 100% infill
Designer
39 min
1 plate
Open in Bambu Studio
Boost
2
13
0
0
14
9
Released
Description

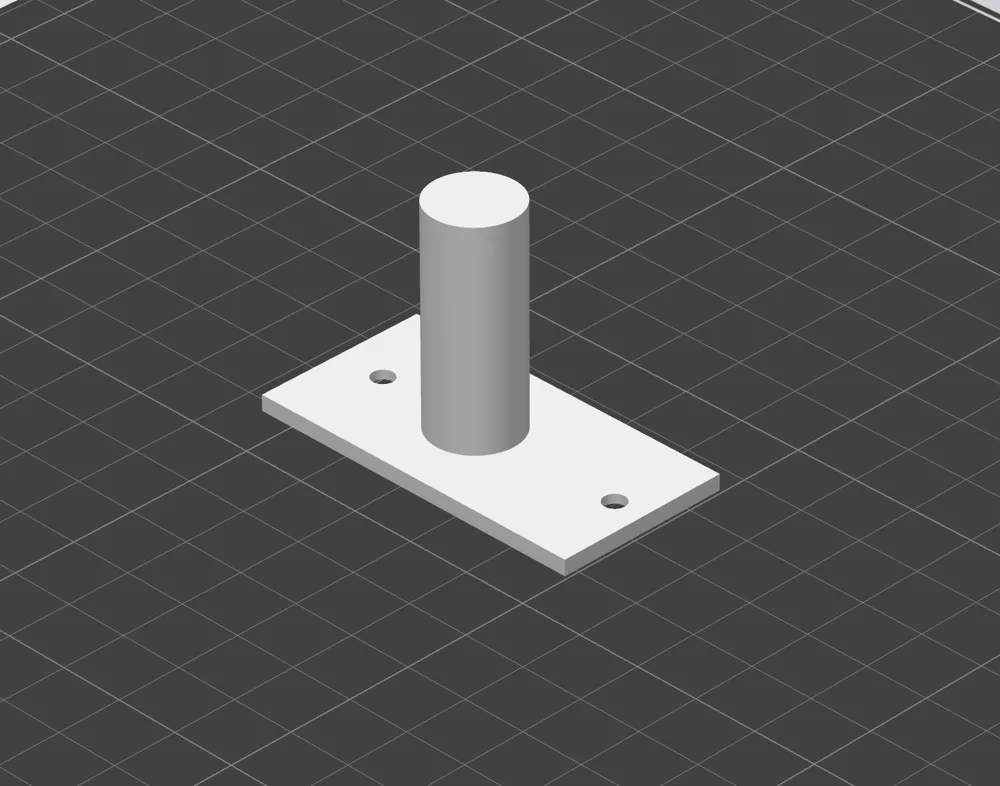

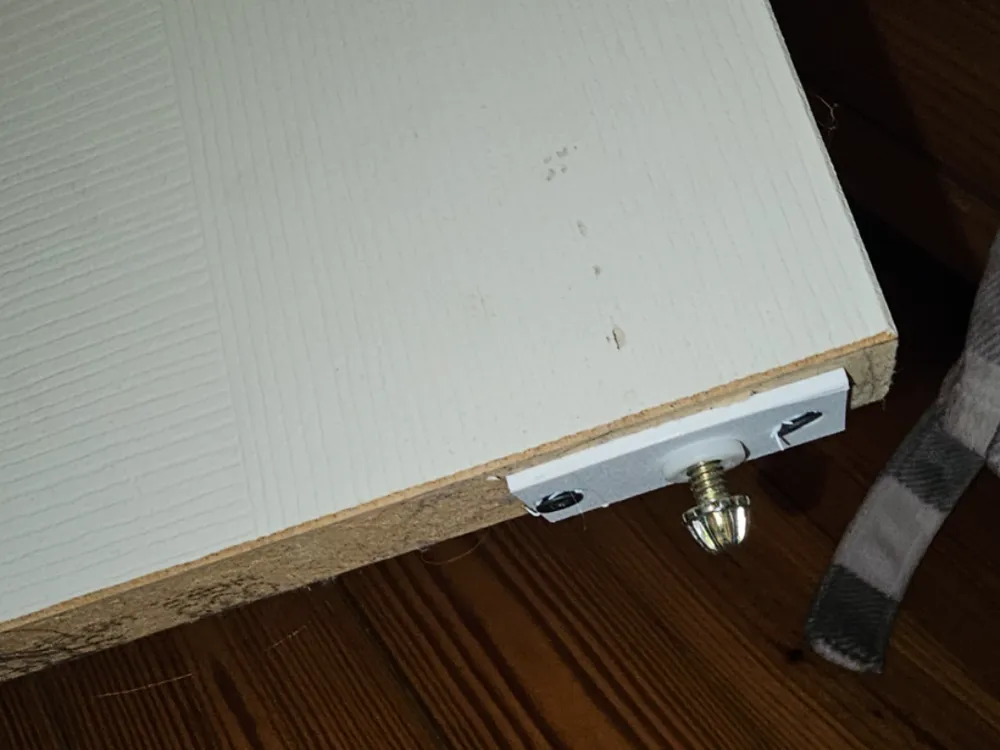

Housing bracket for the pivot of a bi-fold interior door. Default model fits a 10.5mm pivot screw and attaches with 2-#7 (3.5mm) drywall screws. Normally the pivot fits directly into the door, but if it broke off this piece should slide right in to where the pivot was.
The shorter side of the plate is intended to face the edge of the door.
Customizable SCAD file included.
