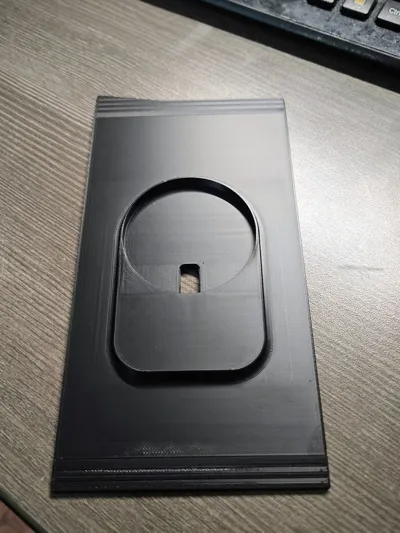

This MagSafe charger pad for the 4th Gen Toyota Tacoma (2024–2025) is a modified version of the original design by vidision on Printables, updated to accept a much more affordable and widely available aftermarket MagSafe charger.

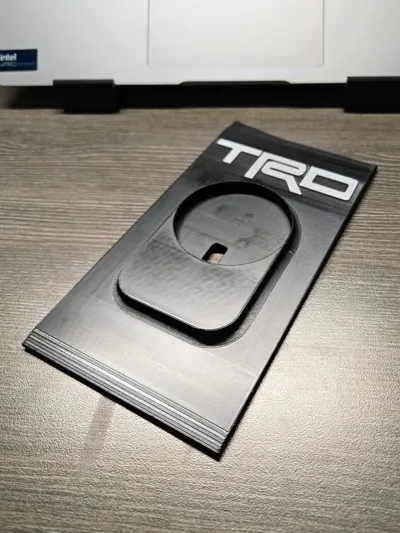

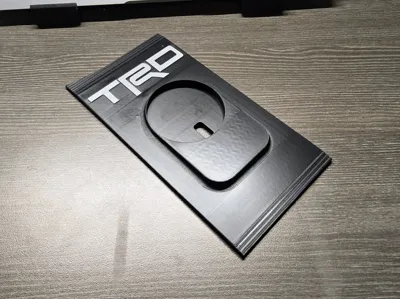

UPDATE: 4-6-2026, Added TRD Logo version.

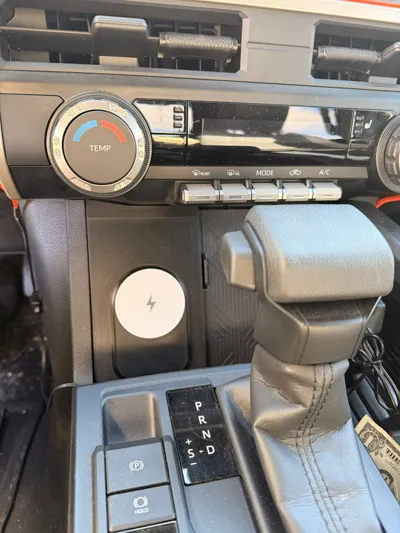

The pad matches the shape and footprint of the OEM phone cubby, providing a clean, factory-style look while securely holding your phone in place for wireless charging during daily driving or off-road use.

Instead of requiring a higher-cost OEM charger, this version is designed to fit the following aftermarket 15W MagSafe charger:

👉 https://amzn.to/4sTPlbk

Features

• Designed specifically for 4th Gen Toyota Tacoma (2024–2025)
• OEM-style fit that matches the factory phone cubby
• Modified to accept a cheap and easy-to-source aftermarket MagSafe charger
• Clean cable routing on the rear
• No permanent vehicle modifications required
• Compatible with most MagSafe-equipped iPhones

Installation Instructions

1. Print using your preferred material (ABS recommended for vehicle interiors).
2. Place the 15W MagSafe charger into the front recess.

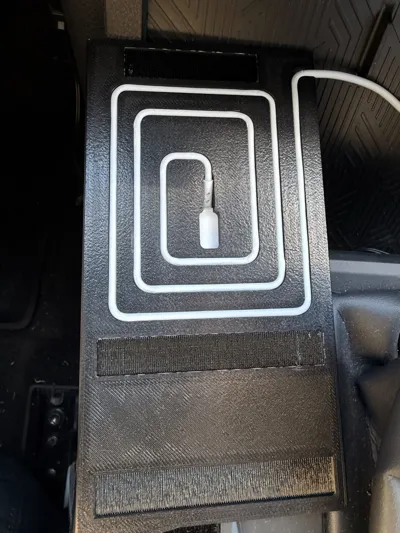

3. Press the USB-C cable into the rear cable channels, carefully following the bends.
4. Apply 1–3 pieces of tape into the rear recesses (3M VHB recommended).
5. Remove tape backing and triple-check alignment before pressing firmly into place.
6. Plug the USB-C cable into an available port.

Notes

• This is a remix / modification of the original design by vidision, adapted specifically for an aftermarket charger.
• Fitment is confirmed for 2024–2025 Tacoma (4th Gen) only.

If you’re looking for a clean, factory-looking MagSafe solution without paying OEM prices, this is it.
