FPV Receiver Antenna T-Mount (T-Type)
Print Profile(1)
Description

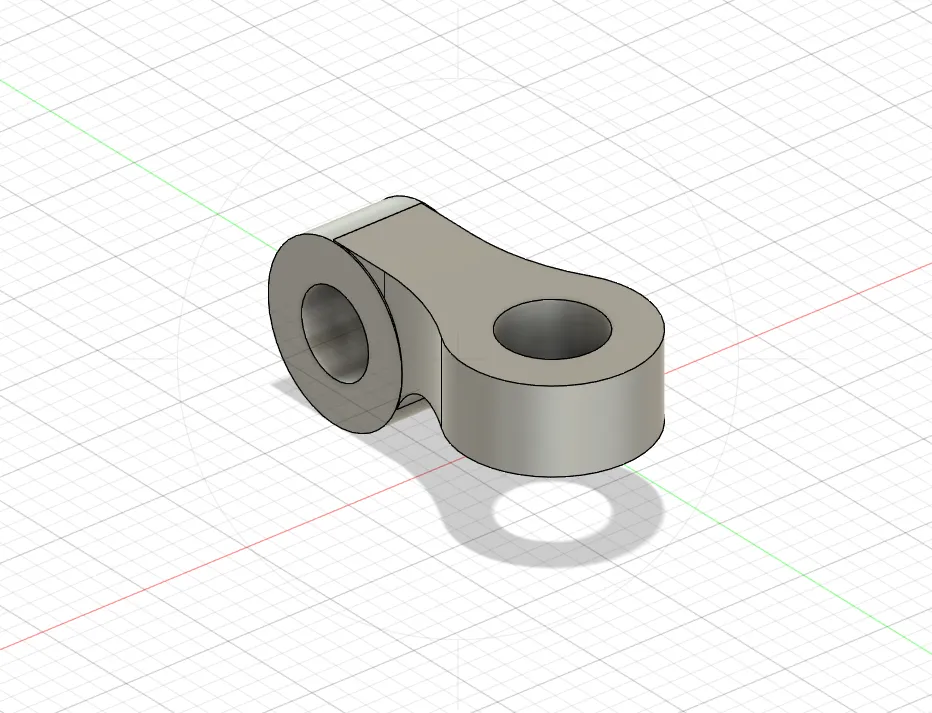

Compact and durable 3D-printed antenna mount designed for T-shaped FPV receiver antennas.
Perfect fit for TBS ExpressLRS and most T-type RX antennas.
Full Description
This FPV Receiver Antenna T-Mount is designed to securely hold T-shaped receiver antennas, keeping them well positioned and protected during flights and crashes.
The mount is compatible with TBS ExpressLRS receivers and most T-type antennas, making it a versatile solution for freestyle and racing FPV builds.

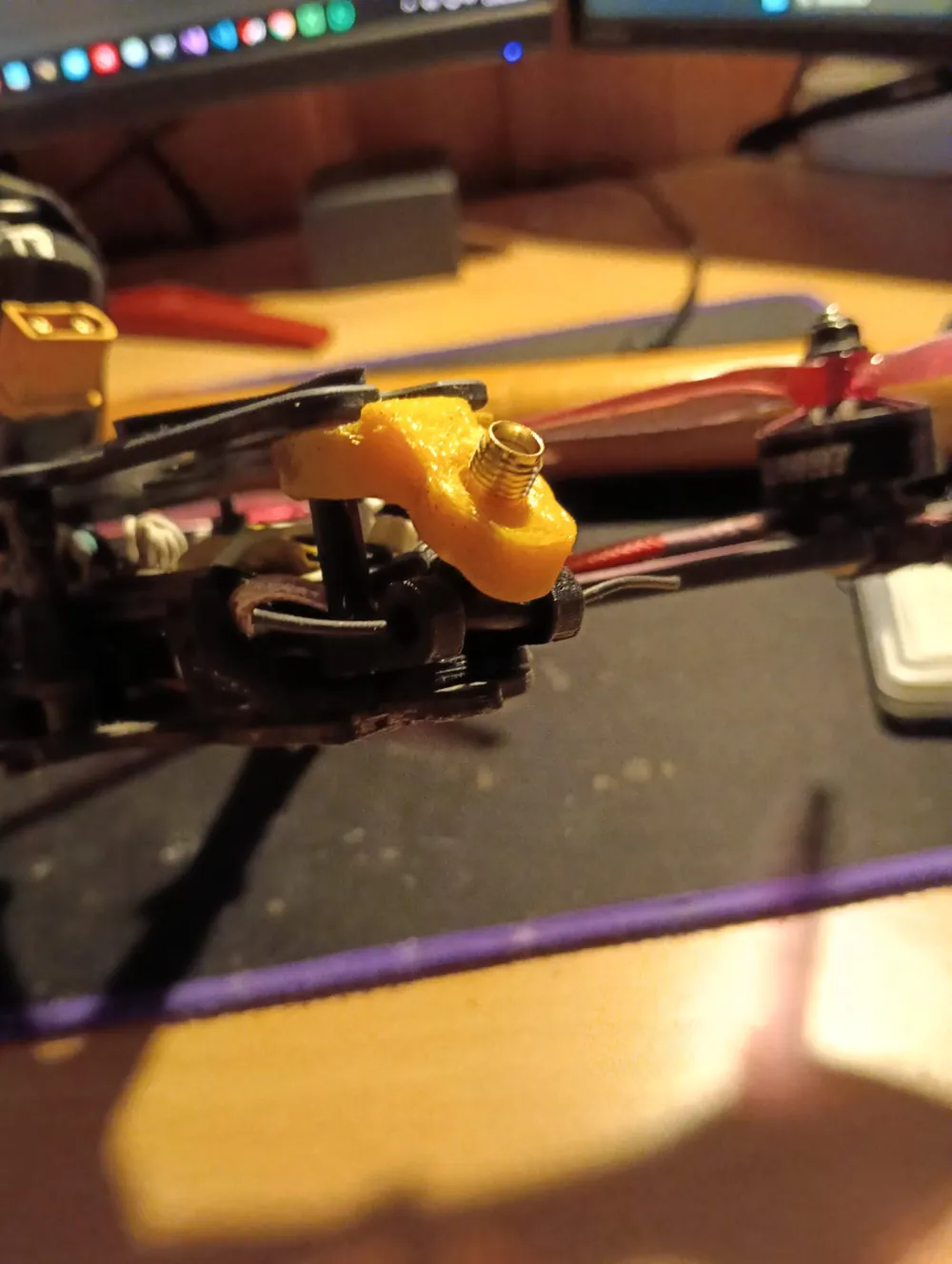

It features a clean, compact design that mounts directly on the frame, improving antenna orientation and reducing stress on the coax cable.
Features
- Compatible with TBS ExpressLRS
- Works with all T-shaped RX antennas
- Strong and lightweight design
- Keeps antennas properly spaced and aligned
- Easy to print and install
- Ideal for 5” freestyle & racing frames
Recommended Print Settings
- Material: TPU (recommended) or PETG or PLA
- Layer Height: 0.2 mm
- Infill: 20–30%
- Perimeters: 3
- Supports: No
- Orientation: Flat on bed
⚠️ TPU is highly recommended for better crash resistance.
Installation

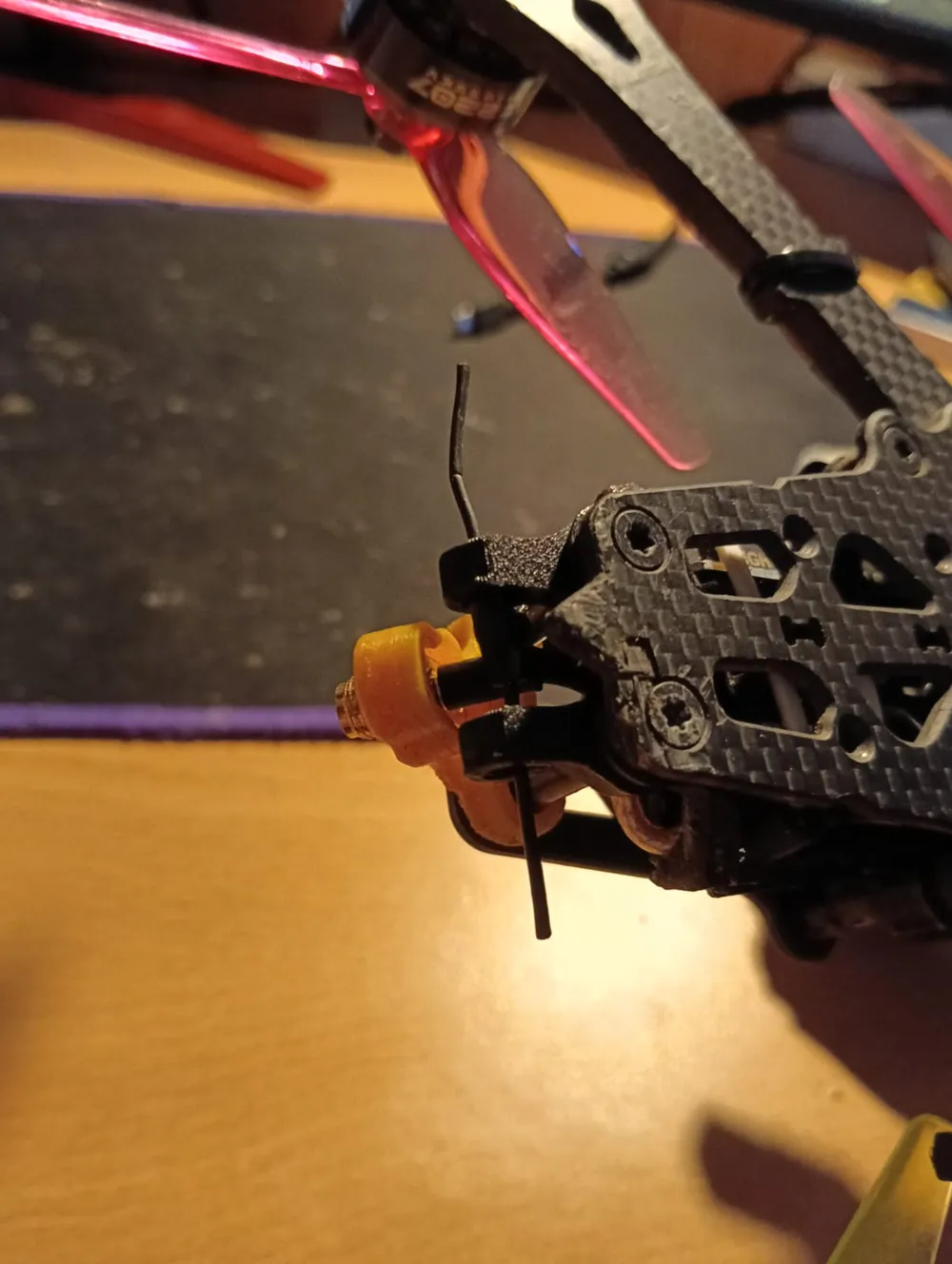

- Press-fit or zip-tie compatible

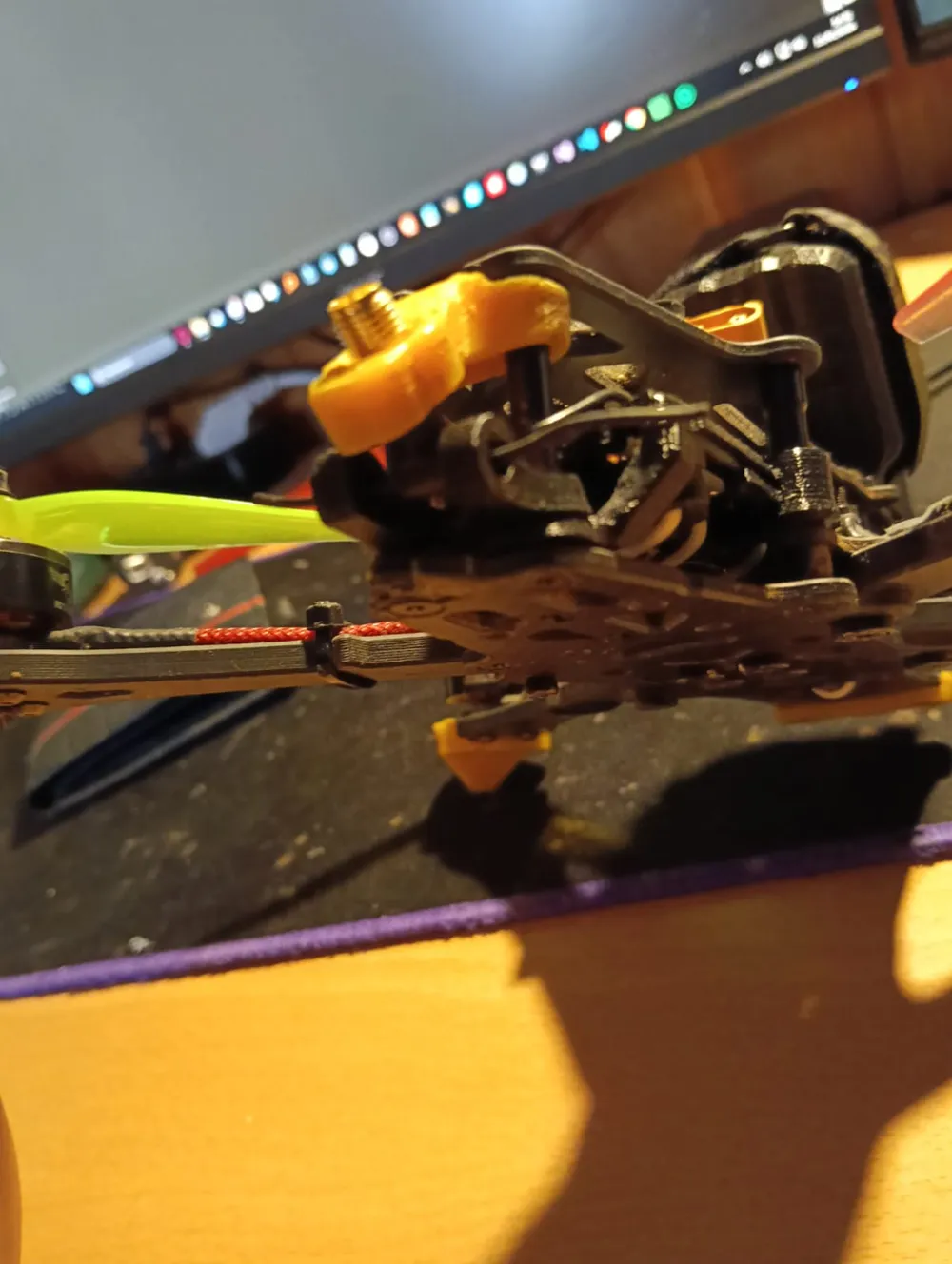

- Designed to be mounted at the rear or front of the frame (but can be mount on every spacer)
- Works with standard FPV frame mounting points
