CZ Shadow2 Airsoft Improved Parts

CZ Shadow2 airsoft gun spare parts

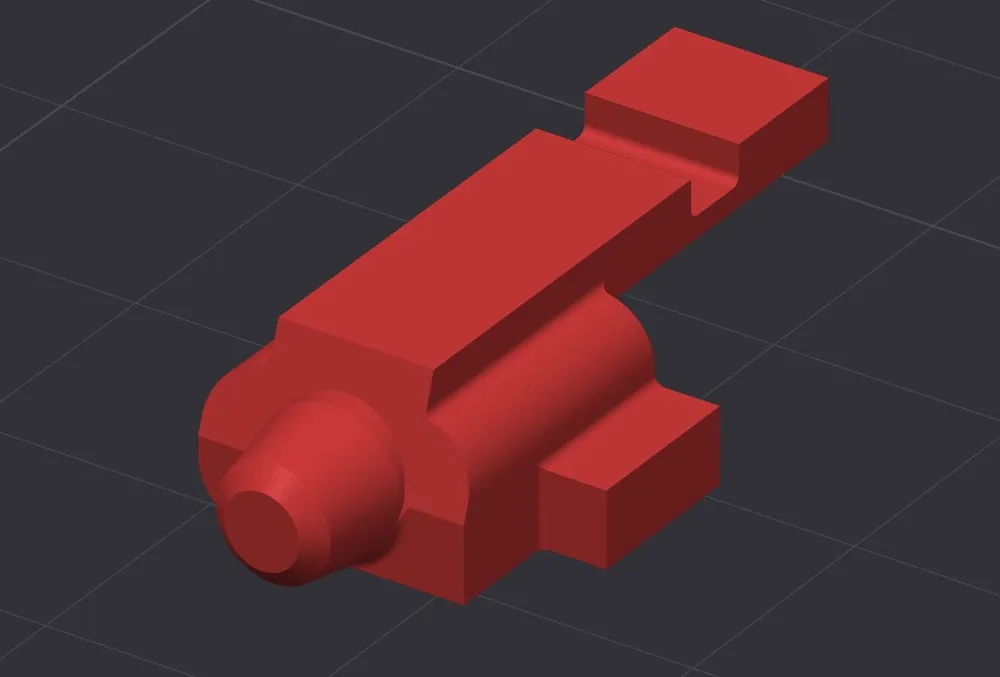

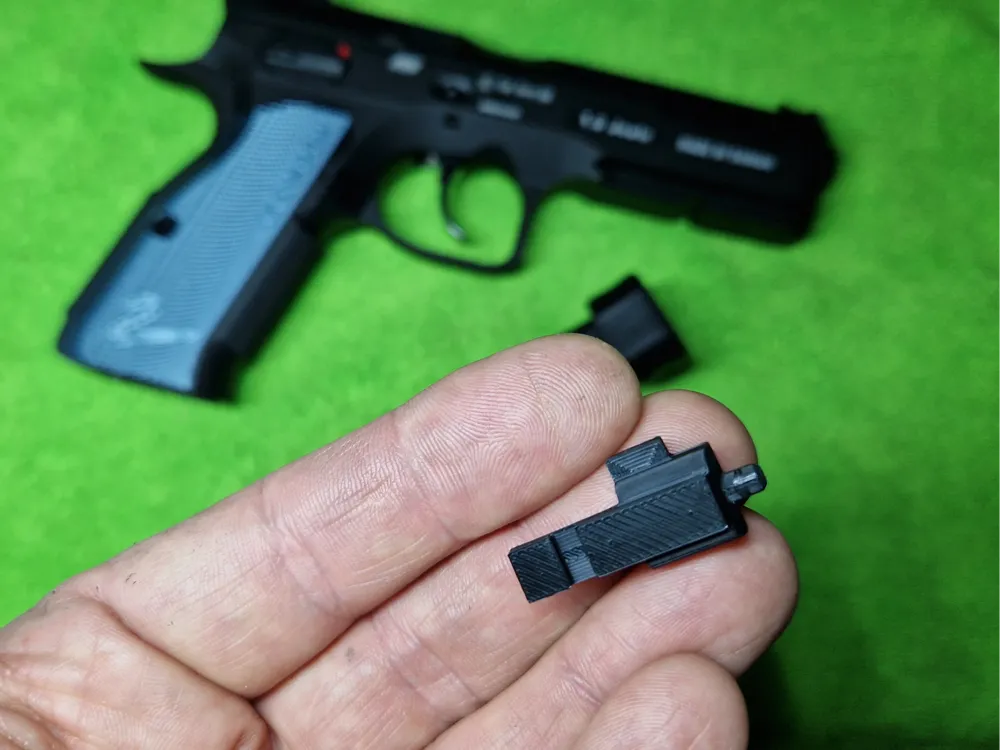

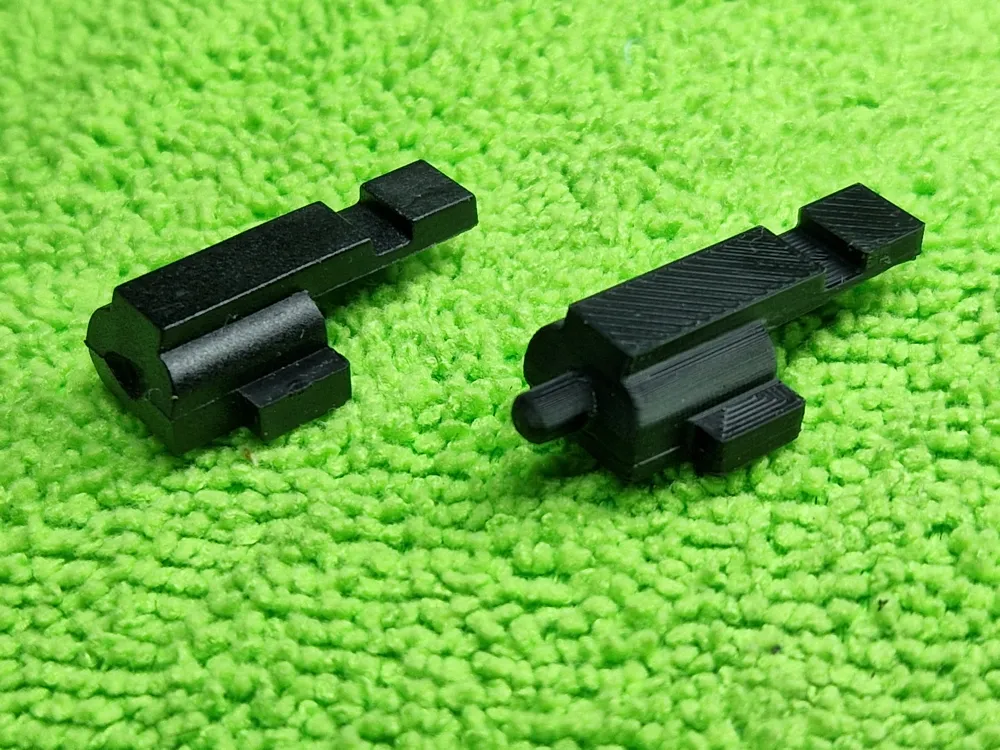

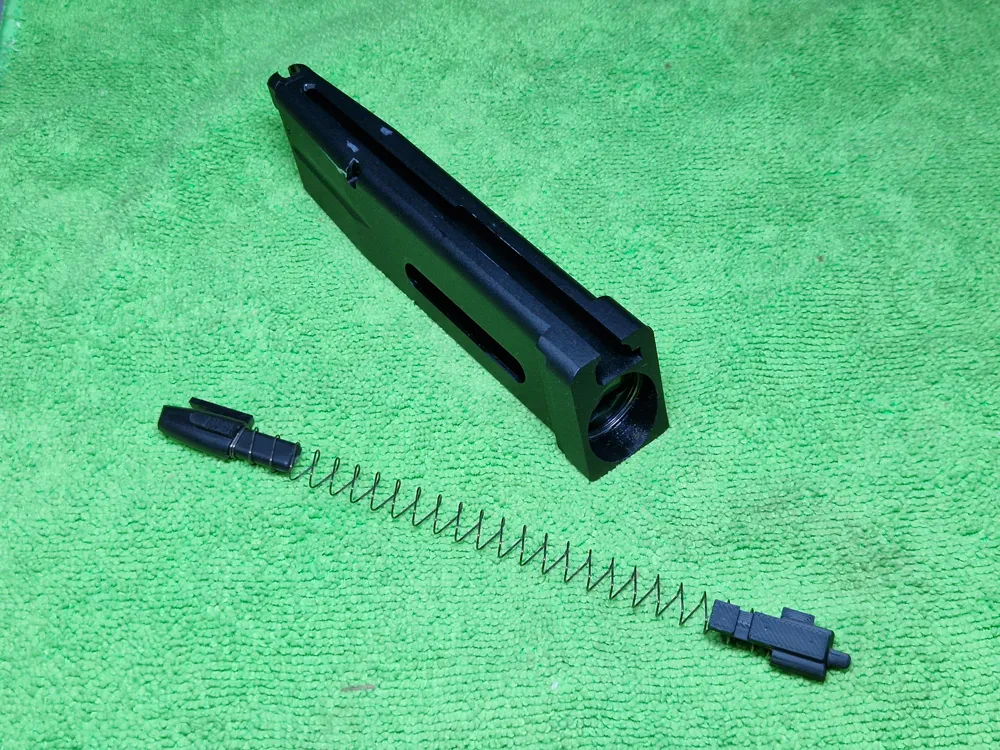

• The magazine part is unfortunately very fragile. It can break even with a minor drop. That's why I designed this replacement part. I took care to design it so that it fits perfectly in the original place.

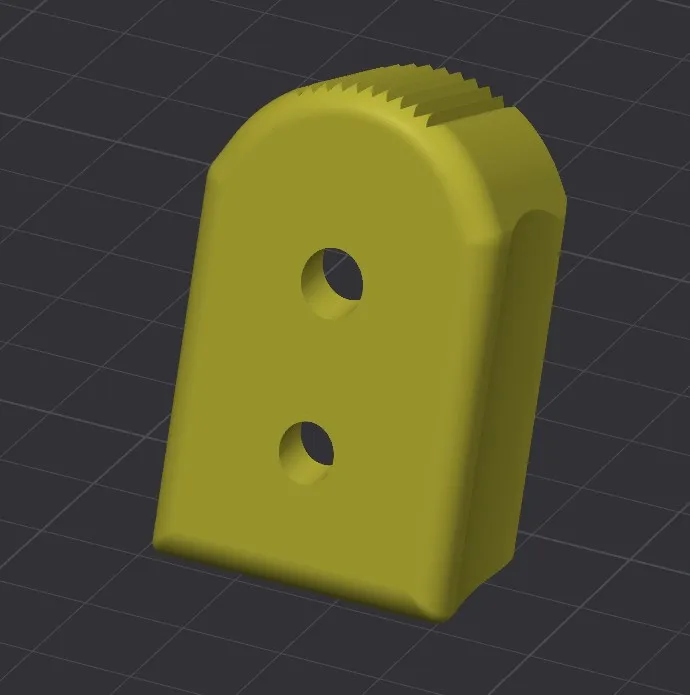

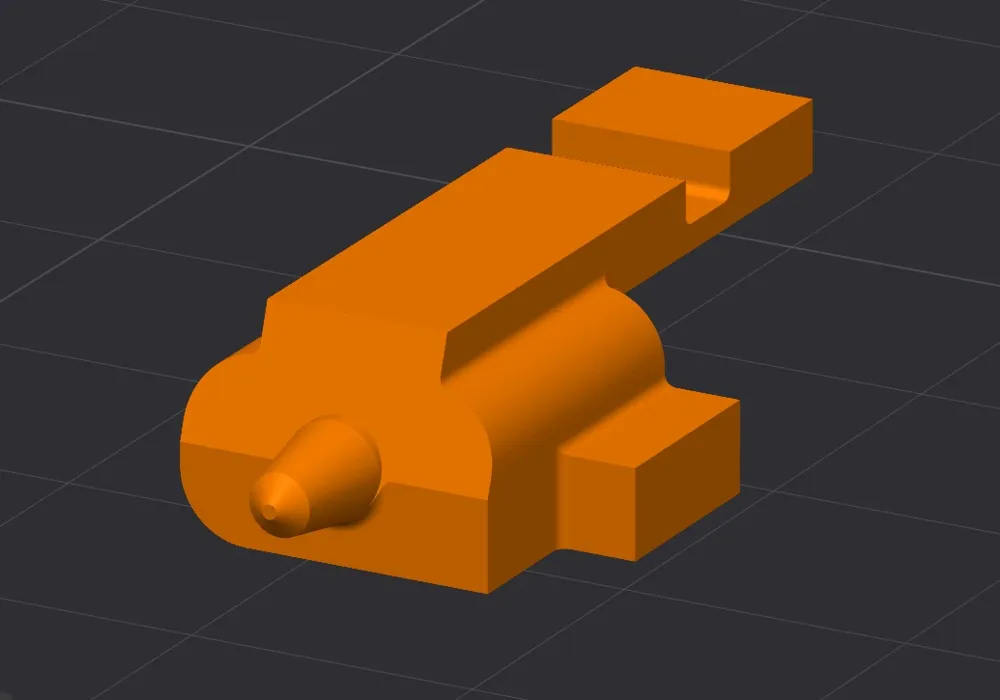

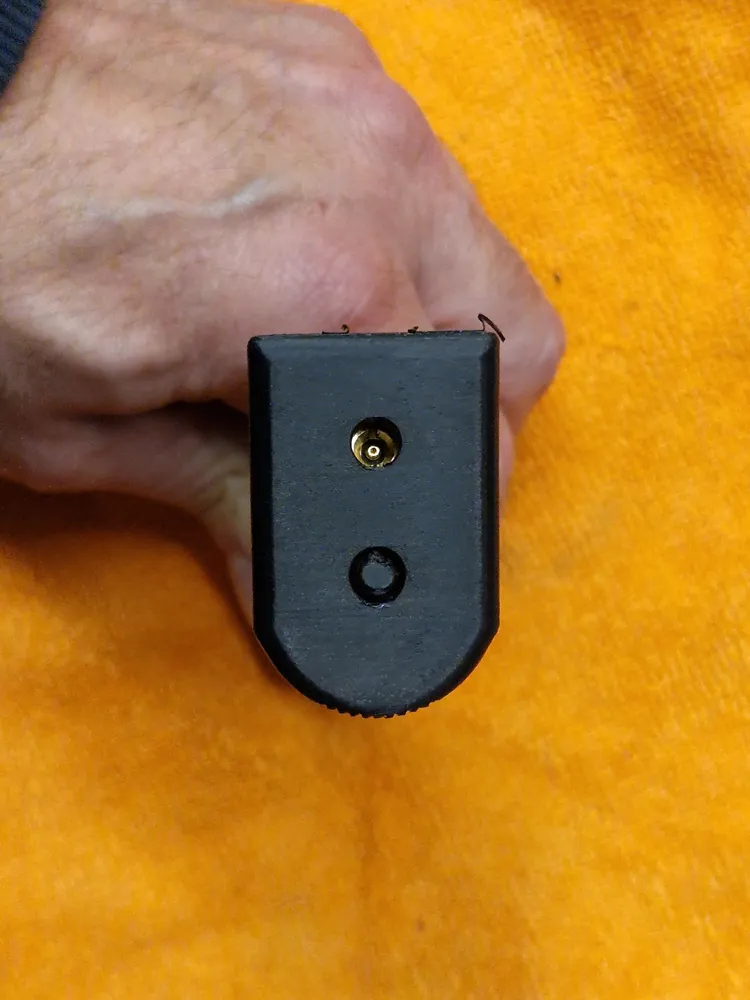

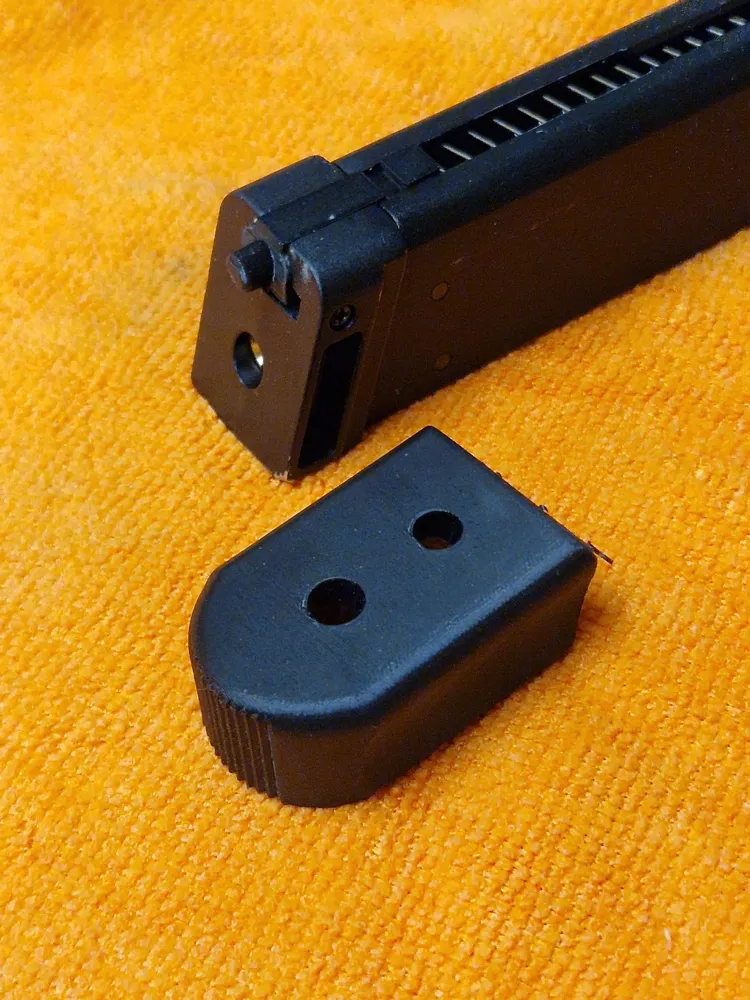

• I made a much stronger and more resistant version, but since the mounting pin is thicker, I recommend printing the corresponding MagBasePlate for this. I printing with Bambulab TPU for AMS. This will make it practically indestructible.

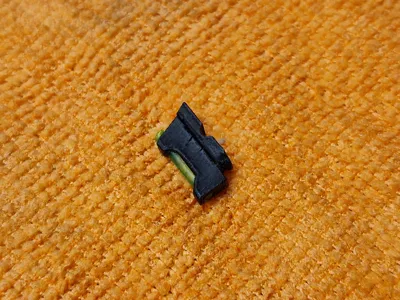

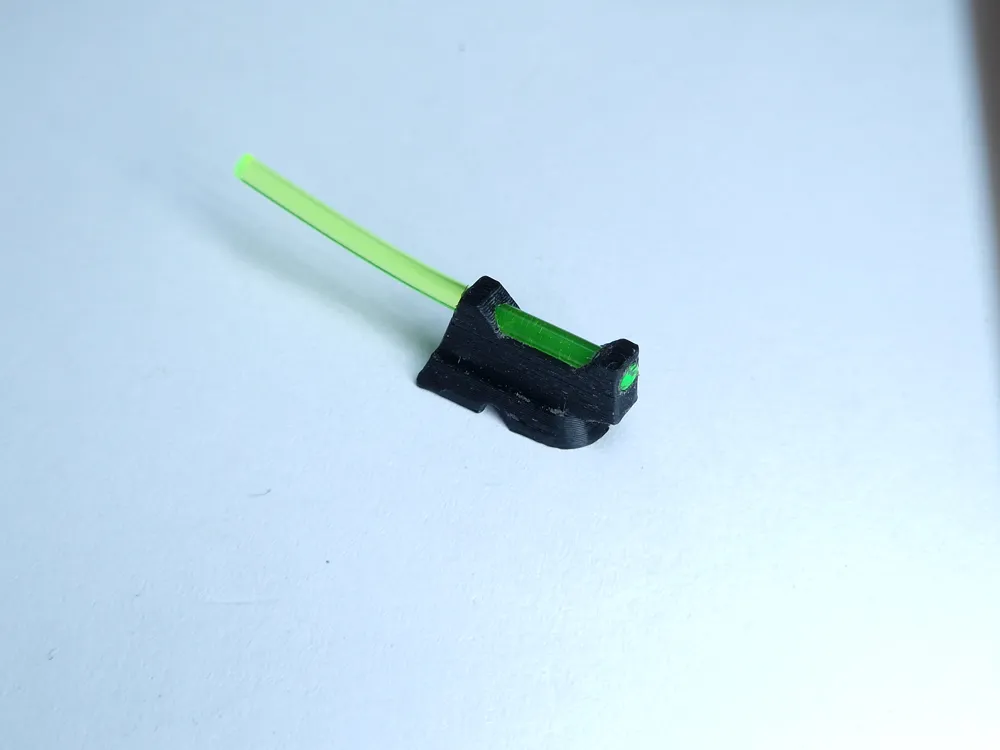

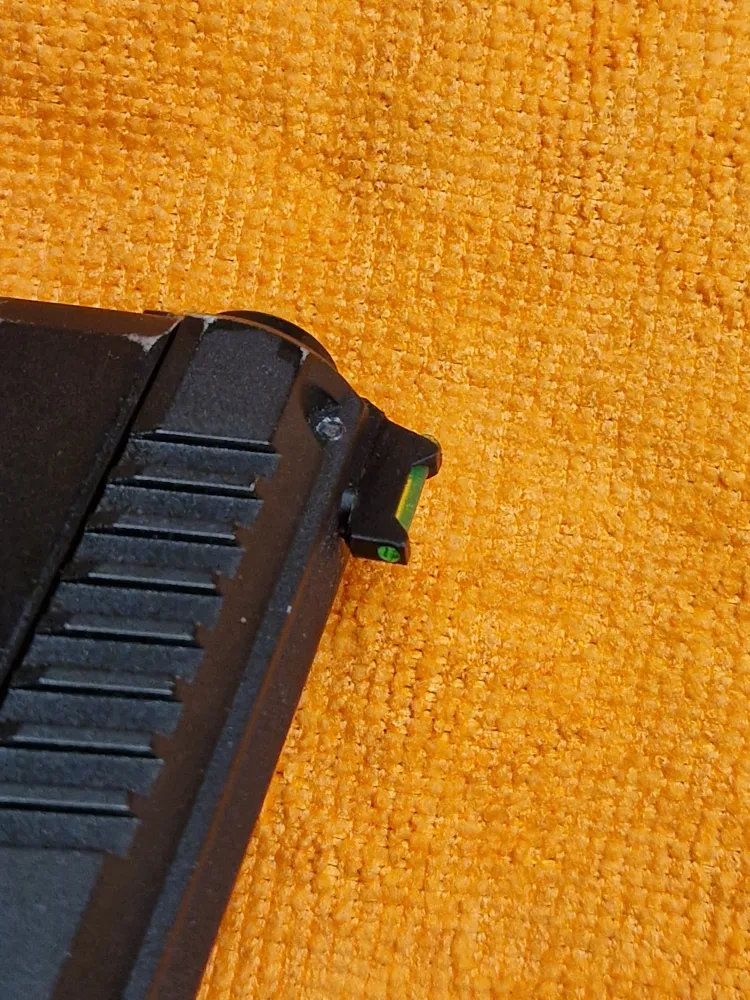

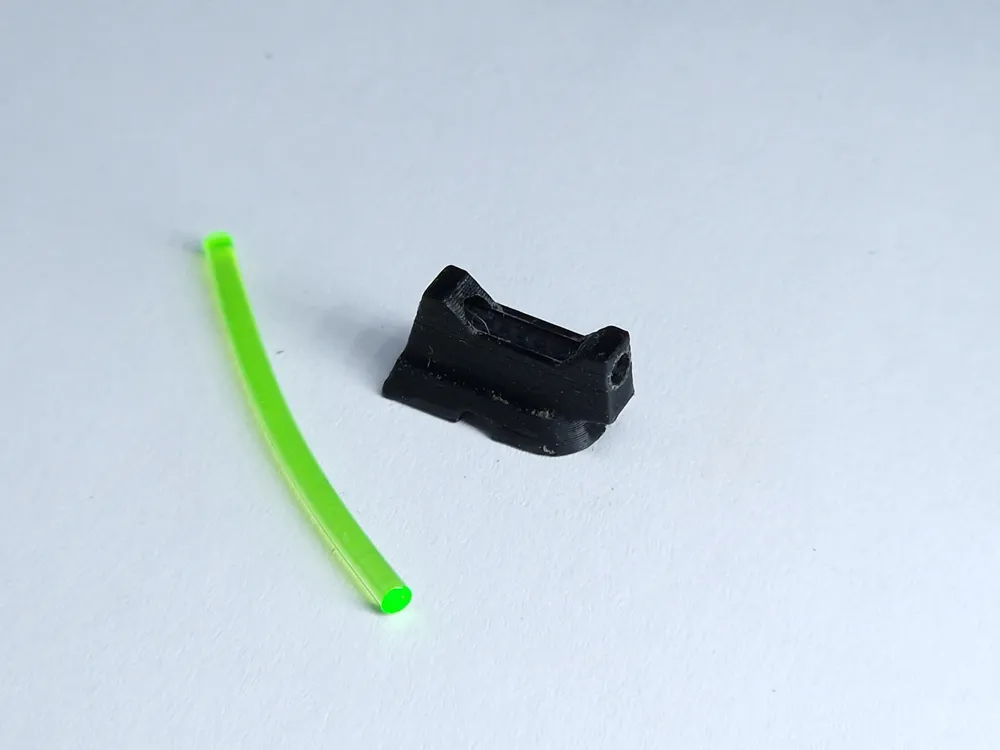

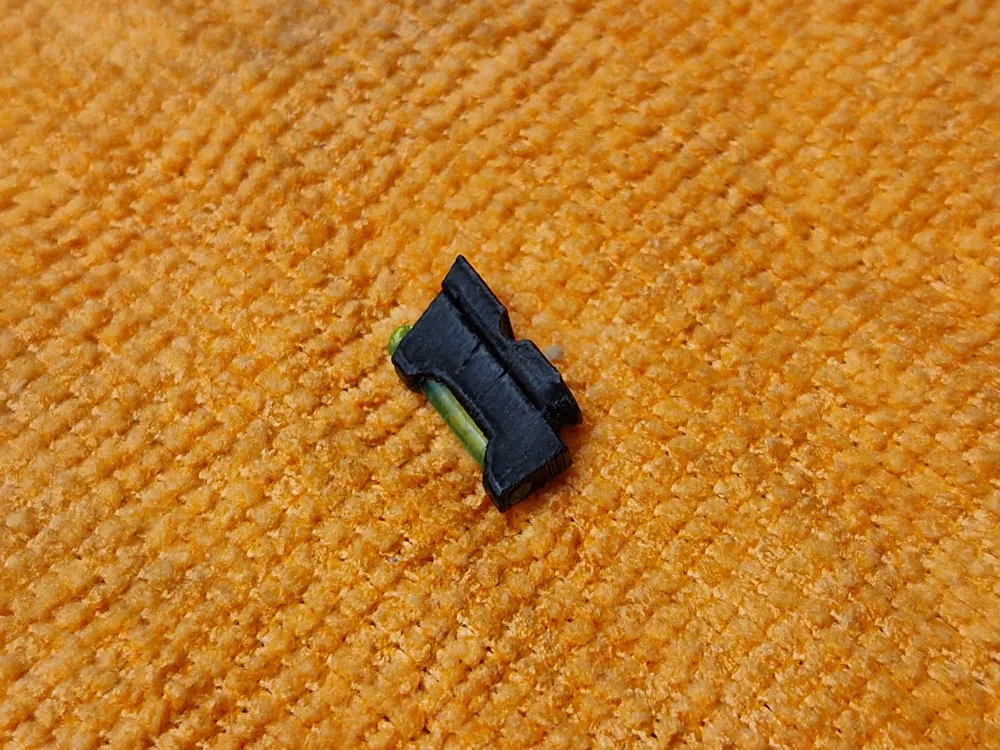

• After I dropped the gun and it broke, I also designed a front sight. The fiber bore is 1.5mm, but I highly recommend using a hand reamer, or if you don't have one, a 1.5mm drill bit to fit it exactly. You have to be careful because the material is thin and breaks easily. A hand reamer is also useful because it can be easily expanded to a 1.75mm bore, and then you can use a suitable transparent colored filament instead of fiber. I used PETG, but it burns and bubbles easily, you have to be very careful heating the end to make it look nice. Colored transparent PMMA or PC gives better results.

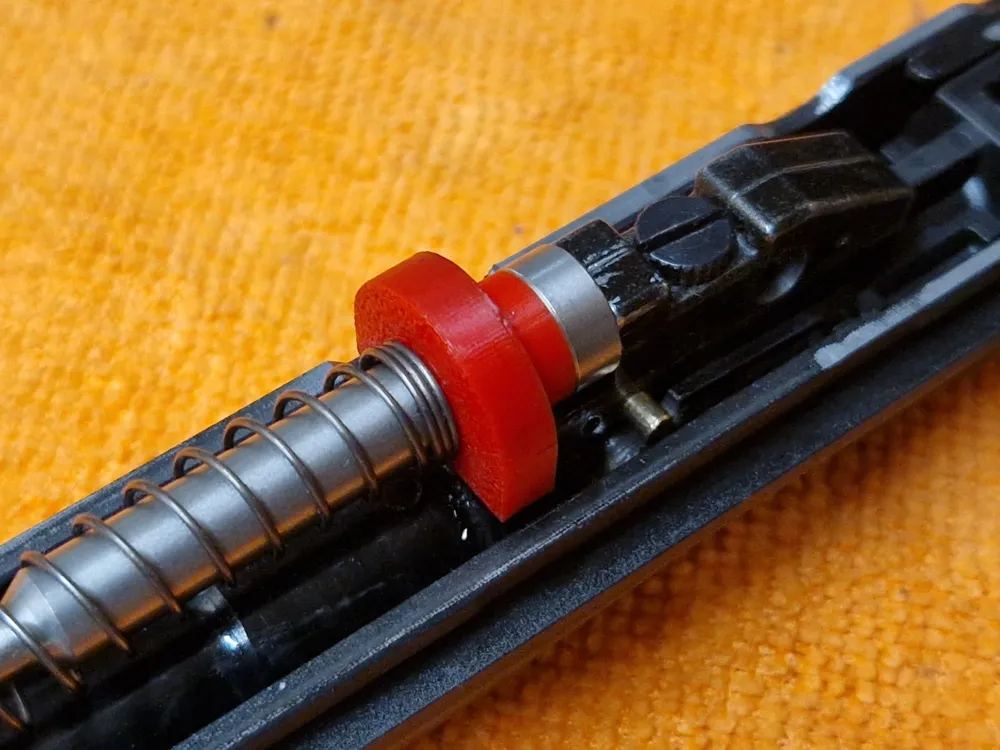

• The damper behind the recoil spring is also worn out. I designed a printable one to replace it. It is thicker than the original, because even with tuning parts, they are all thicker. I don't know the significance of it, but it works in my own weapon. It is highly recommended to print with a harder TPU material. ABS will break quickly. I printed with Bambulab 95A HF, it worked, but Bambulab TPU for AMS might also be good.

Good luck and thank you for pressing a like button if you found my work useful :D
