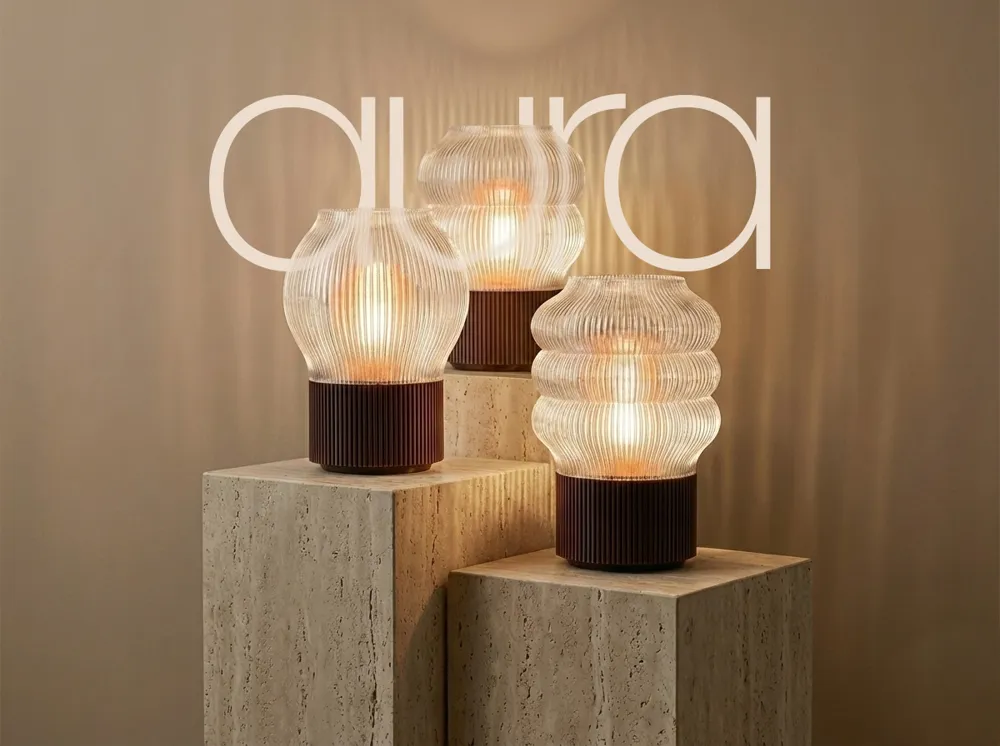

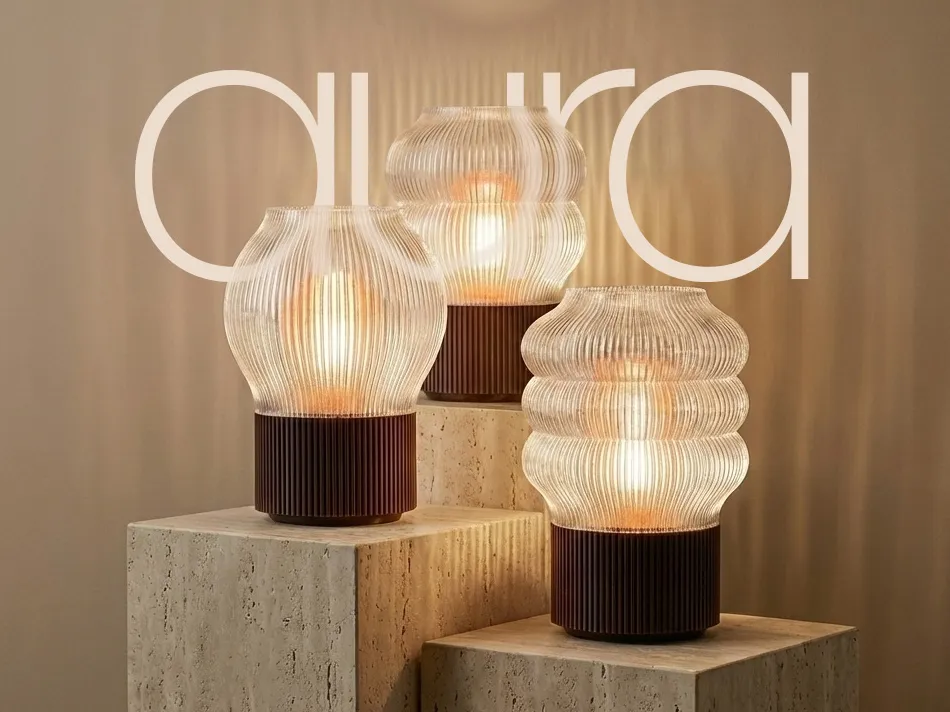

Aura Lamp - 3 versions - Desk Lamp E27 - Free 3D Print Model

Search models, users, collections, and posts

Amdy

Household>Decor

IP Report

Print Profile(6)

All

A1 mini

H2D Pro

P1P

H2C

P2S

H2S

X1E

X1 Carbon

H2D

P1S

X2D

A2L

0.2mm layer - Triple Lampshade [Fixed]

Designer

9.6 h

3 plates

4.9(29)

0.20mm layer - 3 different lamp shade - All-In-One [Fixed]

Designer

18.1 h

5 plates

4.9(16)

0.2mm layer - Double lampshade [Fixed]

Designer

9.5 h

3 plates

5.0(11)

0.2mm layer - Single Lampshade [Fixed]

Designer

9.2 h

3 plates

5.0(4)

Click to see more

Open in Bambu Studio

Boost

2568

9153

131

2.7 k

1.3 k

Released

Description

Membership

Turn these 3D models into profit! By subscribing to this tier, you gain an active commercial license to print and sell physical copies of my designs anywhere you want.

Join

Notice: The mounting base for the lamp holder was previously incorrect. It has now been replaced with the correct version in all print profiles. I apologize for the inconvenience and thank you for your understanding.

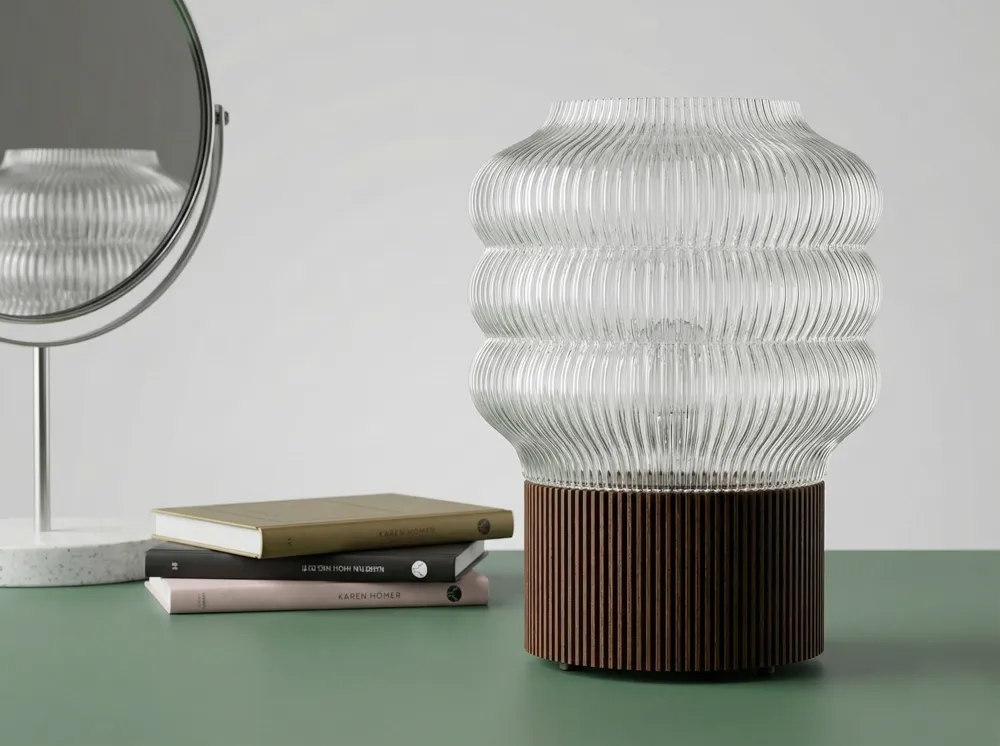

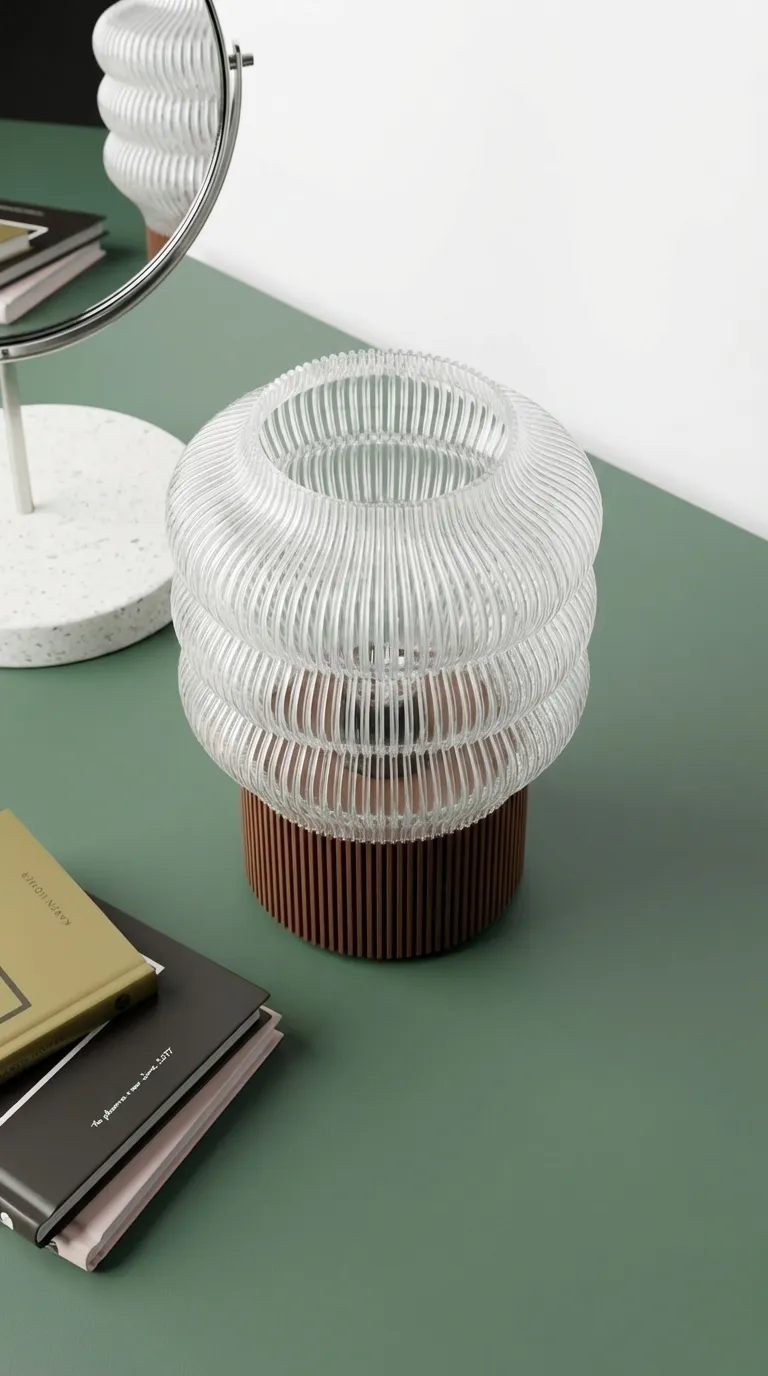

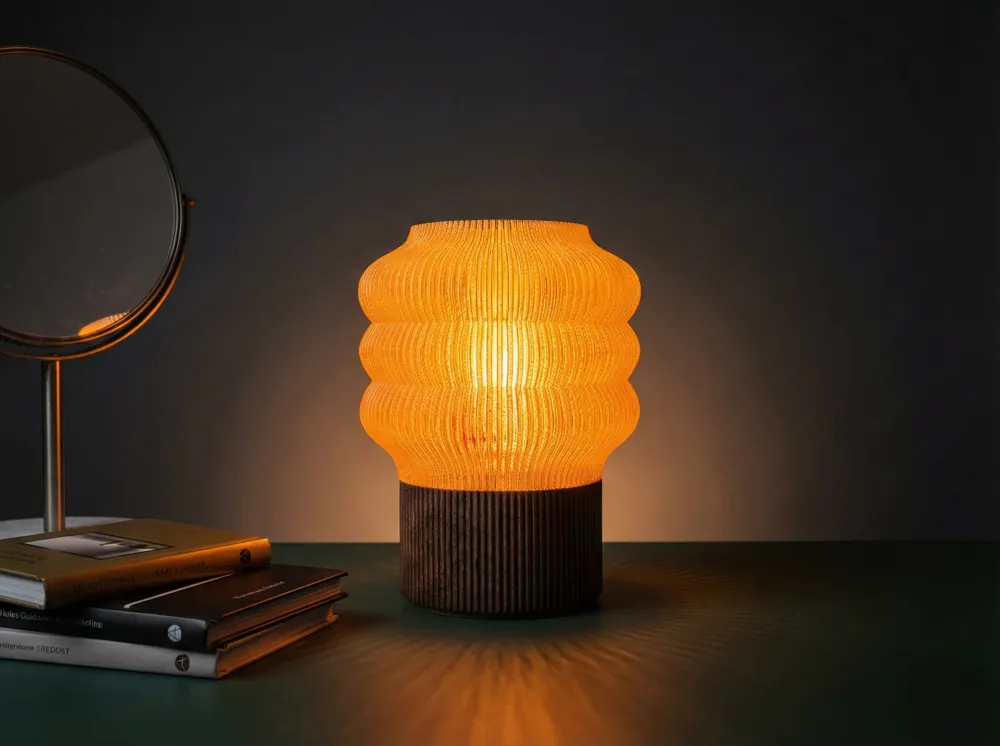

The Aura lamp is a study in contrasts and cohesion. Designed to bring a warm, rhythmic glow to your space, this lamp combines advanced 3D printing techniques to create an object that feels both retro-futuristic and timeless.

Technical Details
Model Name: Aura
Dimensions (Assembled): 225 mm (H) x 170 mm (W)
Socket Type: E27 Standard
Light Source: LED Bulb ONLY (Important! Do not use incandescent or halogen bulbs to avoid heat damage).
Recommended Bulb: E27 LED Globe or Filament style (Max 8-10W).

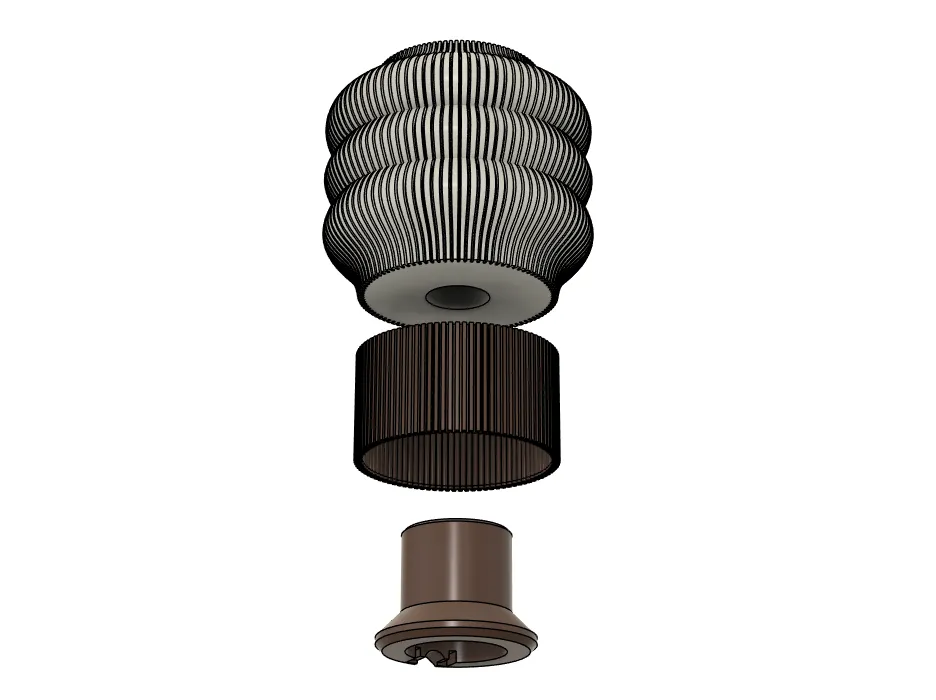

Printing Guide for "Aura" Lamp

1. The Shade (Top Part)

Material: PETG (Recommended for transparency and heat resistance)
Mode: Vase Mode (Spiralize Outer Contour)
Layer Height: 0.20 mm
Nozzle: 0.4 mm (or wider for a thicker wall)
Infill: 0%
Top Layers: 0 (Open top)
Bottom Layers: 3-4 (Solid connection to the mount)

2. The Base (Bottom Part)

Material: PLA
Mode: Normal / Standard
Layer Height: 0.20 mm
Infill: 15% (Grid or Gyroid for stability)
Walls/Perimeters: 2 walls
Supports: No supports needed (if printed flat).

3. The Stand

Material: PLA
Mode: Normal / Standard
Layer Height: 0.20 mm
Infill: 15% (Grid or Gyroid for stability)
Walls/Perimeters: 2-3 walls
Supports: Yes
