Parametric Display Stand - Phones, Cards & Signs
Print Profile(3)
Description
Need a stand that fits your specific object perfectly?
This Parametric Angled Stand is designed to be fully customizable using the Customizer.

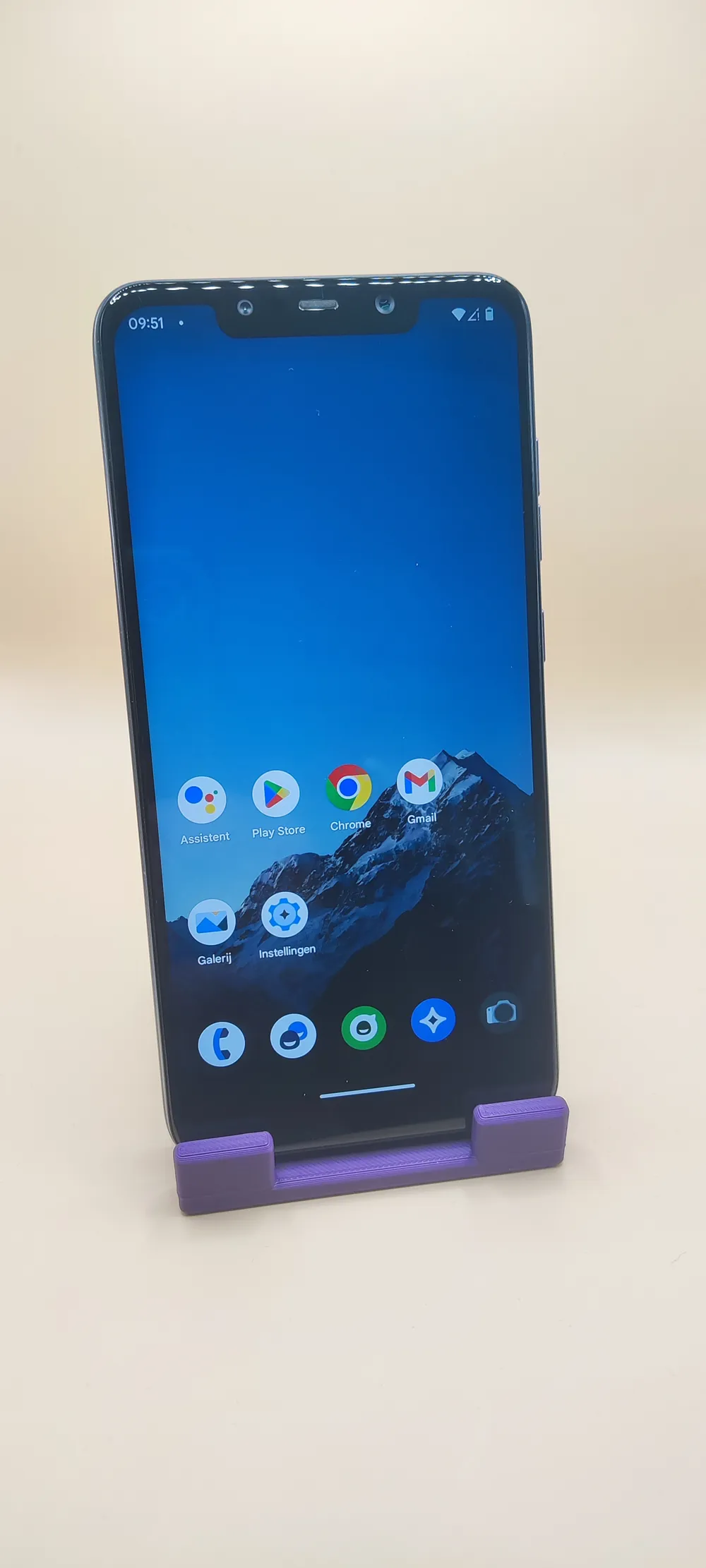

Whether you need to display a thick lithophane, a slim trading card, a smartphone, or a printed sign, you can adjust the dimensions to get the perfect fit.
Key Features:
- Fully Parametric: Adjust width, depth, height, and angles.
- Beveled Edges: Smooth, rounded corners for a professional look.
- Stable: Adjustable back extension to prevent tipping.

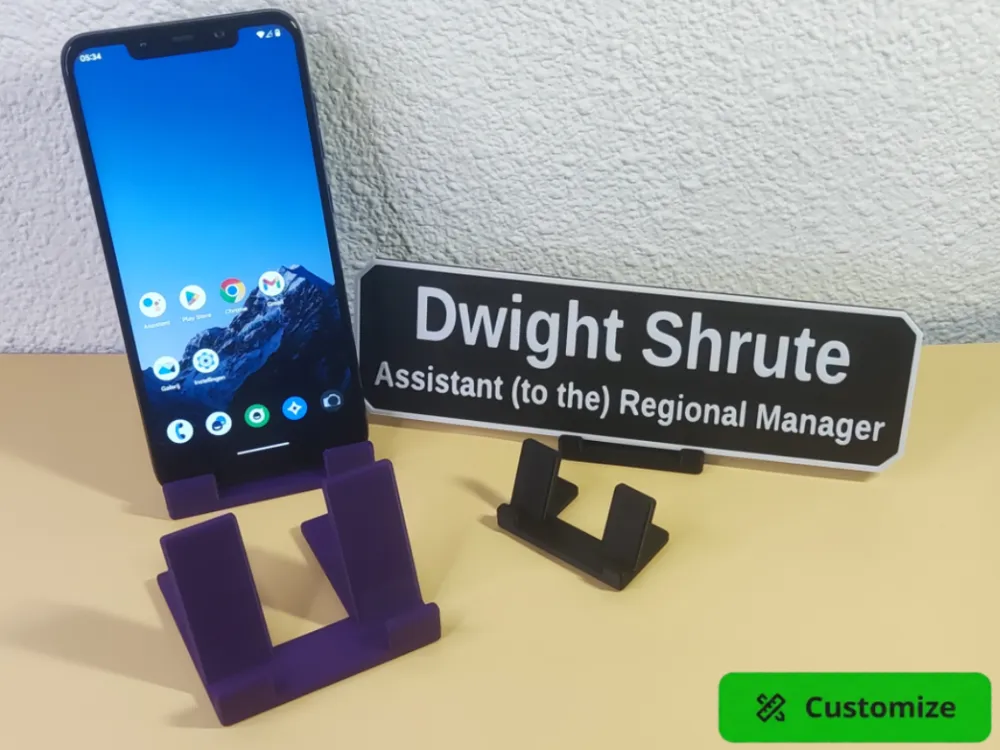

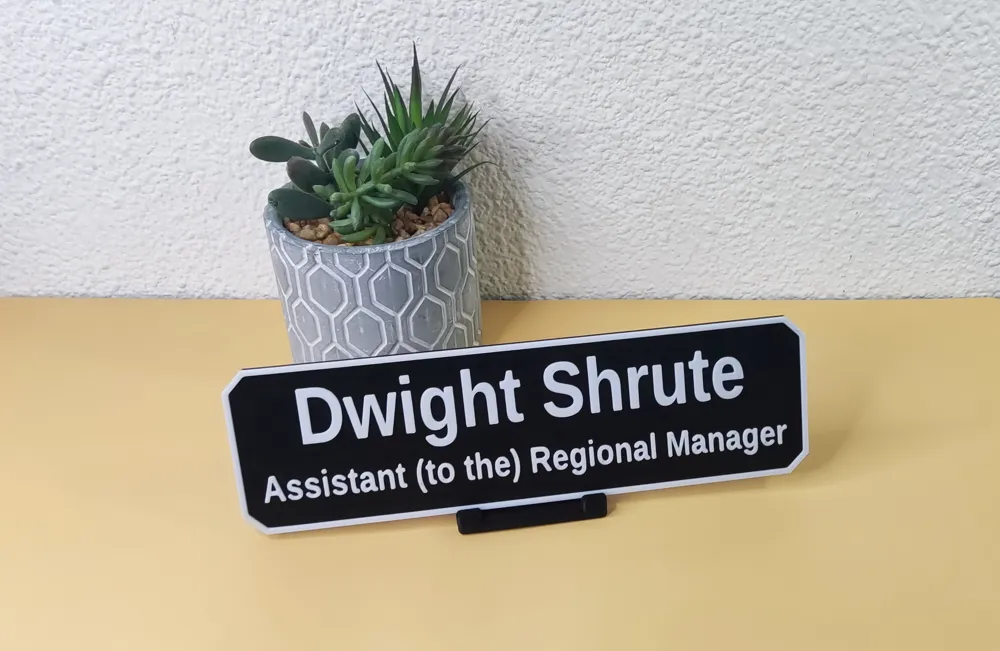

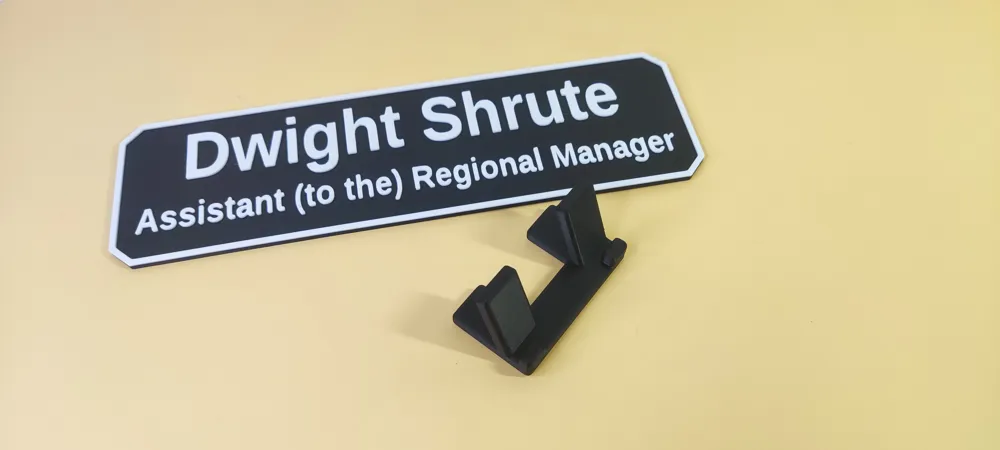

To create a sign like the Dwight Shrute sign, please use my sign maker: https://makerworld.com/en/models/2179735-ultimate-sign-nameplate-generator-parametric

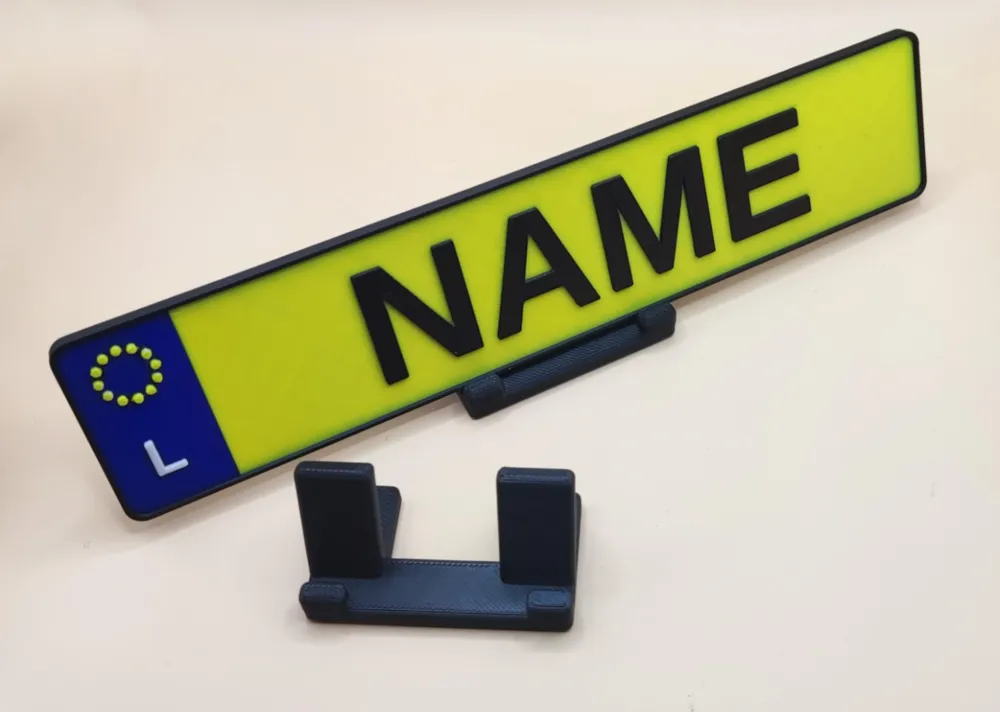

To create a EU licenseplate like the one in the picture, you can use my licenseplate creator: https://makerworld.com/en/models/2285748-eu-license-plate-generator-custom-text
How to Customize
Press the green Customize button\
Parameter Guide
[Main Dimensions]
- stand_width: The total width of the stand from left to right.
- base_height: Thickness of the horizontal floor connecting the pieces.
- back_extension: The length of the tail behind the stand. Increase this if your object is tall or heavy to prevent the stand from tipping over.
- front_to_back_gap (Crucial): This determines the slot size. Measure the thickness of the object you want to display and set this value slightly larger (e.g., if your object is 4mm thick, set this to 5mm).
- back_angle_deg: The tilt of the back support tabs. Default is -20 degrees.
[Front Tabs]
- front_tab_width: The width of the front stopper tabs.
- front_tab_height: How high the front stoppers reach.
- front_tab_thickness: How thick the front stoppers are.
[Back Tilted Tabs]
- back_tab_width: The width of the rear support tabs.
- back_tab_height: The height of the rear supports. Increase this for taller items like tablets or large lithophanes.
- back_tab_thickness: The thickness of the rear supports.
