Water leak sensor holder for IKEA Klippbok

✨ [ Model Overview ]

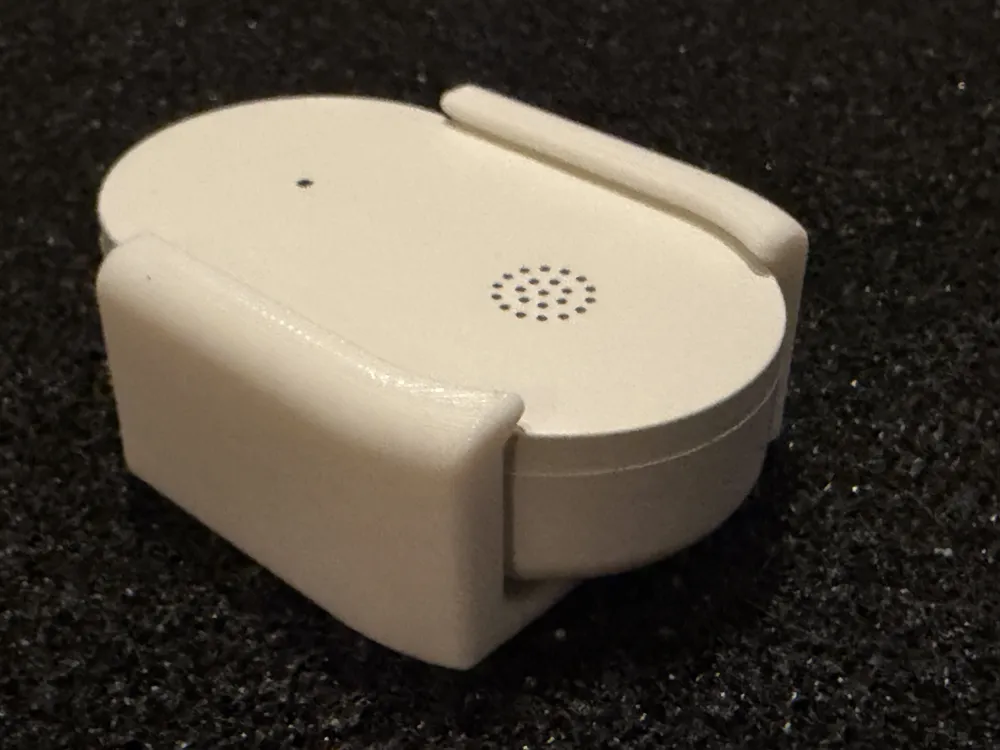

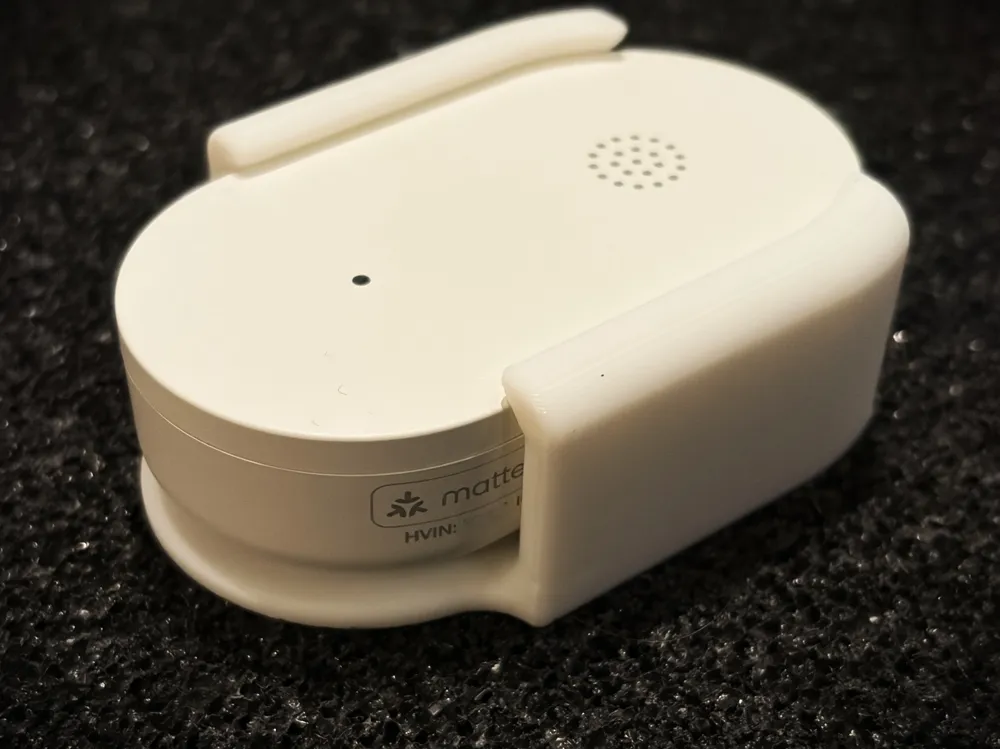

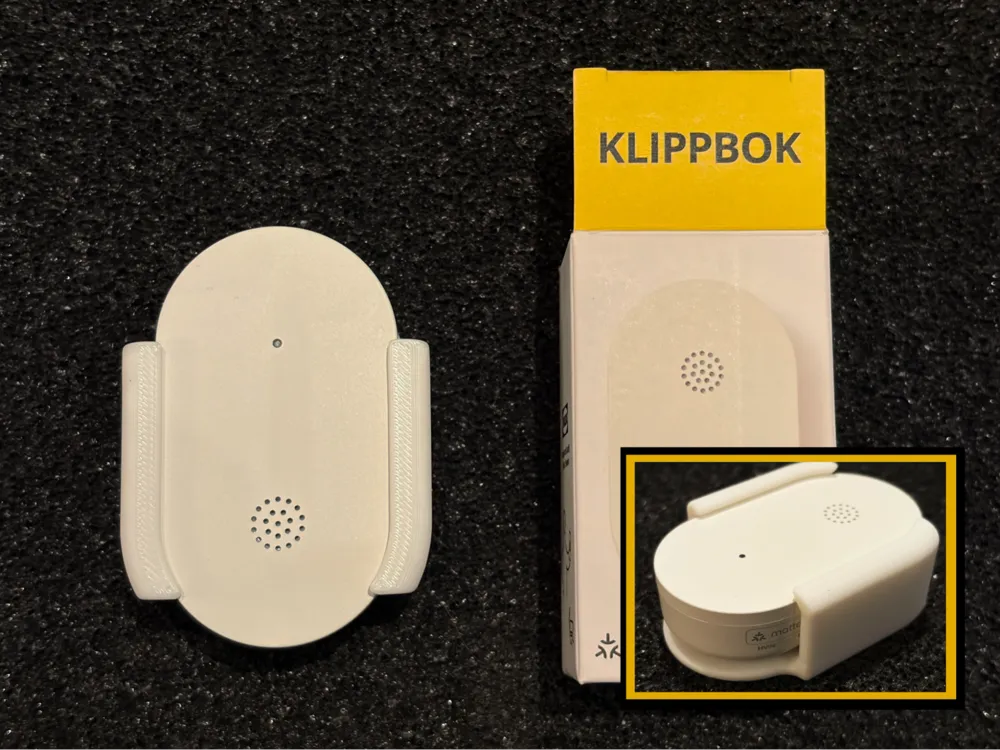

Holder for the IKEA sensor model KLIPPBOK smart Water leak sensor. This is the sensor compatible with the Matter protocol (Part number from Ikea is : 506.177.69

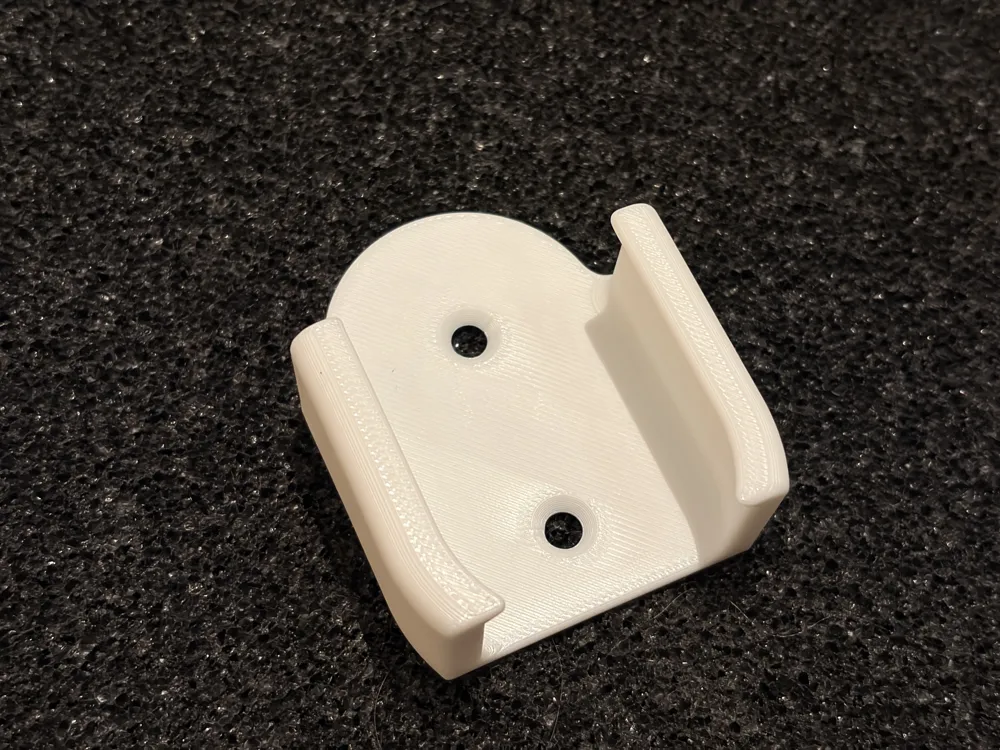

The 2 screw holes are 6mm diam. for mounting

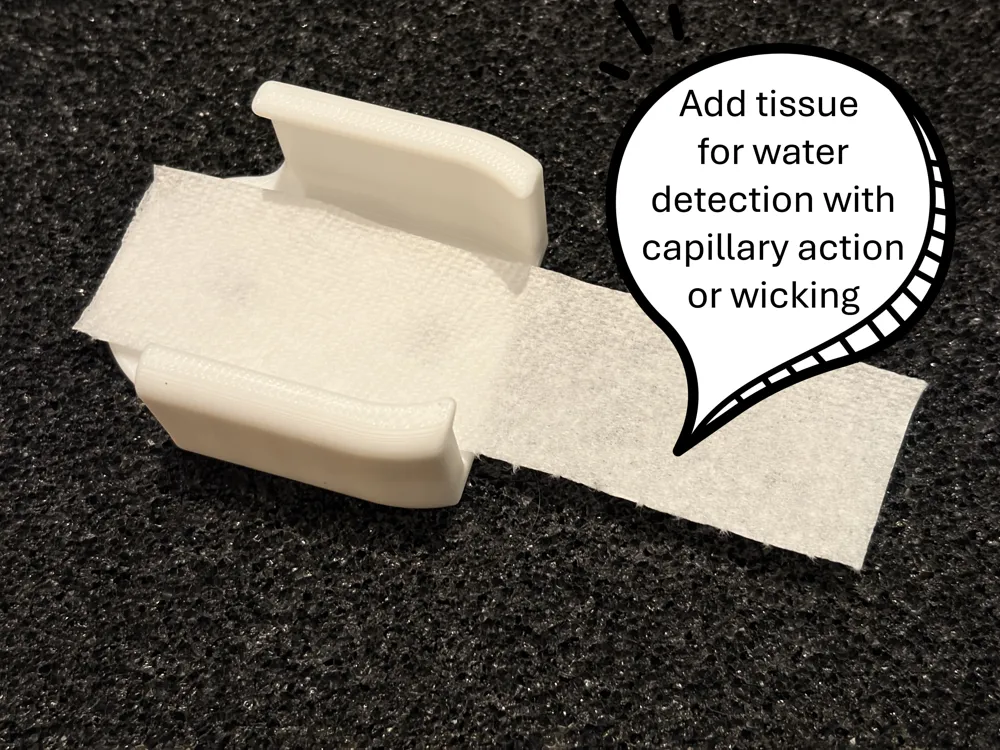

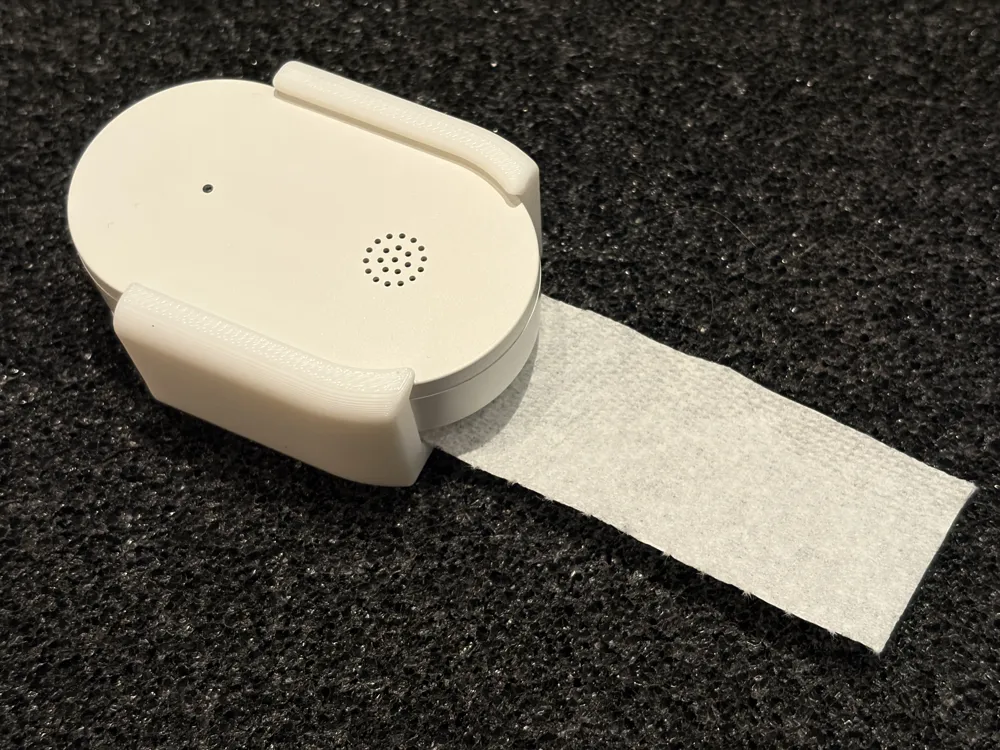

☝️You can add a tissue or fabric under the sensor for a Capillary action or water wicking effect to increase the reach of the sensor, just make sure the tissue has good contact with the 2 steel pins under the sensor. Great to mount the senso on a vertical surface or a sump pump pit wall.

📇 [ Printing ]

No special considerations for printing, no temporary supports needed.

PLA worked fine for my application but PETG might be better if exposed to hotter environments.

Use the material according to your application.
