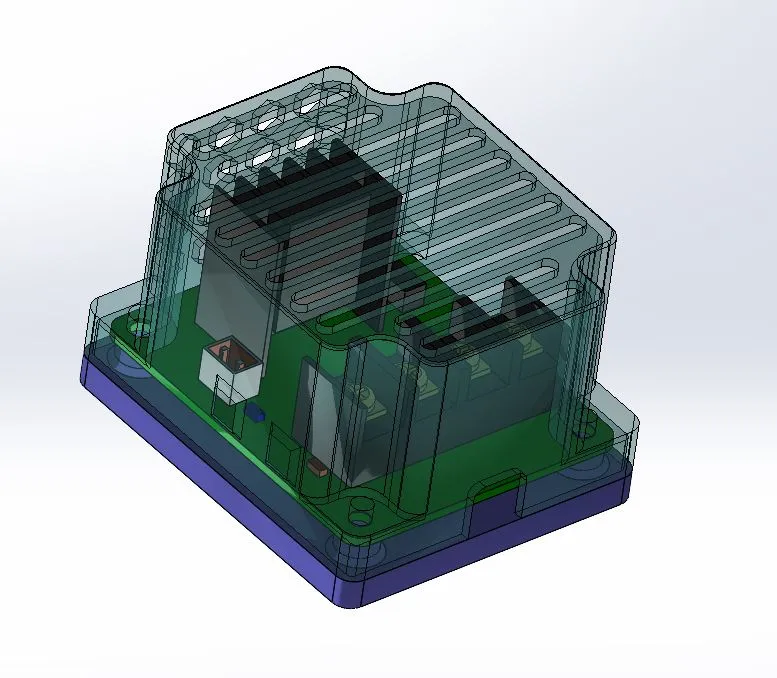

MKS Mosfet Case (MOSFET MKS MOS25)

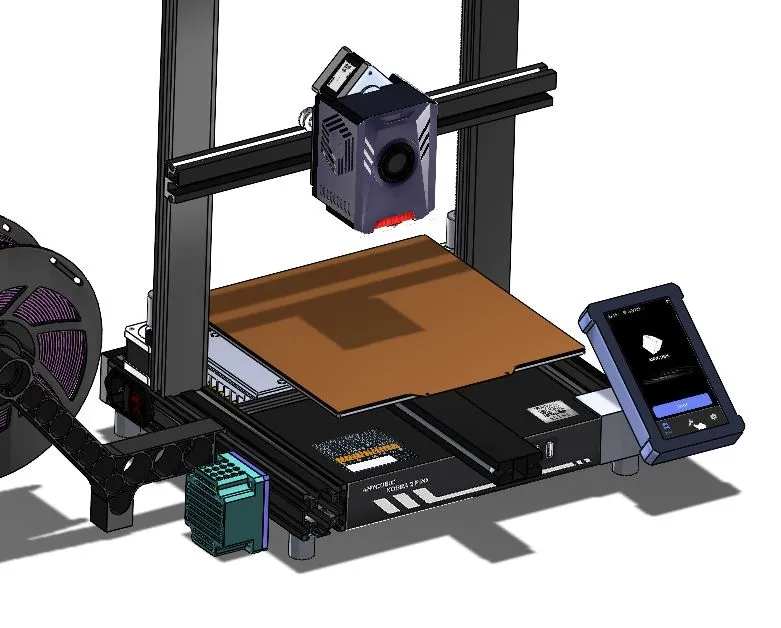

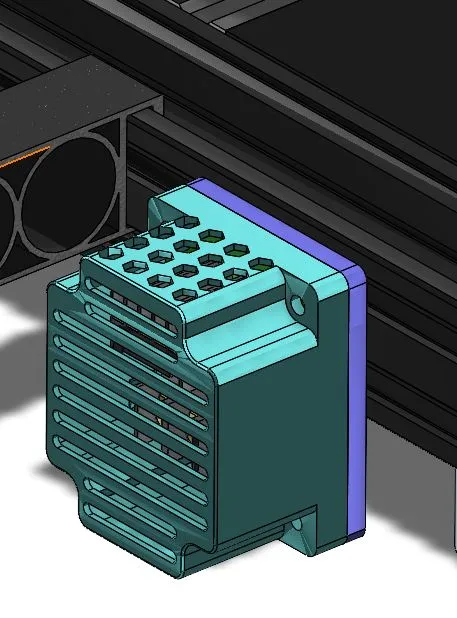

MKS Mosfet Case (MKS Mos25)  - made for Anycubic Kobra 2 Series

Version 01:  If the printer has higher legs, using the extensions in the link https://www.printables.com/model/729460-anycubic-kobra-series-foot-extension

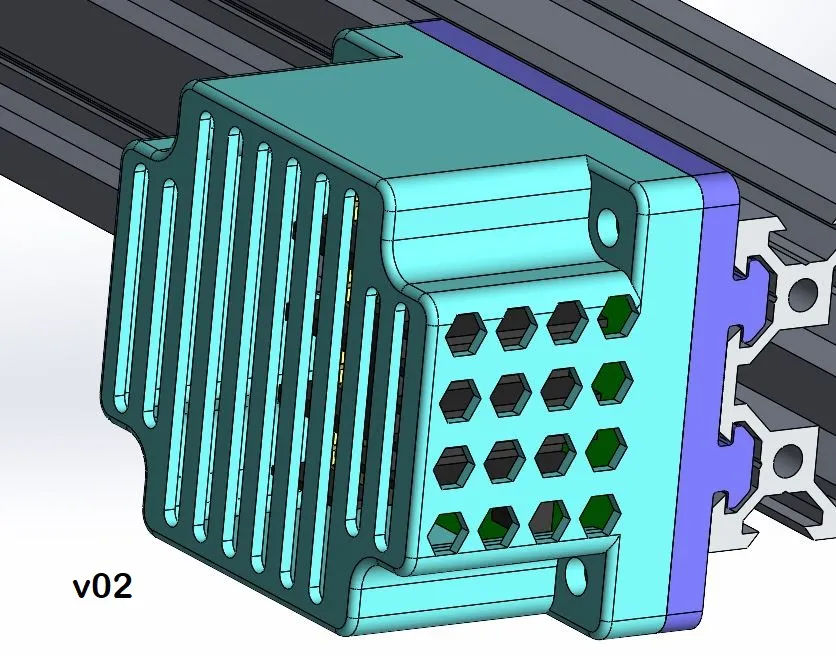

Version 02 : for standard legs of the 3d printer

Printing parameters  :

• Layer height : 0.2
• Perimeters : 3
• Solid layers : 4
• Infill : 15%
• Support : YES  - only for top case
• Brim : Outer brim only 10 mm
• Material : PLA
• Printer : Anycubic Kobra 2 Pro

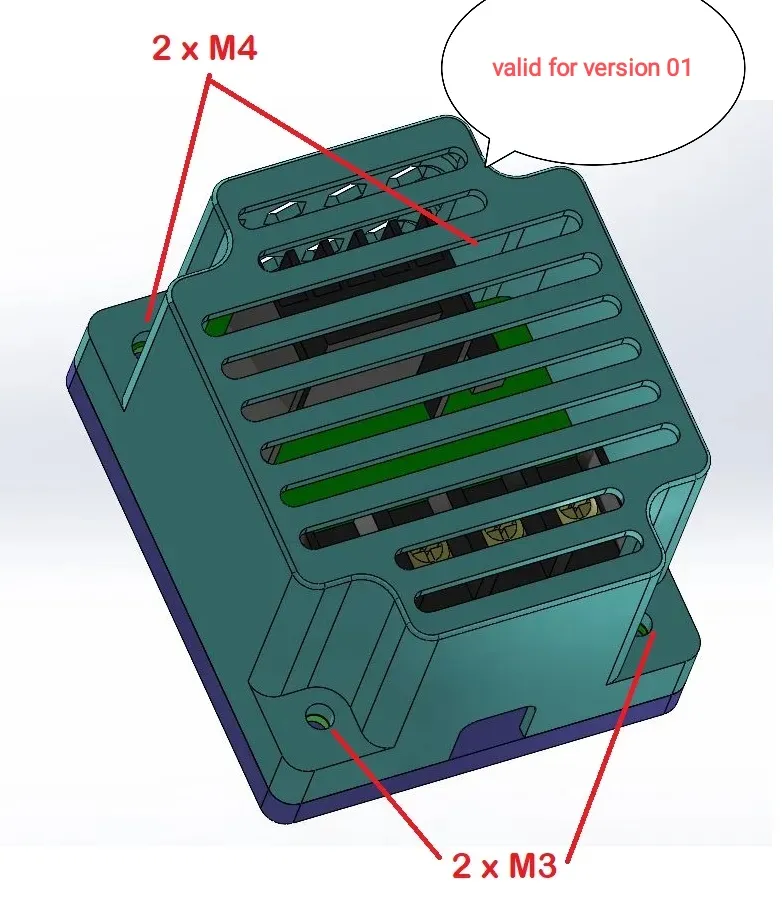

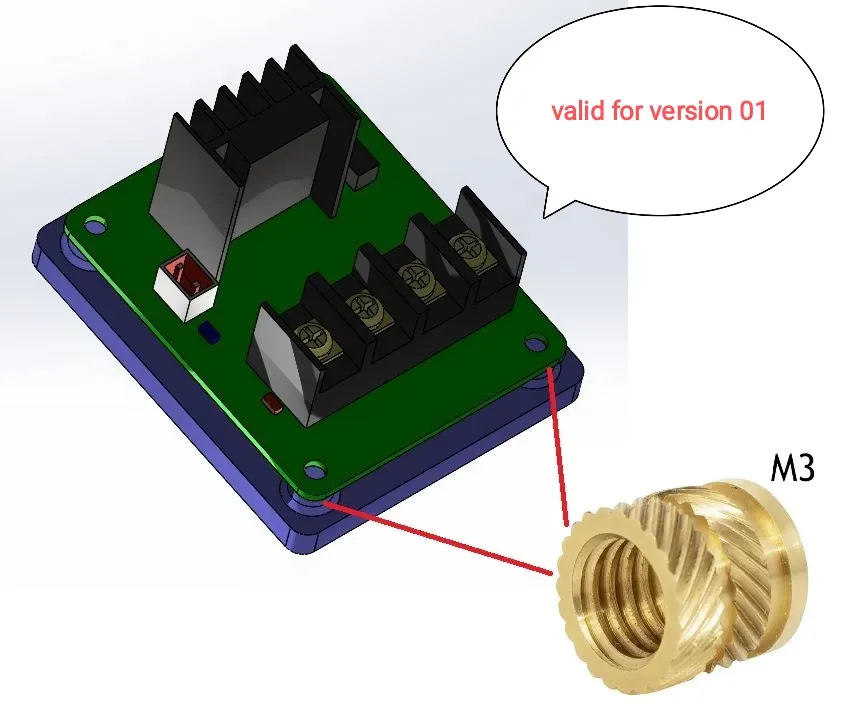

Components required for assembly for ver. 01 :

• 2 x screws M3
• 2 x inserts M3
• 2 x screws M4
• 2 x T slot nut M4

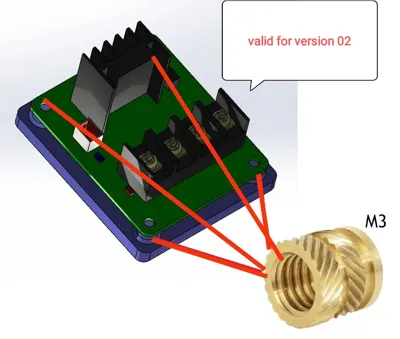

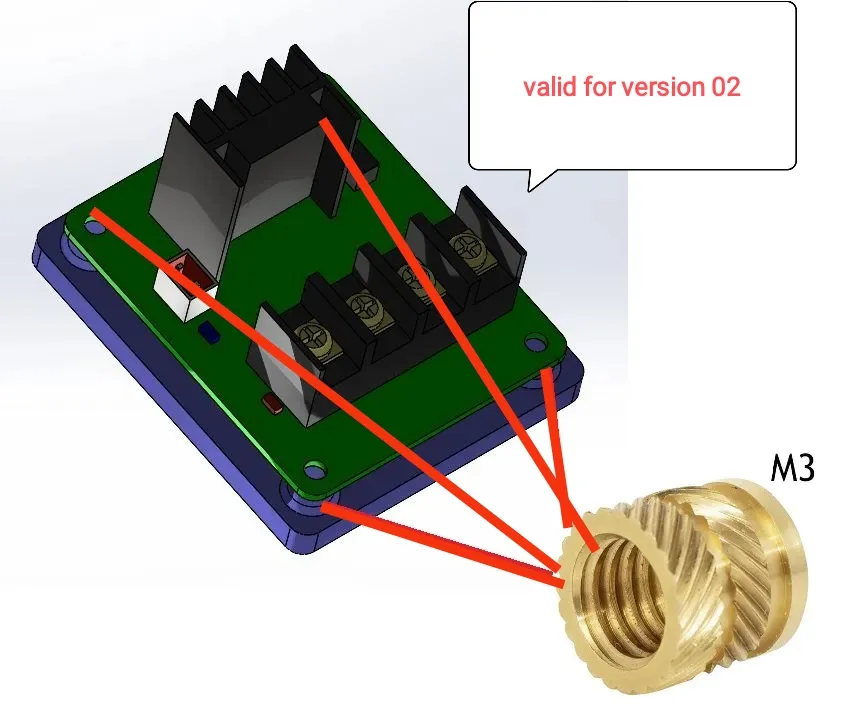

Components required for assembly for ver. 02 :

• 4 x screws M3
• 4 x inserts M3

If you print this accesories please share your make, leave a review, and drop a like!

Example link where to buy electronic component:

3D Printer Hot Bed Power Expansion Board Heating Controller MOSFET High Current Load Module 25A 12V or 24V for 3D Printer Parts:
