Honeycomb Landing Legs for DJI Neo 2
Print Profile(1)
Description

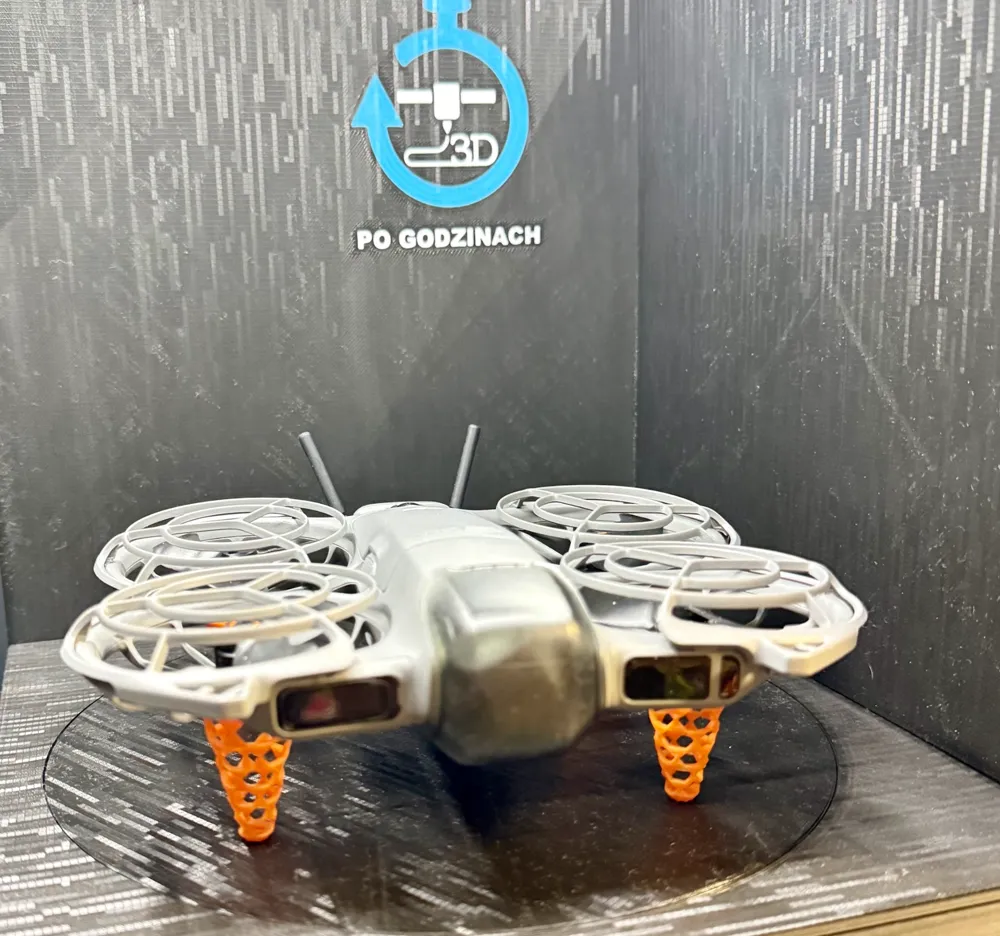

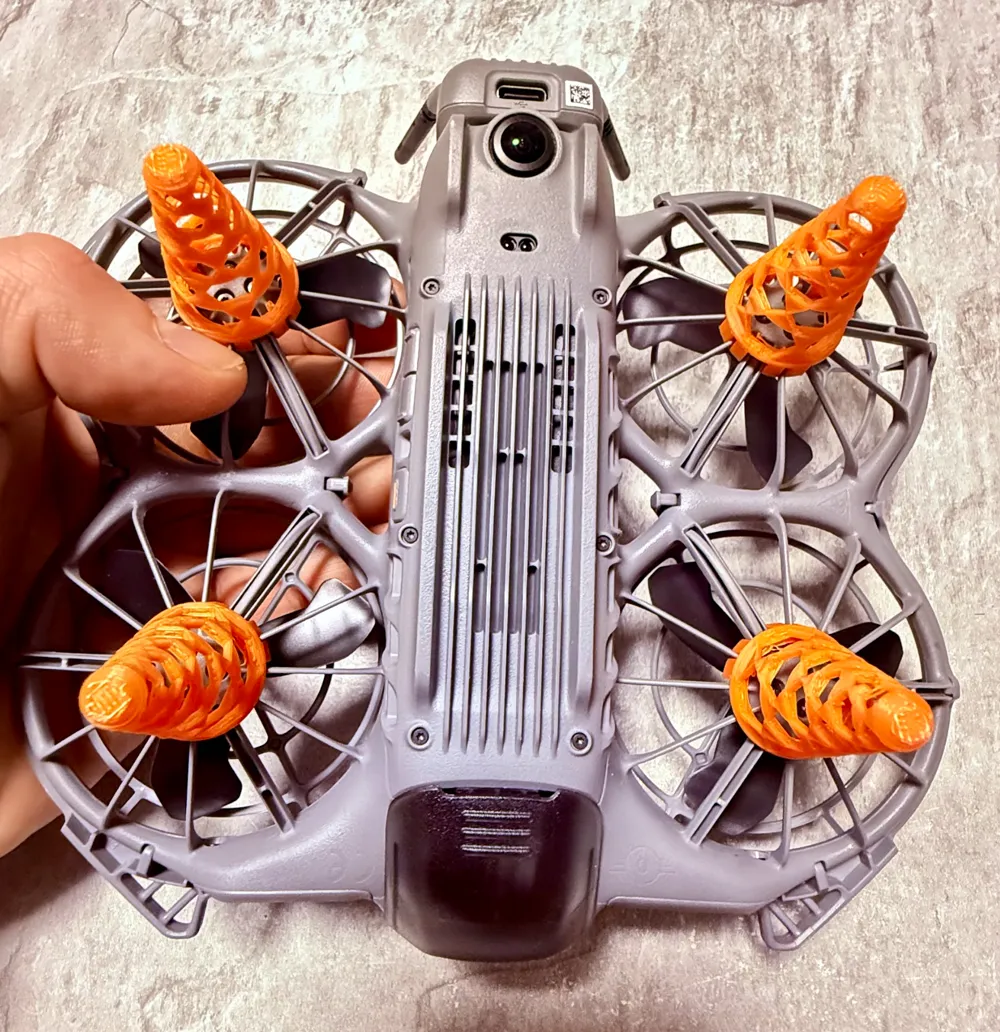

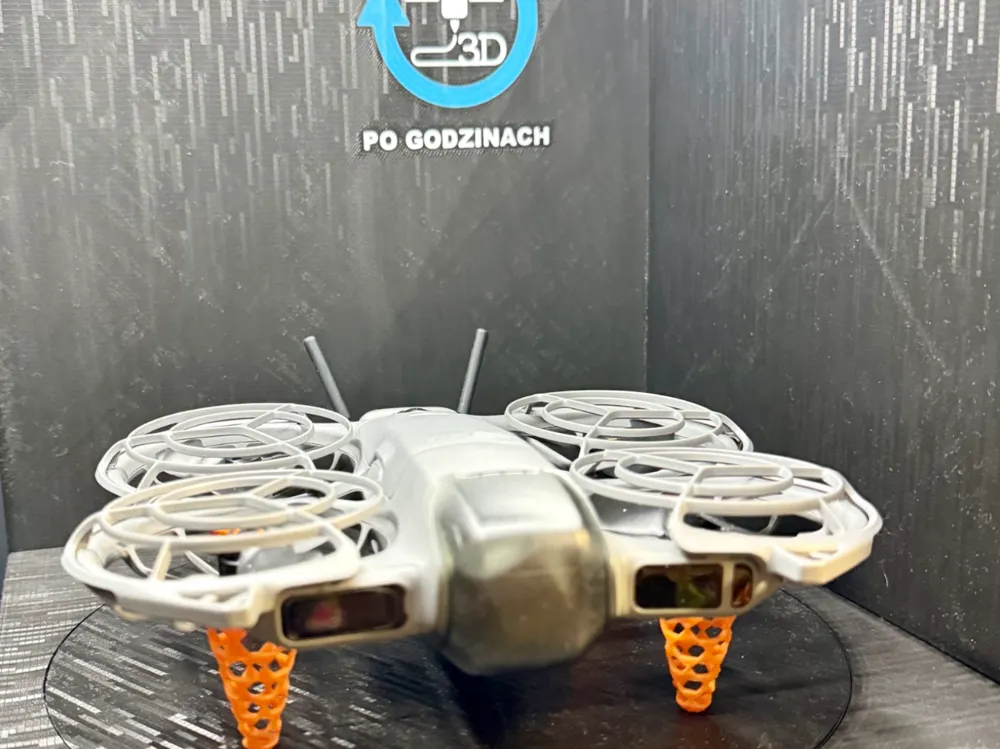

Honeycomb Landing Legs for DJI Neo 2
Description
Elevate your DJI Neo 2 drone with these ultra-lightweight honeycomb-structured landing legs! Designed as a set of 4 conical stands, they provide enhanced ground clearance, superior stability for takeoff and landing, and protection against dust, debris, or rough surfaces. The innovative open honeycomb lattice reduces weight while maintaining impressive strength—perfect for a compact drone like the Neo 2. These legs onto the drone's frame for easy installation without tools, making them ideal for indoor flights, storage, maintenance, or even creative display setups. Weighing just 5.04g for the entire set when printed, they add minimal mass without compromising durability.
The honeycomb pattern ensures optimal strength-to-weight ratio, making your drone more resilient on uneven terrain.
Key Features
- Custom Fit for DJI Neo 2: Tailored to the drone's dimensions for a secure, wobble-free attachment.
- Honeycomb Structure: Open lattice design for maximum lightness (total set: ~5g) and high compressive strength—tested to handle the Neo 2's weight and minor impacts.
- Easy Installation: Tool-free; quick to attach and remove before flights.
- Enhanced Protection: Raises the drone 35mm off the ground, safeguarding cameras, sensors, and vents from dirt or scratches.
- Versatile Use: Great for lading pads, desk stands, or transport; keeps the drone level and stable.
Recommended Print Settings
- Material: PLA or PETG (both provide sufficient strength for this lightweight drone application).
- Layer Height: 0.16mm for smooth finish and detail.
- Nozzle Diameter: 0.4mm.
- Infill: 100% (the honeycomb structure acts as its own efficient infill—no additional needed).
- Supports: Only a 2-layer raft for better bed adhesion; no tree or normal supports required.
- Print Time: Approximately 47 minutes for the full set of 4 legs (tested in Bambu Studio).
Notes
- This is a community-designed accessory by a FreeCAD enthusiast—optimized for the DJI Neo 2 based on real-world testing.
- Safety First: Always remove the legs before flying to avoid interference with propellers or aerodynamics.
- Weight Breakdown: Each leg ~1.26g; total set 5.04g (based on standard PLA density).
- If scaling up, test for stability; original size is ideal for stock Neo 2.
