NeoSlide: Stackable Dolce Gusto Neo Box Holder

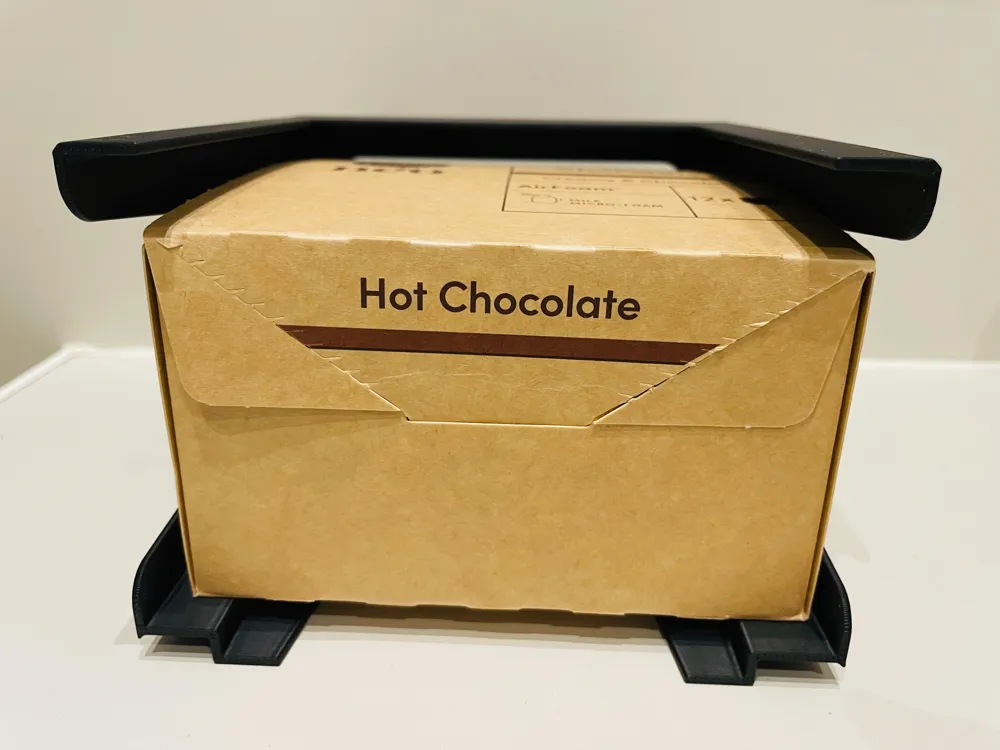

The NeoSlide is a smart and efficient storage solution for all sizes of Dolce Gusto Neo machine capsule boxes. This innovative, 3D-printed system is designed to organize your coffee corner while offering the flexibility to maximize your storage space through its modular stacking design.


Key Features

• Universal Compatibility: Specifically engineered to fit all box formats within the Dolce Gusto Neo line.

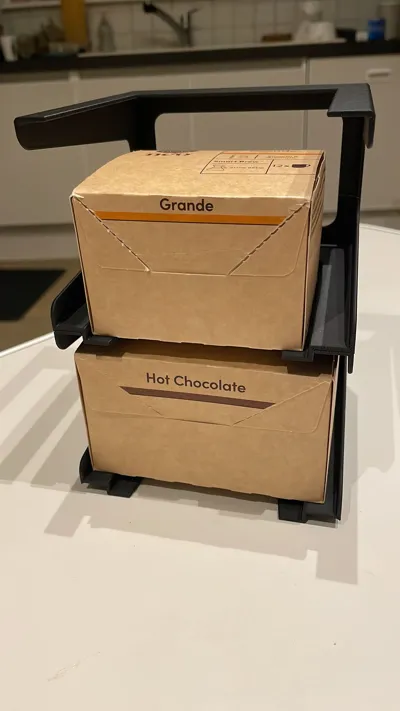

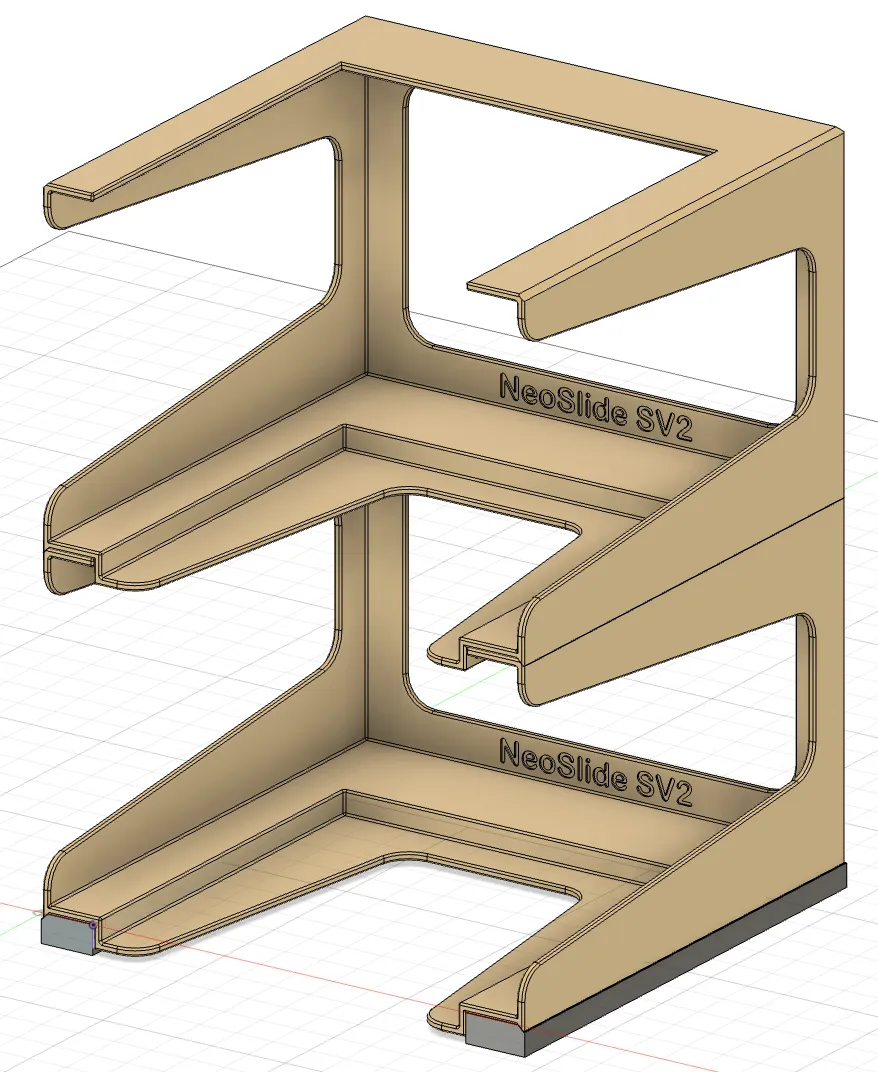

• Stackable Design: Save counter space and create a customized setup that grows with your coffee collection.
• Customizable Materials: Print the holders in durable PLA or PETG for strength, with an optional TPU foot for added grip and stability.
• Sleek Appearance: A minimalist, functional aesthetic that seamlessly integrates into any modern kitchen.

Print Instructions


Follow these guidelines for the best results when 3D printing your NeoSlide components:


Requirements

• Filament:
  • For the Holders: PLA, PETG, or a similar rigid filament (avoid TPU for the main body).
  • For the Foot (Optional): TPU for anti-slip grip, or PLA/PETG for a solid base.
• Support Material: Required for the holder component only.

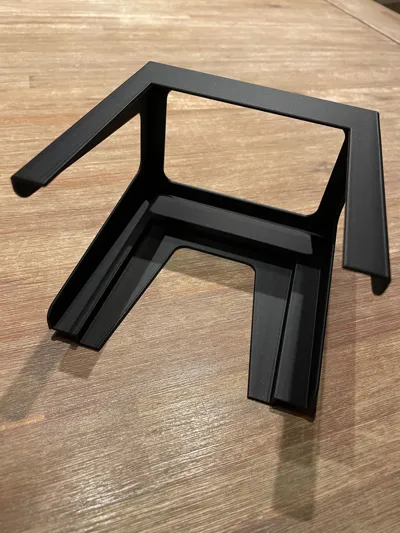

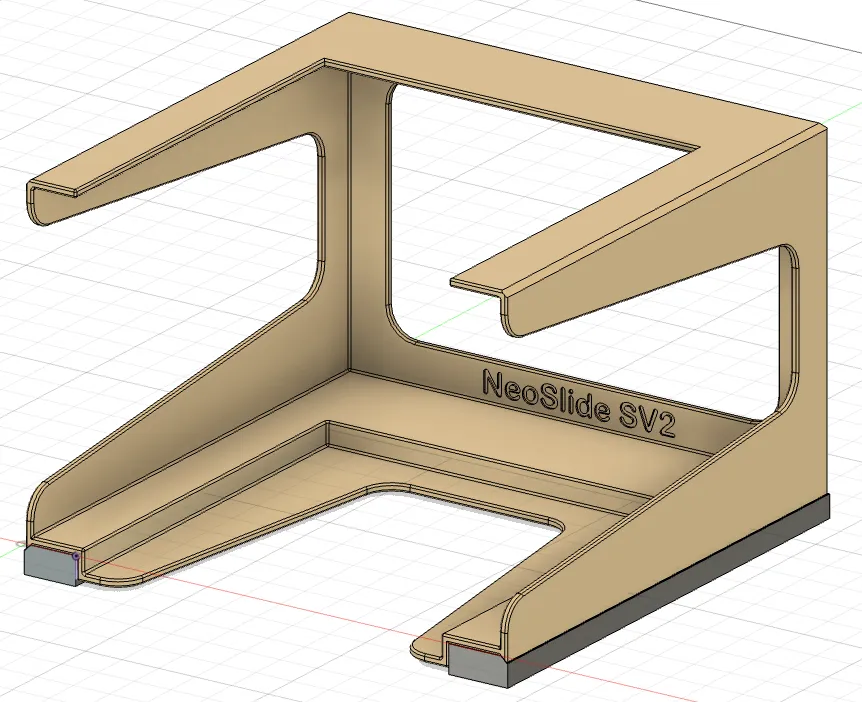

Printing the Holder

• Material: PLA or PETG.
• Supports: Supports are essential. They are required to correctly print the overhangs and the "slide" mechanisms. Ensure your slicer generates supports in the appropriate areas.
• Layer Height: A standard layer height of 0.2mm works well. Note: The creator has also achieved perfect results at a 0.24mm layer height.
• Infill: 15-20% infill is sufficient for structural integrity.

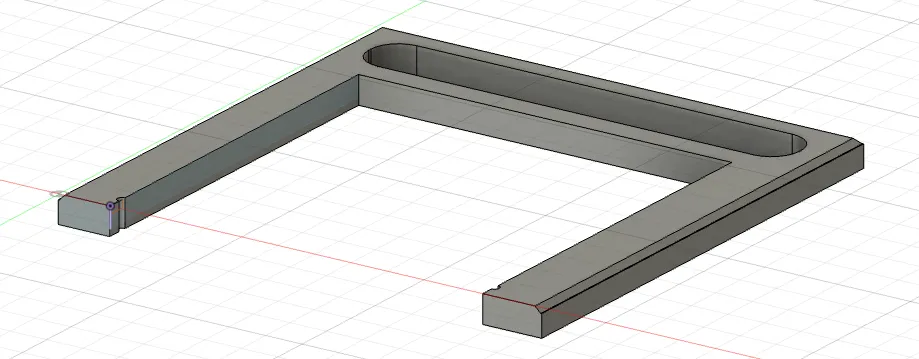

Printing the Foot (Optional)

• Material: Print in TPU for the best anti-slip functionality. PLA/PETG can be used if flexibility is not required.
• Supports: No supports required.
• Settings: Standard settings (e.g., 0.2mm layer height, 15% infill) are adequate.

Assembly

Once all parts are printed, simply slide the foot into the designated slot at the bottom of the holder. You are now ready to organize and stack your Dolce Gusto Neo boxes!

Did you print it? I’d love to see your setup! Please upload a make and leave a review to help others find this model.
