MN82 Front Suspension Full Ball Joint Conversion
Print Profile(1)
Description

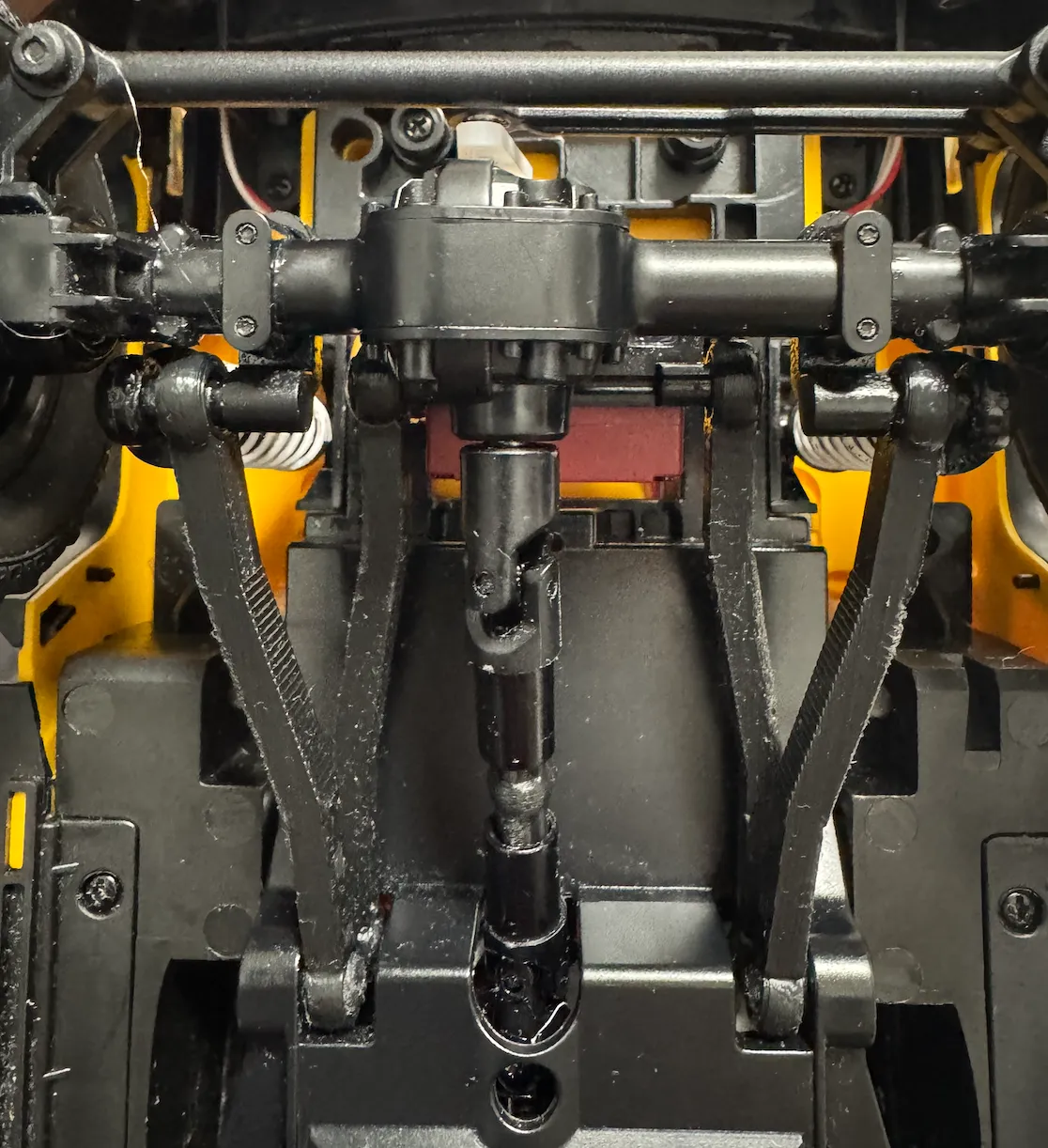

The original front suspension system of MN82 does not provide much flexibility, because the suspension arms are mounted with only screws, and the connected on the tube, which leads to two problems:
- it's bending the body when the suspension travels unevenly on two sides.
- when mounting the arms with screw, it's either too tight (stiff) or too loose.

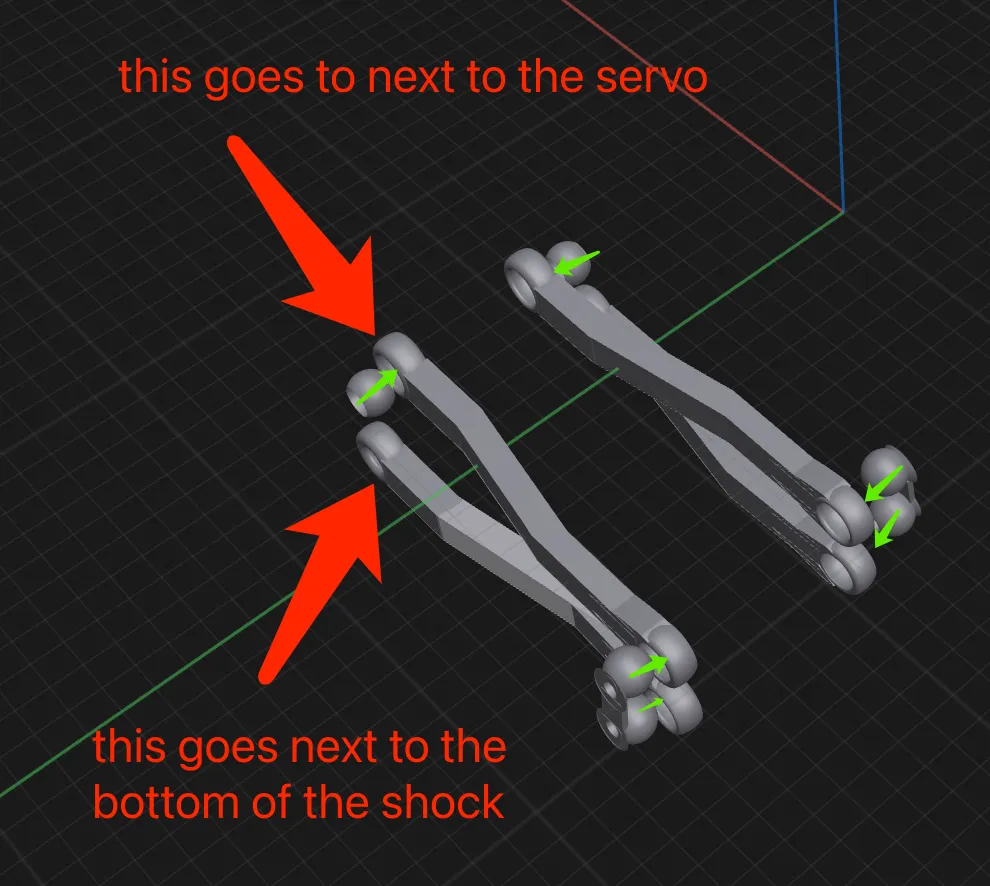

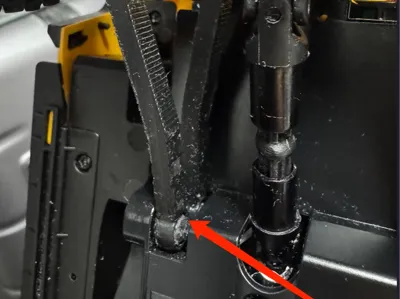

This design solves the problem by switching the mounting mechanism of the suspension arms into ball joints only, which provides extraordinary flexibility as well as smoothness.
Note: file the balls to make them smooth for easier assembly. Optionally apply WD40 dry lube after for best result.
Give a boost if you like it!
