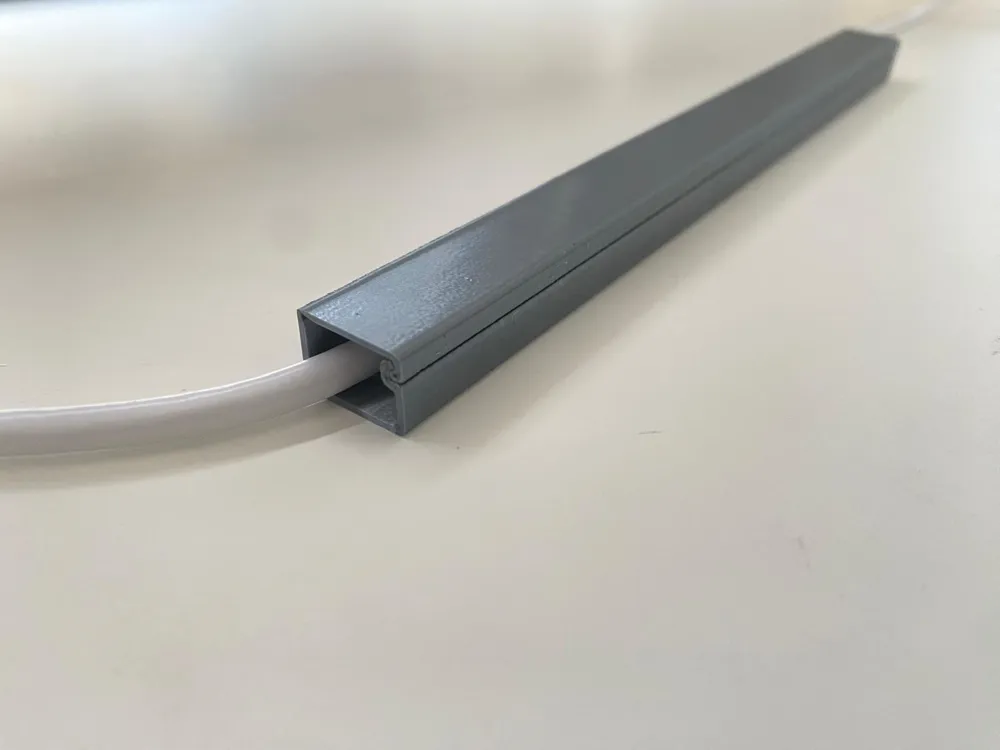

The outer dimensions of the cable gutter are 11x16mm.

If you need other dimensions send me a message or a comment, i will happily change the dimensions for your use case.

I made this design, because I needed a short piece of the cable gutter and didn't want to buy a new one.

Also it felt like a good use of filament that was sitting in the corner for a while.

I took the old design and improved it.

the wall thickness is greater, and the lock system works way better.

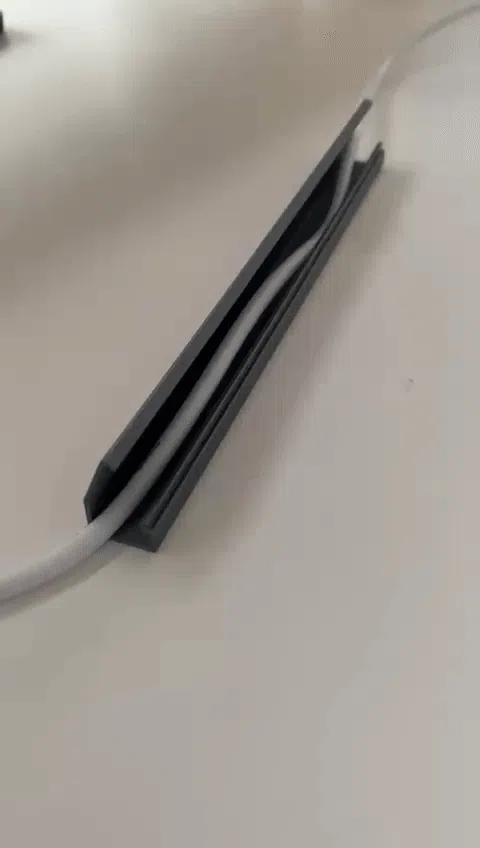

Make sure you bend the hinge a couple of times, it will get looser, but won't fall off :)

When the hinge is loose enough it will make the satisfying snap sound.

electronics accessories

cable management system

tech setup

cord organizer

desk setup

electronics organizer

gadget accessories

cable holder

stationery electronics

cable management clip

wire organizer tray

desk cable solution

electronics cable routing

3d printable organizer

Cable Tray

cable duct

Comment & Rating (12)

@user_2820401214

Hello! I'm looking for a large chute measuring 24 cm long, 20 cm wide, and 8 cm high. Do you think this is feasible? Thank you so much!

The designer has replied

Show original

@GeoTune

Interesting case. What is the size of your printbed? With your dimensions you need at least 30x30x24cm. I think its an interesting test if the hinge mechanism still works with these large dimensions. If you can make prints this large. I will add the file to this page, just let me know.

@user_2820401214

Replying to @GeoTune :

Yes, no problem, I have a 30x30x30 😉 If you have the ability to do it for me, that would be really great! I tried enlarging your model, but then it's way too thick (I didn't even try it). Thanks anyway for taking the time to reply 😉

Show original

@GeoTune

Replying to @user_2820401214 :

I added a .stl file to the folder Requests. I am unable to slice the file since I do not have a bed which it can fit on. Please let me know how the model turns out. I would advice to do a test print with reduced z-height and see if the snapfit works. Good luck on the project! If anything isn't working properly I am here if you need help.

@user_1167905980

Hey, great design. Can you make me one with an outer width of 12mm and a height of 8mm? Thanks!

The designer has replied

@GeoTune

Thank you appreciate it. Your requested files are added to the request folder. Good luck with the project!
