This project took multiple days of printing and two different versions to get the design just right. I went through a fair bit of filament testing and refining so you don’t have to.
If you like the design and find it useful, a boost would be greatly appreciated. Thanks for the support!
Cyclone dust collector

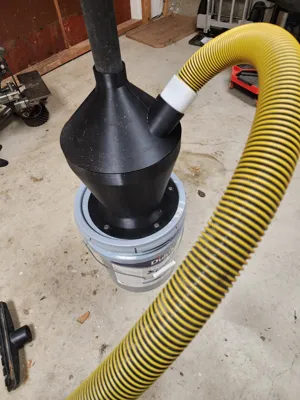

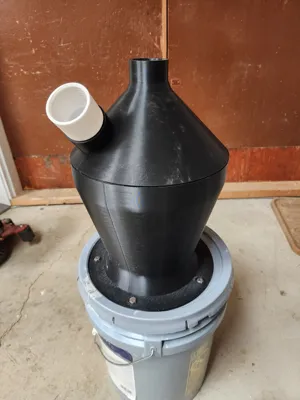

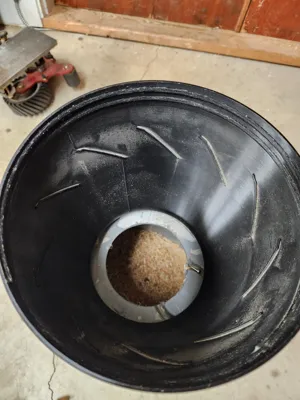

This cyclone dust collector is designed to help keep your workspace clean by separating dust and debris before it reaches your vacuum. It mounts directly onto a standard bucket and uses a cyclone shape to spin dust down into the container, which helps reduce filter clogging and keeps suction strong.
The hose connector is sized for a 1-7/8 inch vacuum hose, which is commonly used on DeWalt and other popular shop vacuums. The design is fully 3D printable and does not require any supports, making it easy and beginner-friendly to print.
A parametric file is included, allowing you to customize the hose connector or other parts to fit different vacuum sizes or setups. This makes the design flexible and useful for a wide range of workshops, garages, and hobby spaces.
Notes:
- The TPU seal ring is optional.
- No supports are needed. You may have a few strings or the odd sag in a bridge, but it won't hinder the function.
- The threads can be a little tight. I added wax to make it thread on a little easier (a cheap candle or just some woodworking wax should do).
- I have uploaded two files for custom fittings.
