Soldering Holder Third Hand Wire Splicing Aid
Print Profile(0)
Description

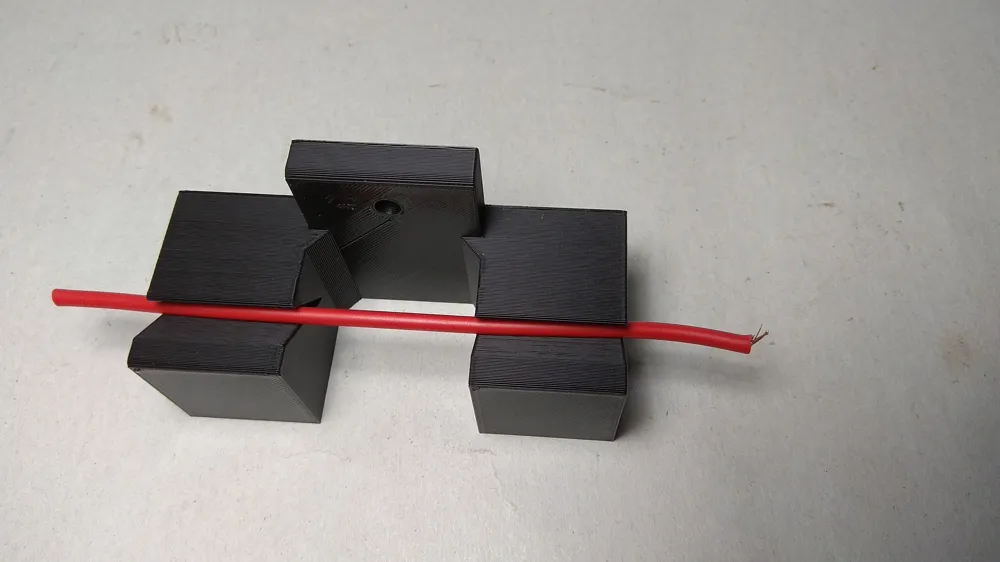

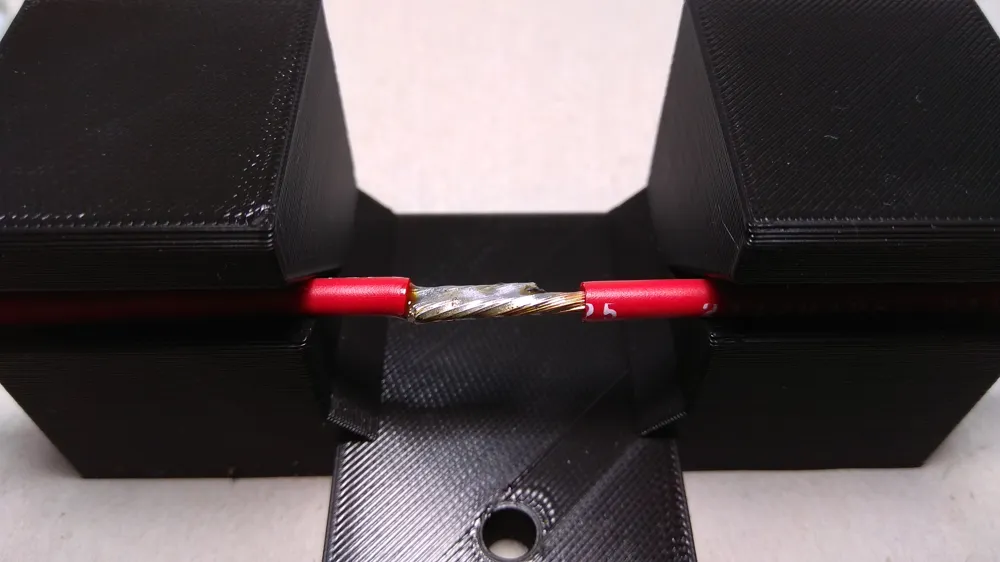

Presenting a useful cable holder that acts as a "third hand" during soldering work, making it easier to stabilize and solder two wires together. It ensures precise cable alignment, which is crucial for a strong and clean connection.
• Compatibility Range: The holder is designed to work with a wide range of wire diameters:
• Maximum Wire Diameter: 6 mm²
• Minimum Wire Diameter: 0.35 mm²

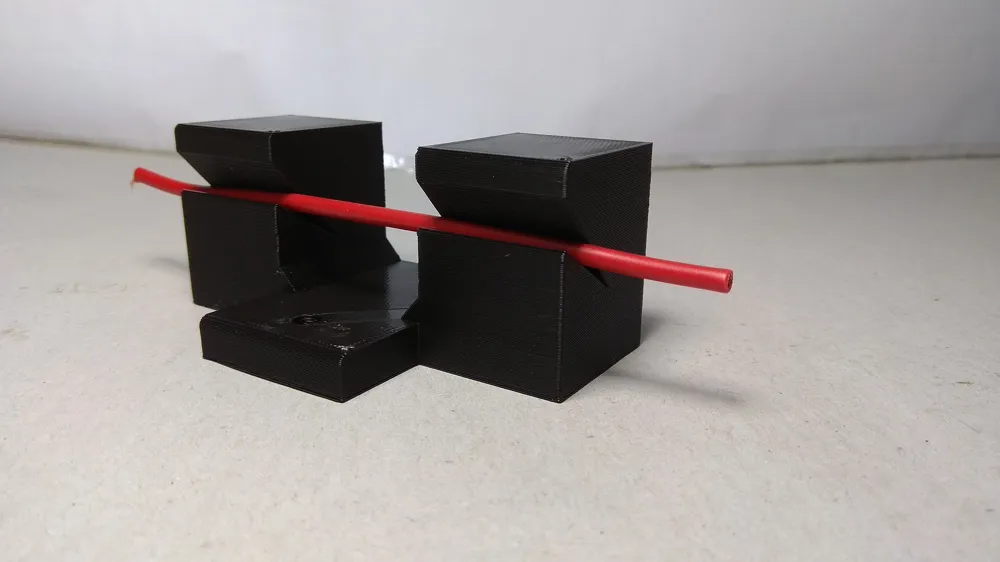

• Stable Securing: The stabilizers (blocks) securely hold the wires in place during splicing and soldering.

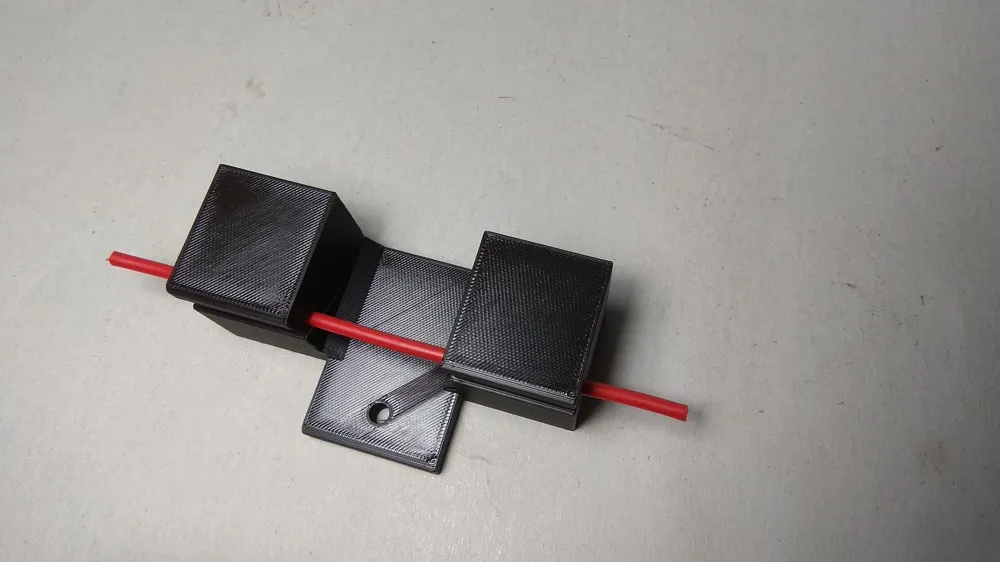

• Bench Mounting: The front section of the holder features a flat bar with a hole for mounting onto a workbench or table.
⚙ Printing Tips
• Material: PETG or ABS. A material with higher thermal resistance than PLA is recommended due to the proximity of soldering work and the potential for heat deformation.
• Infill: 50-80% for maximum rigidity and stability, especially in the wire stabilizing elements.
• Orientation: Print in the orientation that minimizes the need for supports.
