Kyria Rev3 Split Keyboard Case

Original Work by @ExtraFox. Check it out here on Printables with an extra wrist wrest not included in my remix.

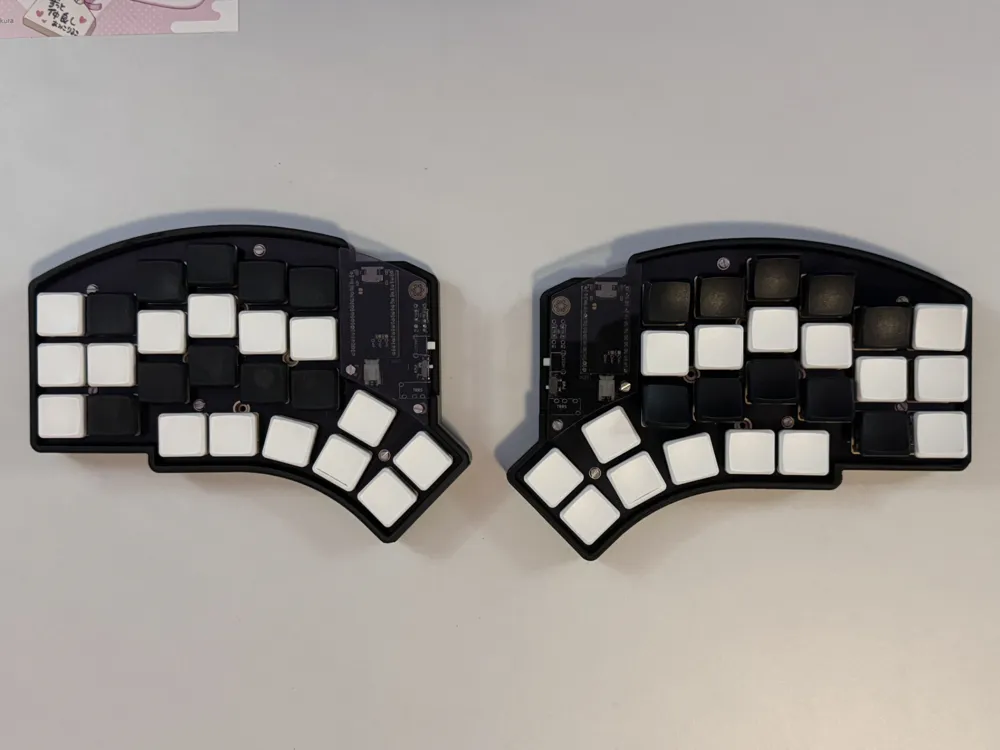

This is a case for the Kyria rev3 split keyboard from splitkb.com.

It works in combination with the Low Profile Case from splitkb and probably also with the case files from the official GitHub page. This case is held together by the top and bottom plate of the low profile case. The PCB alone will also fit in this case but i will just be laying loose inside.

I made this remix because with my Choc hotswap sockets, diodes, underglow LEDs and one screw the original case wouldn't sit flush with the PCB. Thats why I added extra cutout for these on both sides. I hope this is helpful for someone else as well.

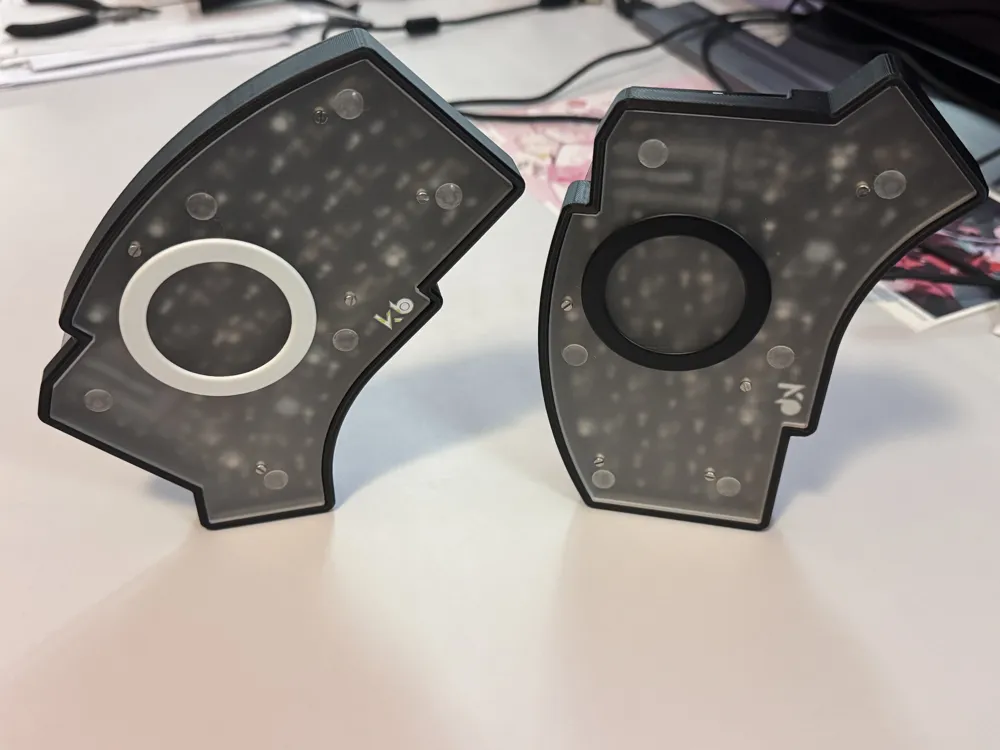

Recommended printing orientation is as in the 3mf file: Upright with the small end of the thumb cluster at the bottom.

You can print it laying flat, which works as well, but i wouldn't recommend it because of the many small supports you would need.

These are the print options i choose:

• Layer height 0.16mm (recommend), but 0.20 also works
• Supports must be enabled
• Wall loops 3 to make the Case solid (i think this also makes it better in absorbing the clicking sounds from the switches)
