Summary

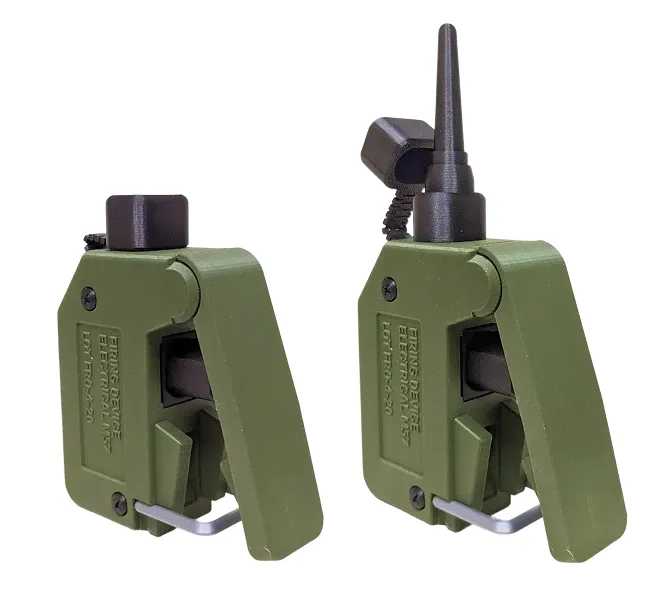

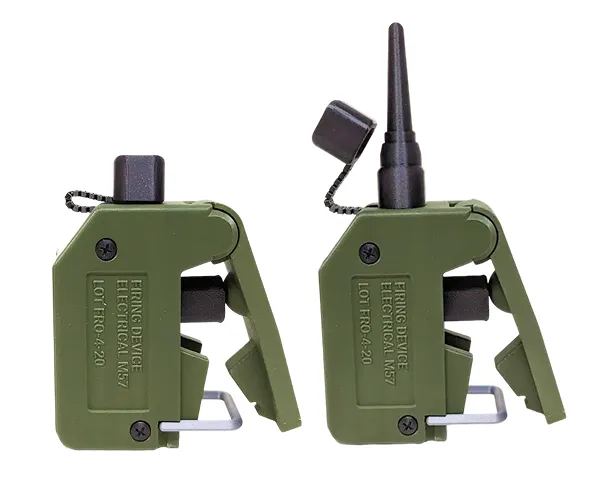

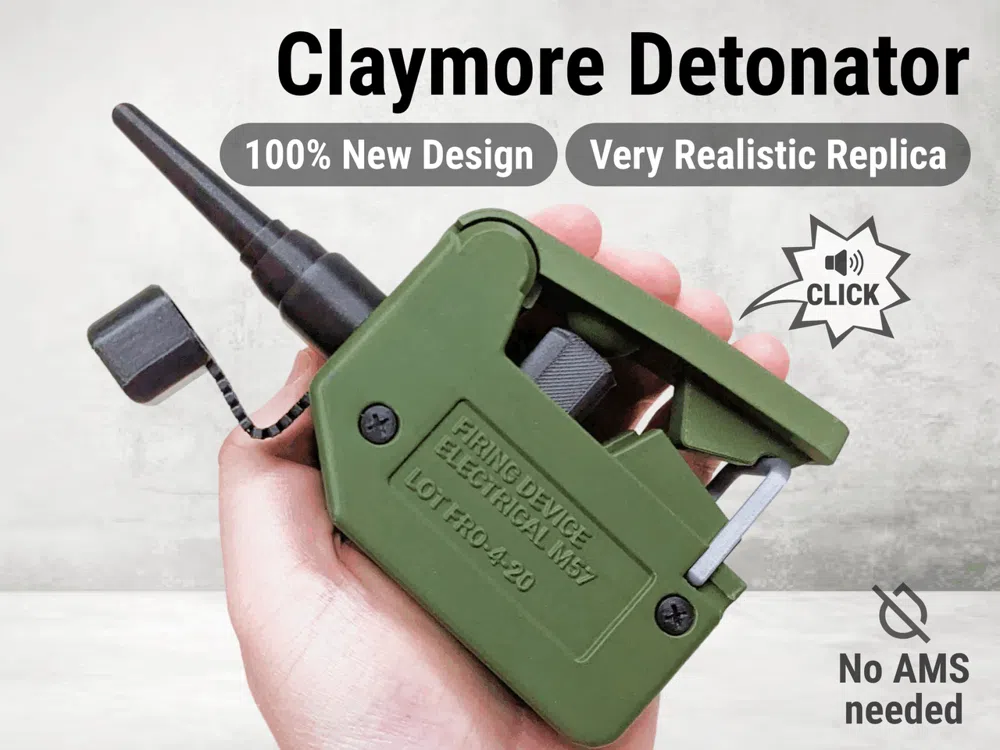

Happy new year everyone! To celebrate the new year, I'm releasing a very realistic C4 & Claymore detonator that clicks just like the real thing. It has over 5 moving parts, requires no AMS for full color, and is easy to assemble. It requires no additional parts, everything is printed.
This is a 100% new design, it shares nothing in common with the detonator I released a year ago other than being the same subject. This model is far more realistic, has more moving parts, and can be assembled in full color even with no AMS.
Want C4 or a Claymore to go with it?
Click the image links below:
Bambu filaments used
- Matte Dark Green
- Metal Iron Gray Black
- Silk+ Silver
Assembly

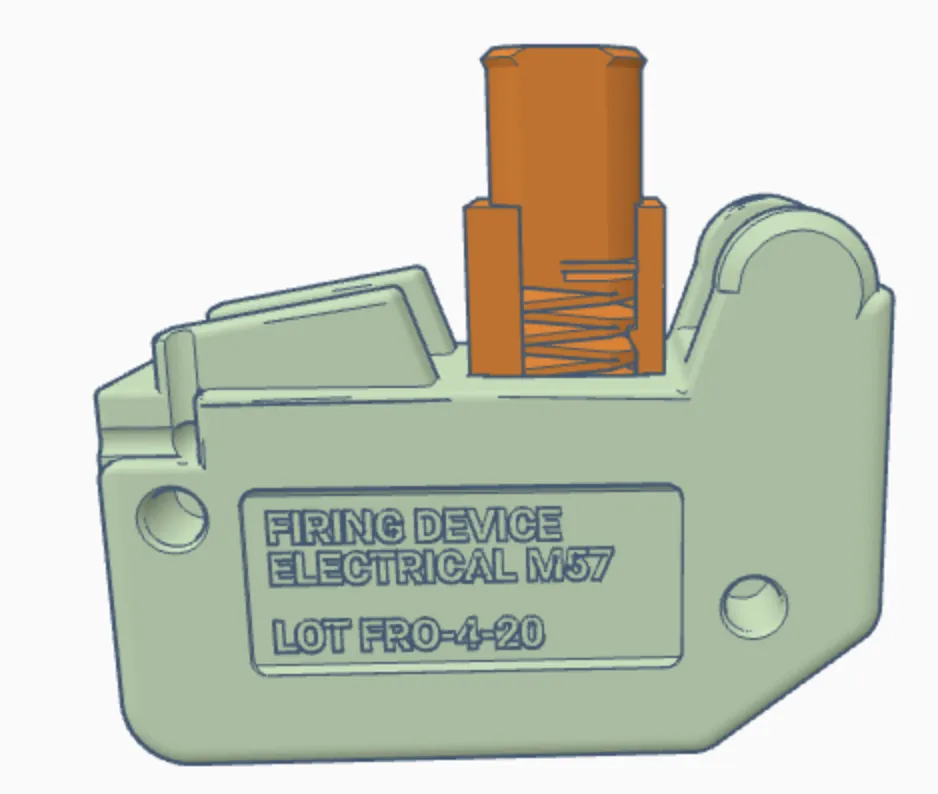

1. Slide the clicker box into the the main body of the detonator, as you see below. Make sure that it is facing the same direction as shown below. There is an arrow on the tip of the clicker and an arrow on the body next to it for reference.

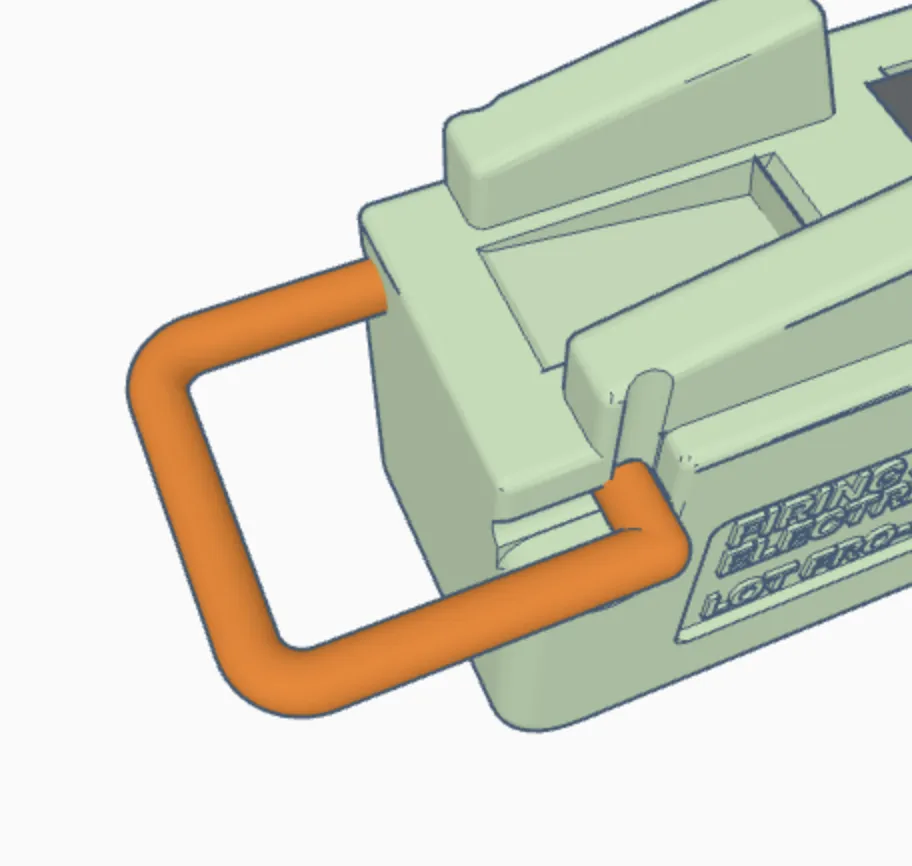

2. Snap the silver safety lever into the hole on one side and then snap in the to the other side. The plastic will need to flex a little, but that's fine.

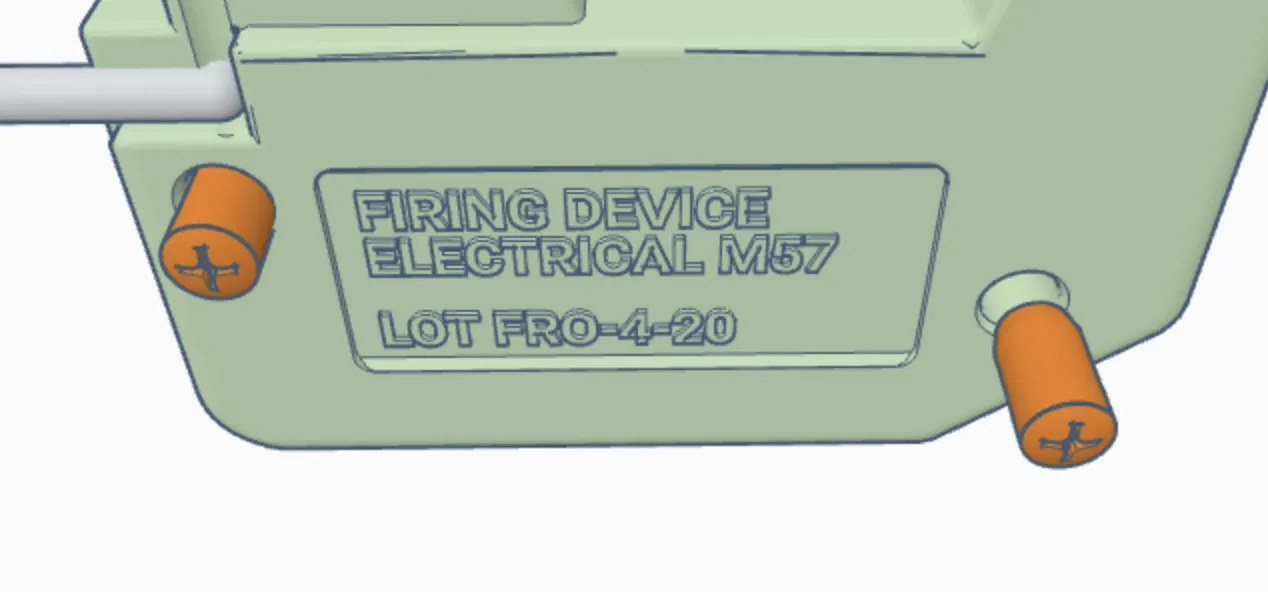

3. Insert the 4 fake screws into the holes as shown below

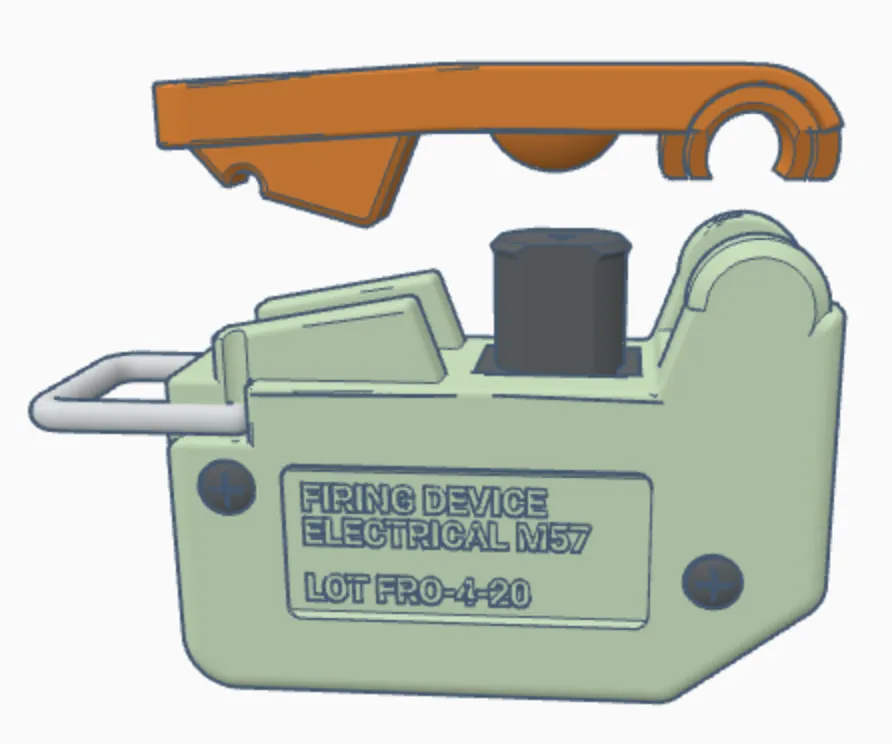

4. Snap the handle onto the main body as shown below

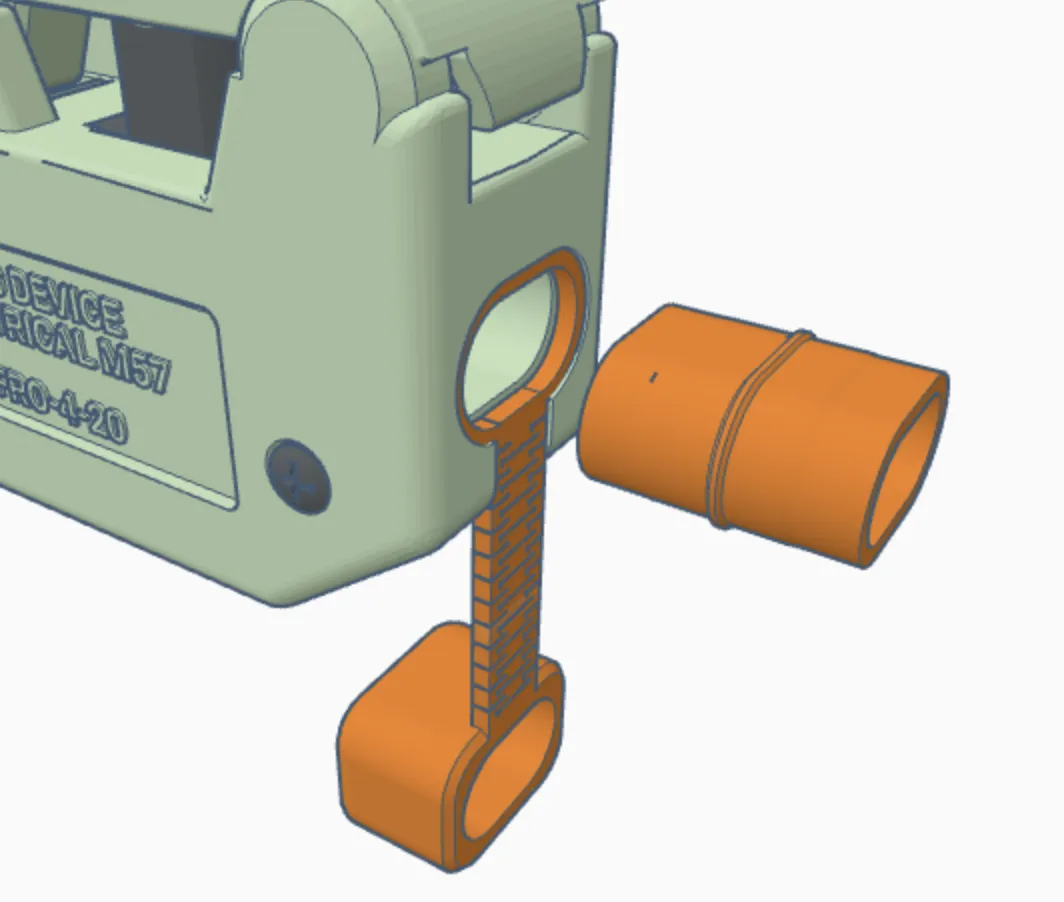

5. Lastly, insert the flexible cap cover followed by the cylindrical peg as you see below
