XY Hole Compensation without Calipers
Print Profile(1)
Description

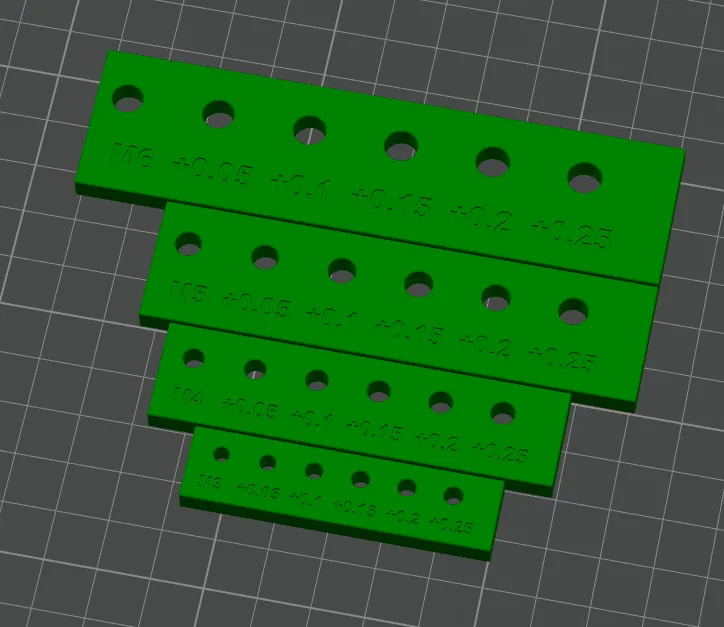

This model is meant to help you calibrate the XY hole compensation without using calipers. If you don't have calipers, this model uses metric screws, from M3 all the way to M6. Most people have easy access to any metric screw size.

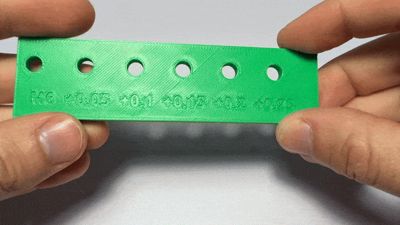

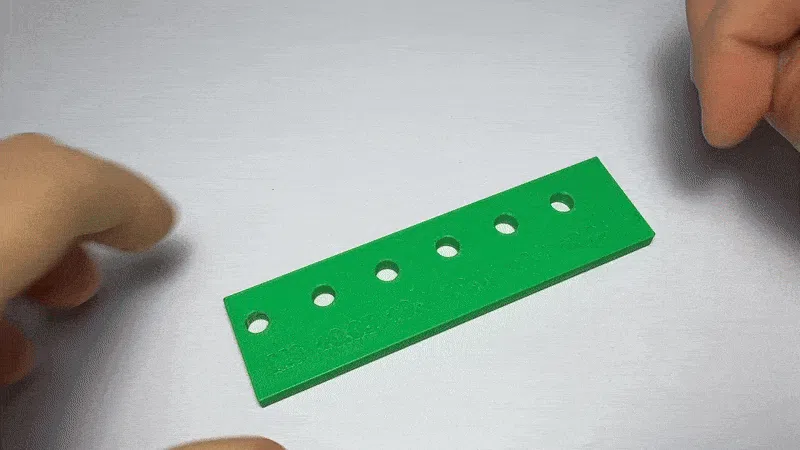

Print the model and test fit your screw in it. Once the screw fits inside one of the holes, use that value in Bambu Studio.

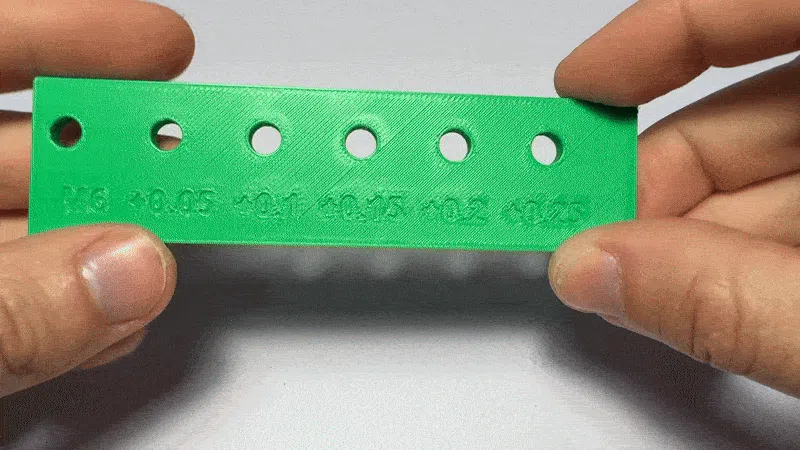

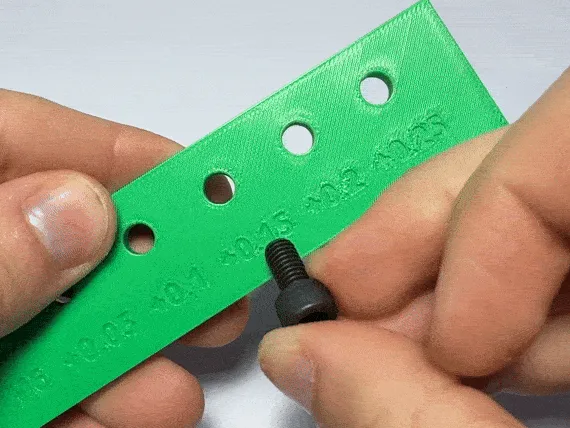

Ensure the fit is tight and not loose. In this case the 0.15 was the perfect fit for PETG.

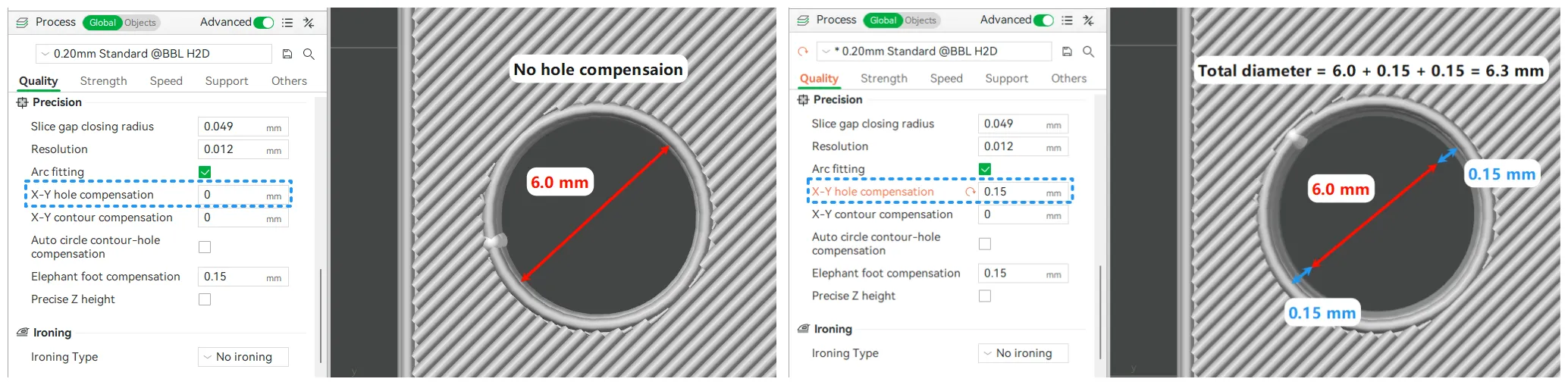

After using the value in Bambu Studio:
The screw now fits perfectly:

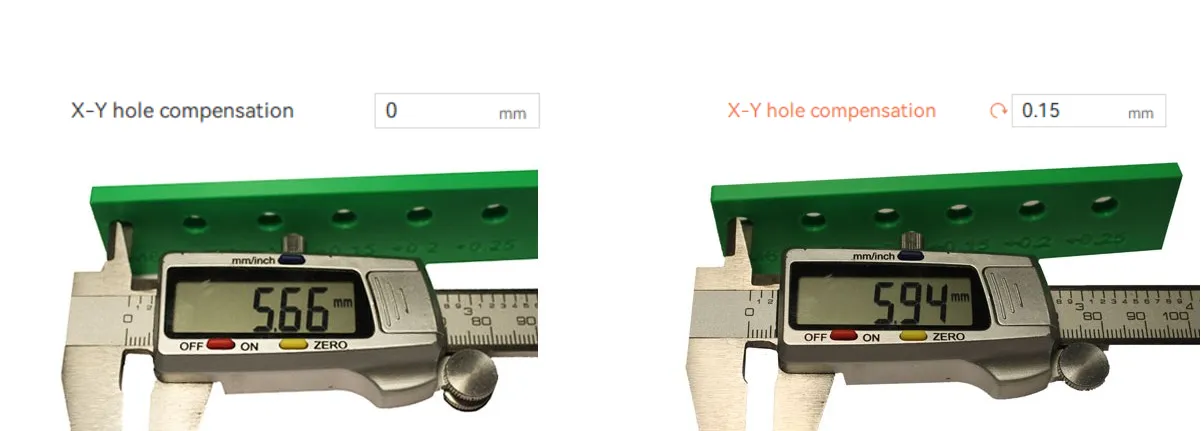

I also checked with calipers to prove it works, so if you don't have calipers, you will use a metric screw, which has a standard size worldwide, to base your calibration.
