Screw Measuring - Gridfinity - NO AMS REQUIRED
Print Profile(1)
Bill of Materials
- Just used cheap heat-set threaded inserts. x 1: https://www.aliexpress.com/item/1005006351445007.html?spm=a2g0o.order_list.order_list_main.274.50891802pOSk30
Description

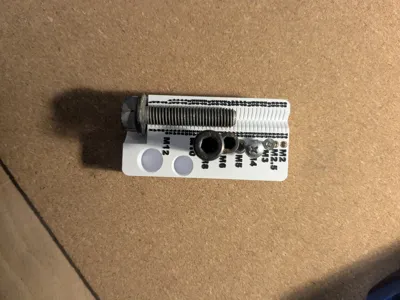

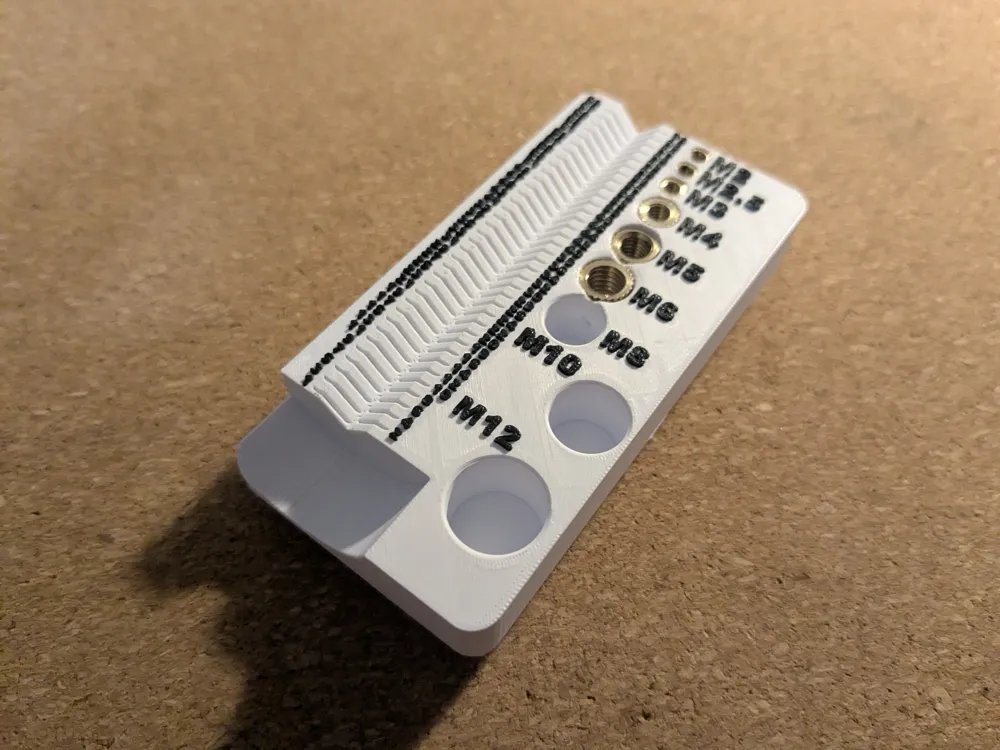

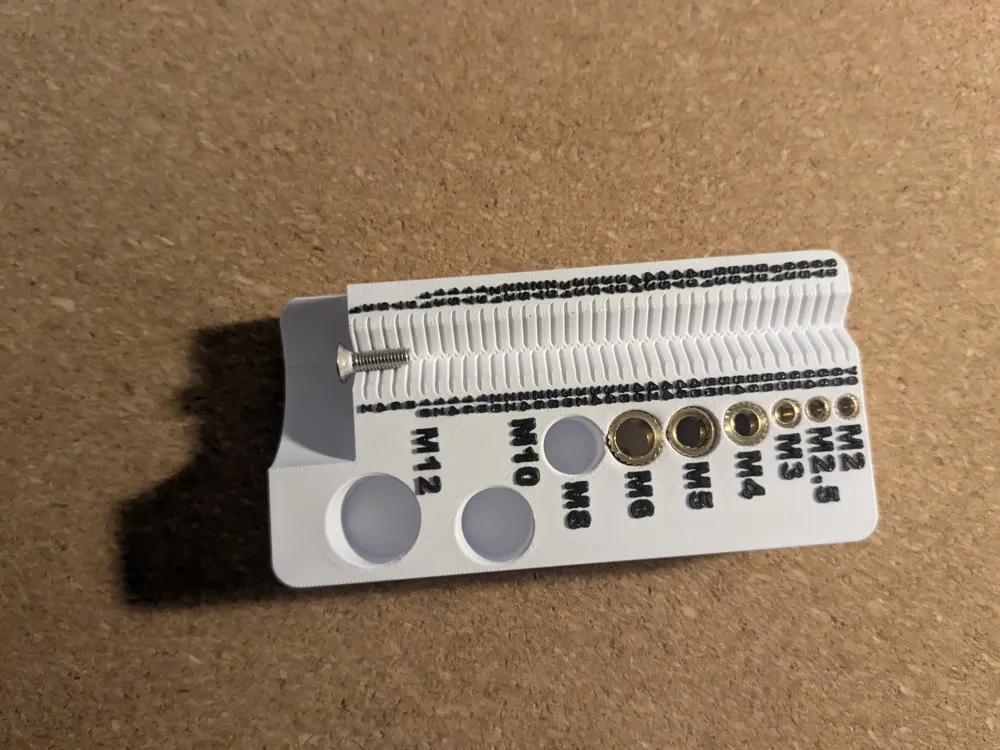

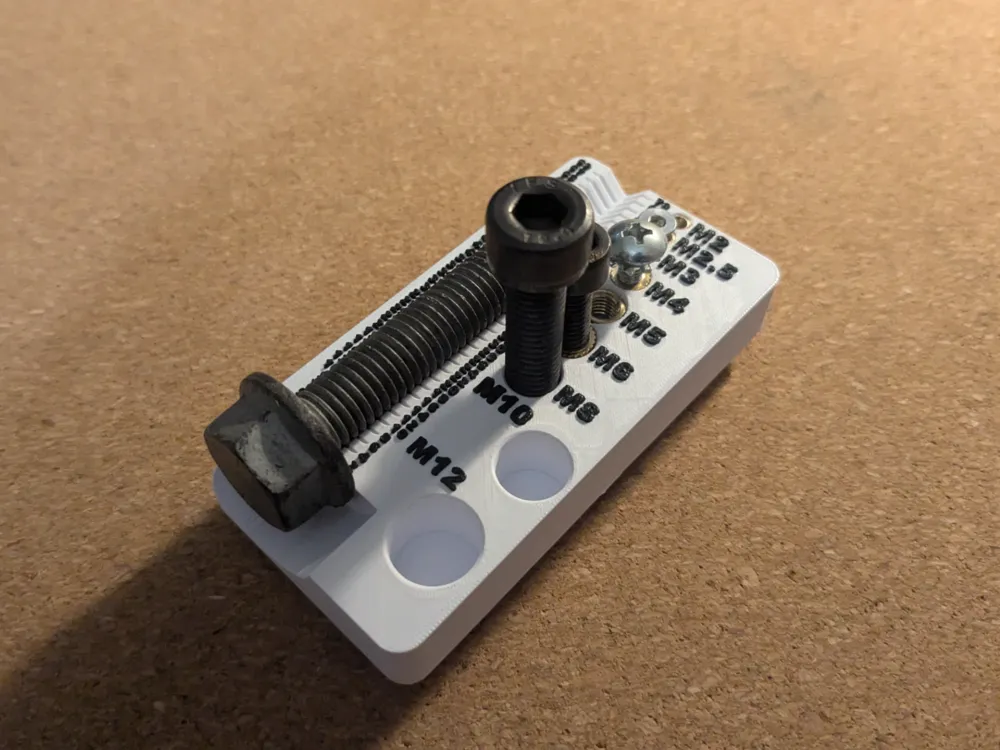

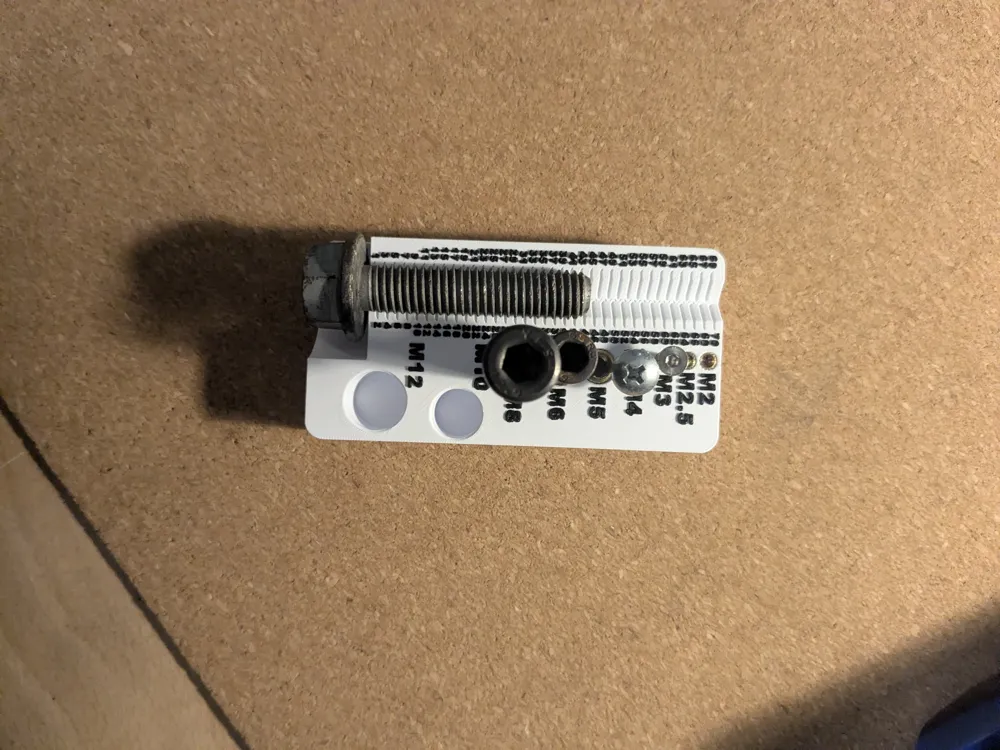

This screw checker is ideal for organising that loose pot of screw and bolts into organisation bins. Able to measure all bolts from M2 - M12 and lengths varying from 1mm- 70mm.
It can also be used with all common screw heads, with the screw head cut-out designed for up to M12 countersunk to fit. The print does require a 0.2mm hot-end due to the small text size. it uses bass threaded inserts to allow for thread checking for M2-M6 with a depth up to 10mm.The print file is designed to pause at the point where the letters start allowing for multi colour print without AMS.
