Zelda Shiekah Slate Mechanical Lock Gift Card Box

A Mechanically Locking Gift Card Container modeled after the Shiekah Slate from The Legend of Zelda: Breath of the Wild

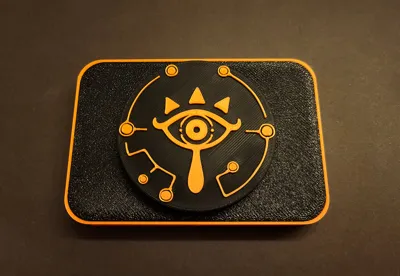

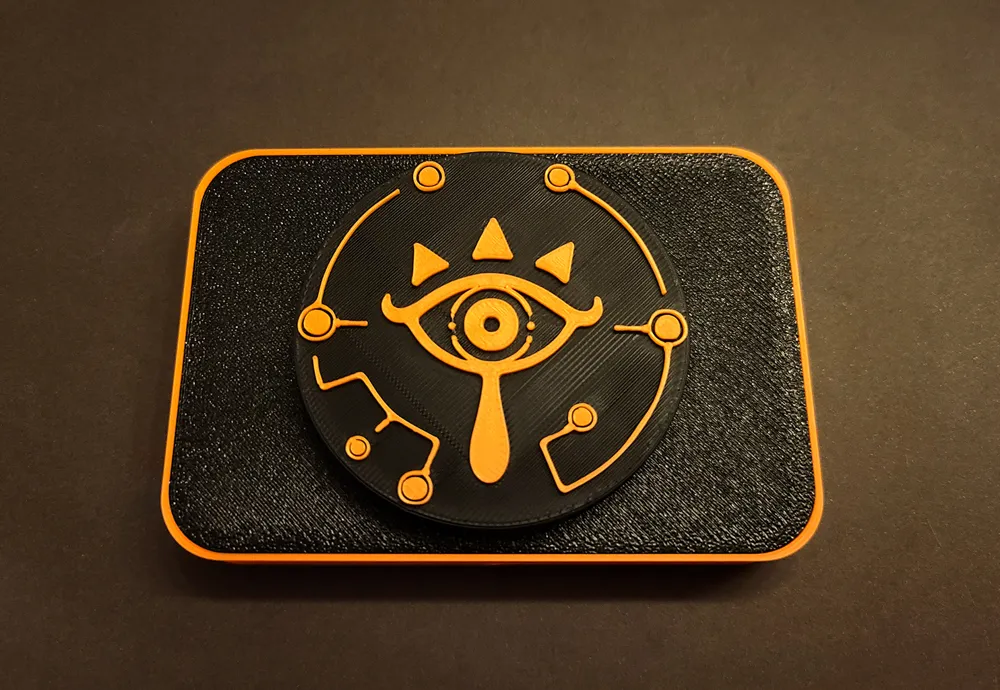

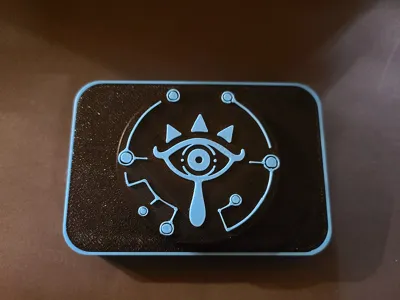

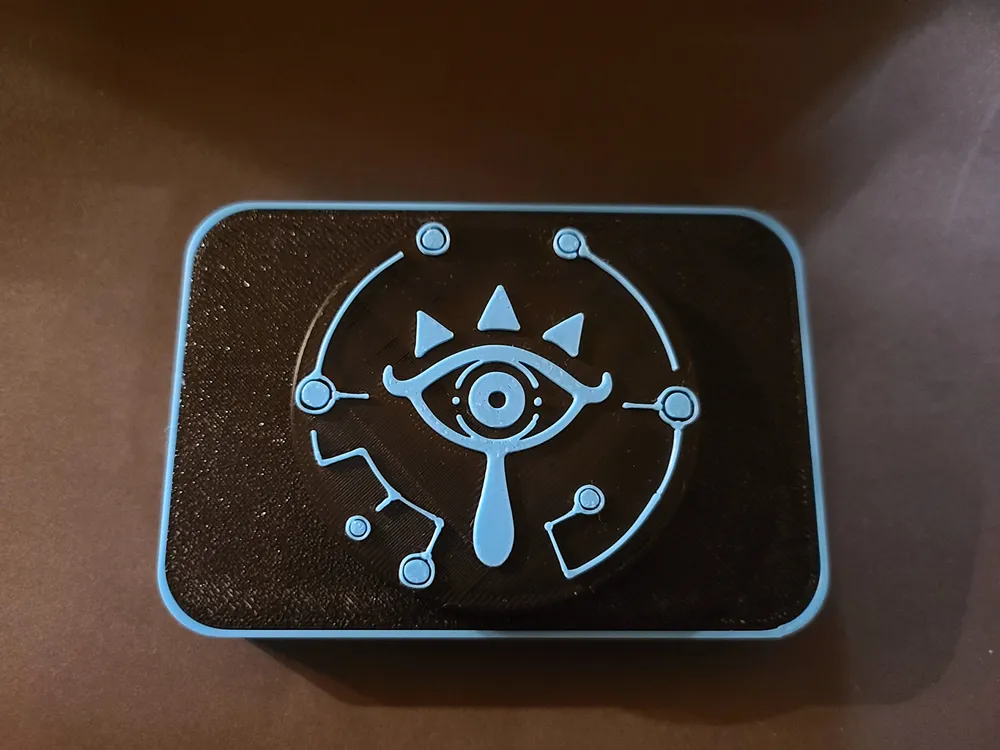

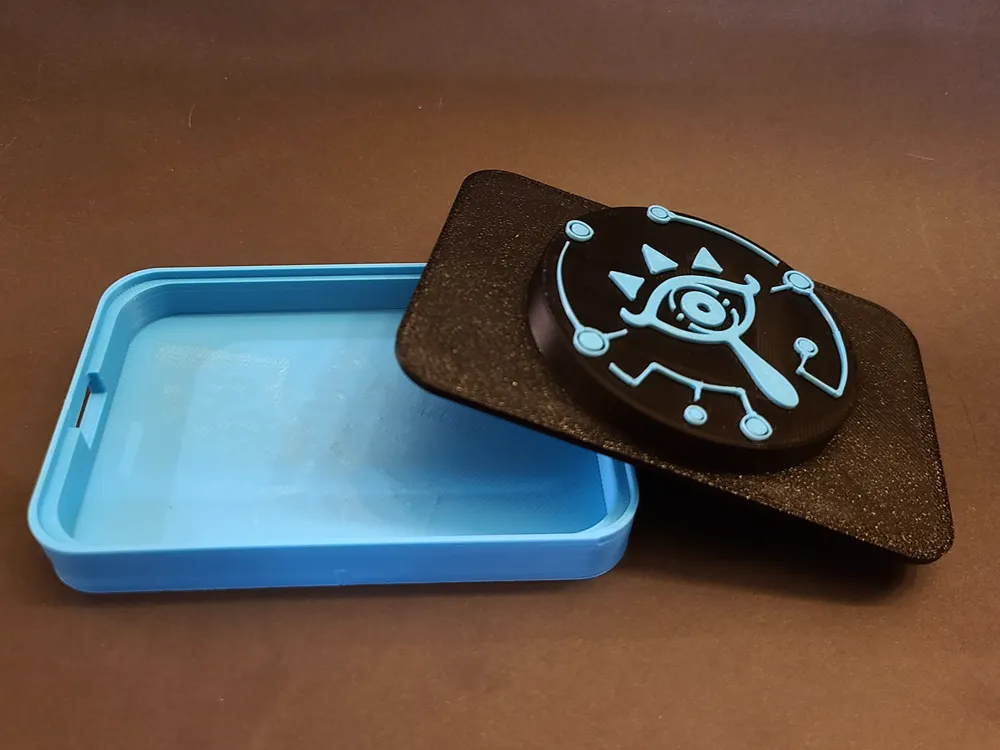

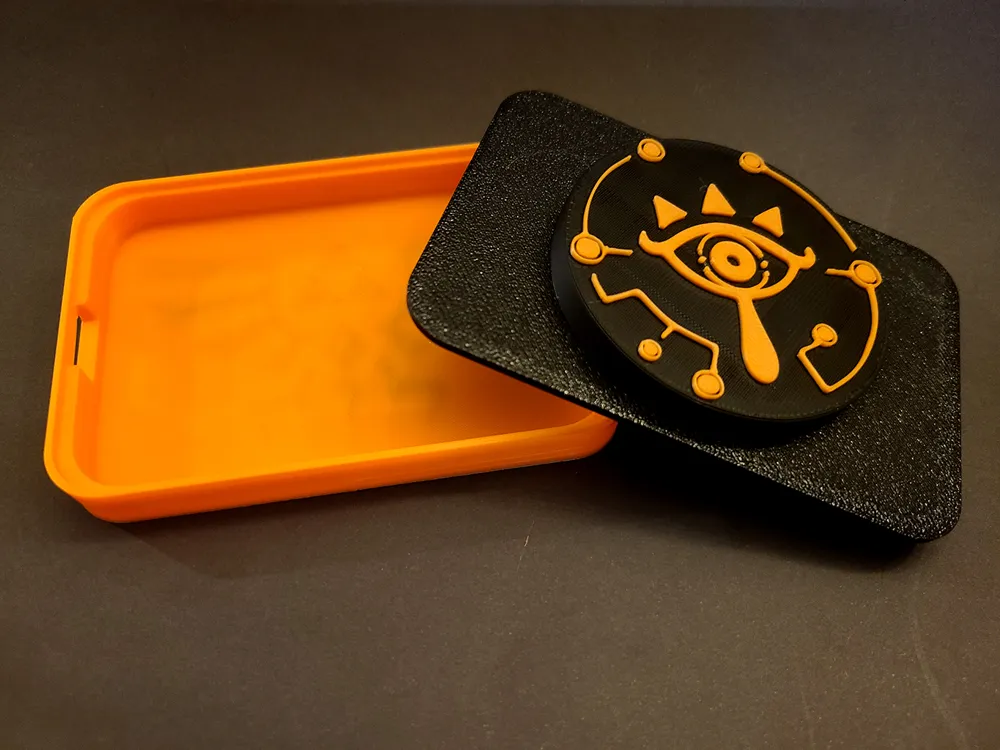

Looks great in both blue and orange, or whatever color you decide your Shiekah Slate gift box should be!

All my Mechanically Locking Gift Card Boxes can be found here: https://makerworld.com/en/collections/18012096-ntw-mechanical-gift-card-boxes

Everything prints with no supports or brims.  Assembly guides are below.

Print Notes:

• Clean, clean, clean your build plate.  The device relies on flat, smooth surfaces for proper functionality
• Non-AMS users can print the multicolor ornament, just making sure to swap filaments at Layer 34

Build Notes:

• The hinges should snap into the middle/end level pieces snugly.  Pop them all the way through so they are flush and can move freely.  Some weaker filaments may be a bit brittle on the rivets (Soleyin particularly was very fragile with this assembly)

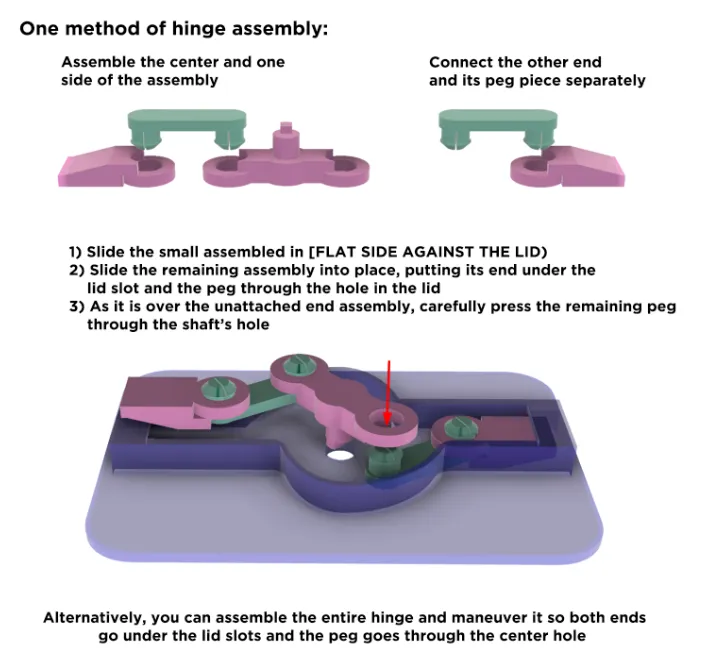

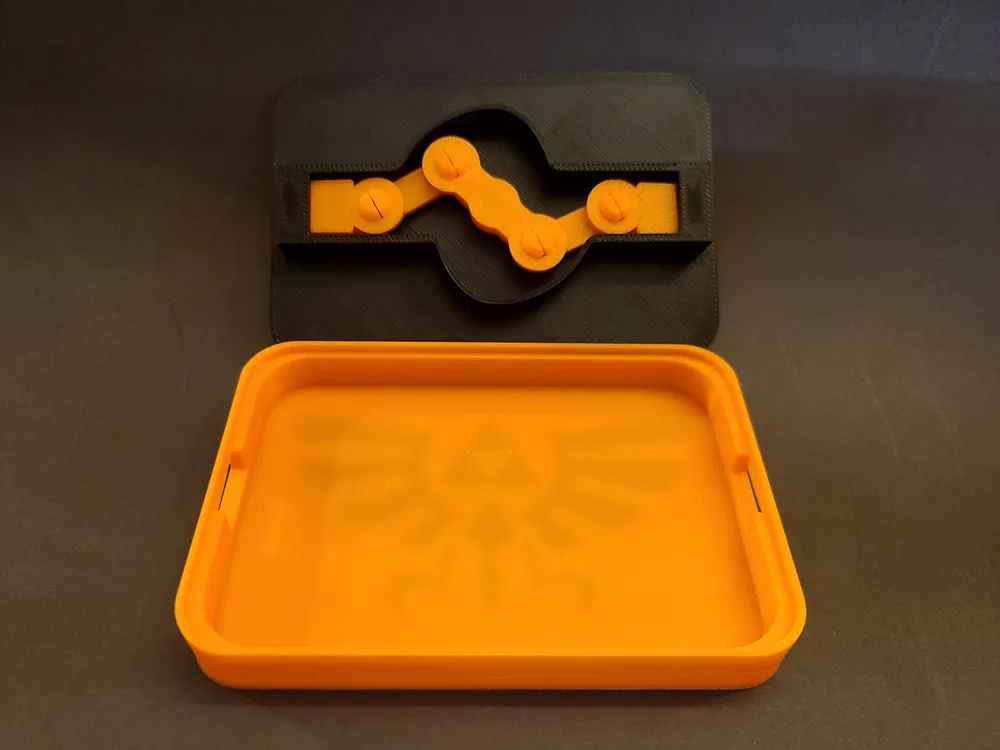

• Getting the hinge assembly into the lid can be a little tight and require some careful maneuvering, but once it's in it's not going anywhere
• The top ornament aligns with the peg in the center pivoting hinge.  Depending on filament tolerance it may “snap” together with the lever mechanism, but if it doesn't feel free to use a dot of glue inside the gear's hole and place the whole thing upside-down to dry so no glue can spill out downwards toward the lid (rendering it immovable)
