Rope drum for roller blind with cord 40/40
Print Profile(1)
Description

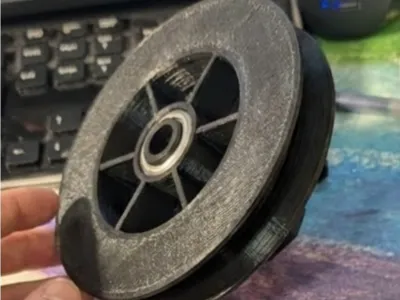

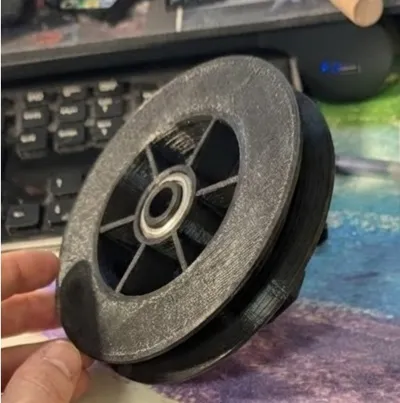

Roller blind disc (Rope drum)
for 40mm axle, especially for roller blinds with a pull cord. Not designed for straps.(coming soon)
a 12x28x8 mm bearing is required. 12x28x10 mm is also possible.
I used the bearing from the old rope drum, as mine broke.
It was originally only intended as a temporary replacement until the ordered spare part arrived, but I've been using mine since September 2025, and it's still functional.
I cannot yet guarantee that it will last long, as mine is still in the testing phase.
I recommend ABS or comparable material.
Have fun printing and experimenting.
Boost Me (for free)
If you like the model, please boost me. Thank you =)
