FN 502 Vortex Defender ST Adapter Plate

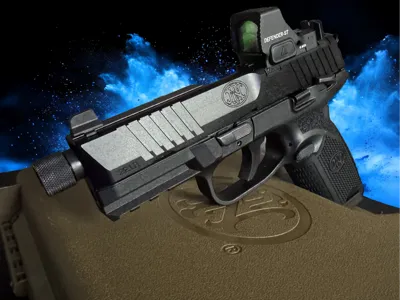

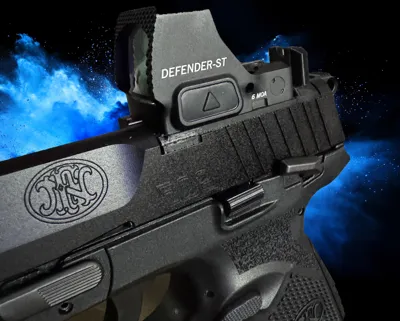

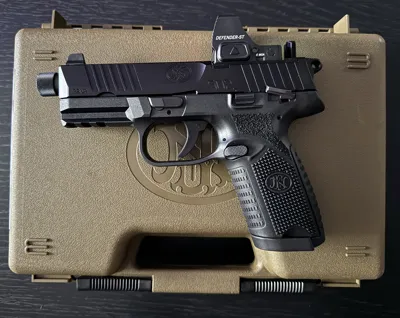

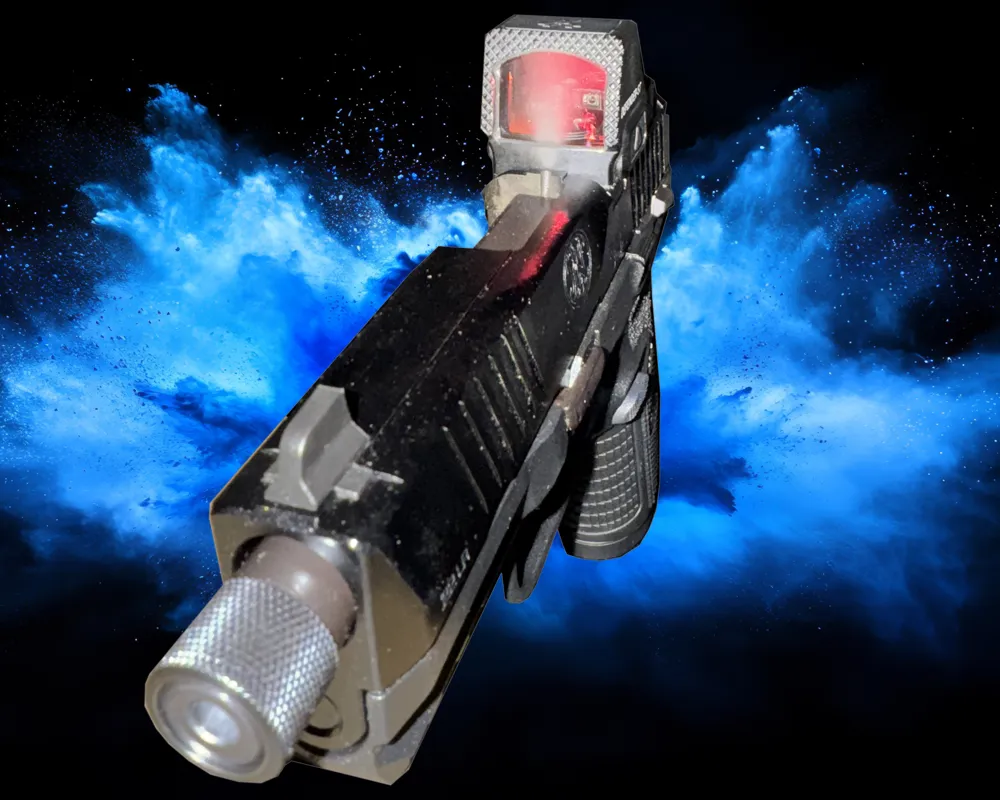

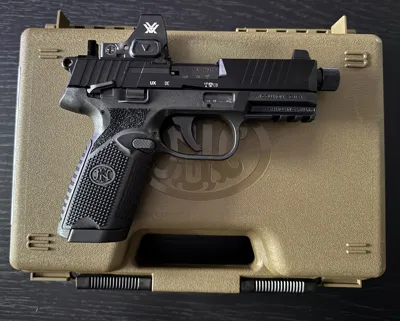

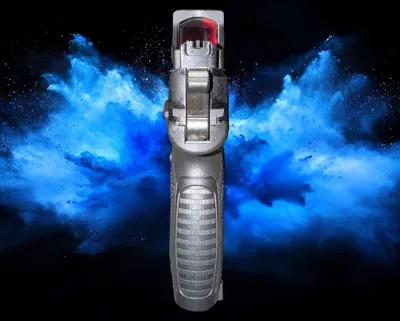

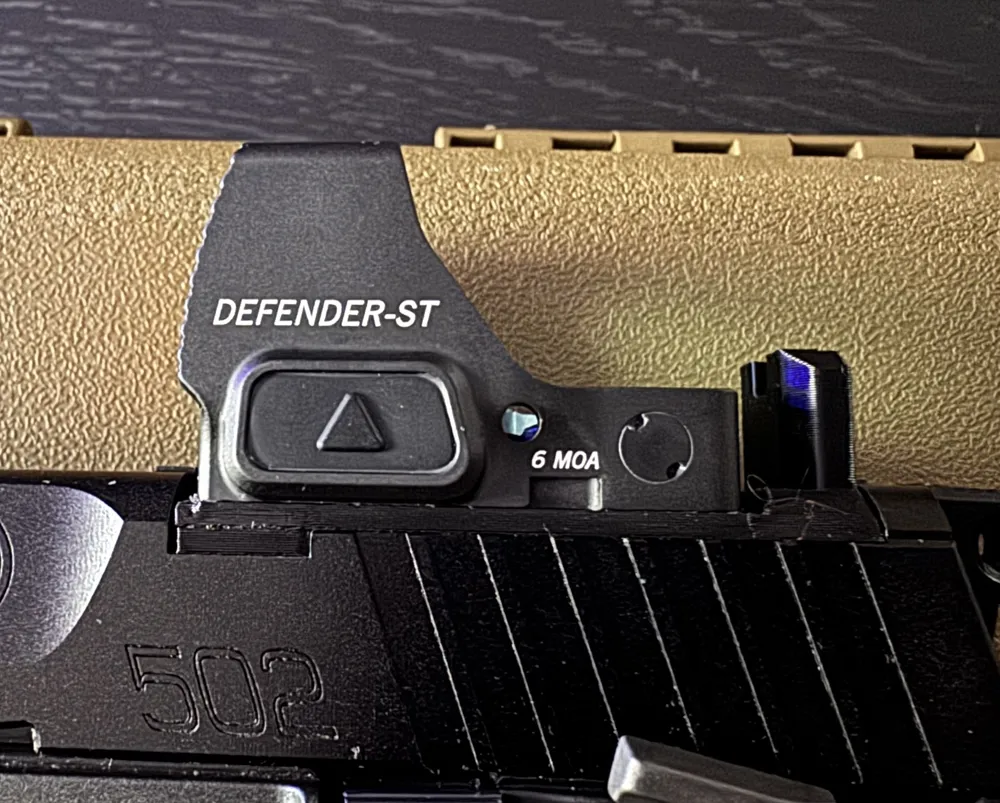

This is a two-piece adapter plate designed to mount a Vortex Defender ST red dot sight onto the FN 502 pistol slide. The design prioritizes alignment, rigidity, and repeatable mounting when assembled correctly.

Design Overview

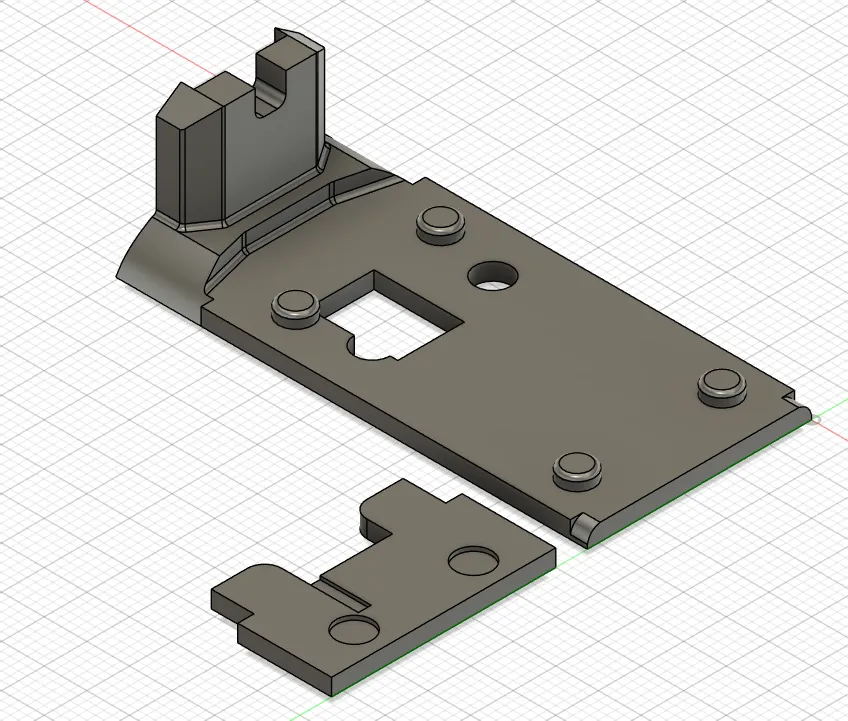

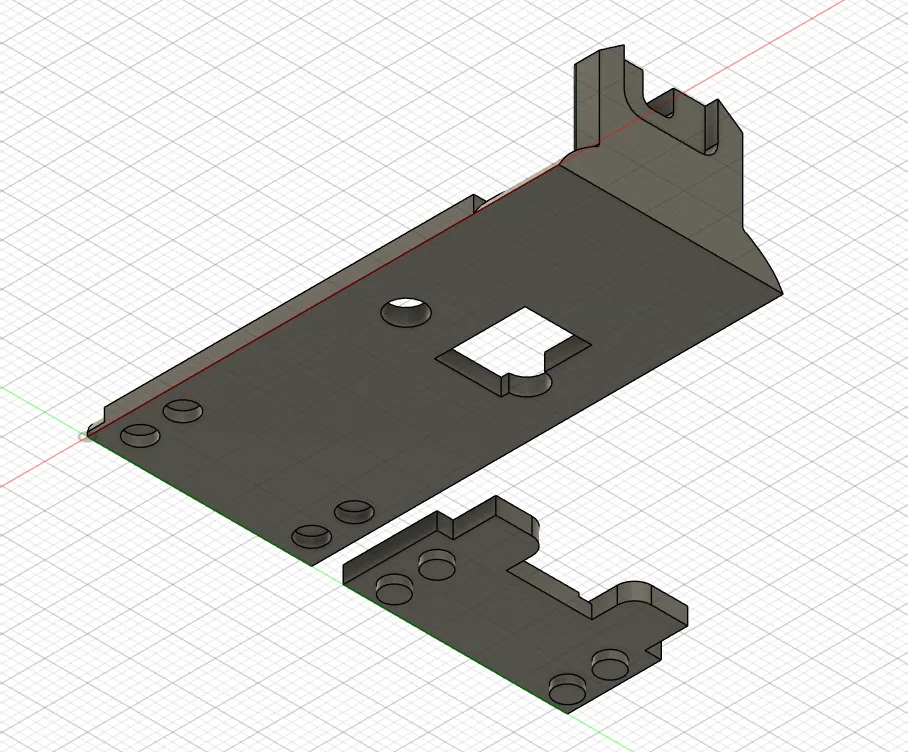

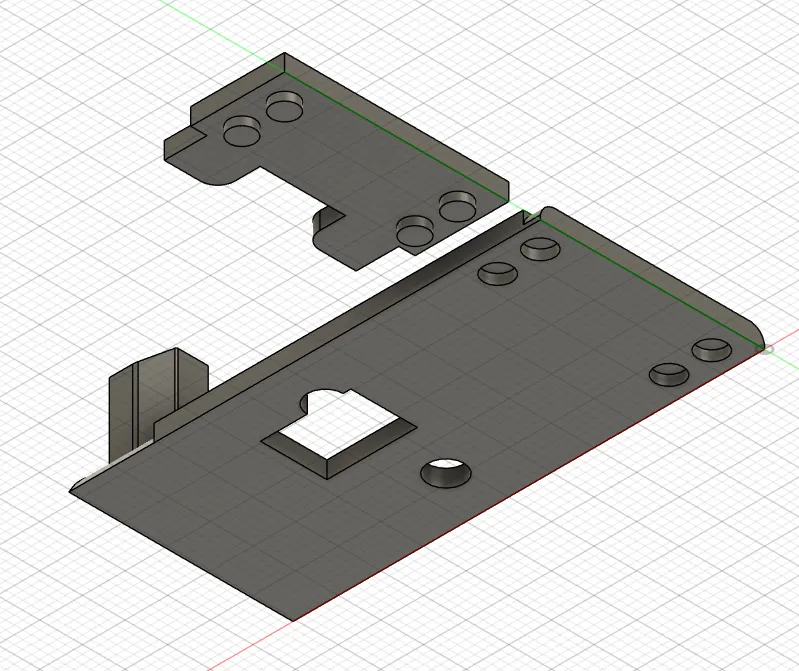

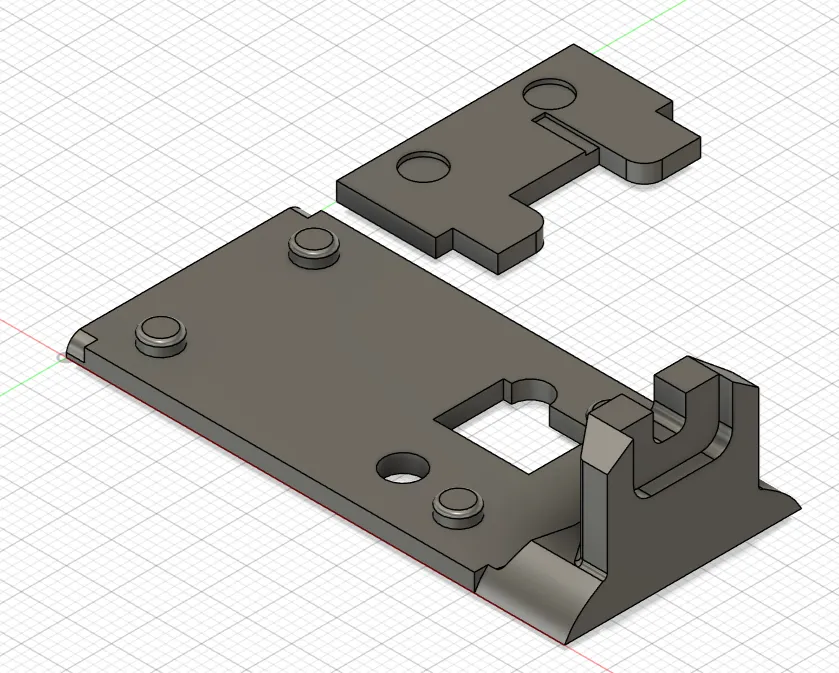

• Two-part construction:
  The adapter consists of two separate printed components that must be bonded together prior to mounting.
• Snap-fit alignment:
  The smaller component is designed to snap into place on the main body. When fully seated, the corners should be flush, confirming correct alignment.
• Fitment check (required):
  Before applying any adhesive, it is strongly recommended to dry-fit both parts and verify:
  • Proper snap engagement
  • Flush corners
  • Correct overall fit on the slide
    Proceed with adhesive application only after confirming proper fitment.
• Adhesive bonding required:
  For best performance, the two parts should be permanently joined using a high-strength adhesive.
  During development and testing, Henkel Loctite 444 was used, and the assembly was left undisturbed until the adhesive was fully cured before mounting the optic.
• Adhesive application recommendation:
  • Apply a small dab of adhesive in all four snap holes
  • Apply a thin bead down the width of the part to ensure proper wetting
  • A small amount of squeeze-out is expected and desirable
  • Any excess adhesive can be wiped away with a Q-tip or similar applicator
• Proper curing of the adhesive is critical to overall strength and durability.

Hardware Requirements

• Mounting screw:
  • Thread: 6-40
  • Length: 12.7 mm
• This specific screw length is required for proper engagement when used with this adapter plate.

Printing & Material Notes

• Demonstration material:
  • PLA
  • 100% infill
• The PLA test mount successfully completed 100 rounds of live-fire testing and remained solid throughout.
• Recommended filament:
  • Glass-fiber-reinforced nylon (PA-GF) is strongly recommended for best long-term performance, heat resistance, and creep resistance.
• PLA is suitable for demonstration or testing purposes, but PA-GF is preferred for real-world use.

Testing Results & Known Behavior

• After approximately 100 rounds, carbon dust accumulation was observed on the red dot.
  • This is a normal byproduct of firing and is currently the only known issue associated with this mount.
  • No structural degradation or loosening was observed during testing.
• A photo showing the carbon buildup is provided at the end of the image gallery for reference.

Important Disclaimer

This model is provided as-is.
By downloading and using this design, you acknowledge that:

• All responsibility lies with the user
• The designer is not liable for any damage, failure, injury, or loss resulting from:
  • Mounting the optic before the adhesive has fully cured
  • Improper printing or material selection
  • Failure to confirm proper fitment prior to adhesive application
  • Hardware mismatch
  • Optic damage or separation from the mount
  • Any other misuse or deviation from recommended assembly

Use at your own risk, and ensure all components are properly assembled, cured, and secured before use.
