SCX24 - Unimog Body

Mercedes Benz Unimog body with bed for SCX24. Its printed in 2 parts and has to be glued together (using 2 adhesive strips to wrap around each sideskirt can make alignment a lot easier).

I've added a bed with cutouts for 4WS and removed a lot of unnecessary material from the cab to get the weight down and have a comparatively competitive body for it being 3d printed, model weight is 62g.

Body dimensions are 211mm * 94mm * 83mm and scaled to 50%/50%/47%. There are unscaled and uncut versions in stl and step added.

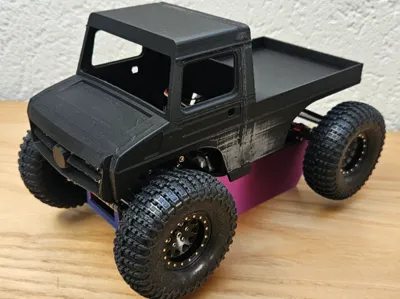

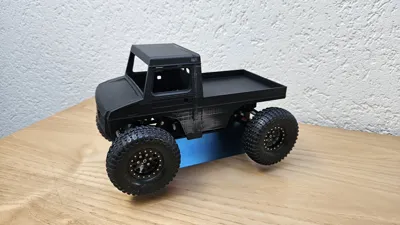

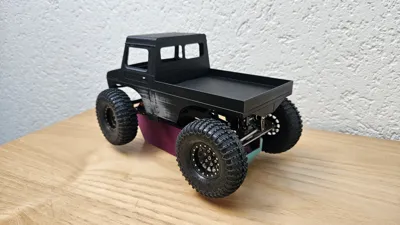

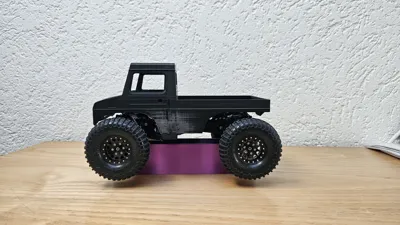

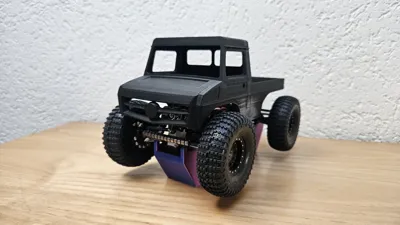

The build in the pictures has a 153mm wheelbase with 4WS for reference but the body also fits on shorter/standard 133mm wheelbase, i've used it on a 153mm wheelbase for better approach and departure angles.

No mounting solutions provided, i think every build requires a custom solution anyway depending on how your chassis is build, i've used little custom spacers for glueing magnets to the body.

Added Fusion 360 files in case anyone wants to change something.

This is a remix of “Meuh974” and his “1/10 Unimog body U5023 & U1600” found here: https://www.thingiverse.com/thing:4329432

Print Settings

• Material: Sunlu PLA+ Black
• Nozzle Size: 0.4mm
• Layer Height: 0.12mm
• Walls: 3
• Top Layers: 5
• Bottom Layers: 5
• Infill: Gyroid, 8%
• Seam Position: Random
• Wall Generator: Arachne
• Supports: Yes, Tree, on buildplate only
• Raft: No
