Profilo 0,2 mm standard senza supporti, l'unica differenza è:trama riempimento superiore: concentrica.

Standard 0.2 mm profile without supports, the only difference is:top infill pattern: concentric.

0.2mm layer, 2 walls, 15% infill


Patrbk21


0.2mm layer, 15% infill - 2 PLATES, 2 COLORS FOR P1 ET X1

Handle Pieces (painted)

Rollers

Spacers and Assembly Pins


Ooze Control Creations




Print Plates Pic.PNG

Printed Plates Pic.JPG



I split the original model into separate objects, and made some minor tweaks on a per-object basis. I modified number of wall loops, gyroid infill percentages, and layer heights to help strengthen the functionality of this massage tool when printed with PLA (I usually &#34;dig in&#34; pretty hard with these kinds of self-care tools), and to help get a nice surface quality on the curvature of the handle. I did 3 separate print plates on my A1 (textured PEI plate setting), with 3 different colors of PLA (including a single filament swap and color change on the handle parts near the end of their print using AMS lite, just to add some additional contrast). I also used Bambu&#39;s “support for PLA” filament on the handle parts as the support filament interface, which worked out well. This profile includes all those adjustments I used to get the results I uploaded in the profile pics.&nbsp;The object-modified settings I used and uploaded in this profile are listed below, and when this profile is downloaded and opened in the slicer software, any of them can be easily further adjusted if necessary. Print speeds, travel speeds, and accelerations have all been reduced some as well (I find the speed settings I&#39;ve used and uploaded help with getting consistently great outer surface quality for mostly anything).&nbsp;Handle Pieces (plate 1, textured PEI plate settings) <ul><li>0.14mm layer height (0.20mm base layer)</li><li>Matte PLA (black) with Basic PLA (white) for the small painted section</li><li>5 Wall Loops with 22% Gyroid Sparse Infill</li><li>Slim Tree Supports used with Bambu&#39;s “Support for PLA” filament selected for the support interface (with the default support setting adjustments that follow)</li><li>Concentric Top Surface Pattern</li><li>0.11mm Elephant Foot Compensation</li></ul>Note: This plate 1 with handle pieces won&#39;t work on A1 mini due to added tree supports slightly exceeding depth of A1 mini plate size, but you could turn those off if you don&#39;t feel they are necessary, and it should then work on A1 mini (like designer&#39;s original).&nbsp;Rollers (plate 2, textured PEI plate settings):<ul><li>0.16mm layer height (0.20mm base layer)</li><li>Basic PLA (blue)</li><li>4 Wall Loops with 20% Gyroid Sparse Infill</li><li>No supports used</li><li>Concentric top surface pattern (one wall on top surface turned off)</li><li>0.09mm Elephant Foot Compensation</li></ul>&nbsp;Roller Spacers (plate 3, textured PEI plate settings):<ul><li>0.16mm layer height (0.20mm base layer)</li><li>Basic PLA (white)</li><li>3 Wall Loops with 15% Gyroid Sparse Infill (there isn&#39;t any sparse infill, they&#39;re completely solid)</li><li>No supports used</li><li>Concentric top surface pattern</li><li>0.10mm Elephant Foot Compensation</li></ul>Assembly Pins (plate 3, textured PEI plate settings):<ul><li>0.16mm layer height (0.20mm base layer)</li><li>Basic PLA (white)</li><li>4 Wall Loops with 20% Gyroid Sparse Infill (there isn&#39;t any sparse infill, they&#39;re completely solid)</li><li>No supports used</li><li>Default top surface pattern (monotonic line)</li><li>Default Elephant Foot Compensation (any little extra width at the base of these will just help the pins fit tightly)</li></ul>

Extra Strength for PLA, 3 Plates, 3 Colors, Varied Settings

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

Ho creato uno strumento per massaggi più grande possibile che entrasse in un unico piatto sulla A1 Mini. La stampa è senza supporti.Per l&#39;assemblaggio inserire le ruote nei perni con l&#39;ordine:piccola, grande, piccola…e così via,poi basta inserire i pin nei rispettivi buchi ed unire le due metà. L&#39;assemblaggio non dovrebbe richiedere colla in quanto le tolleranze sono strette.Buona stampa!

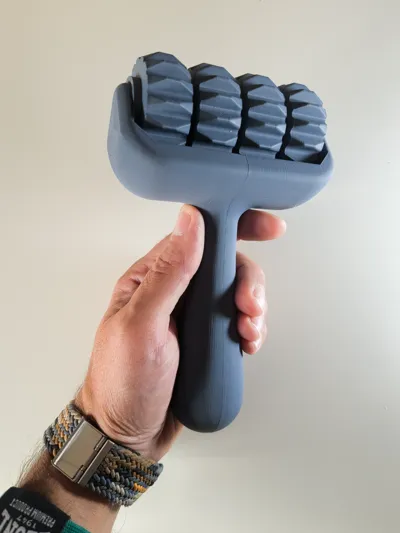

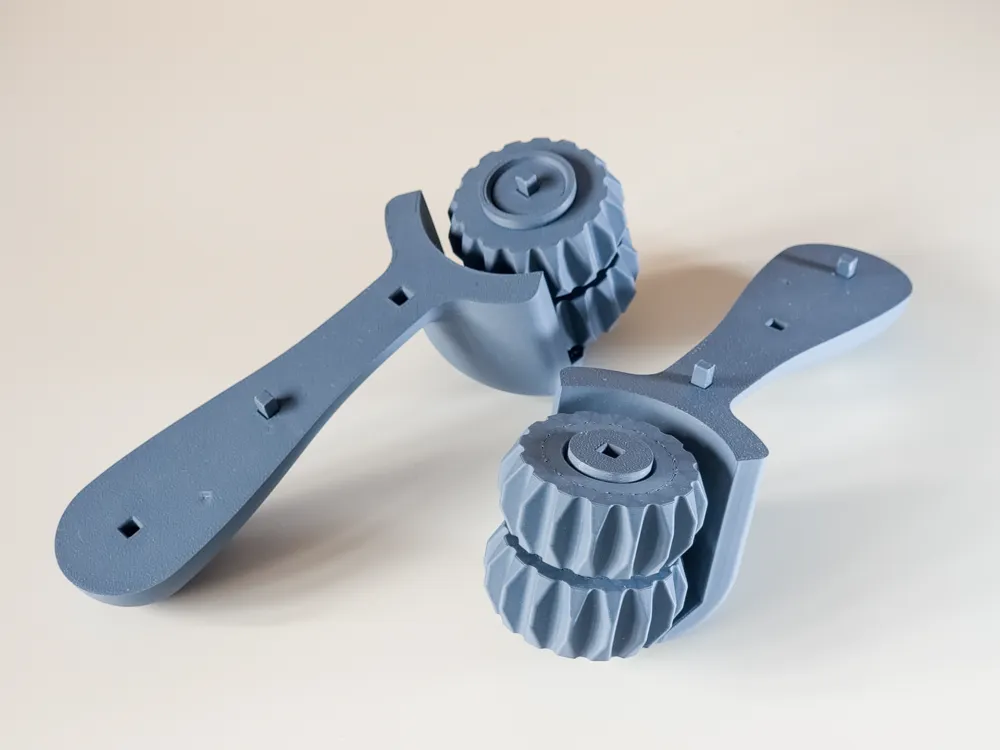

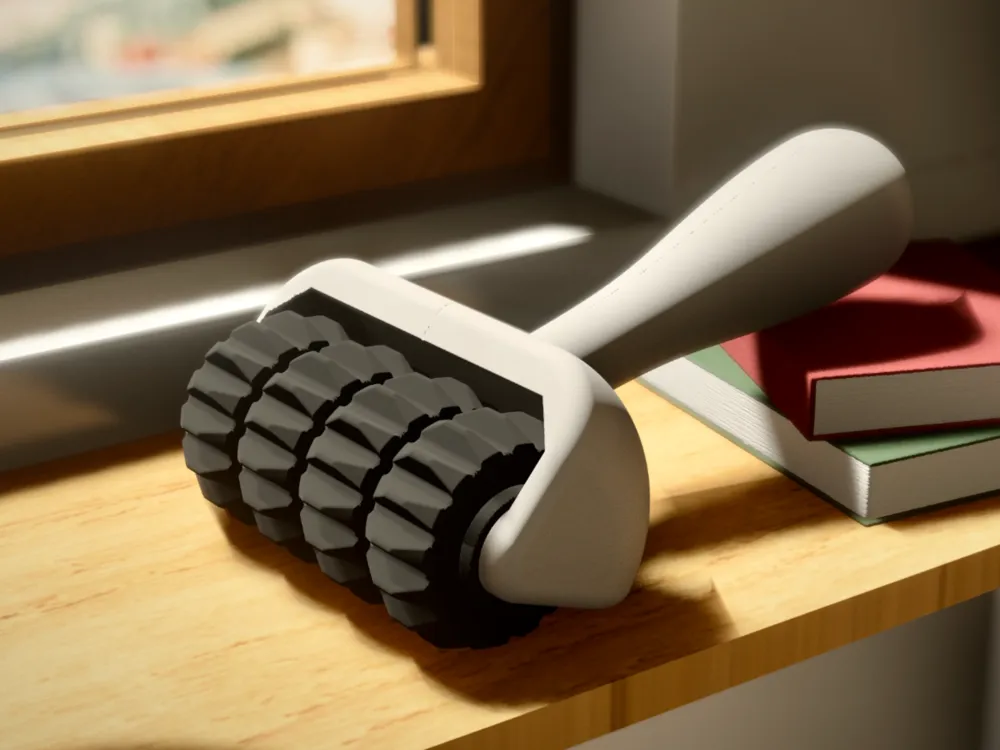

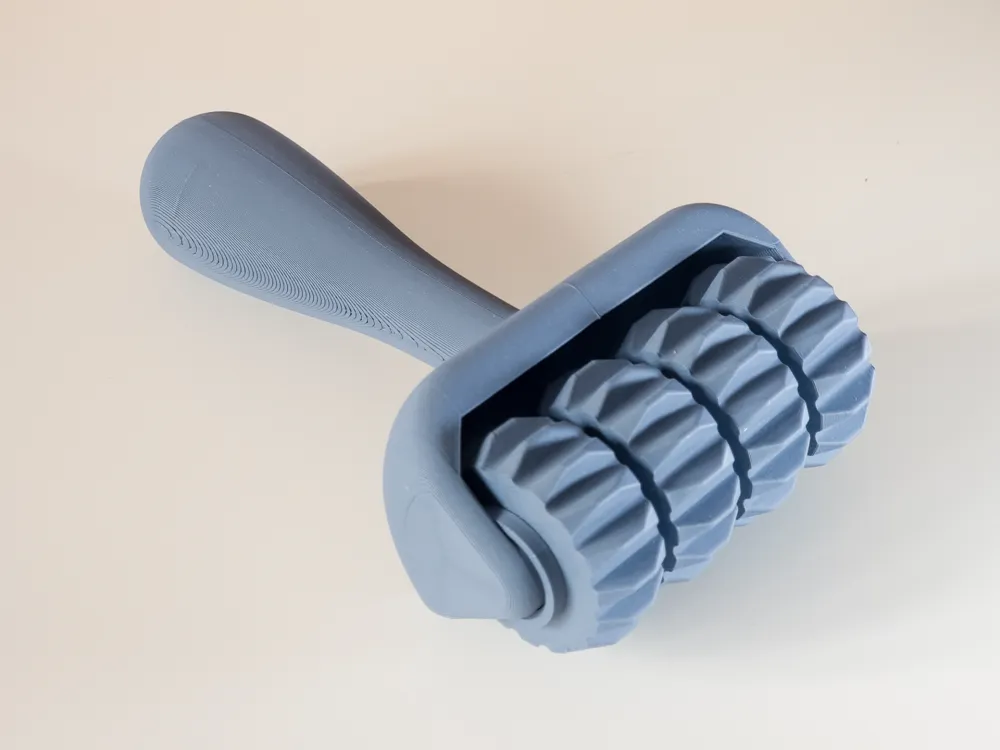

I have created a massage tool, the largest possible that would fit on a single plate on the A1 Mini. Printing is support free.For assembly, insert the wheels into the pins in the order:small, large, small...and so on,then simply insert the pins into their respective holes and join the two halves. Assembly should not require glue as the tolerances are tight.Happy printing!
