Pleated blind cord holder tension clip reinforced replacement
Print Profile(1)
Description
Description

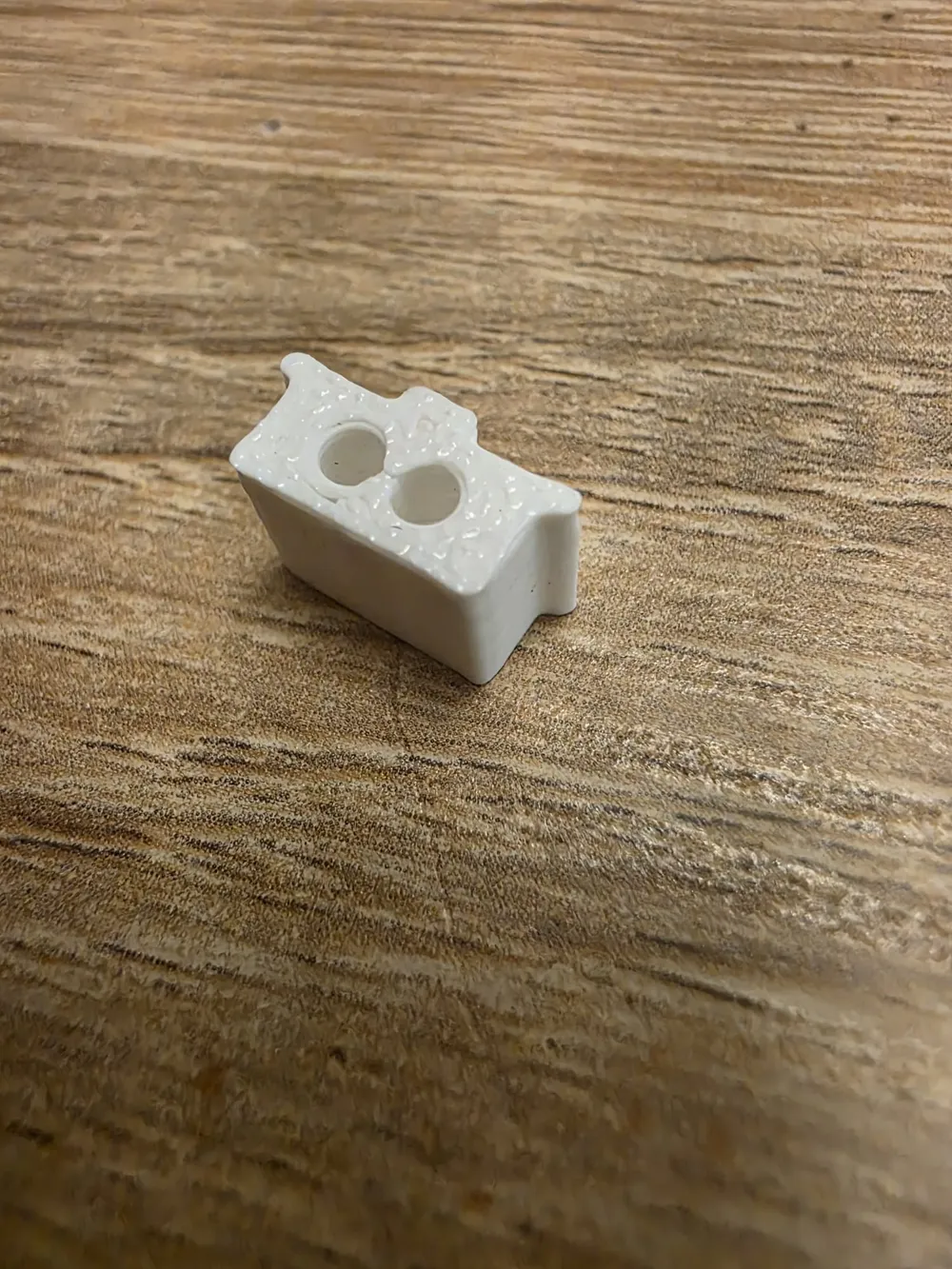

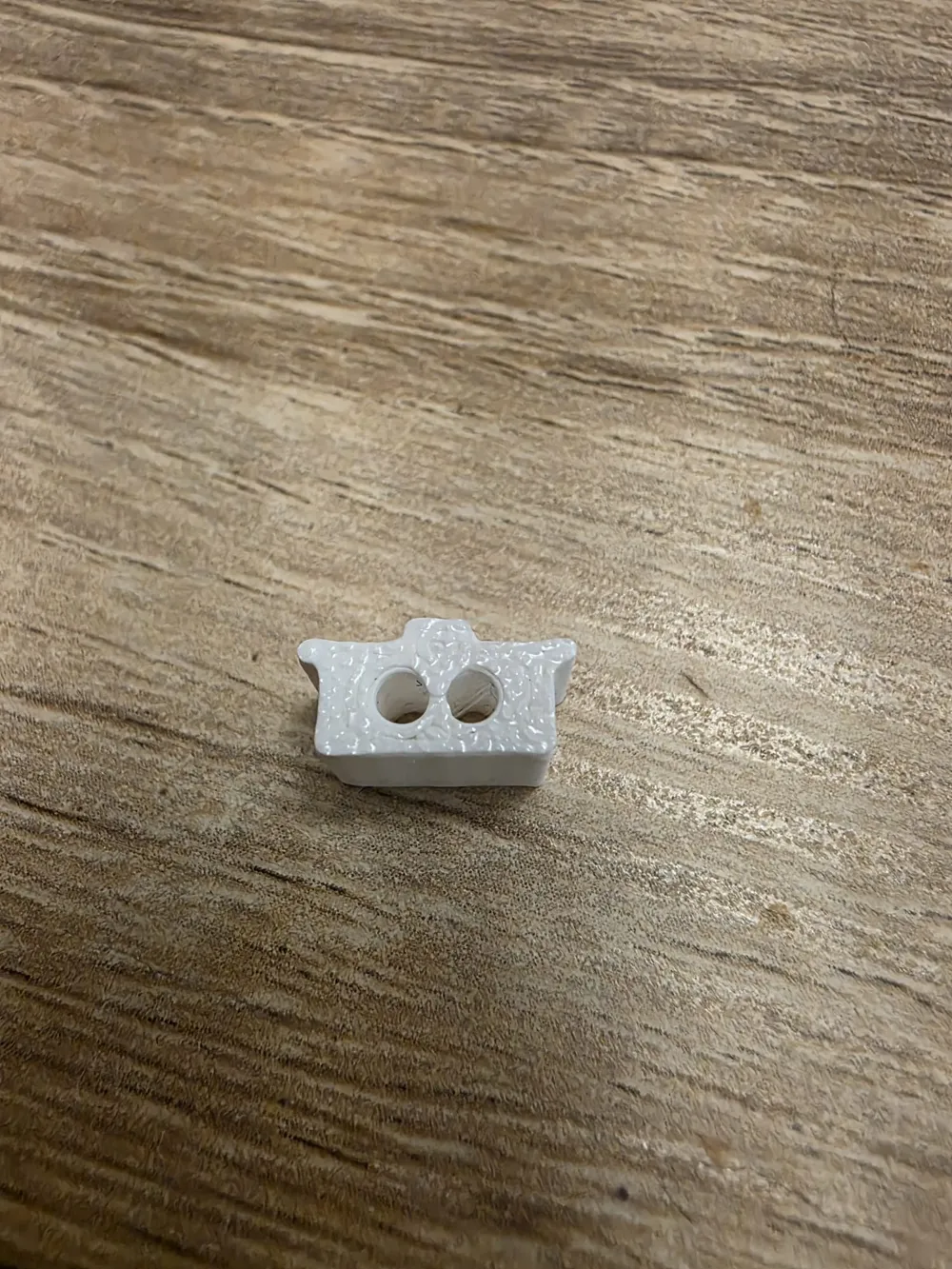

This model is a cord holder / tension clip for pleated blinds, which I newly designed in Fusion 360

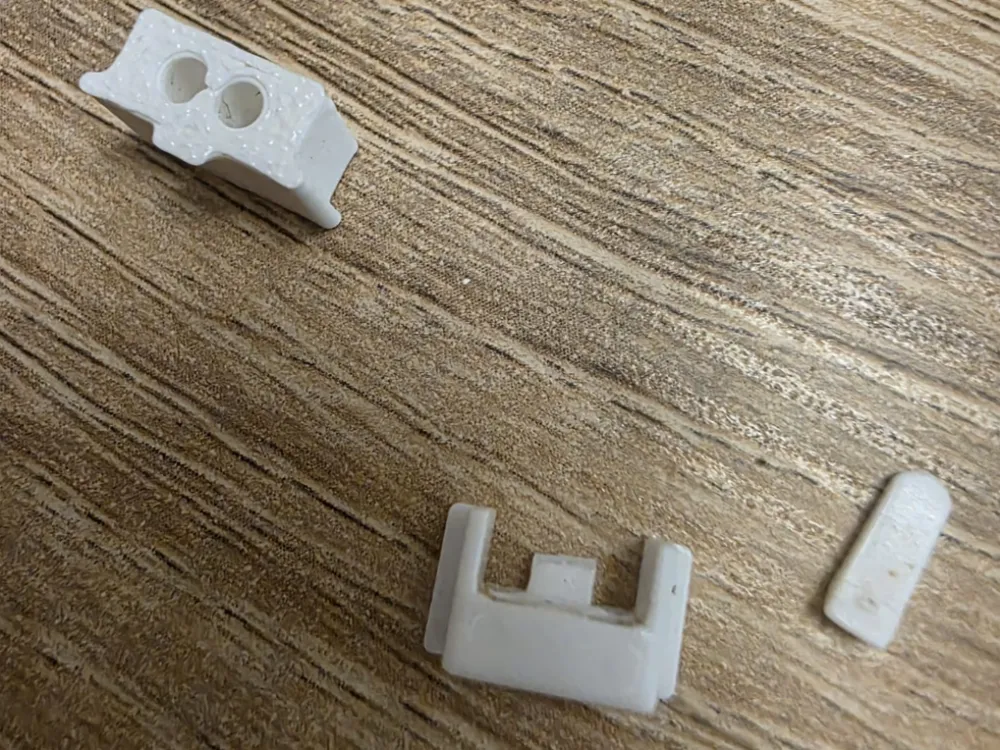

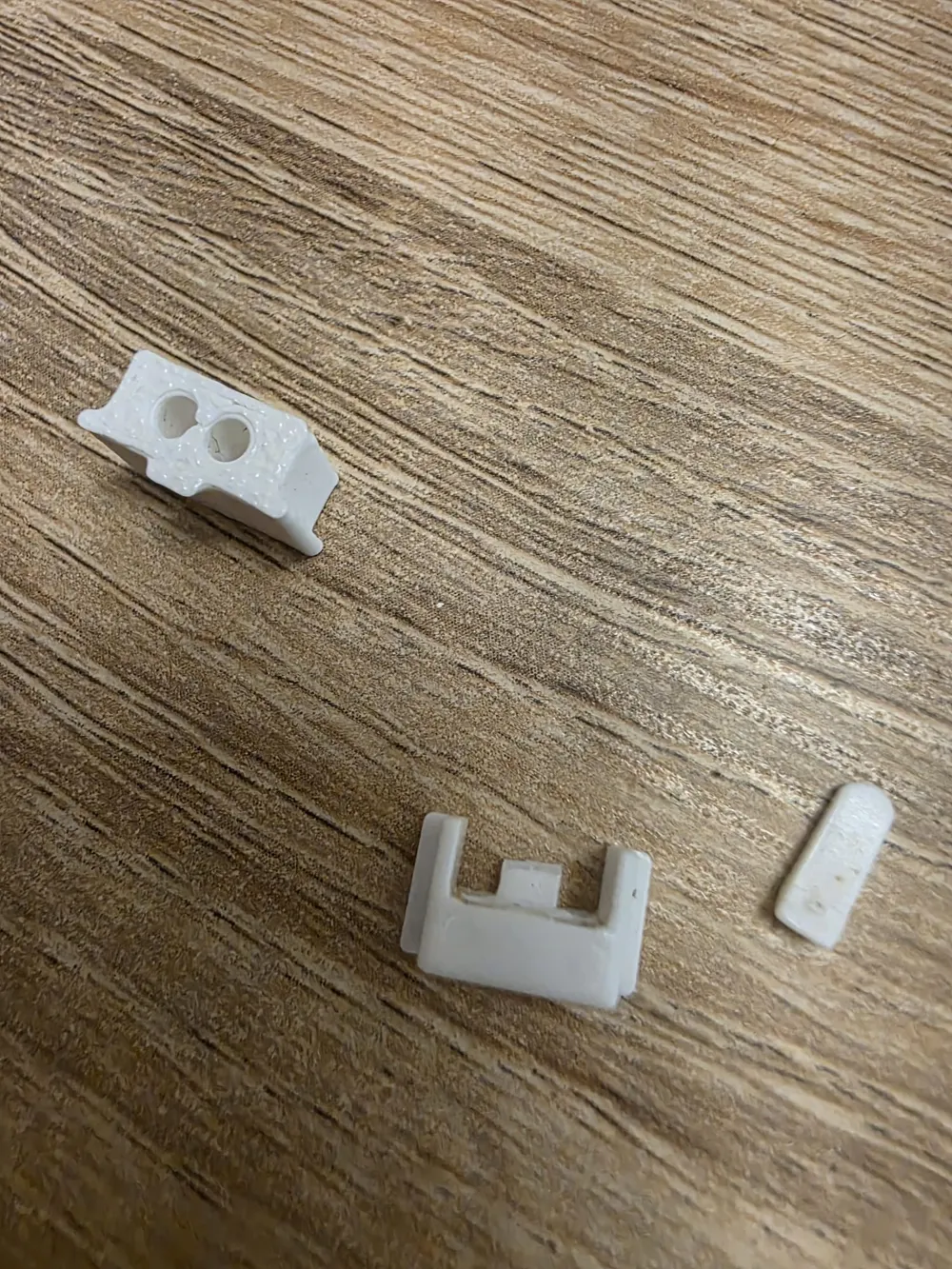

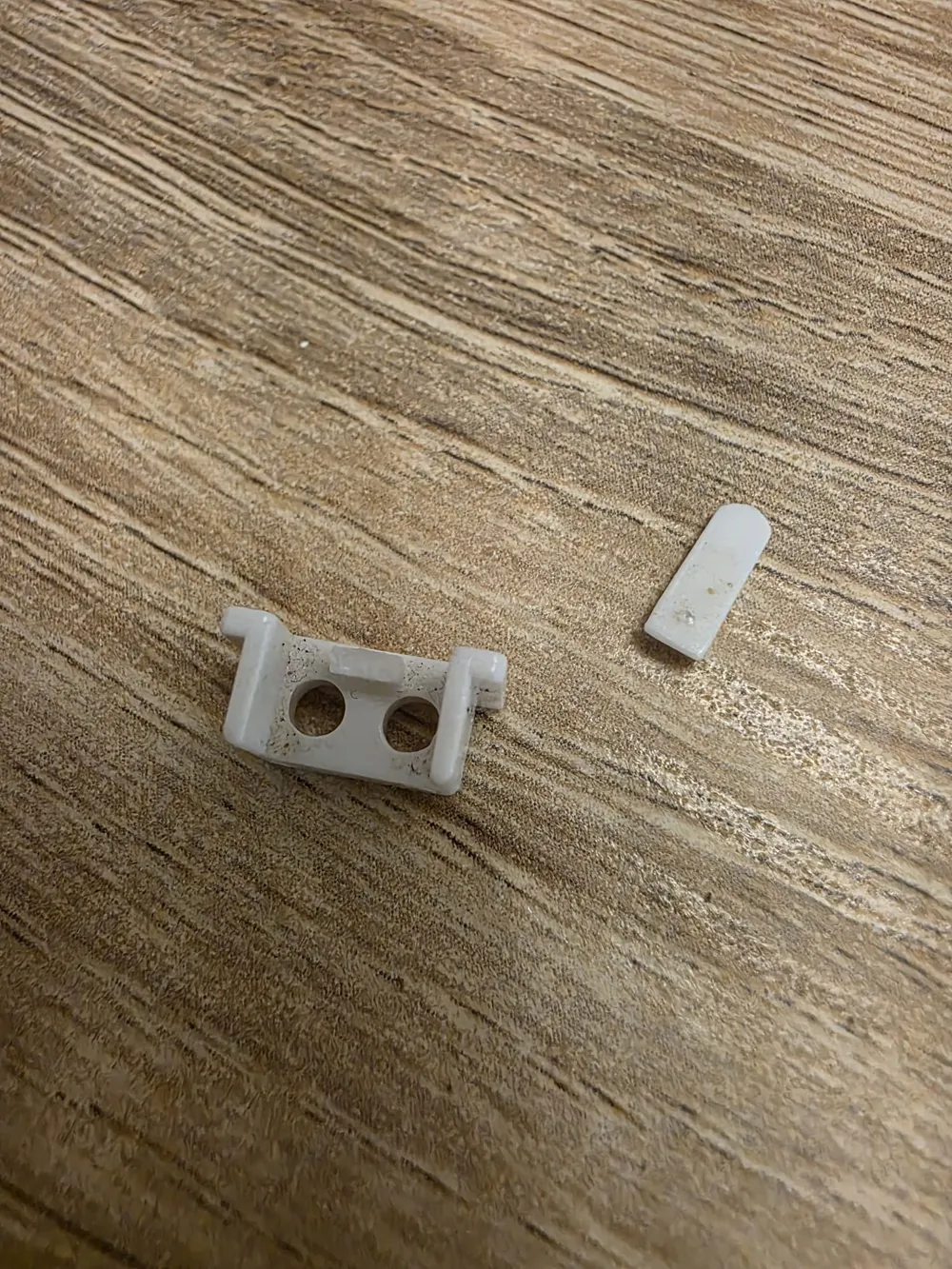

The original plastic part was damaged
This version has been mechanically reinforced, but retains the original function and fit and can be directly clipped into the existing rail
This part is not a sliding or deflection guide
The cords are threaded through once, tied firmly, and then tensioned
After clipping in, the cord no longer runs through, but remains permanently fixed and tensioned
Installation & Function

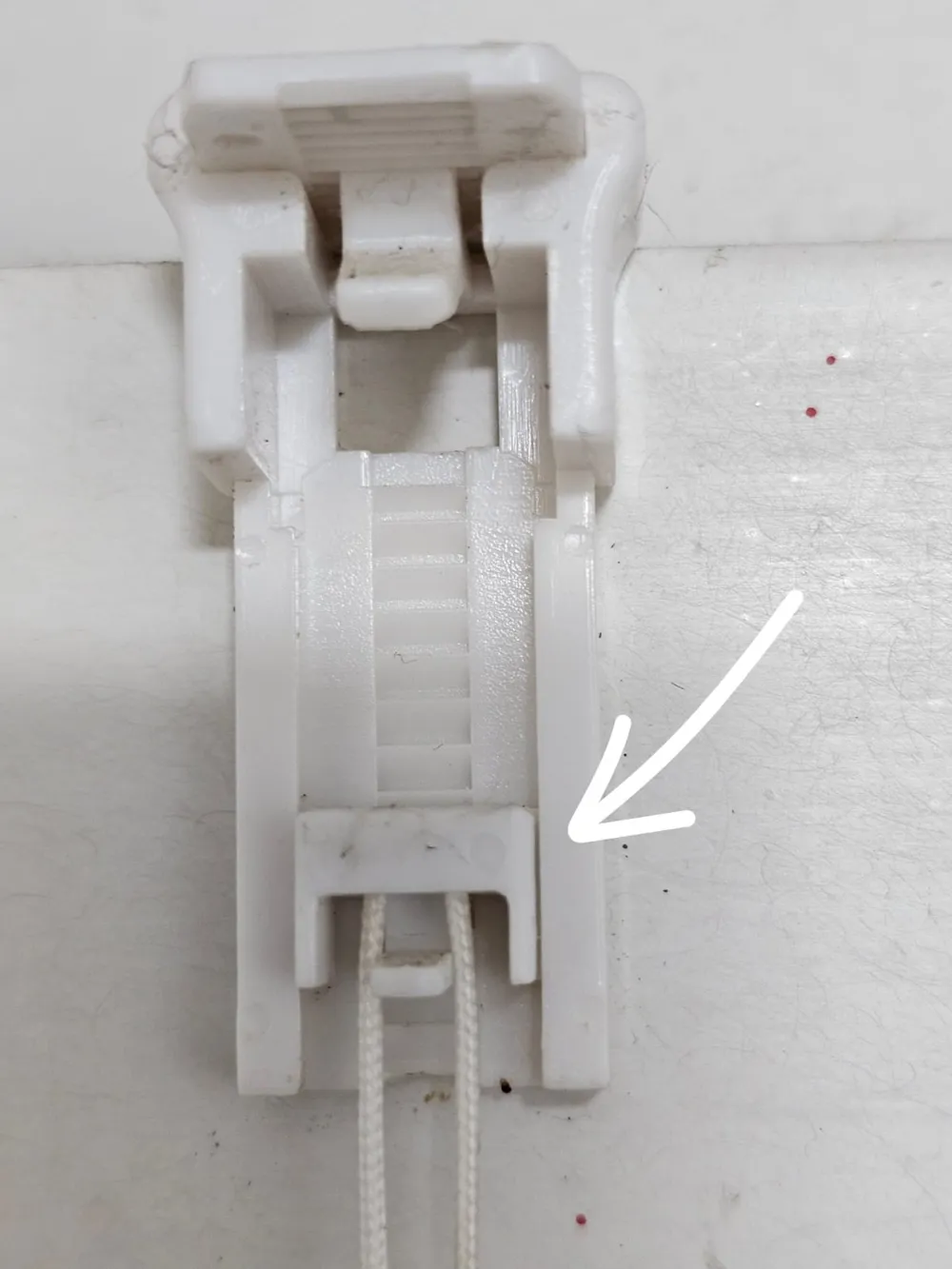

- Use in the side guide rail of the pleated blind
Cords are:
- fed through the two openings
- firmly knotted

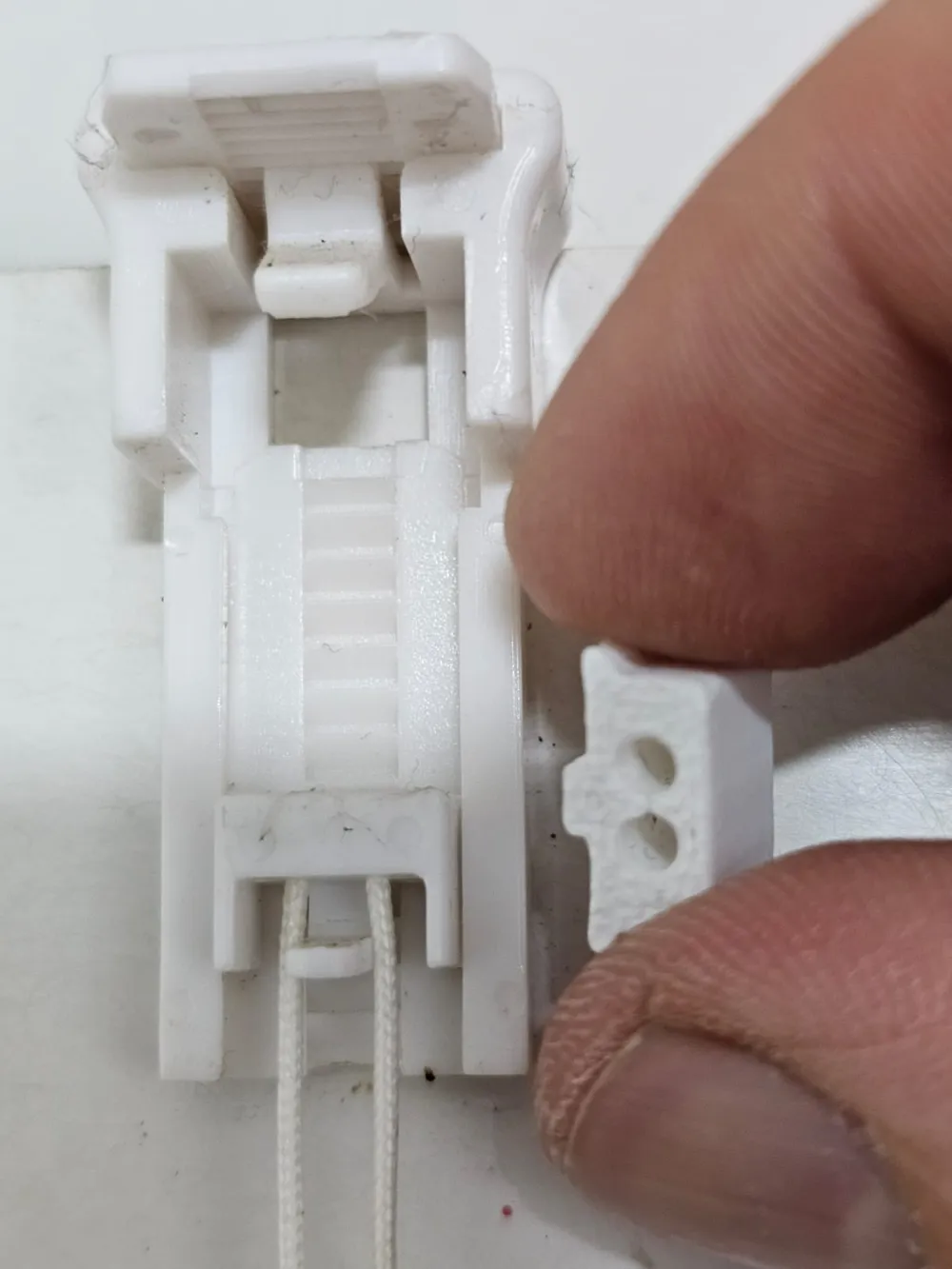

- tensioned by clipping in the part
- After assembly, the cord remains fixed
The part must be inserted so that the wedge / slope points upwards, as this is the only way to ensure correct tensioning and holding function
Improvements over the Original
- Reinforced wall thicknesses in stressed areas
- Higher stability with tensioned cord

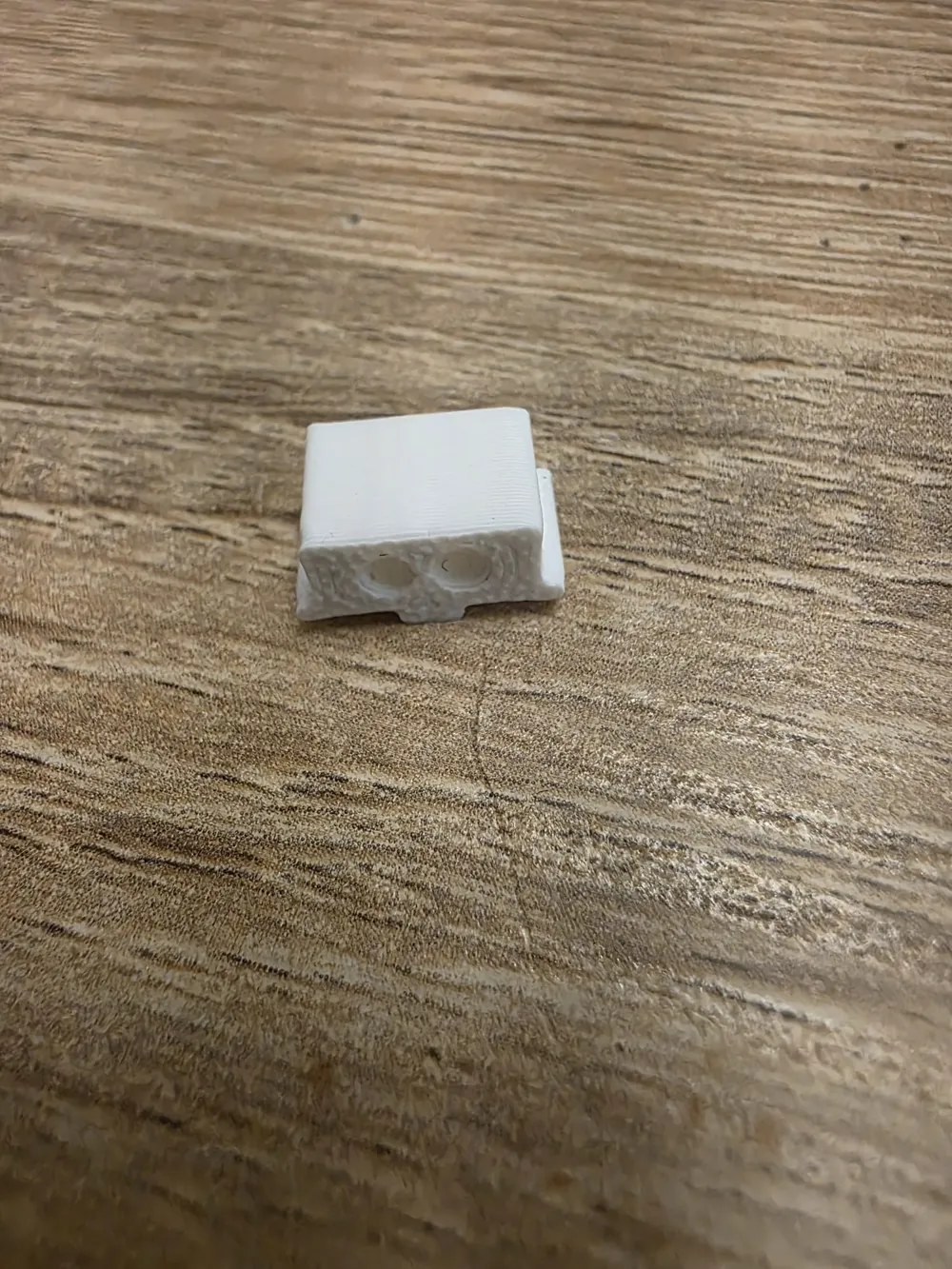

- Optimized geometry for 3D printing
- No support needed
Note
There are different pleated blind systems and manufacturers
Please compare the dimensions with the original part before printing
Use is at your own risk
