Aqara Magnet Riser
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
19 min
1 plate
Open in Bambu Studio
Boost
0
7
0
0
0
0
Released
Description
Content has been automatically translated.

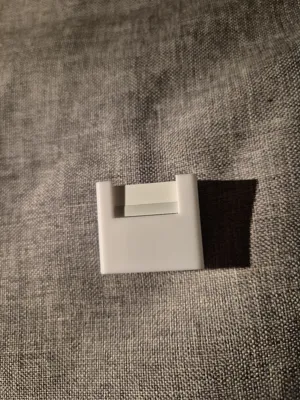

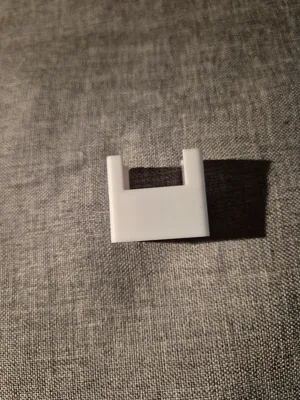

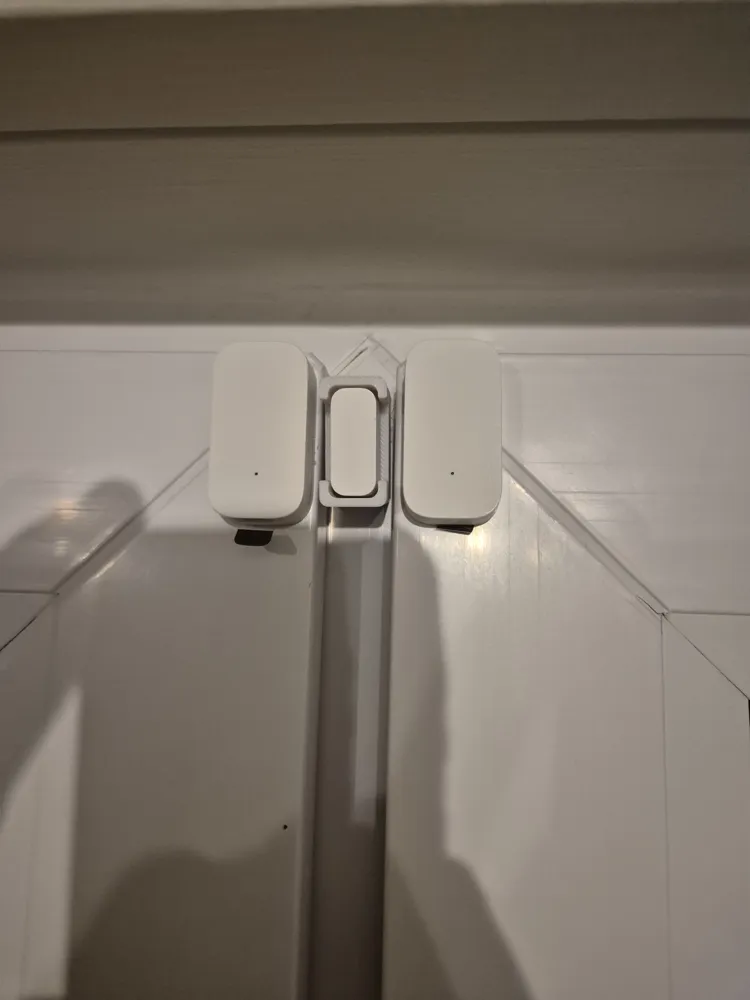

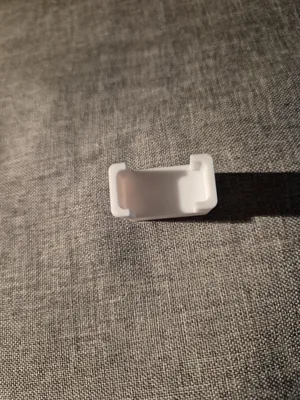

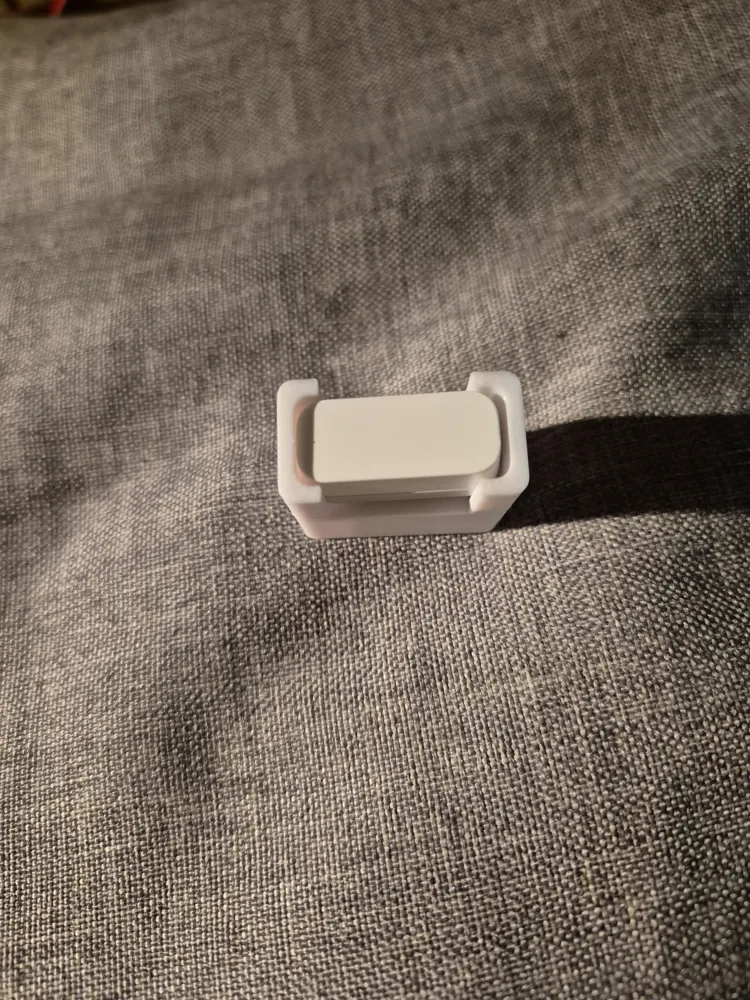

This is a riser for the magnets of Aqara window contacts. This makes it easier for the sensor to detect the magnet, as both the magnet and the sensor are now at the same height. At the same time, this has the advantage that you only need to install 1 magnet and 2 sensors on a double window to monitor both sides. (Of course, this only applies as long as the distance isn't too far and the magnet can still activate the sensor).
Printed with:
P1S
Tinmorry PLA White
0.4mm Nozzle (Standard)
0.2mm Layer (Standard)
Supports are not needed
A FreeCAD file is also available for those who want to change the dimensions.
Aqara Riser developed for: https://www.amazon.de/dp/B09TP7VMKB?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1&th=1
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
