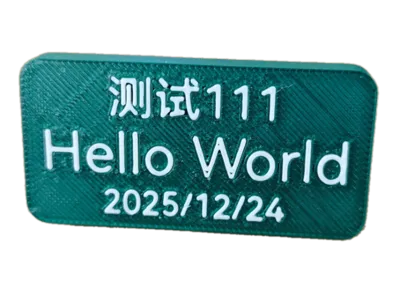

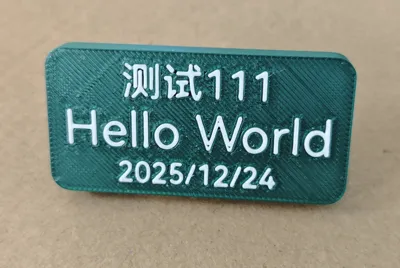

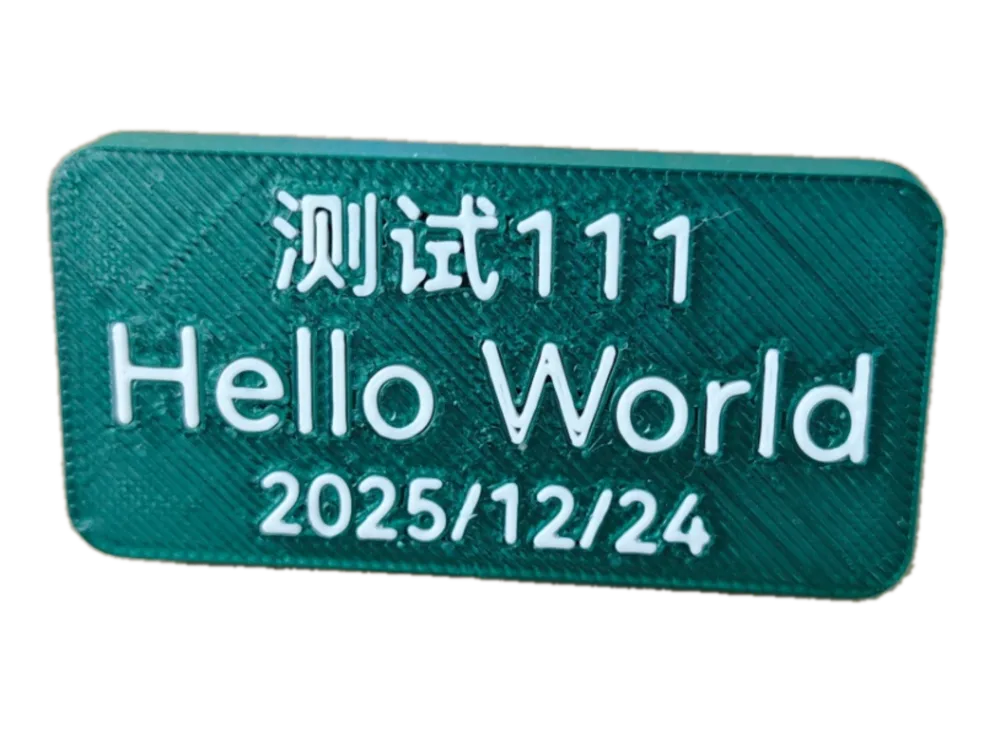

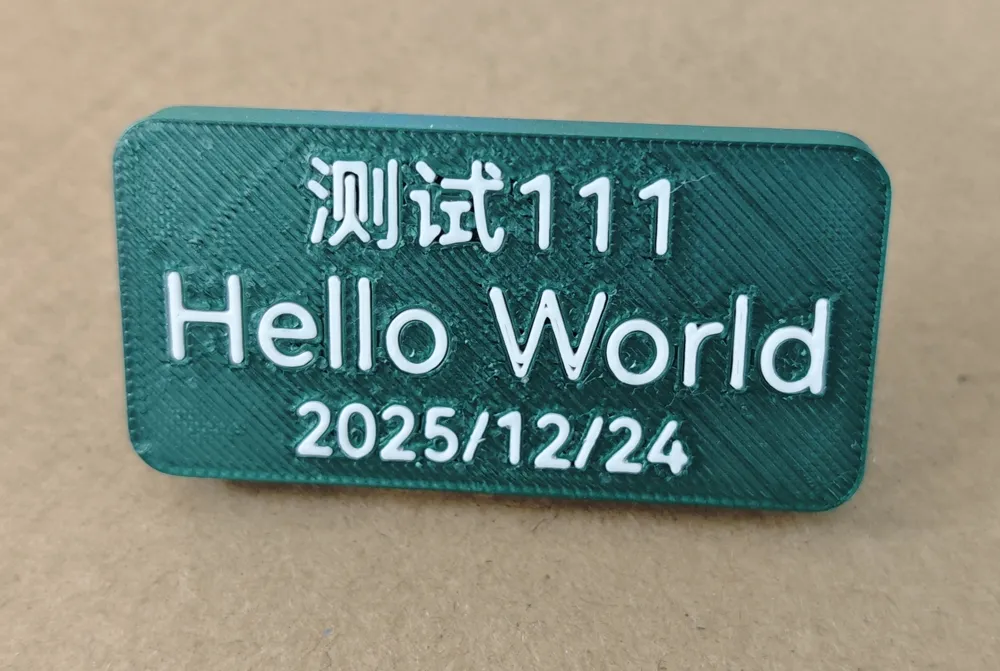

Customizable content - Parametrically generated Print in Place standee
Print Profile(1)
Description
Instructions:
Parameter Instructions:
1.Read the parameter description before modifying parameters
2.If the model generation has issues or missing parts, it might be caused by the limiting formula. It is recommended to modify the parameters or leave parameter screenshots and generation screenshots in the comments section. PS: Error log output will be added later

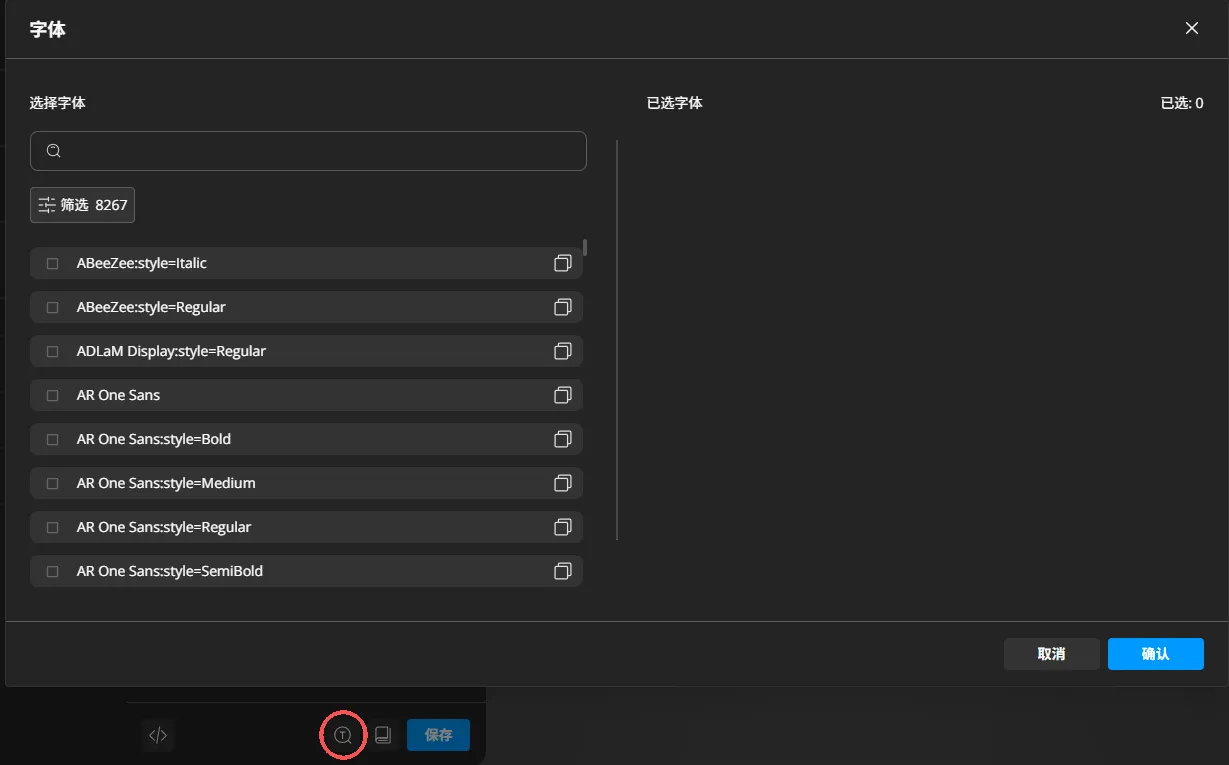

3.For fonts, it is recommended to check MakerLab's font library as shown below. Some fonts may not support Chinese! (PS: Mainly because I don't know what parameter to fill to use MakerLab's built-in font library)
4.Font size that is too small may cause gaps at text corners or isolated areas, which might be left empty during printing
Printing Instructions:
1.Turn off supports!!!
2.When changing colors, do not use the split tool to split; simply modify the filament in the filament list
3.Surface ironing can be used to improve the visual effect of the surface
4.Text that is flush, recessed, or extruded relative to the top surface will have different visual effects, everyone is welcome to try them out
Usage Instructions:

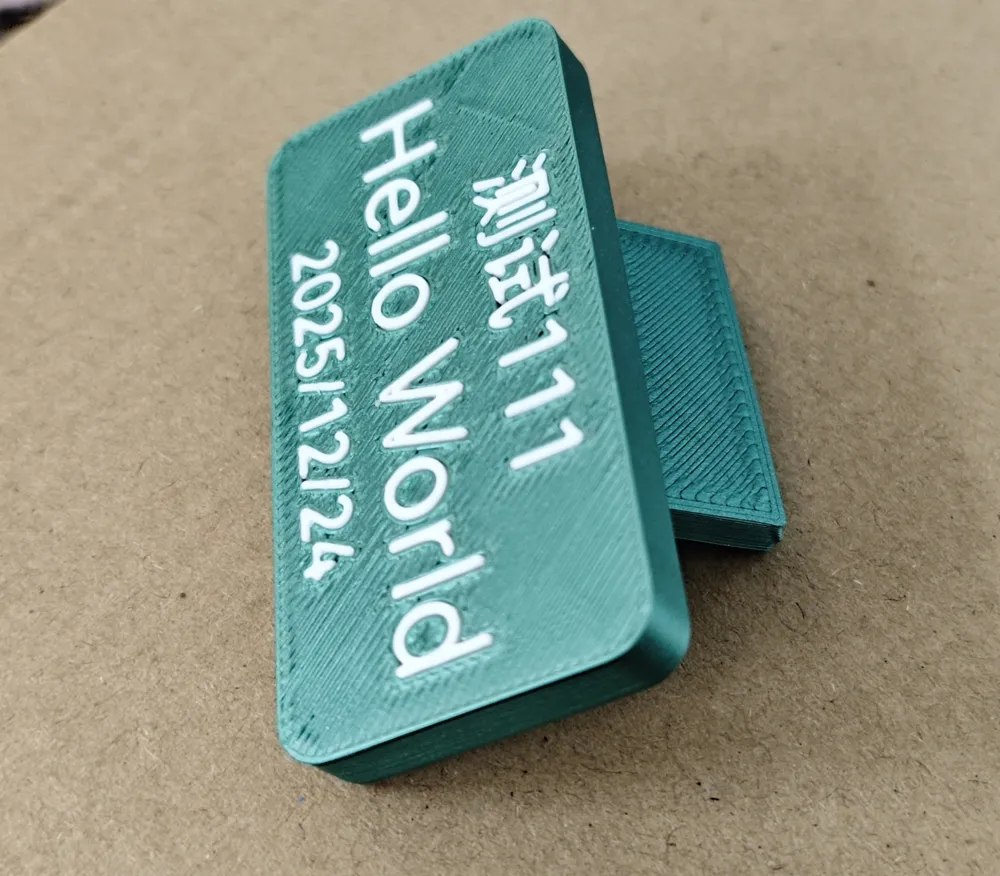

1.Pry open the support plate, swing it to the desired angle, or glue it to a specific angle. It's not recommended to swing it too many times, as the pivot will loosen and it won't stay fixed
Other:
Notes:
0.0Initially, it was made with Fusion360, but importing Fusion360 files into MakerLab currently does not support text parameter modification, so I had no choice but to write it using OpenScad. This software is incredibly difficult to use, and I encountered many pitfalls before I could complete it.
0.1I will continue to improve the code later. Once it's more stable and the unreasonable parts are sorted out, I will open source the code. Everyone is also welcome to test it and share pictures. If there are any issues, please provide feedback in the comments section, and I will try my best to fix and optimize it when I have time
Update Log:
1.2025.12.25: V1.0 released
